Reflekter™ XL | Black | Disc Monopoint
Reflekter™ XL | Black | Disc Monopoint
Couldn't load pickup availability
Downloads
Downloads
- Datasheet | .PDF
- User Instructions | .PDF
- 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
- BIM / Revit Families | .RVT
- Photometric 2700K | .PDF
- Photometric 3000K | .PDF
- Photometric 4000K | .PDF
- Photometric 2700K, 3000K, 4000K | .IES
- Photometric 2700K, 3000K, 4000K | .LDT
- Augmented Reality | .GLB
- View Lookbook 2024 | .JPG
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Black Magic-Paint™
- Weight: 4kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 96.9 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°, UGR
- Accessories: Honeycomb Louvre | Concentric Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural pendant light delivers up to 4750lm and the potential for 'closed loop' Circular Economy. A ⌀360mm 'L' version is also available. Choose from different luminaire optics and accessories, including UGR (Unified Glare Ratio) filters.
Spotify, Autodesk and Google all use Reflekter™ as office lighting, by getting the LED closer to the subject, less product and fewer lumens are required to achieve the same lux level - installations can be faster and running costs lower compared to traditional linear lighting.
Disc-Monopoint is our smallest, most low-profile luminaire mounting. A completely flat, 65mm diameter x 2mm thick circular plate with standard BESA (50.8mm) hole spacings. Fix to conduit box, pattress or surface mount to cable tray, timber, cladding or other suitable material.
Exterior: 'Black' is our Magic-Paint™ finish for larger aluminium components, such as Reflekter™. The colour is deep and flat. Regular paint and powder coatings create seriously harmful pollution and are a major source (some studies say most) of microplastics in the environment. Magic-Paint™ is made from natural materials such as clay and does not contain any plastics, Isocyanates, VOCs or EPA-listed toxic organics.
Interior: Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from regular paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Black Pendant light and Disc mounting to re-use body components for our 'worn' lighting
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines
![A sustainable architectural XL pendant light on a low-profile, flat mounting disc with BESA hole spacings](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-XL-Reflekter-Disc-Monopoint-Black-Hero.png?v=1695864894&width=1445)
![Rows of black architectural pendant lights, lighting up the pedestarian walkway at Battersea Power Station shopping mall](http://factorylux.com/cdn/shop/files/Battersea-Power-Station-Turbine-Halls-Speirs-Major-Retail-9_f897b42b-a818-4884-9960-facb487e686d.jpg?v=1696353912&width=1445)
![Technical drawing of an extra large circular economy pendant light on a low-profle, disc mount with BESA hole spacings](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-XL-Reflekter-Disc-Monopoint-Line-Drawing_1ed6330f-9963-4244-afd3-1c2529aa7be1.jpg?v=1696875286&width=1445)
![Close up of a sustainable black aluminium pendant light for architects, revealing a matte surface texture](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Black-Colour-Texture-Close-Up.jpg?v=1696875286&width=1445)

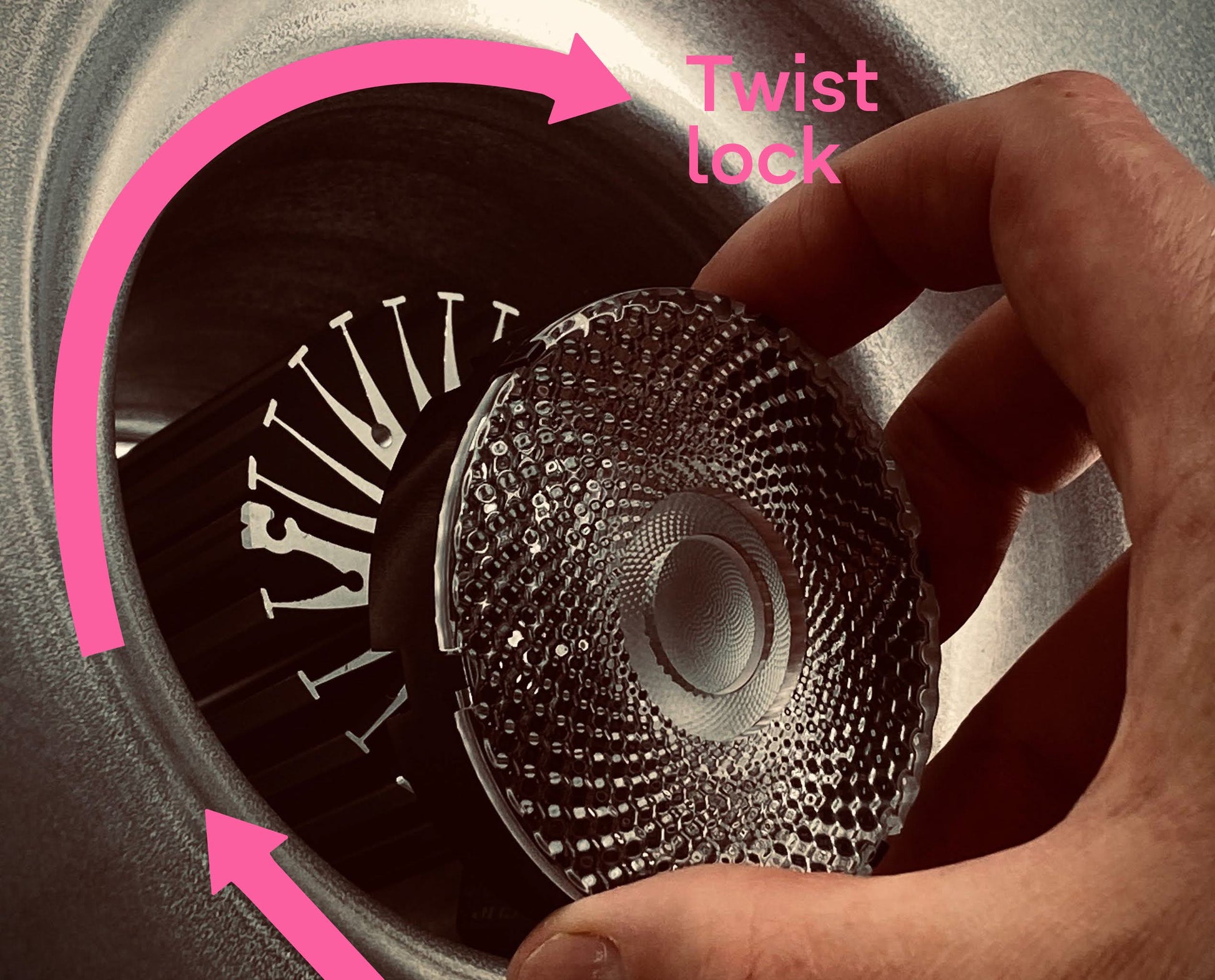

![How to insert the lens into a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Removable-Lens_bfe1705e-161f-4041-b2ed-a01f697e7105.jpg?v=1696875286&width=1445)
![How to attach honeycomb louvre onto a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Honeycomb-Louvre_16cd56dd-0d87-41dd-976c-2b13c02dc9ed.jpg?v=1696875286&width=1445)
![How to install disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Base-Install-Stone-Rumbled_f4679b77-d052-4835-8e00-4665b04685e9.jpg?v=1696875286&width=1445)
![How to install disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Top-Install-Stone-Rumbled_fd05a6c0-9a22-42c1-a1af-7cd6cc33983a.jpg?v=1696875286&width=1445)

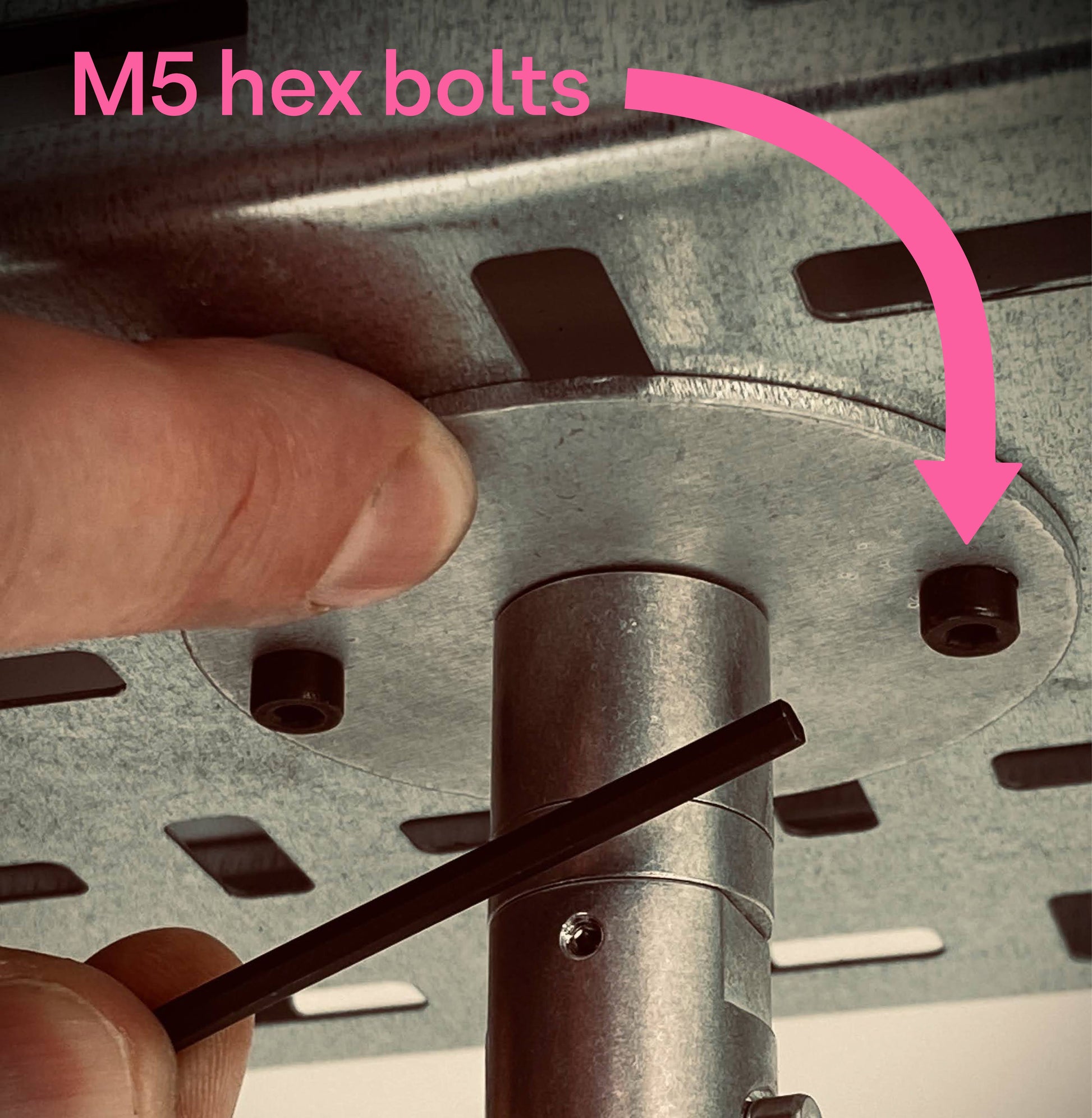

![Installed disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Complete-Install-Stone-Rumbled_6ce96367-65d6-40c5-a3ea-e0af87d05782.jpg?v=1696875286&width=1445)
![Illustration of electrical cable adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Cable-Adjust_f852da02-b271-42d4-a700-1dd43645f149.jpg?v=1696875286&width=1445)

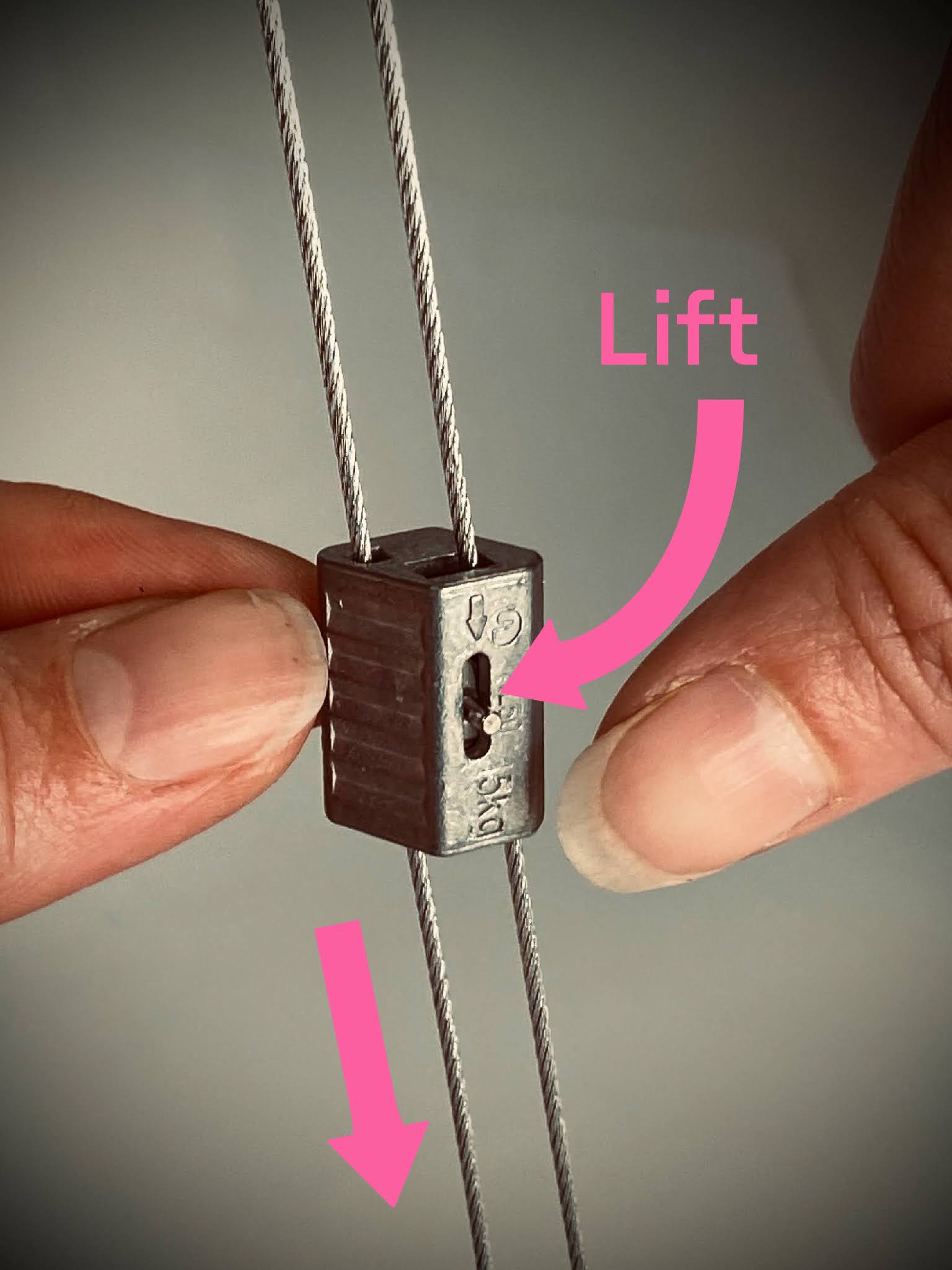

![Illustration of suspension wire adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Suspension-Wire-Adjust_071ec0d6-2545-4101-b0d1-d0f6649b41db.jpg?v=1696875286&width=1445)
![Illustration of suspension wire installation for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Reflekter-Stone-Rumbled-Suspension-Wire_591093b4-3181-4f12-a436-08f740b0cac8.jpg?v=1696875286&width=1445)

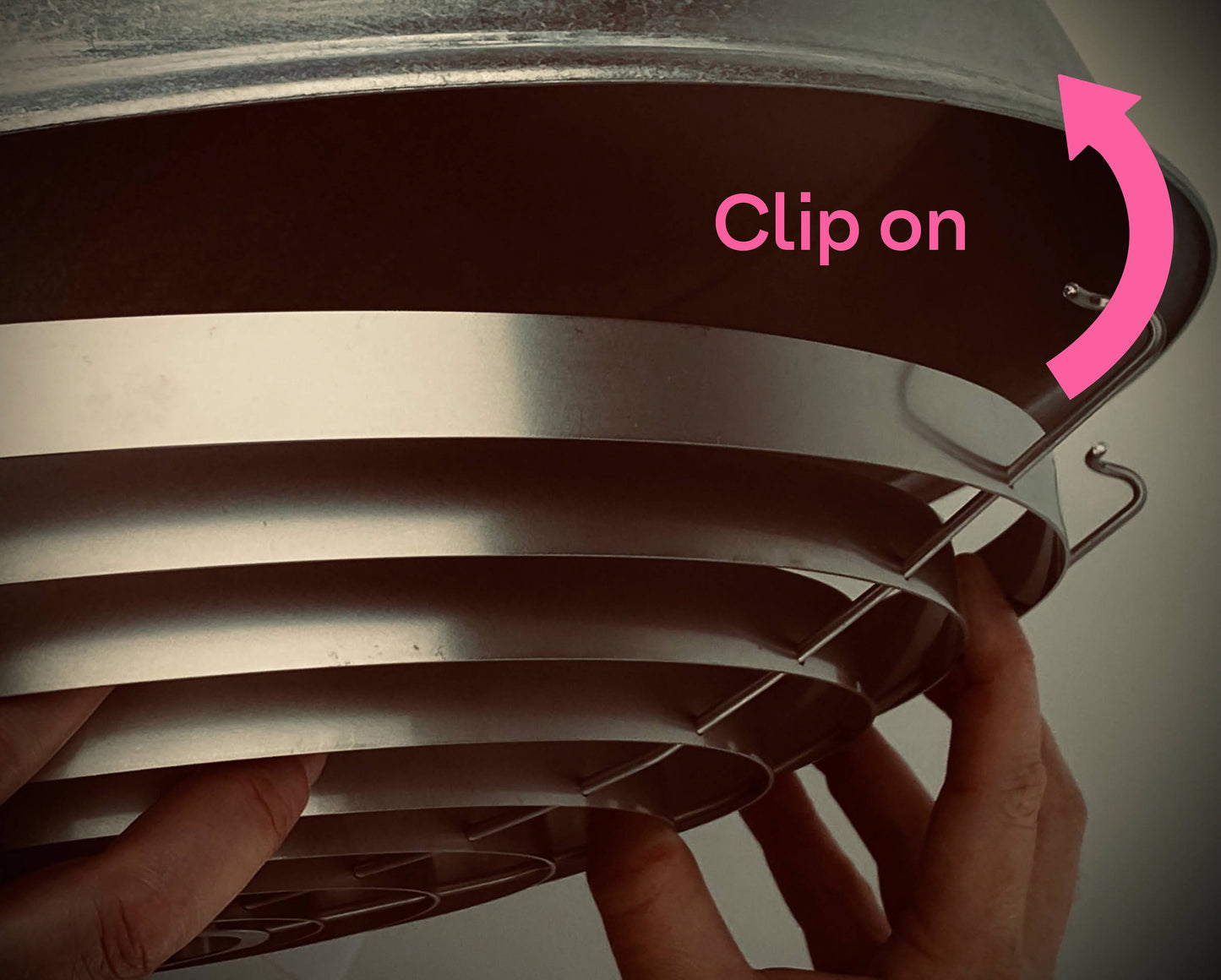

![A concentric louvre accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Concentric-Louvre_70657e84-cb65-4452-bb40-979e50f840c6.jpg?v=1696875286&width=1445)
