Reflekter™ XL | Custom Finish | Large Monopoint | 3500K
Reflekter™ XL | Custom Finish | Large Monopoint | 3500K
Couldn't load pickup availability
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Custom Finish Magic-Paint™
- Weight: 4kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 96.9 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°, UGR
- Accessories: Honeycomb Louvre | Concentric Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural pendant light delivers up to 4750lm and the potential for 'closed loop' Circular Economy. A ⌀360mm 'L' version is also available. Choose from different luminaire optics and accessories, including UGR (Unified Glare Ratio) filters.
'Large Monopoint' is a 160mm diameter X 75mm deep circular Pendant light mounting / enclosure that's big enough to house the driver and all electrical connections. The monopoint body attaches to a separate, surface mounted bracket via M4 bolts located on opposite sides. The bracket itself has standard BESA (50.8mm) hole spacings for fixing to walls, ceilings, cable tray or other suitable surfaces / materials.
'Custom Finish' is our Magic-Paint™ solution for projects that require any finish other than black or Stone-Rumbled™, choose a colour match from 250+ RAL codes. Regular paint and powder coatings create seriously harmful pollution and are a major source (some studies say most) of microplastics in the environment. Magic-Paint™ is made from natural materials such as clay and does not contain any plastics, Isocyanates, VOCs or EPA-listed toxic organics.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from regular paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Black Pendant light and Disc mounting to re-use body components for our 'worn' lighting
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines

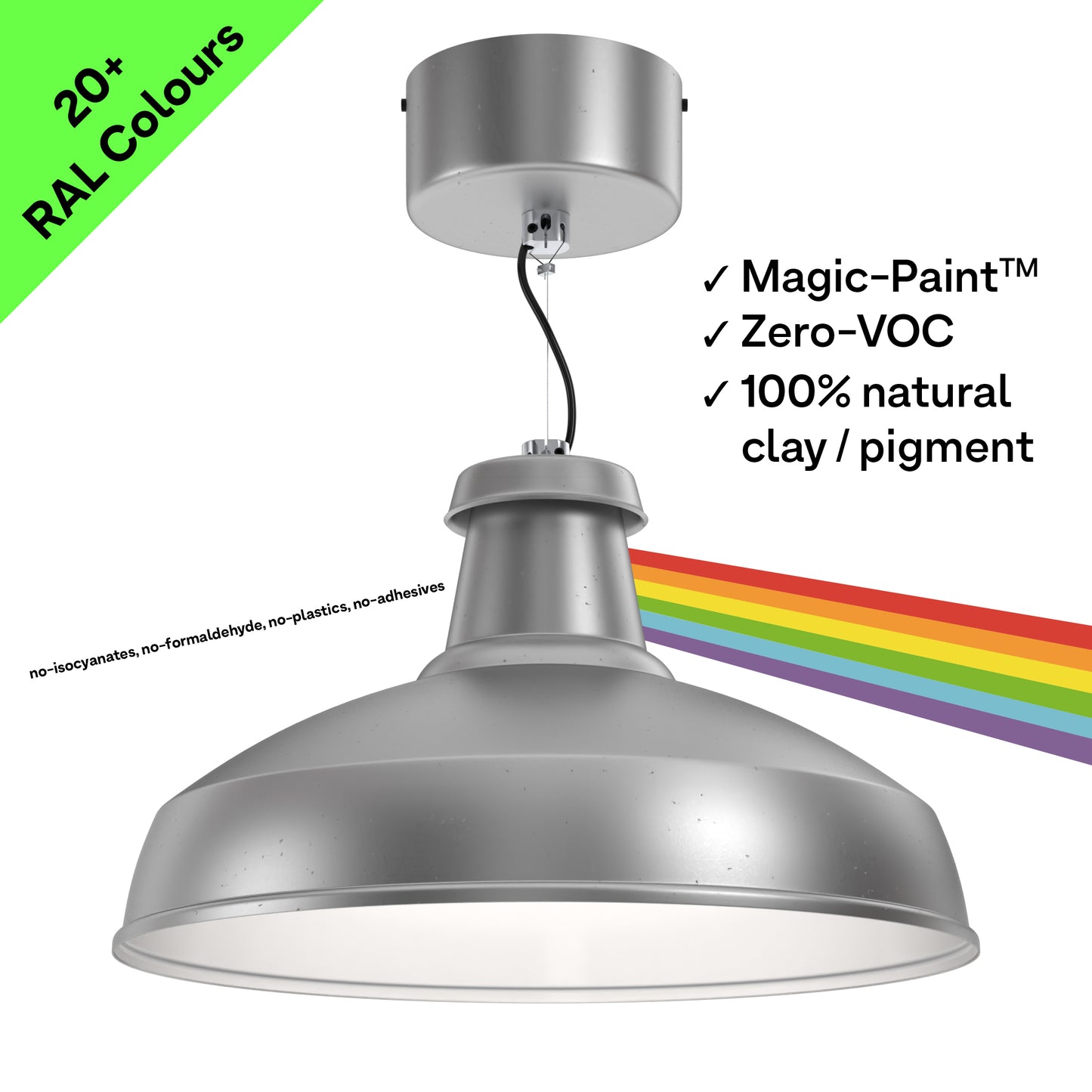

![A sustainable architectural XL pendant light on a large monopoint that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-XL-Reflekter-Large-Monopoint-Custom-Finish-Hero_8be31c2e-d1de-400b-9951-5fa6ed868d16.jpg?v=1696345326&width=1445)

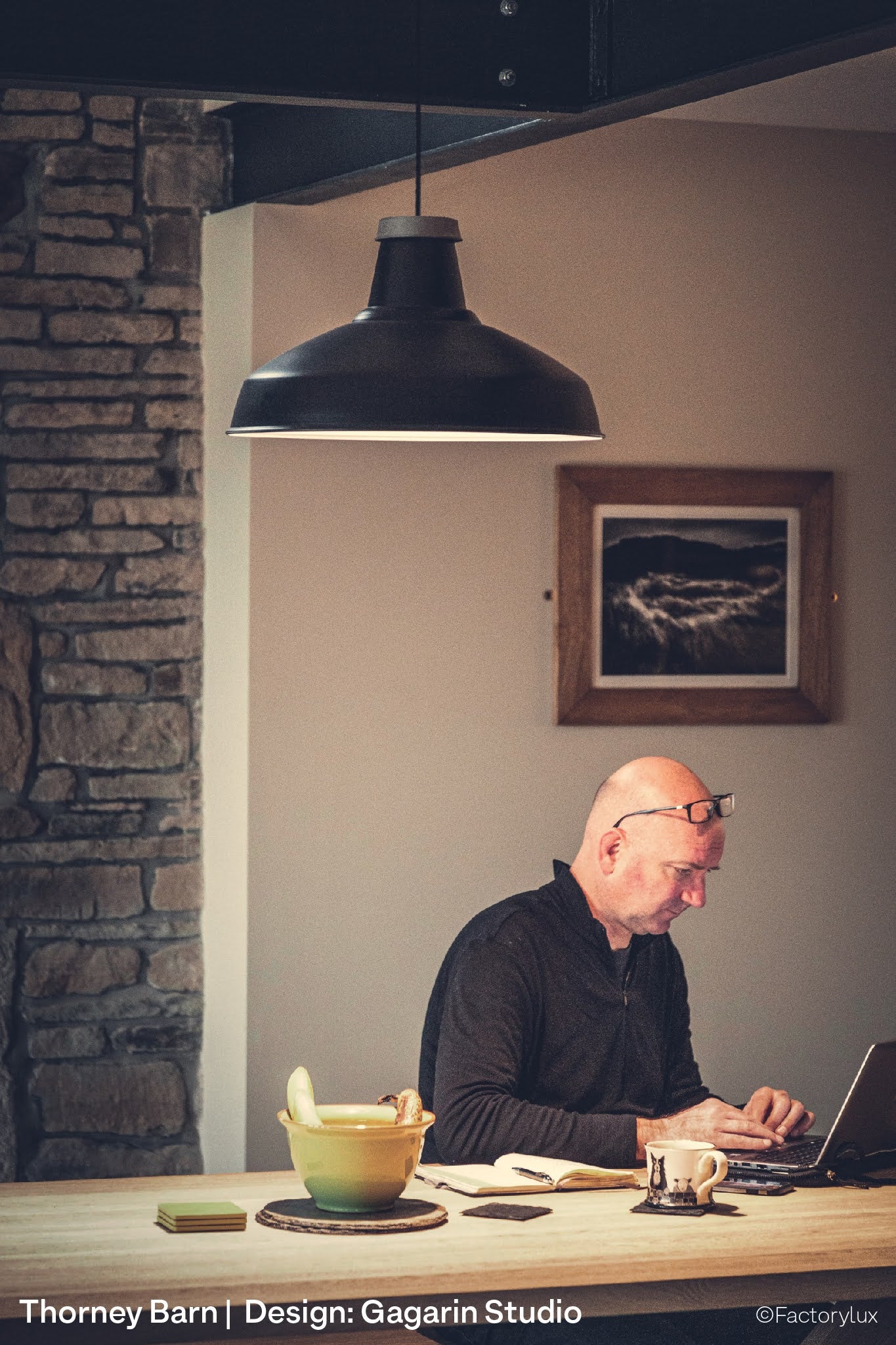

![Original timber beams, subtle track lighting and spotlights at Gagarin's RIBA award stone barn conversion in Yorkshire](http://factorylux.com/cdn/shop/files/Thorney-Barn-Residential-Lighting-Gargarin-Studio-Spotlights-4_2808adf1-81be-4897-b87a-e983ee0289a3.jpg?v=1696876457&width=1445)

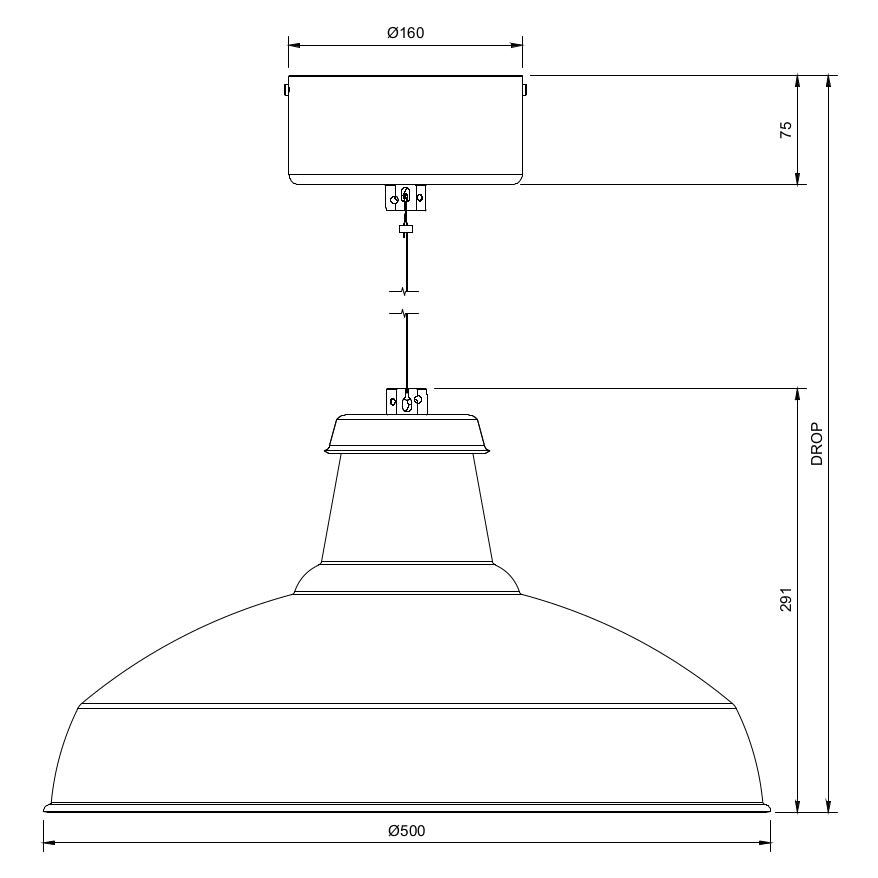

![Line drawing of an extra large circular economy pendant on a large architectural monopoint lighting mount](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-XL-Reflekter-Large-Monopoint-Line-Drawing_f54d0742-05fb-4bb3-a0e8-82625dc35892.jpg?v=1696876457&width=1445)

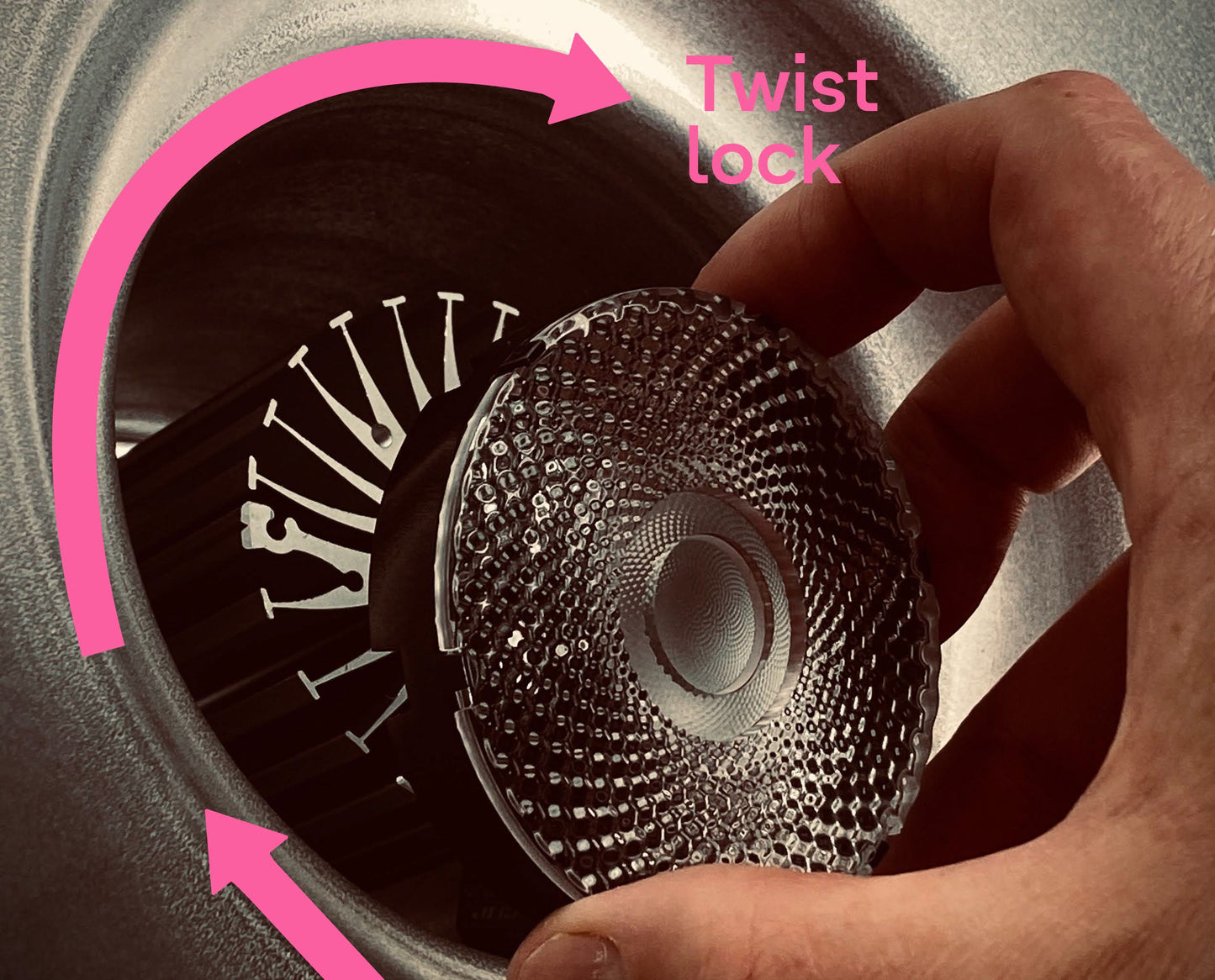

![How to insert the lens into a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Removable-Lens_e6d94d3d-7612-4ba5-8418-62cc0fe953ec.jpg?v=1697127912&width=1445)

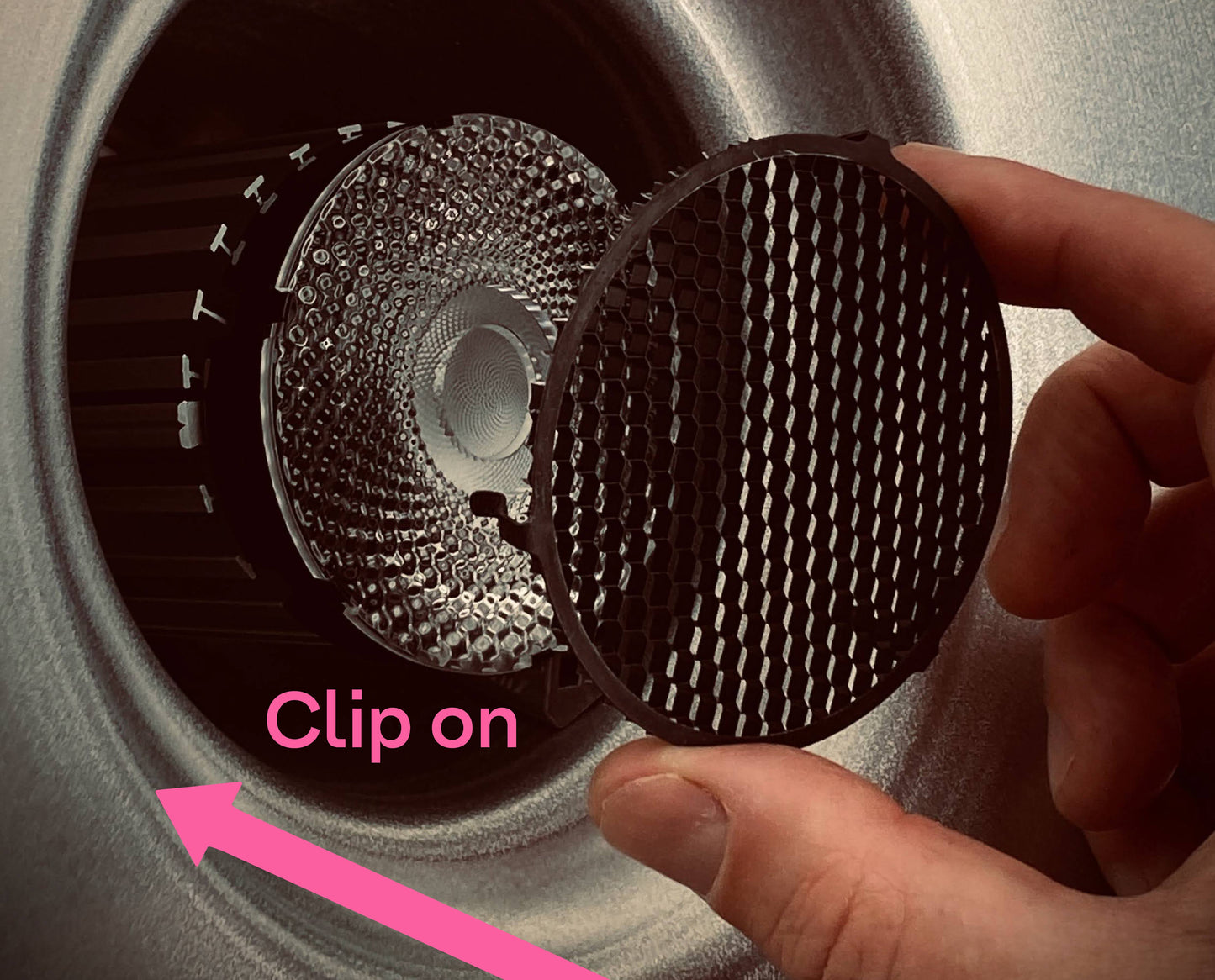

![How to attach honeycomb louvre onto a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Honeycomb-Louvre_c62f0fd3-bacc-41af-bf57-ada093aa7da5.jpg?v=1697127912&width=1445)

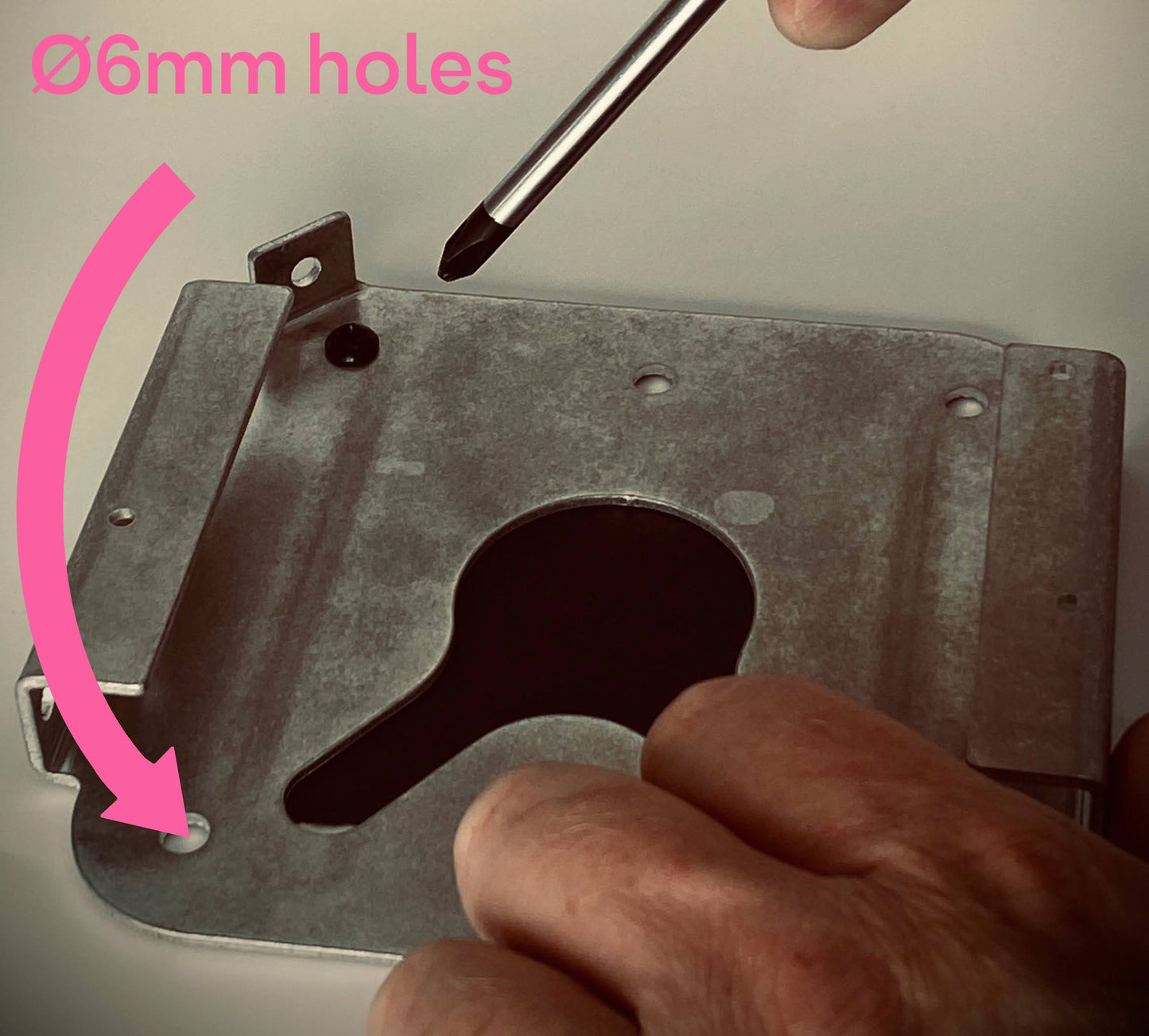

![How to install large monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Base-Install-Stone-Rumbled_25022835-e573-4f07-92b2-661b6c46e0ff.jpg?v=1697127912&width=1445)

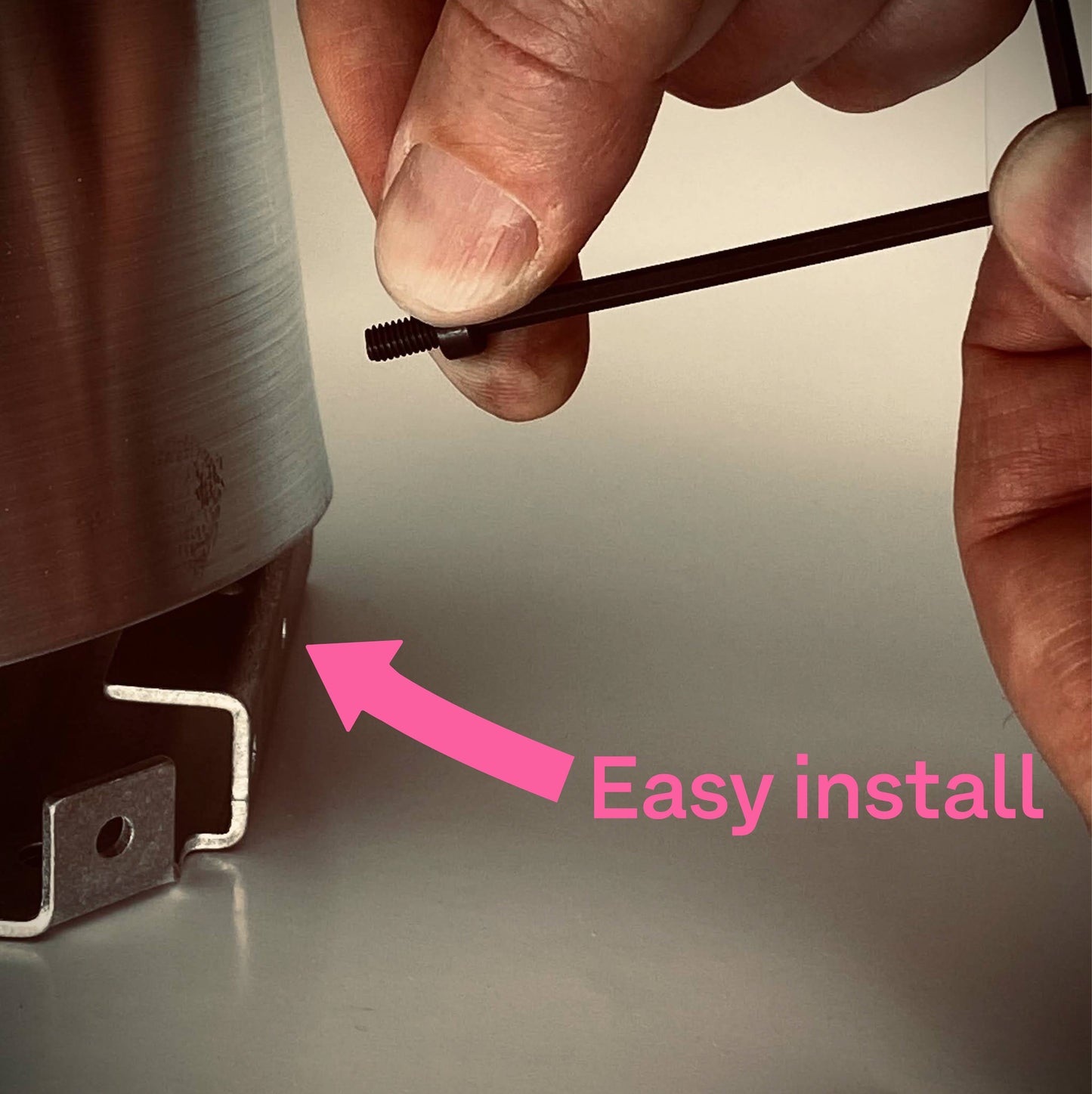

![How to install large monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Top-Install-Stone-Rumbled_58f43a0d-473c-48b7-99d8-94d752fab6d6.jpg?v=1697127912&width=1445)

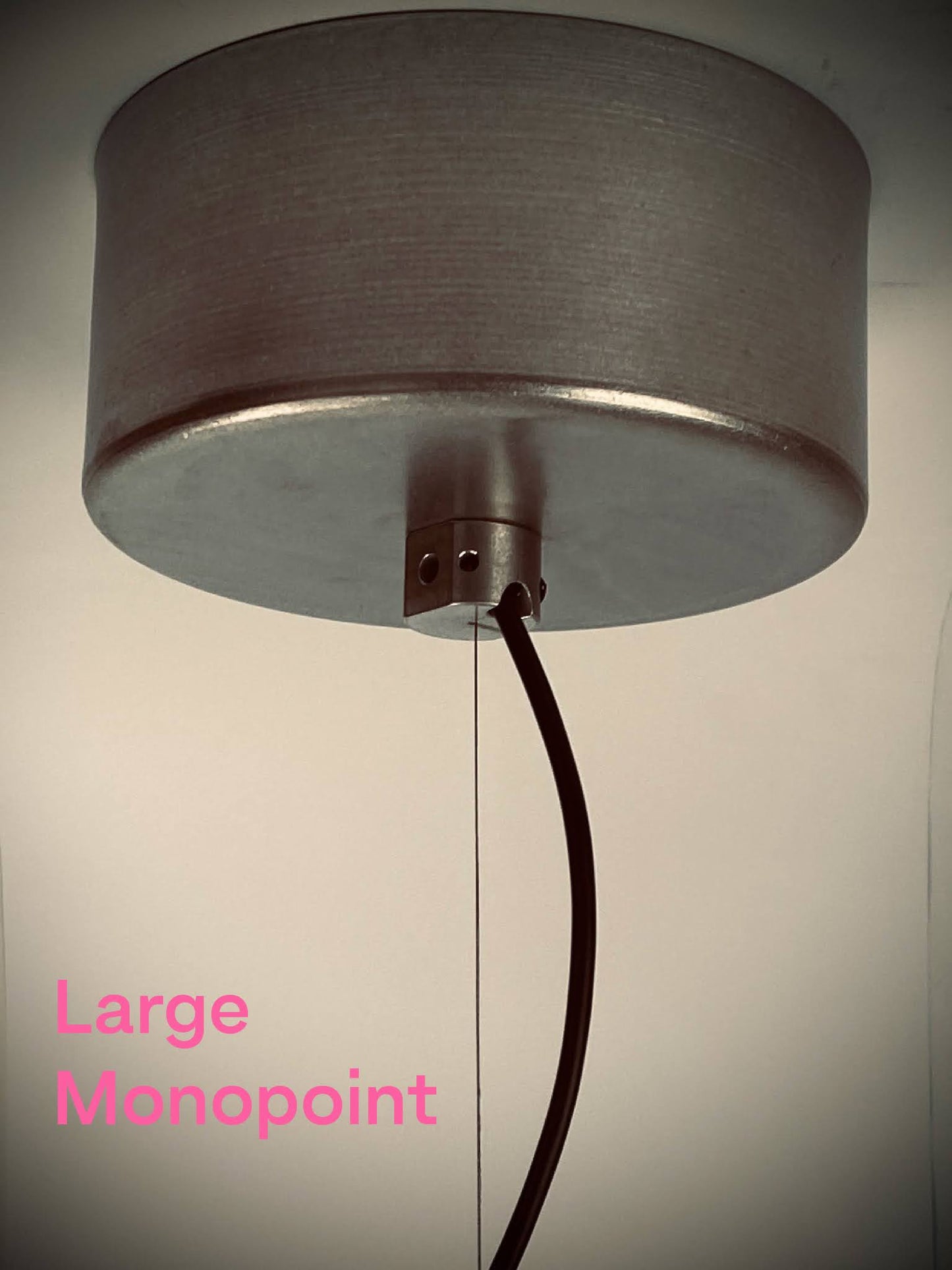

![Installed large monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Complete-Install-Stone-Rumbled_22d9a7c6-2730-4870-968e-e8a0a7d3ed66.jpg?v=1697127912&width=1445)

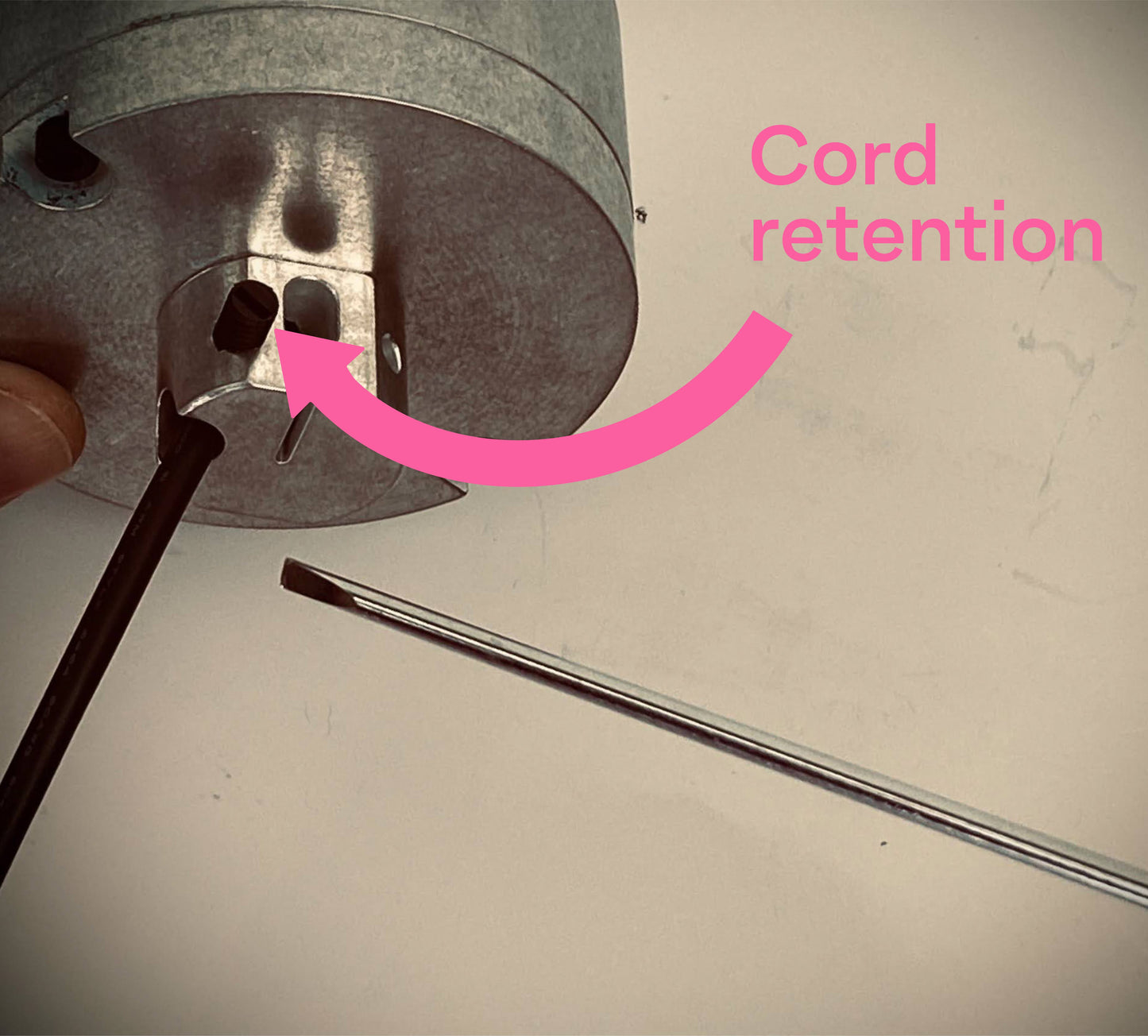

![Illustration of electrical cable adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Cable-Adjust_5b3a6919-478f-4088-a296-e938f0dfd255.jpg?v=1697127912&width=1445)

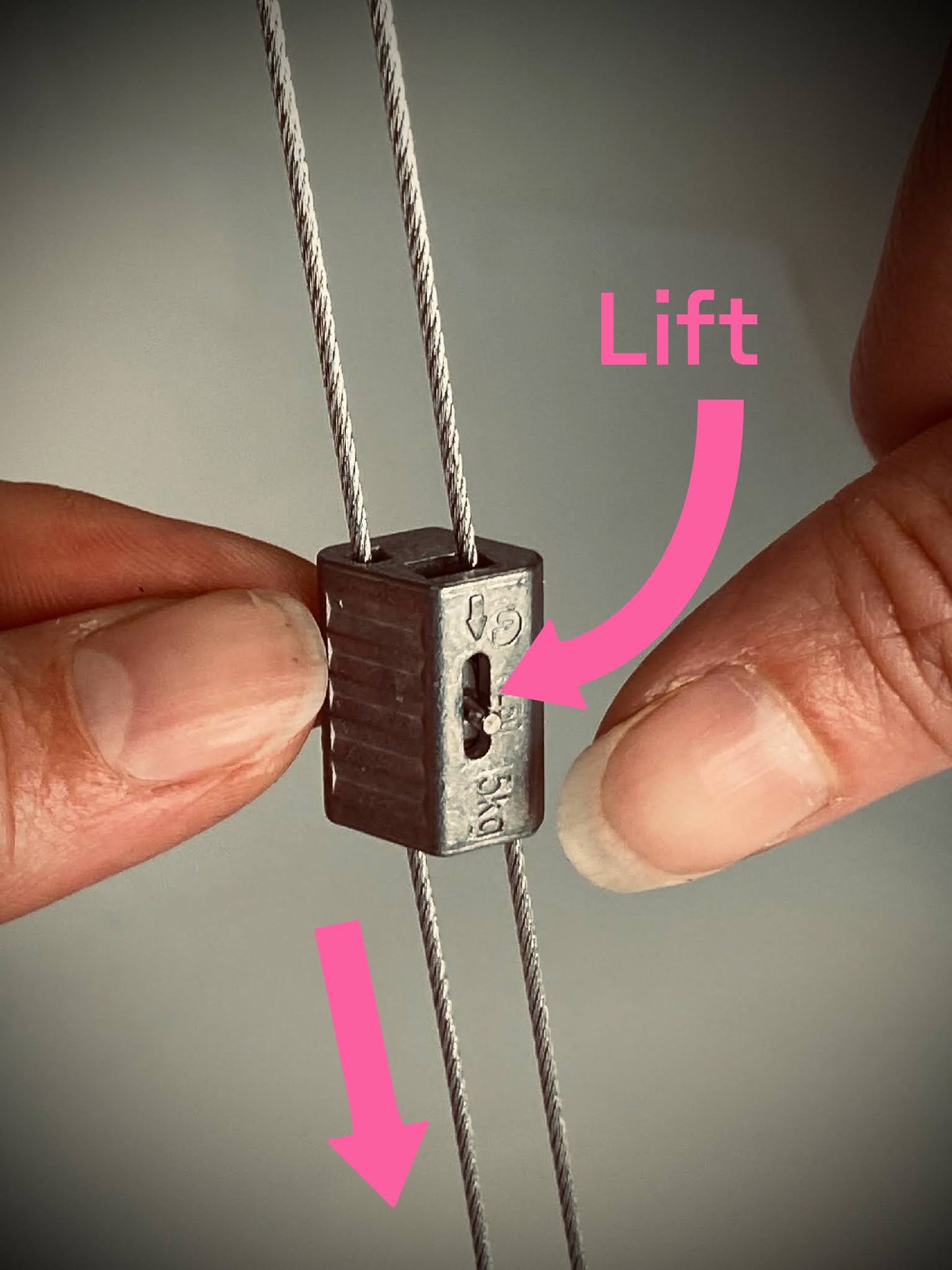

![Illustration of suspension wire adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Suspension-Wire-Adjust_a2313cd5-720e-47d7-ab08-d26de920f3f1.jpg?v=1697127912&width=1445)

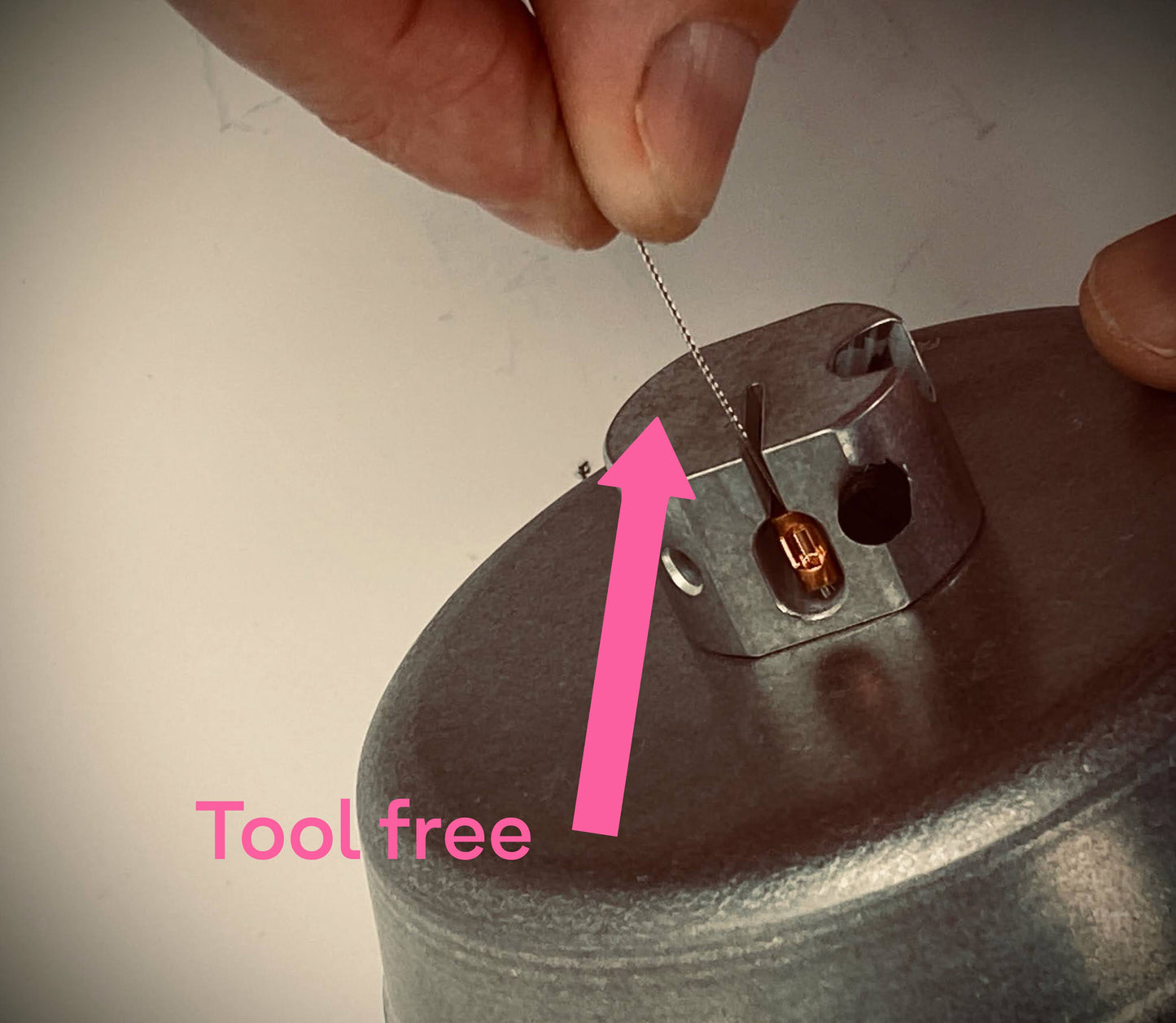

![Illustration of suspension wire installation for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Reflekter-Stone-Rumbled-Suspension-Wire_5fbc992c-4130-4c2a-9d2c-d2002ec280f4.jpg?v=1697127912&width=1445)

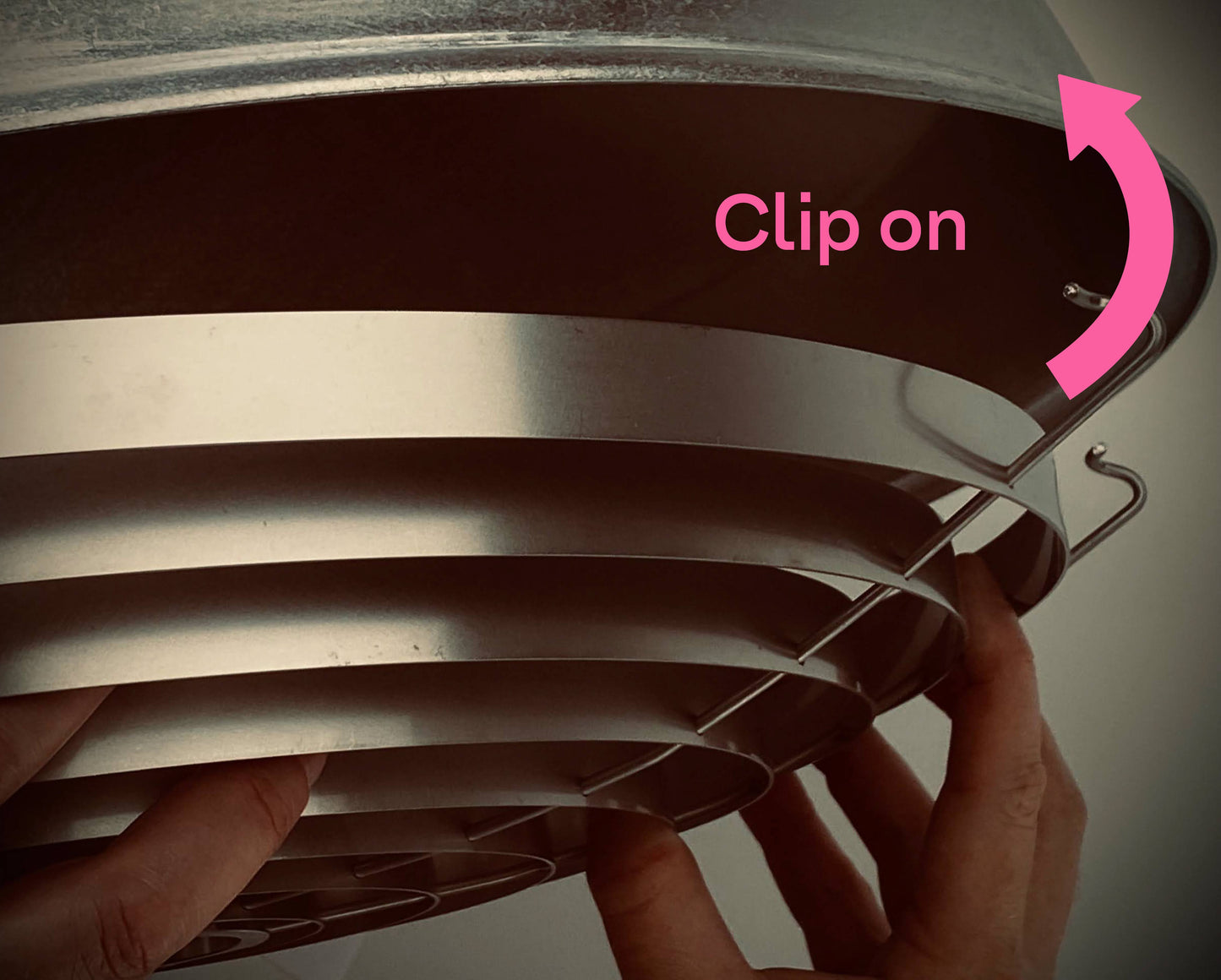

![A concentric louvre accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Concentric-Louvre_17a4a49a-c52d-4ce9-8877-2995e725cb54.jpg?v=1697127912&width=1445)

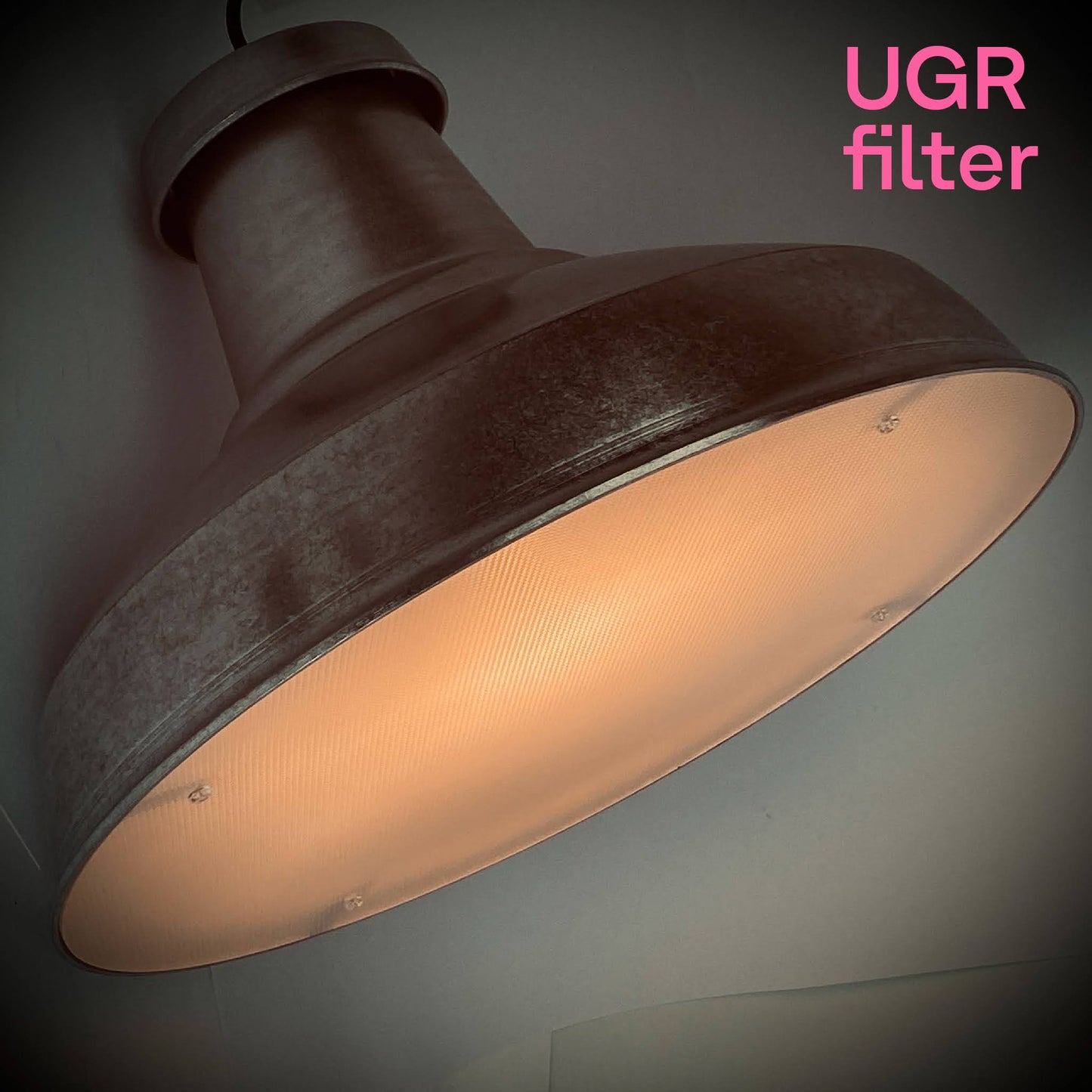

![A UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR_12df8ebc-fc91-406f-88ac-a0f8a847bbc7.jpg?v=1697127912&width=1445)

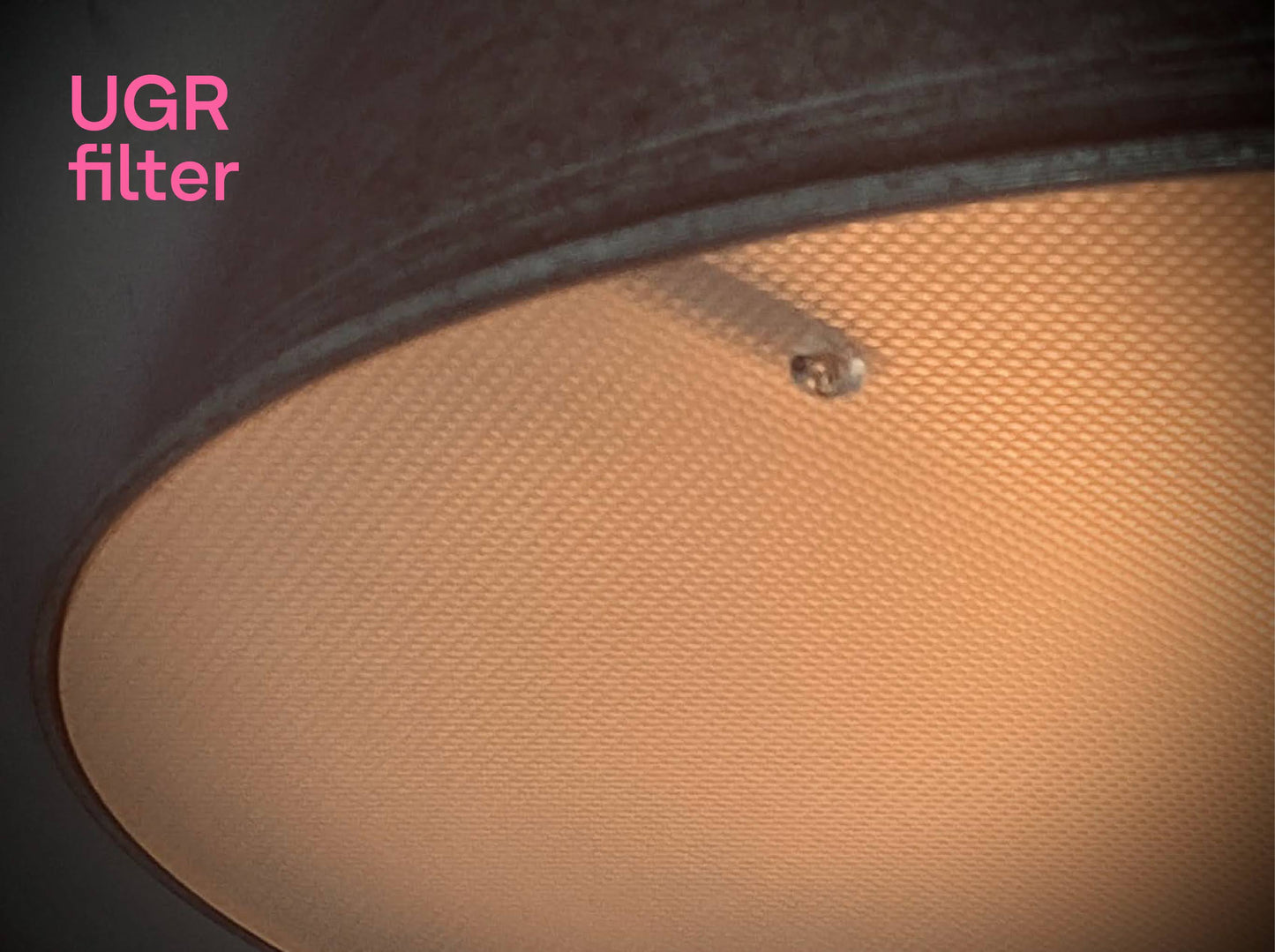

![Close up of UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR-Filter_92c34a63-a7ab-4263-a131-2e182160d734.jpg?v=1697127912&width=1445)

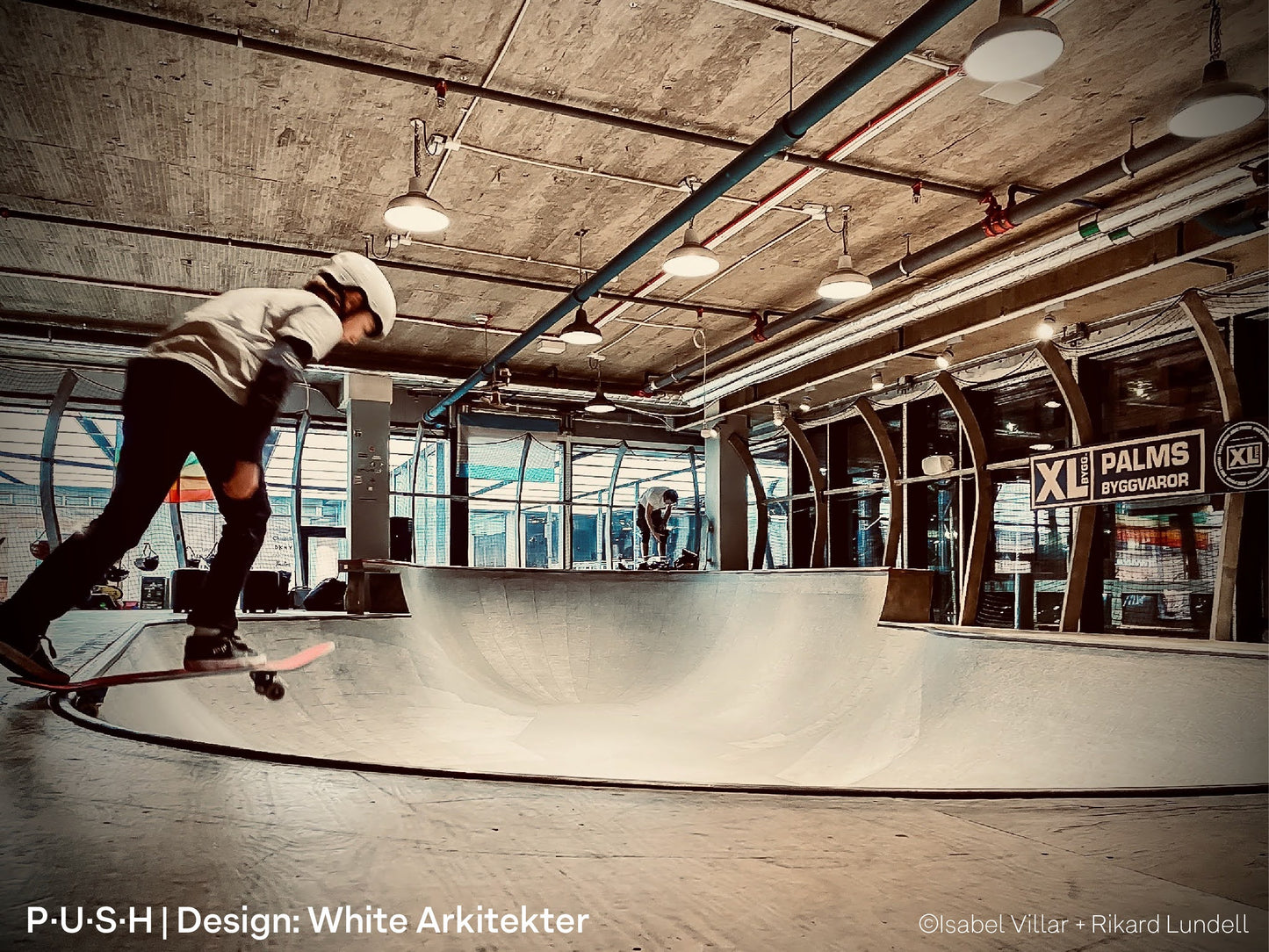

![Skateboarders, skating at an indoor skatepark, illuminated by high-output architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-1_14910c3b-cef3-4728-9f79-3eee2b8d25df.jpg?v=1697127912&width=1445)

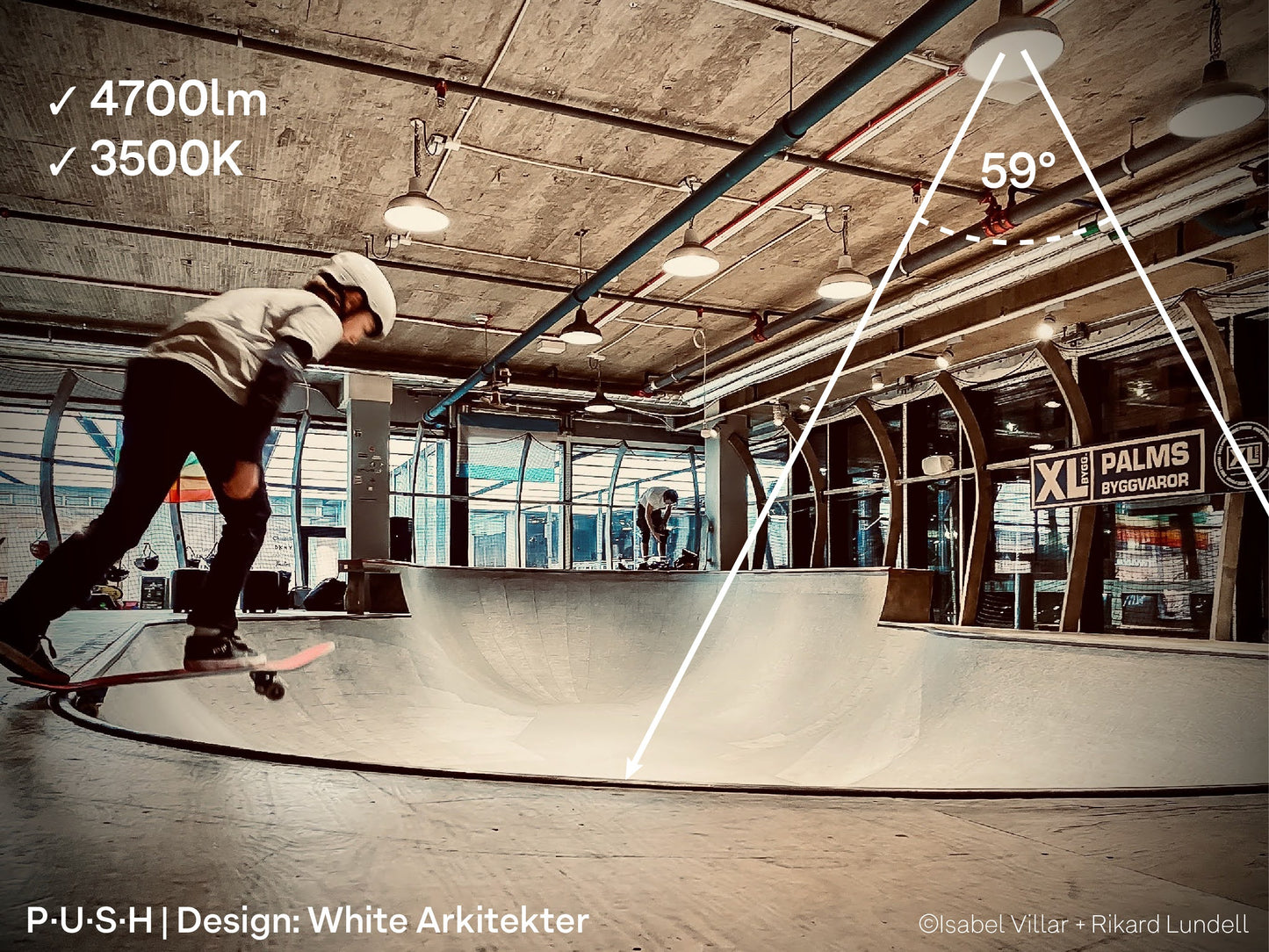

![Skateboarders, skating at an indoor skatepark, illuminated by 4700lm 3500K architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-2_ca2329e9-cb4b-41e0-9834-e9458bf69171.jpg?v=1697127912&width=1445)

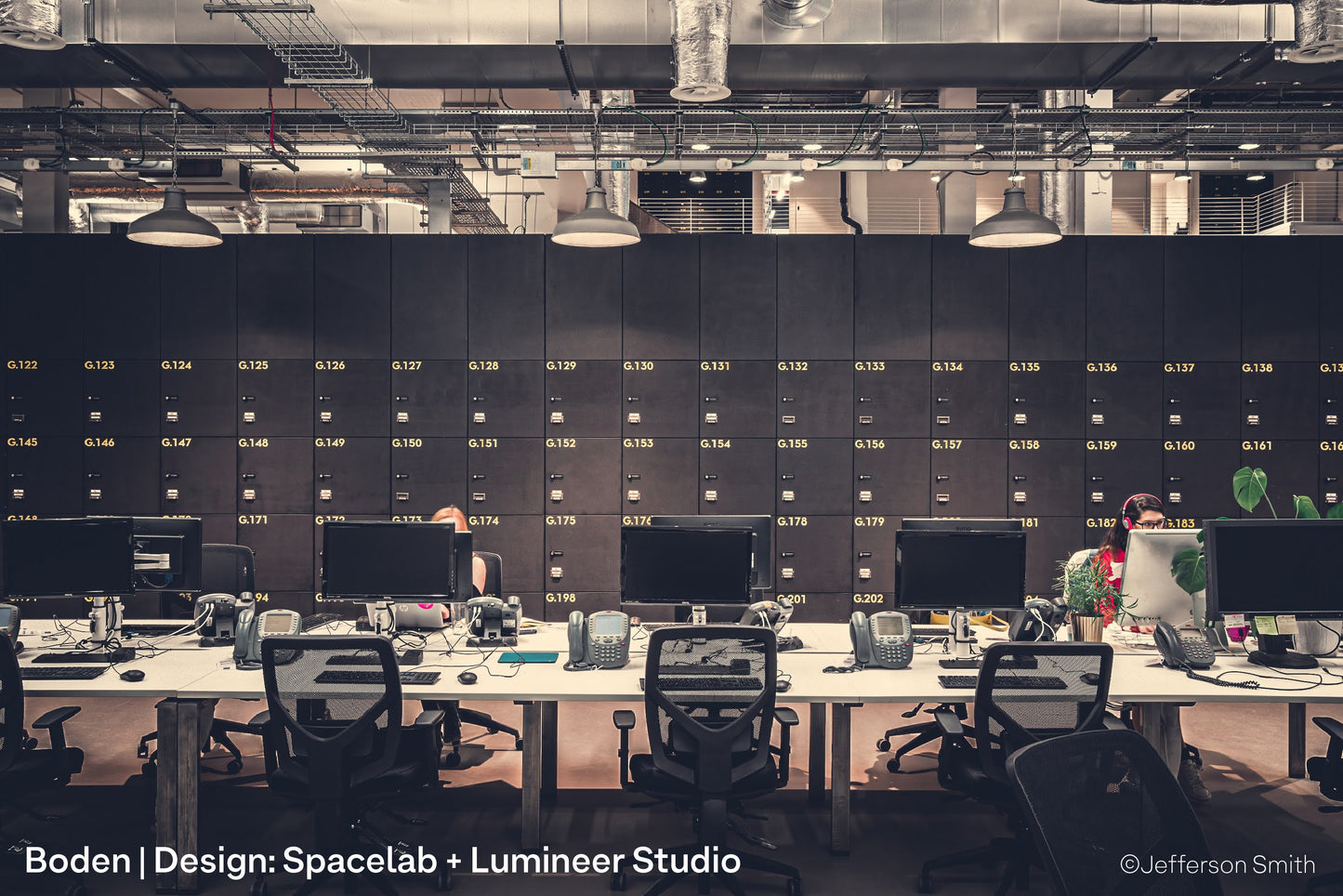

![Contemporary office workers in Boden's fashionable London HQ with architectural pendant lighting](http://factorylux.com/cdn/shop/files/Boden-HQ-Office-Lighting-Space-Lab-Reflekter-Pendant-1_d5252d27-a181-4002-bedc-b1c02ecb3595.jpg?v=1697127912&width=1445)

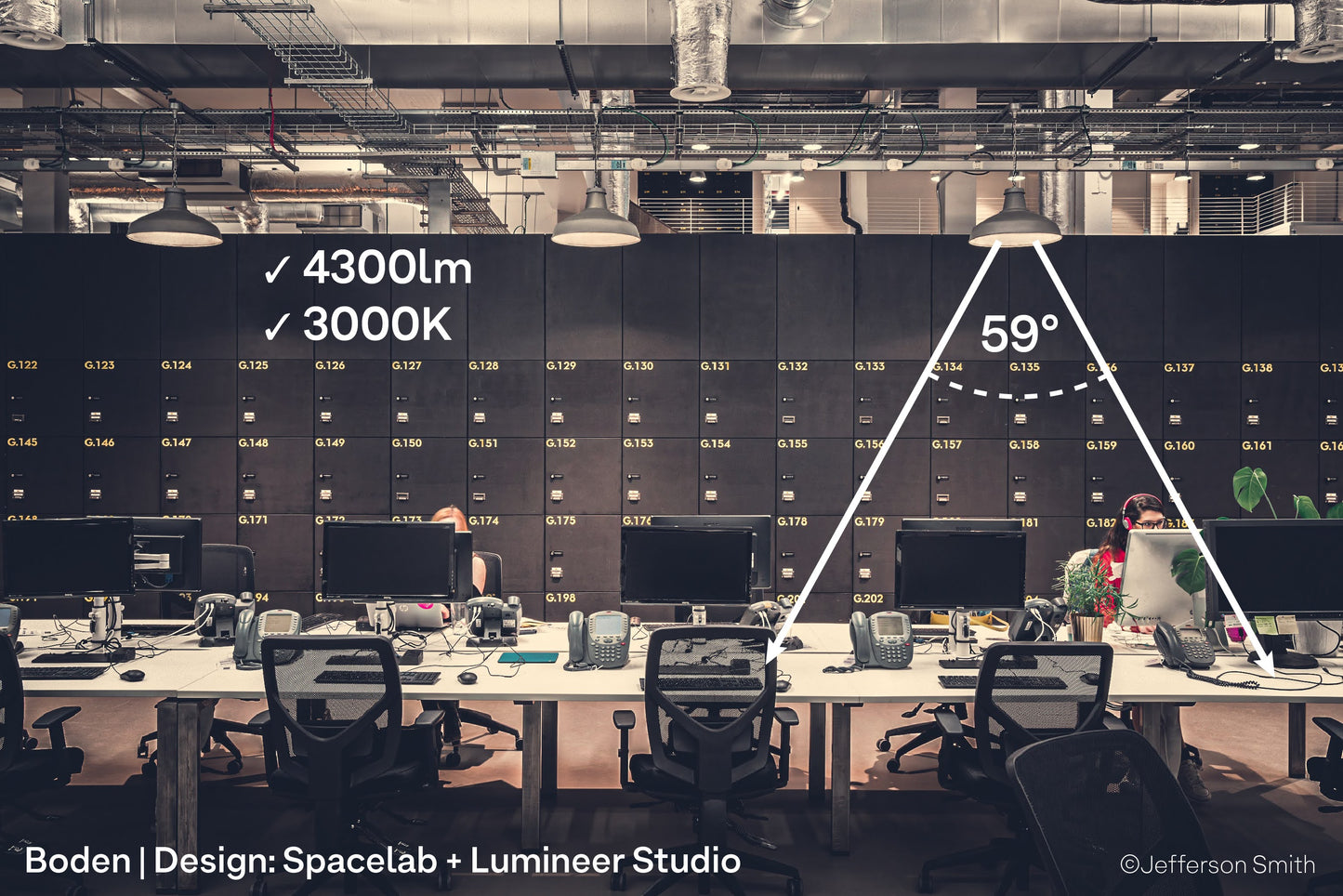

![Contemporary office workers in Boden's London HQ with architectural pendants at the correct light level](http://factorylux.com/cdn/shop/files/Boden-HQ-Office-Lighting-Space-Lab-Reflekter-Pendant-2_c03342ab-284c-48c3-9732-3472d18c2b18.jpg?v=1697127912&width=1445)
