Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 4kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 96.9 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°, UGR

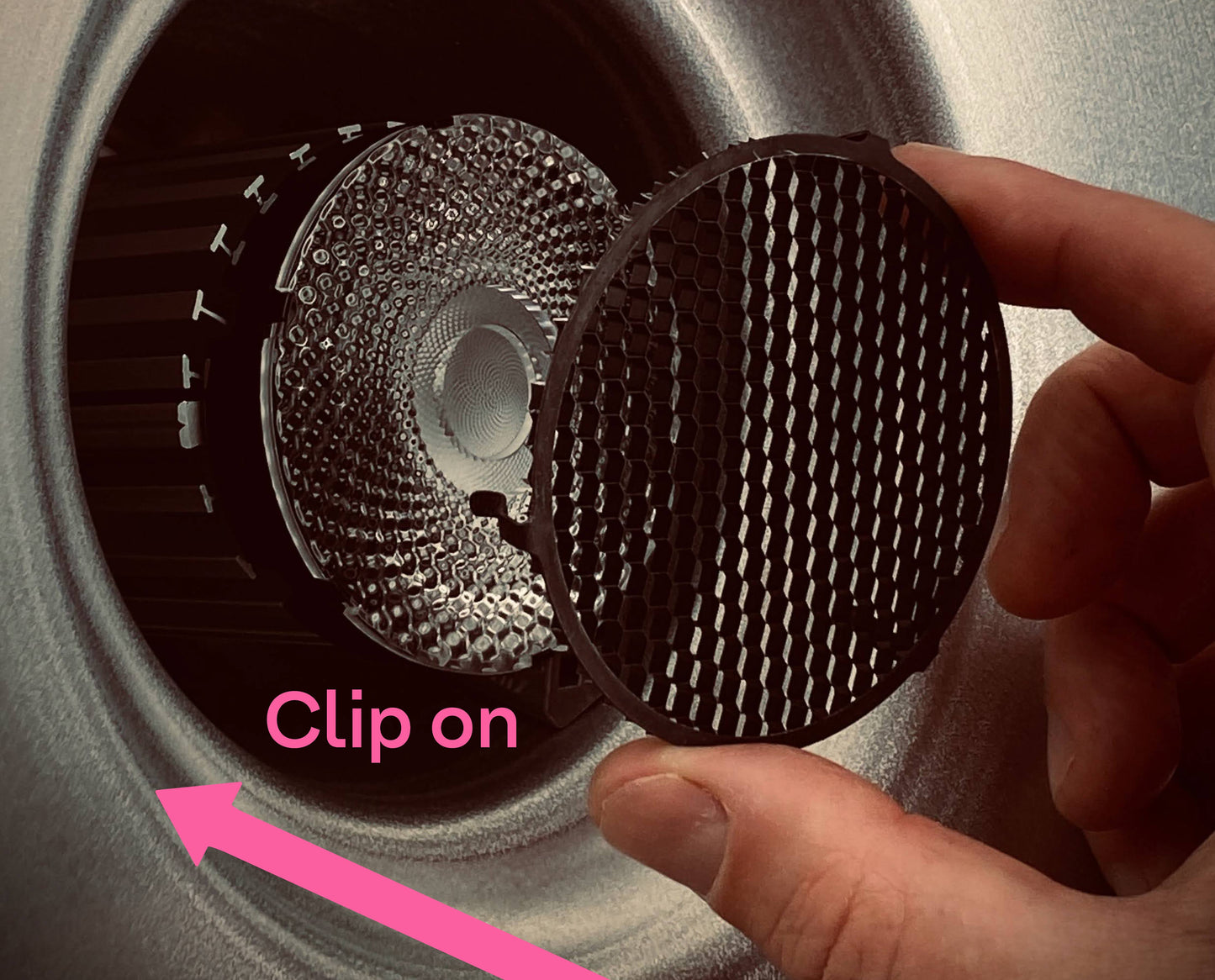

- Accessories: Honeycomb Louvre | Concentric Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description

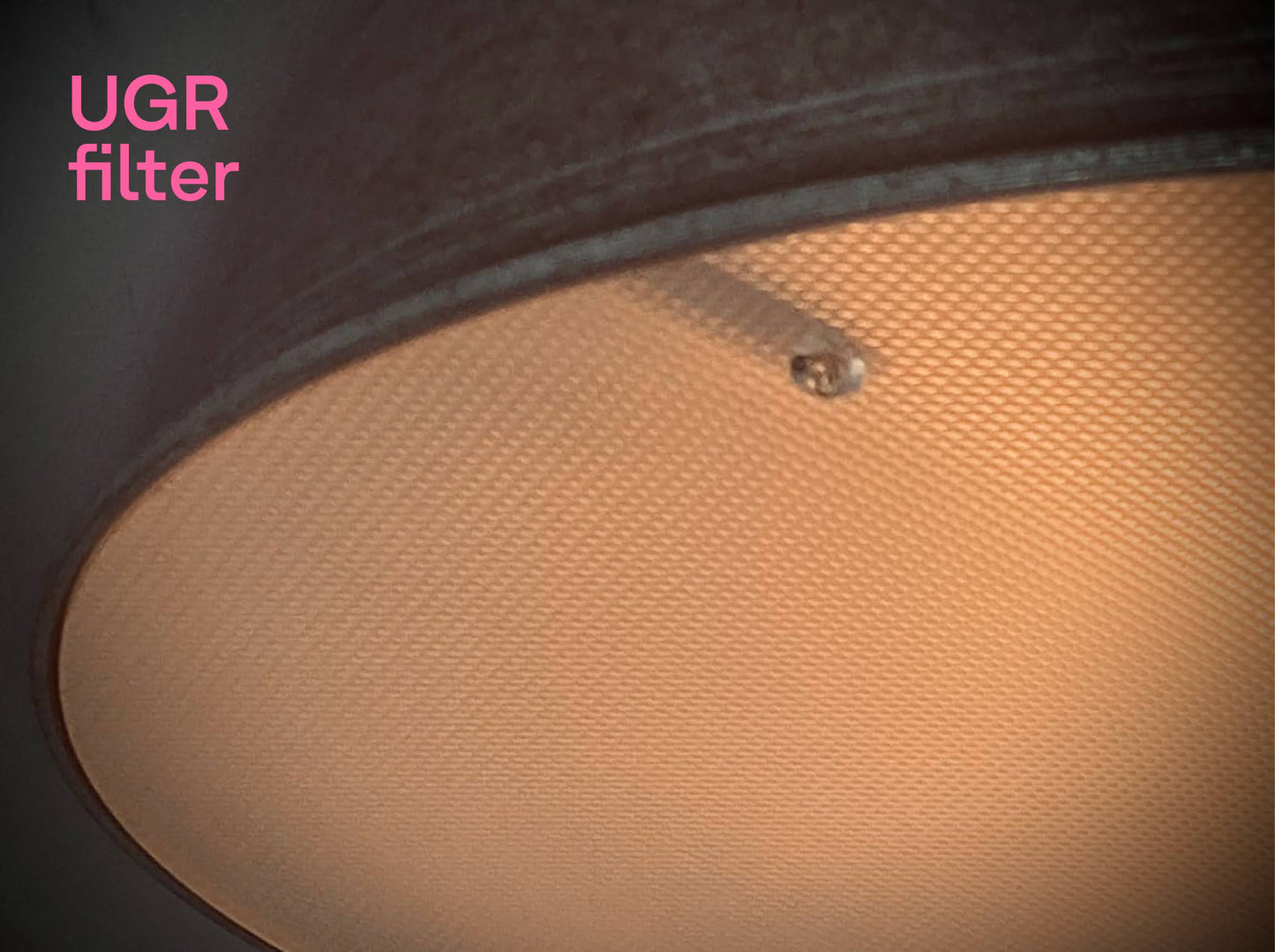

This architectural pendant light delivers up to 4750lm and the potential for 'closed loop' Circular Economy. A ⌀360mm 'L' version is also available. Choose from different luminaire optics and accessories, including UGR (Unified Glare Ratio) filters.

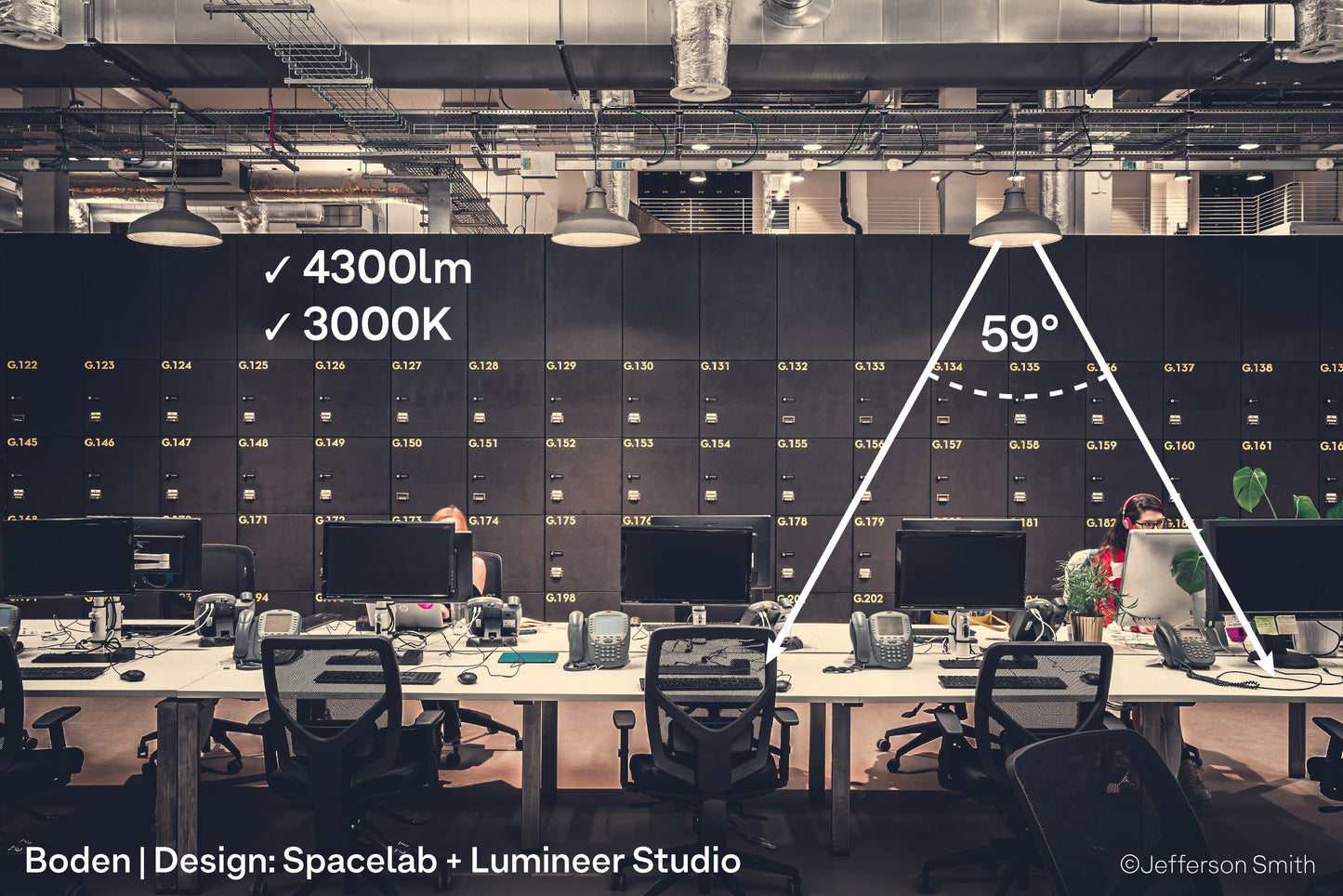

Spotify, Autodesk and Google all use Reflekter™ as office lighting, by getting the LED closer to the subject, less product and fewer lumens are required to achieve the same lux level - installations can be faster and running costs lower compared to traditional linear lighting.

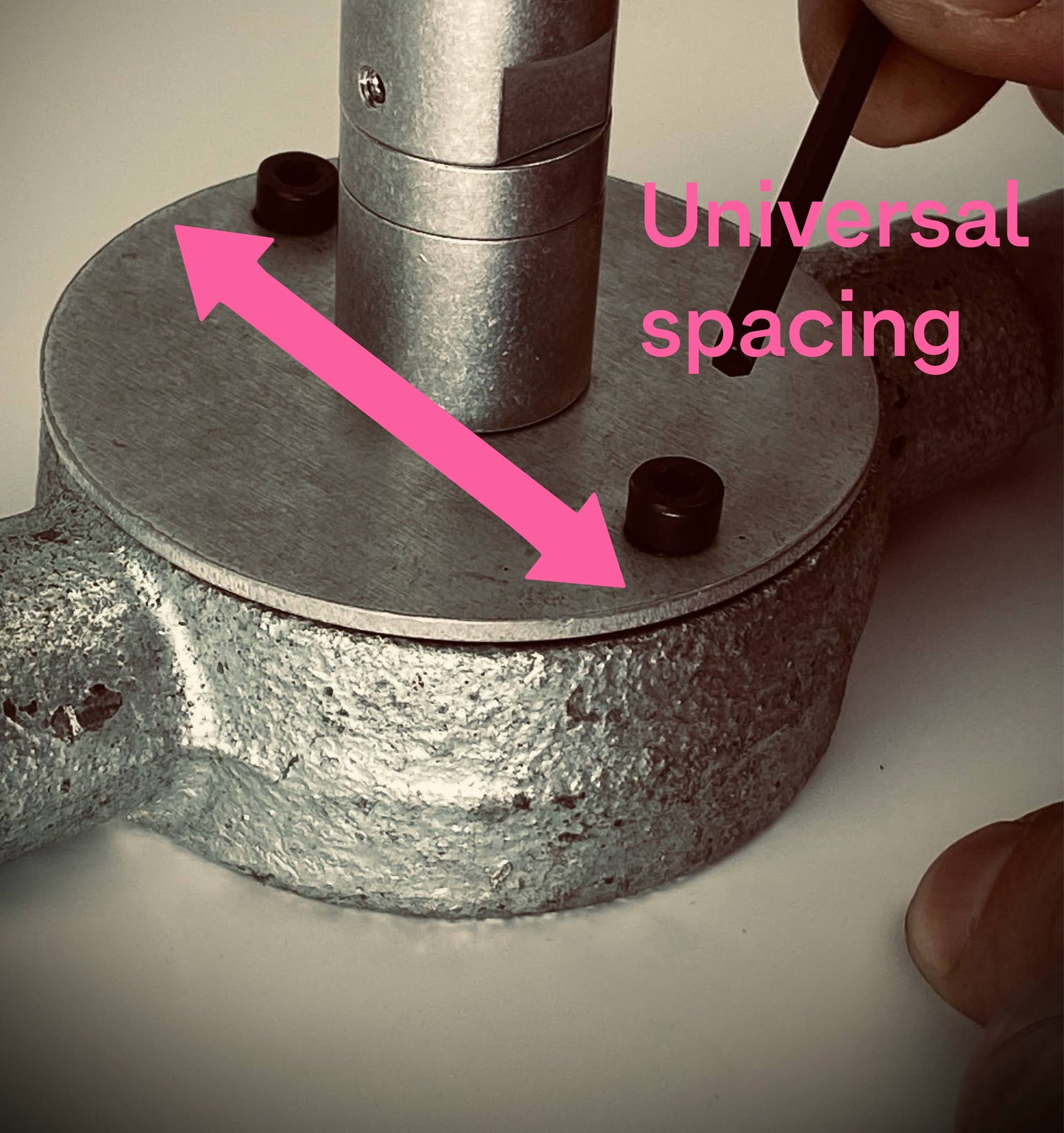

Disc-Monopoint is our smallest, most low-profile luminaire mounting. A completely flat, 65mm diameter x 2mm thick circular plate with standard BESA (50.8mm) hole spacings. Fix to conduit box, pattress or surface mount to cable tray, timber, cladding or other suitable material.
Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Stone-Rumbled™ body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines

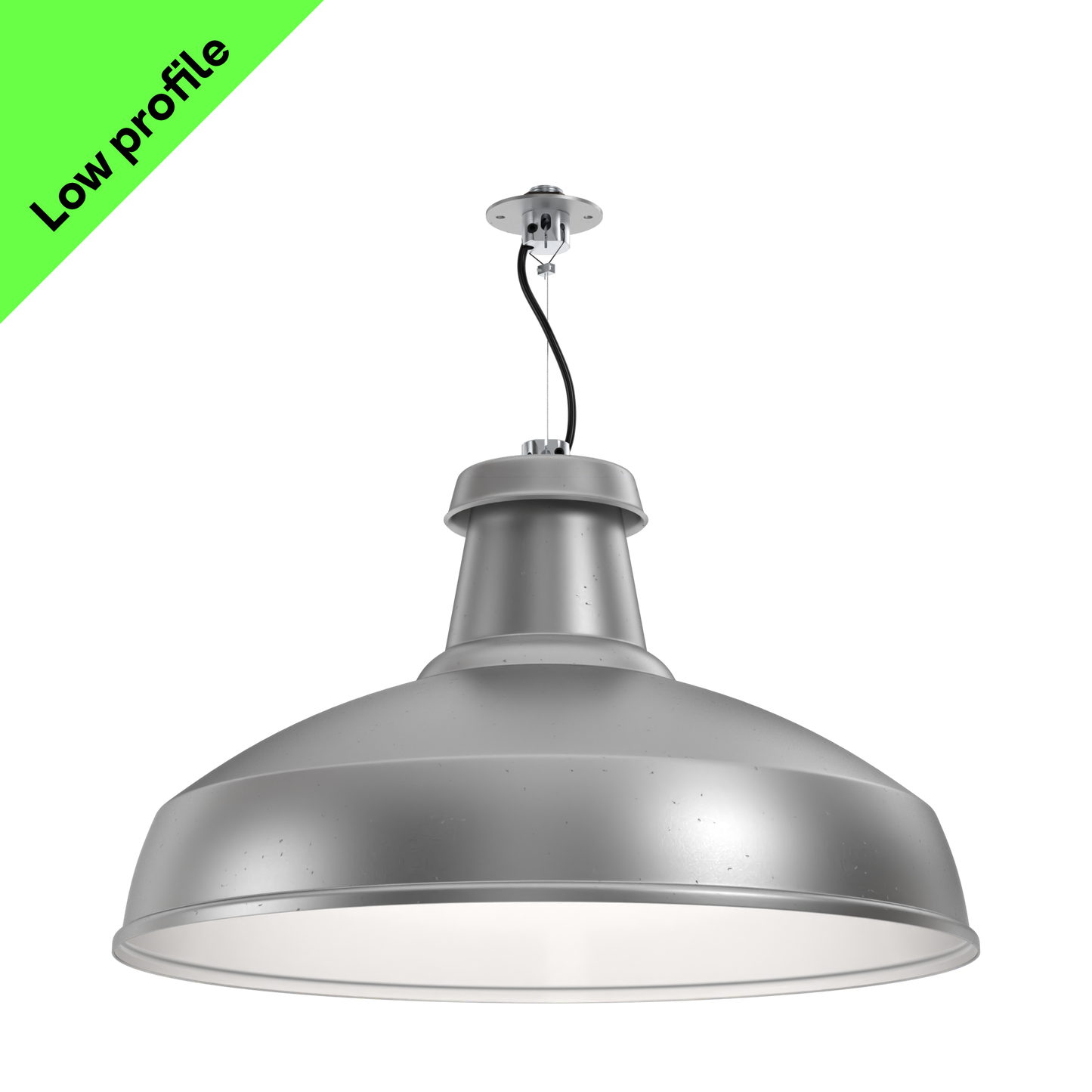

![A paint-free architectural XL pendant light on a low-profile, flat mounting disc with BESA hole spacings](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-XL-Reflekter-Disc-Monopoint-Stone-Rumbled-Hero.png?v=1695865114&width=1445)
![Expo exhibition centre in Dubai, with beton-brut concrete walls and raw aluminium architectural pendant lights](http://factorylux.com/cdn/shop/files/Dubai-Expo-Speirs-Major-Pendant-Lighting.jpg?v=1696355608&width=1445)
![Technical drawing of an extra large circular economy pendant light on a low-profle, disc mount with BESA hole spacings](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-XL-Reflekter-Disc-Monopoint-Line-Drawing_e8c94fa5-1d4a-43c8-b234-6fde99a972d1.jpg?v=1696620187&width=1445)

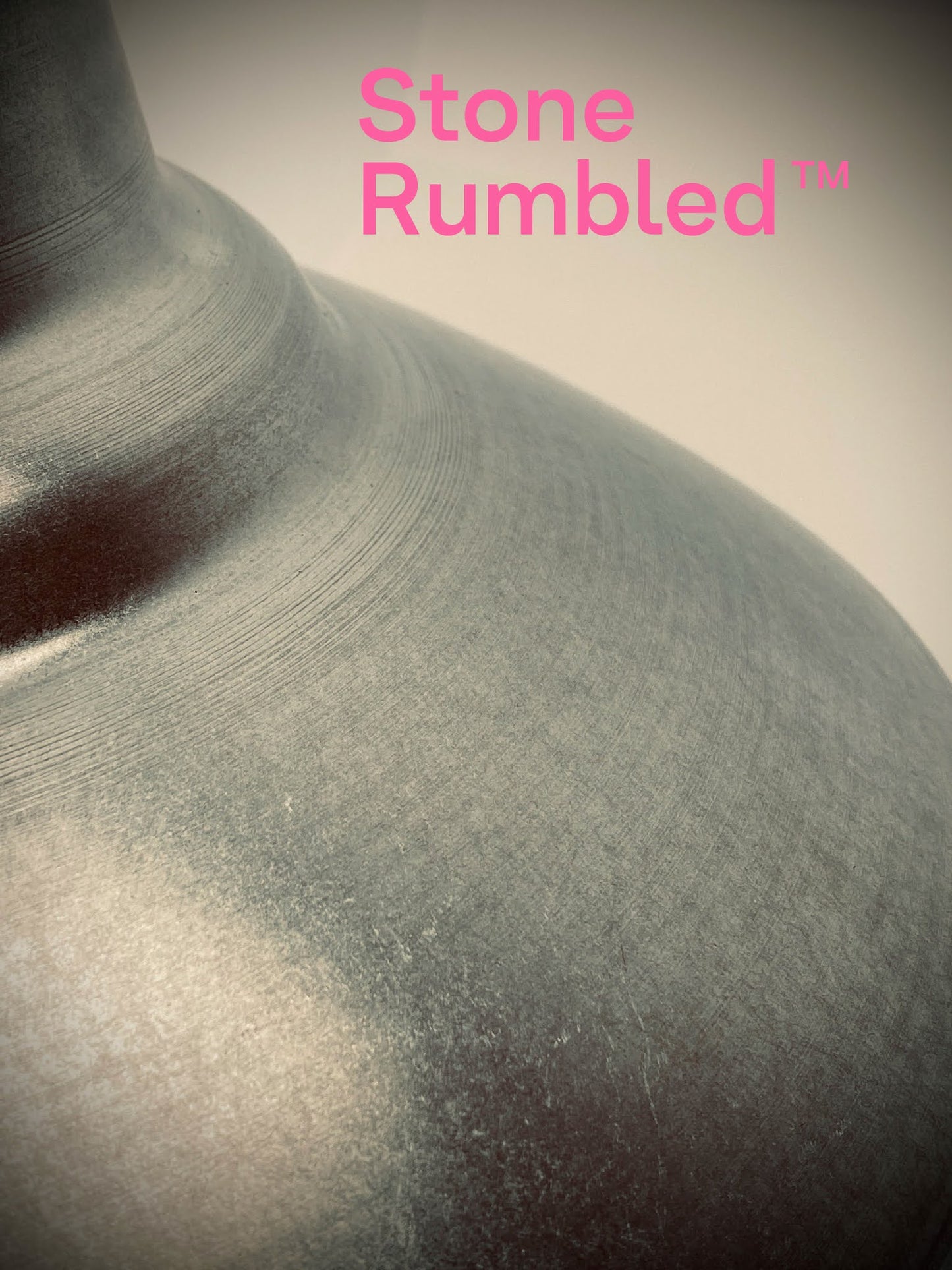

![Close up of a sustainable raw aluminium pendant light for architects, revealing a wabi-sabi surface texture](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Colour-Texture-Close-Up_c29f8d89-97c4-466b-a861-6812c3314e02.jpg?v=1696620187&width=1445)
![How to insert the lens into a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Removable-Lens_a5e0fc62-5fb2-4810-a313-9644f5a8c31d.jpg?v=1696620187&width=1445)
![How to attach honeycomb louvre onto a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Honeycomb-Louvre_504086be-622b-4e27-ad7f-e6a04cea596b.jpg?v=1696620187&width=1445)
![How to install disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Base-Install-Stone-Rumbled_e4e5203a-eea5-4200-b851-9f224349df4b.jpg?v=1696620187&width=1445)

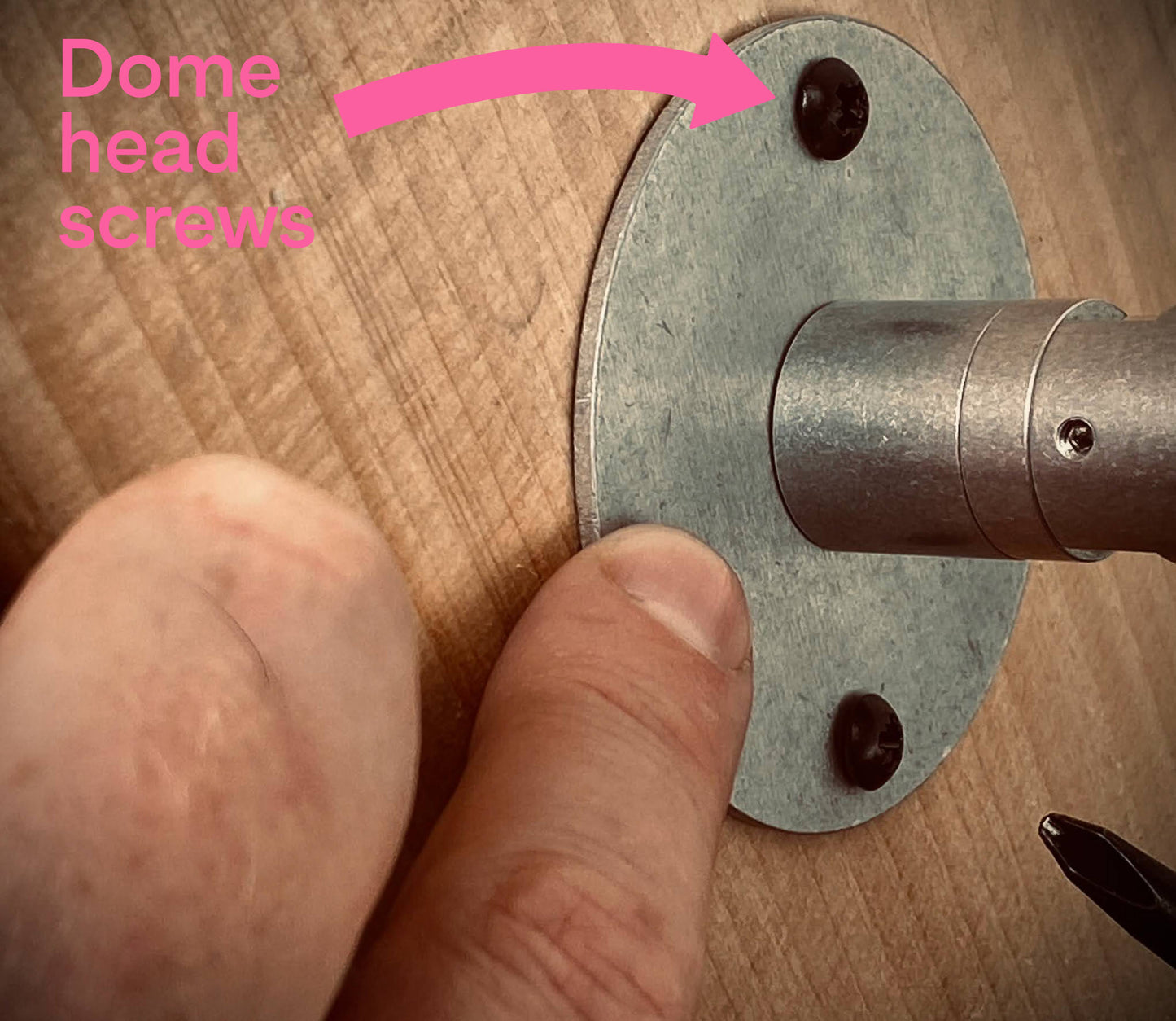

![How to install disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Top-Install-Stone-Rumbled_6413fc60-247c-48e0-8076-7b7ce06e05c0.jpg?v=1696620187&width=1445)

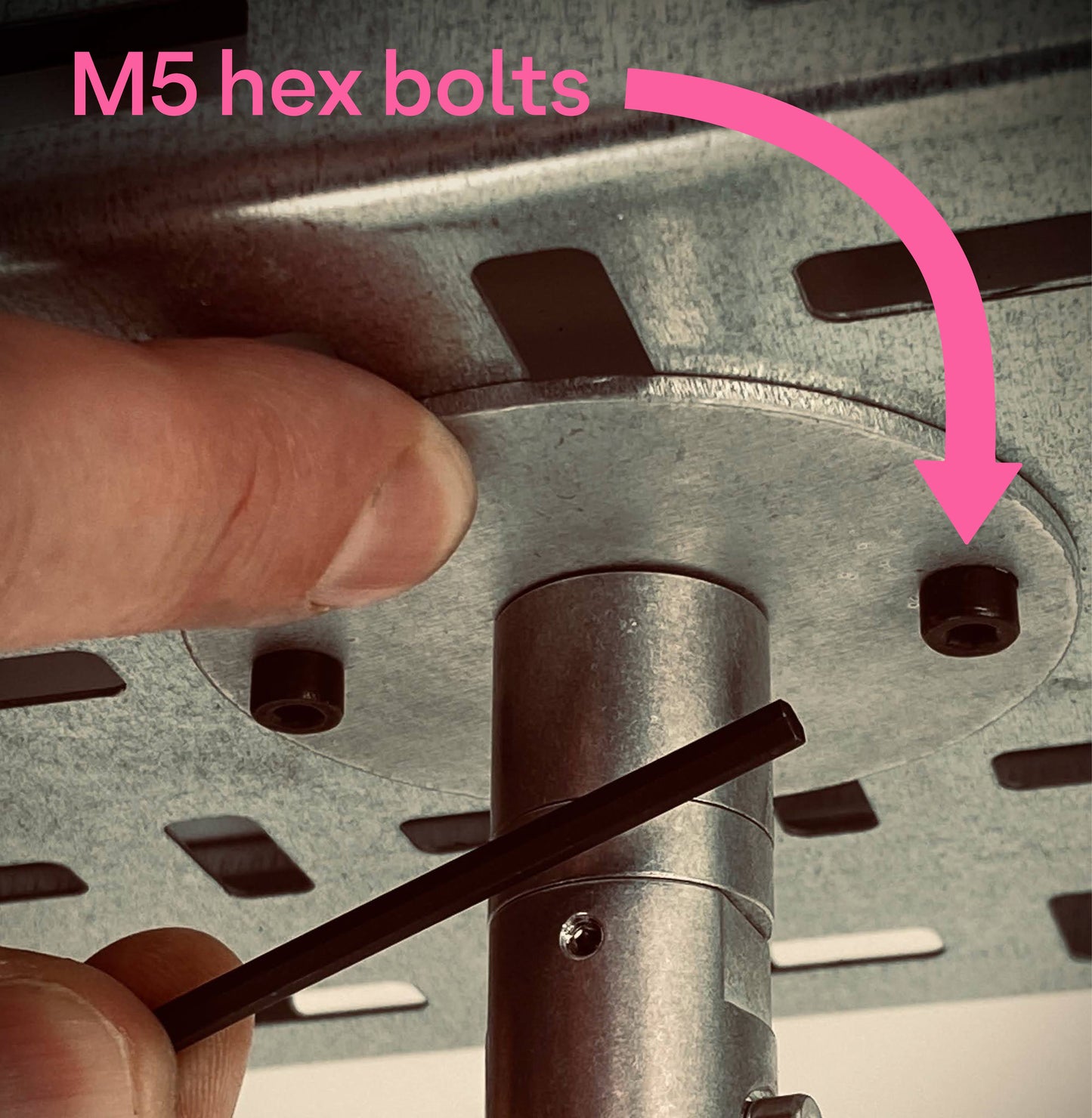

![Installed disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Complete-Install-Stone-Rumbled_9c1975f1-c837-4407-9220-bfa0de376891.jpg?v=1696620187&width=1445)
![Illustration of electrical cable adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Cable-Adjust_ec087ca4-edd6-43d1-b356-56e955dac55e.jpg?v=1696620187&width=1445)

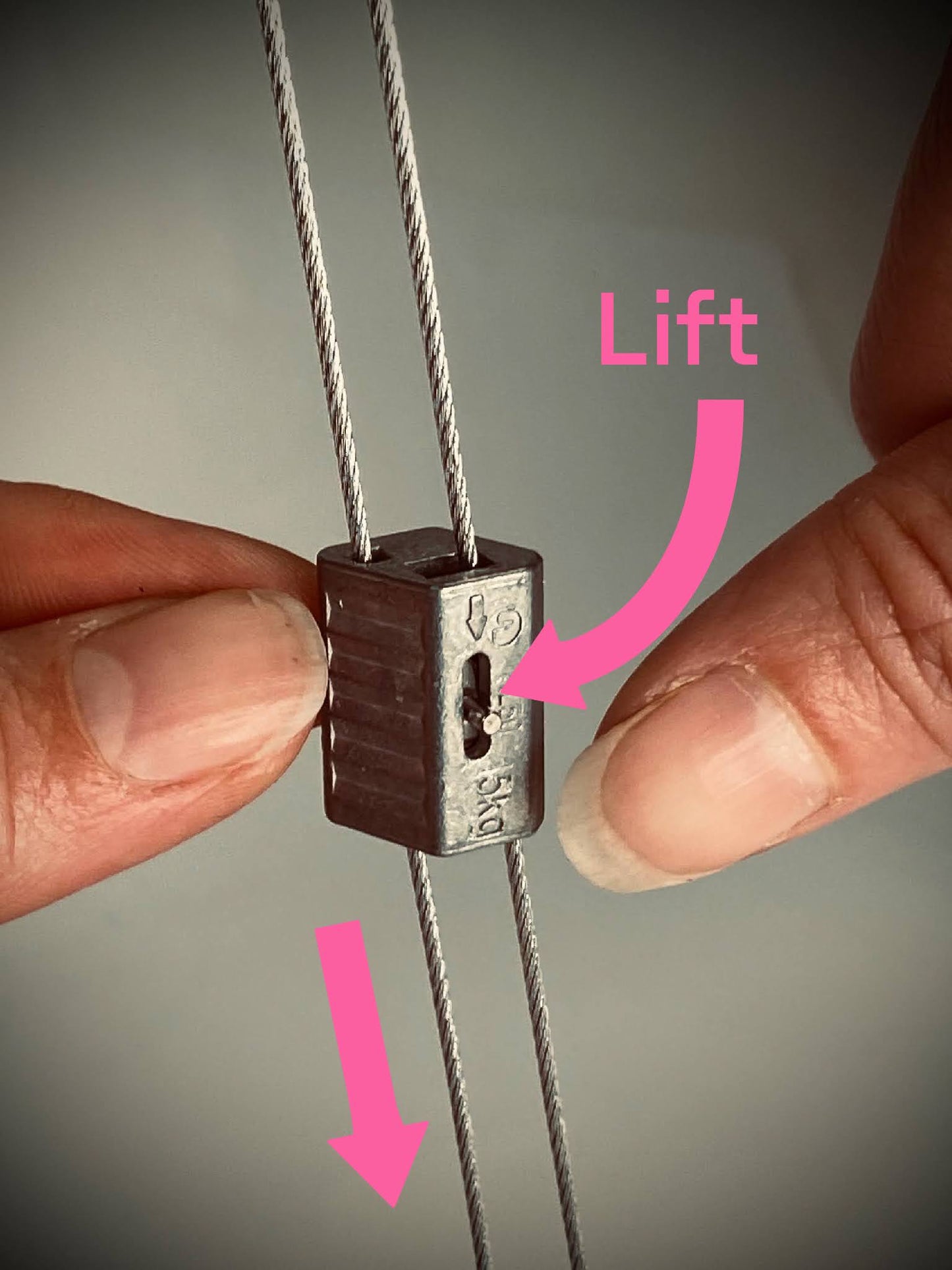

![Illustration of suspension wire adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Suspension-Wire-Adjust_0de1029c-3914-404d-b5b3-fa39badb5bb9.jpg?v=1696620187&width=1445)

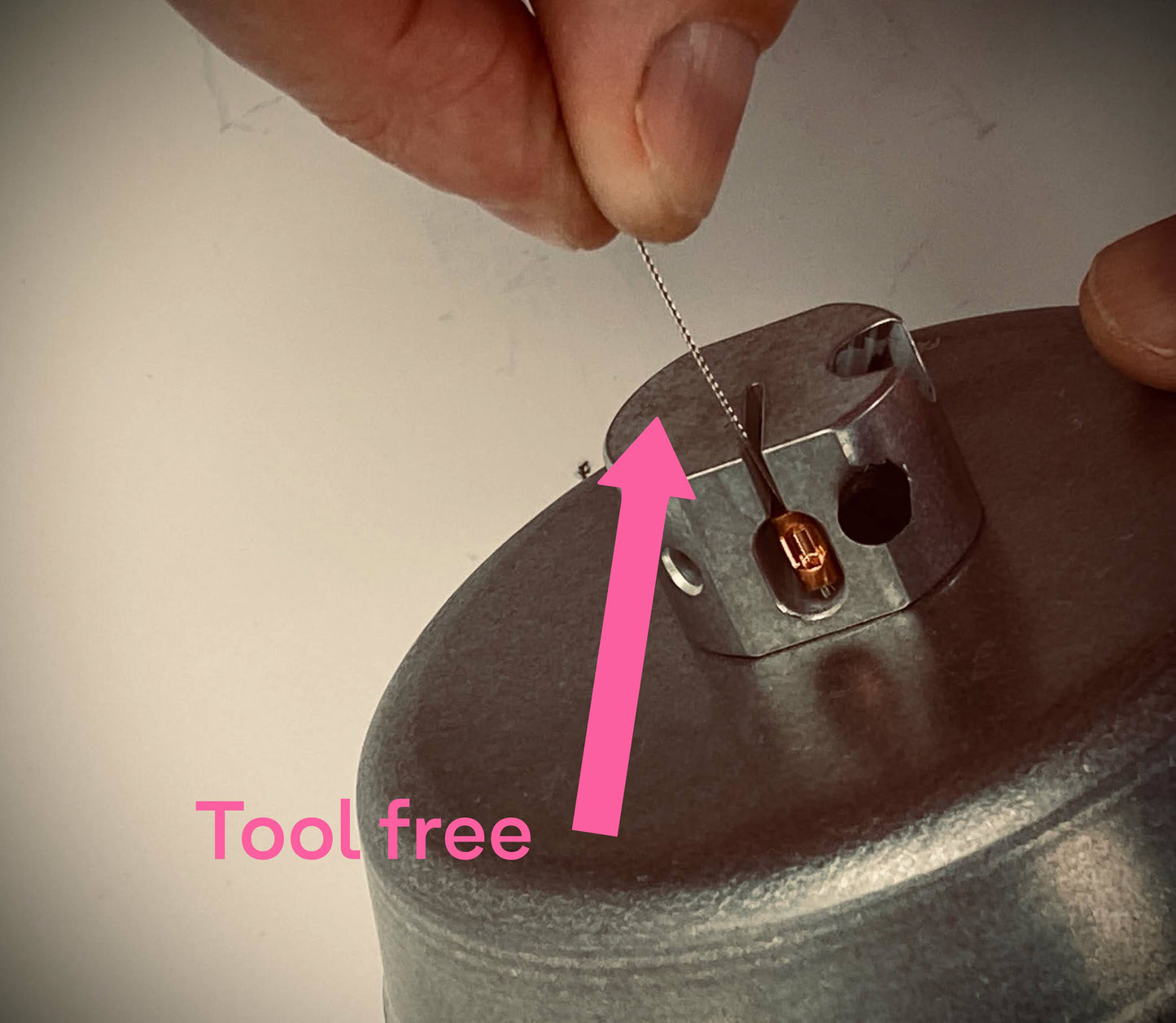

![Illustration of suspension wire installation for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Reflekter-Stone-Rumbled-Suspension-Wire_7dd7a416-0c0d-4a5e-89dd-a3c5cc0f3cfb.jpg?v=1696620187&width=1445)

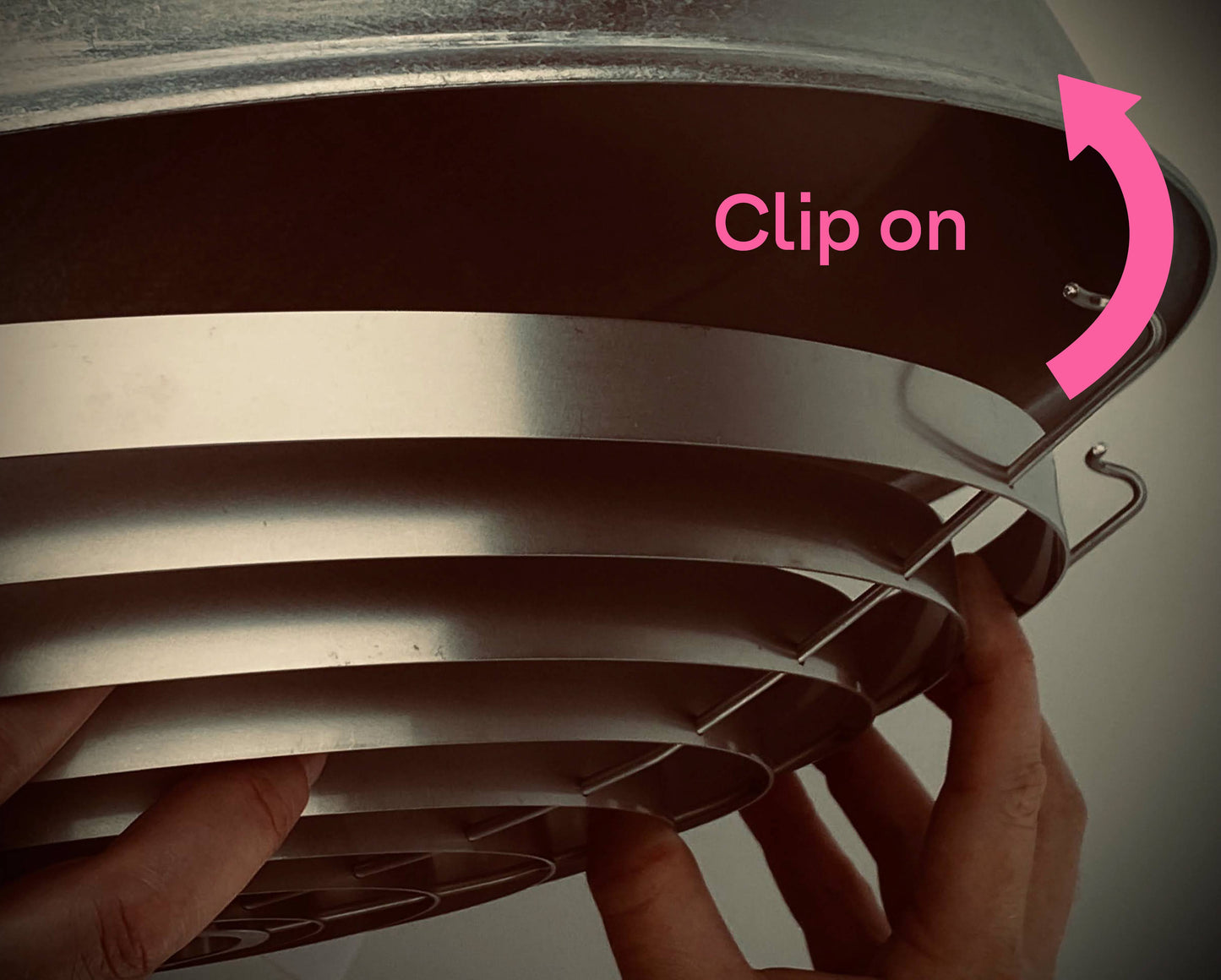

![A concentric louvre accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Concentric-Louvre_32f587a0-38fd-4c95-b3cd-2ccdca8a2344.jpg?v=1696620187&width=1445)

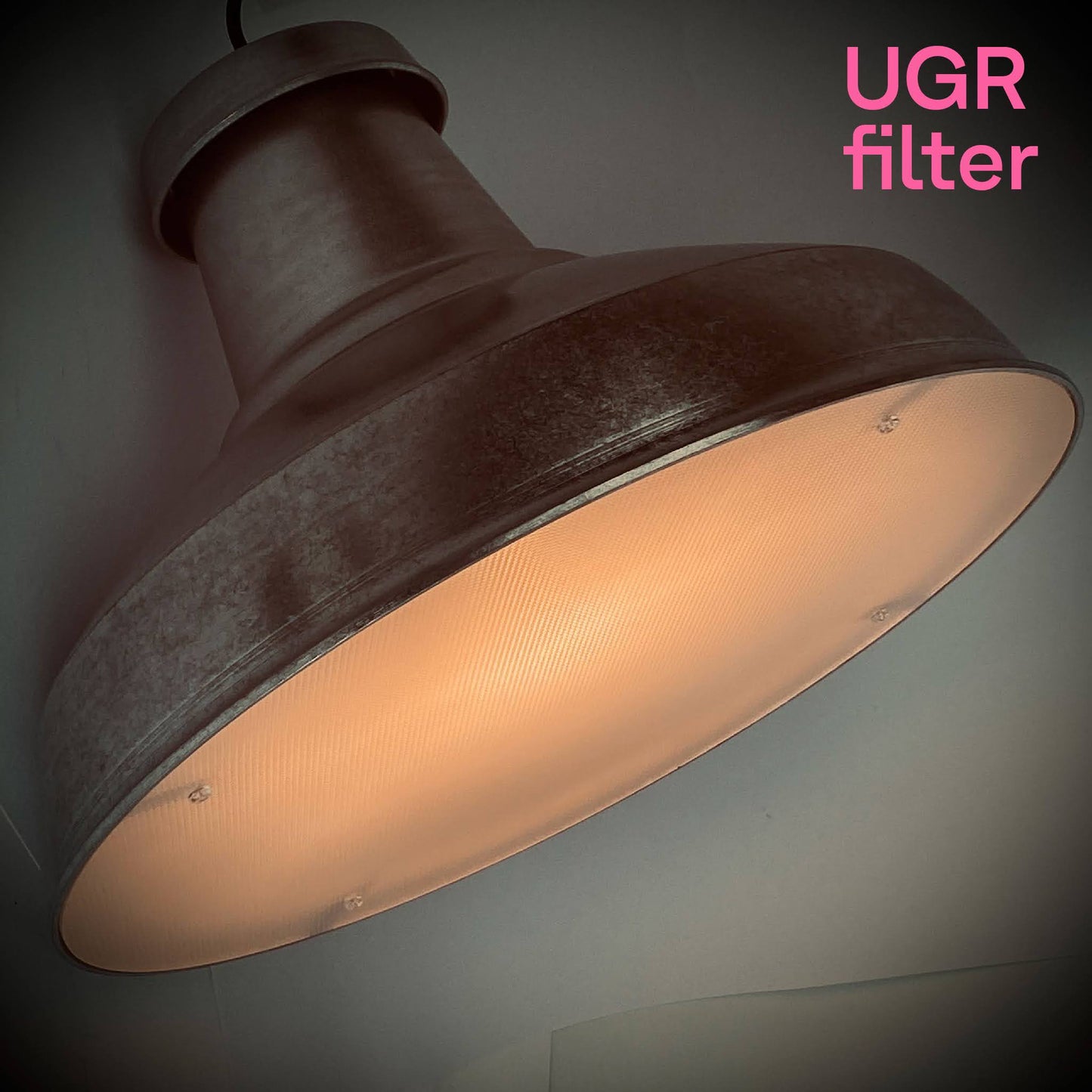

![A UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR_1f464eeb-9dcf-46e3-9ac5-8f9fa9f6cab0.jpg?v=1696620187&width=1445)
![Close up of UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR-Filter_ff370c2f-ce6c-453b-af9e-90ce748cea35.jpg?v=1696620187&width=1445)

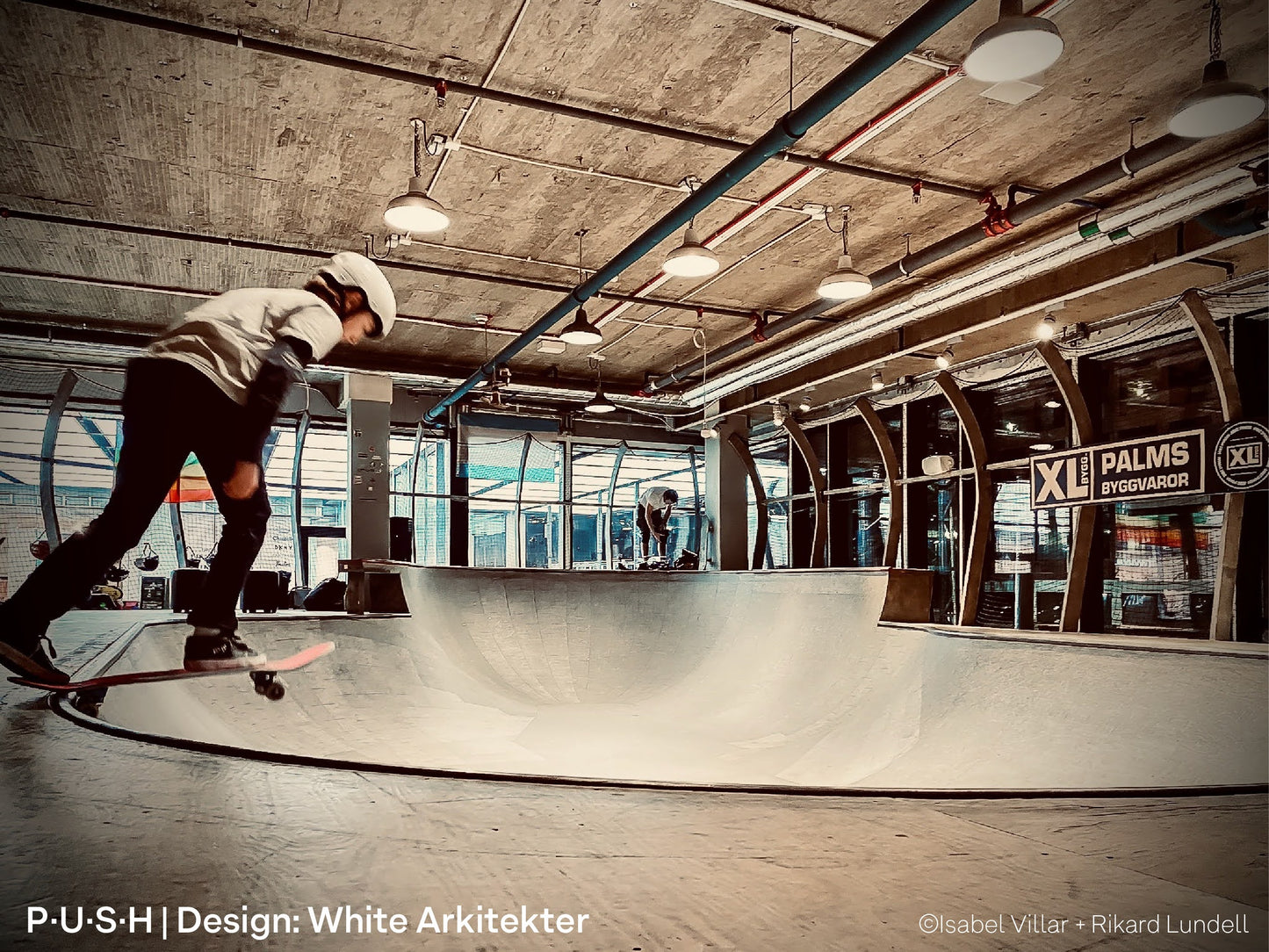

![Skateboarders, skating at an indoor skatepark, illuminated by high-output architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-1_6a408cc8-cf6c-48bb-aa16-6dc27f4d3e78.jpg?v=1696620982&width=1445)
![Skateboarders, skating at an indoor skatepark, illuminated by 4700lm 3500K architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-2_7a4a6ed8-12f0-438b-a235-cf1cb6db31f5.jpg?v=1696620982&width=1445)

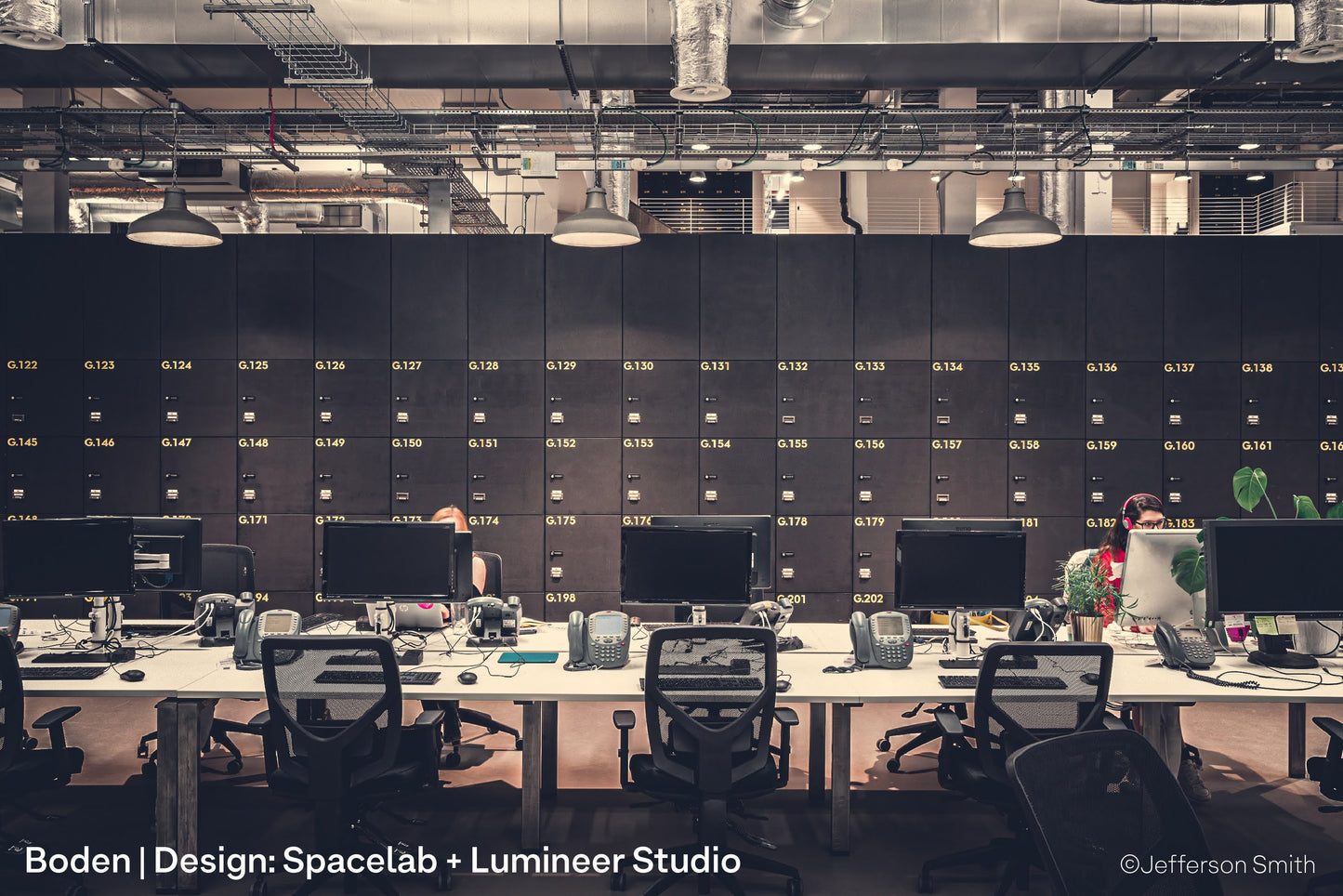

![Contemporary office workers in Boden's fashionable London HQ with architectural pendant lighting](http://factorylux.com/cdn/shop/files/Boden-HQ-Office-Lighting-Space-Lab-Reflekter-Pendant-1_9e67850c-850b-498d-a839-00ecaaf84ca3.jpg?v=1696620990&width=1445)
