Reflekter™ XL | Stone-Rumbled™ | Disc Monopoint | 3500K
Reflekter™ XL | Stone-Rumbled™ | Disc Monopoint | 3500K
Couldn't load pickup availability
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 4kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 96.9 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°, UGR
- Accessories: Honeycomb Louvre | Concentric Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural pendant light delivers up to 4750lm and the potential for 'closed loop' Circular Economy. A ⌀360mm 'L' version is also available. Choose from different luminaire optics and accessories, including UGR (Unified Glare Ratio) filters.
Spotify, Autodesk and Google all use Reflekter™ as office lighting, by getting the LED closer to the subject, less product and fewer lumens are required to achieve the same lux level - installations can be faster and running costs lower compared to traditional linear lighting.
Disc-Monopoint is our smallest, most low-profile luminaire mounting. A completely flat, 65mm diameter x 2mm thick circular plate with standard BESA (50.8mm) hole spacings. Fix to conduit box, pattress or surface mount to cable tray, timber, cladding or other suitable material.
Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Stone-Rumbled™ body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines

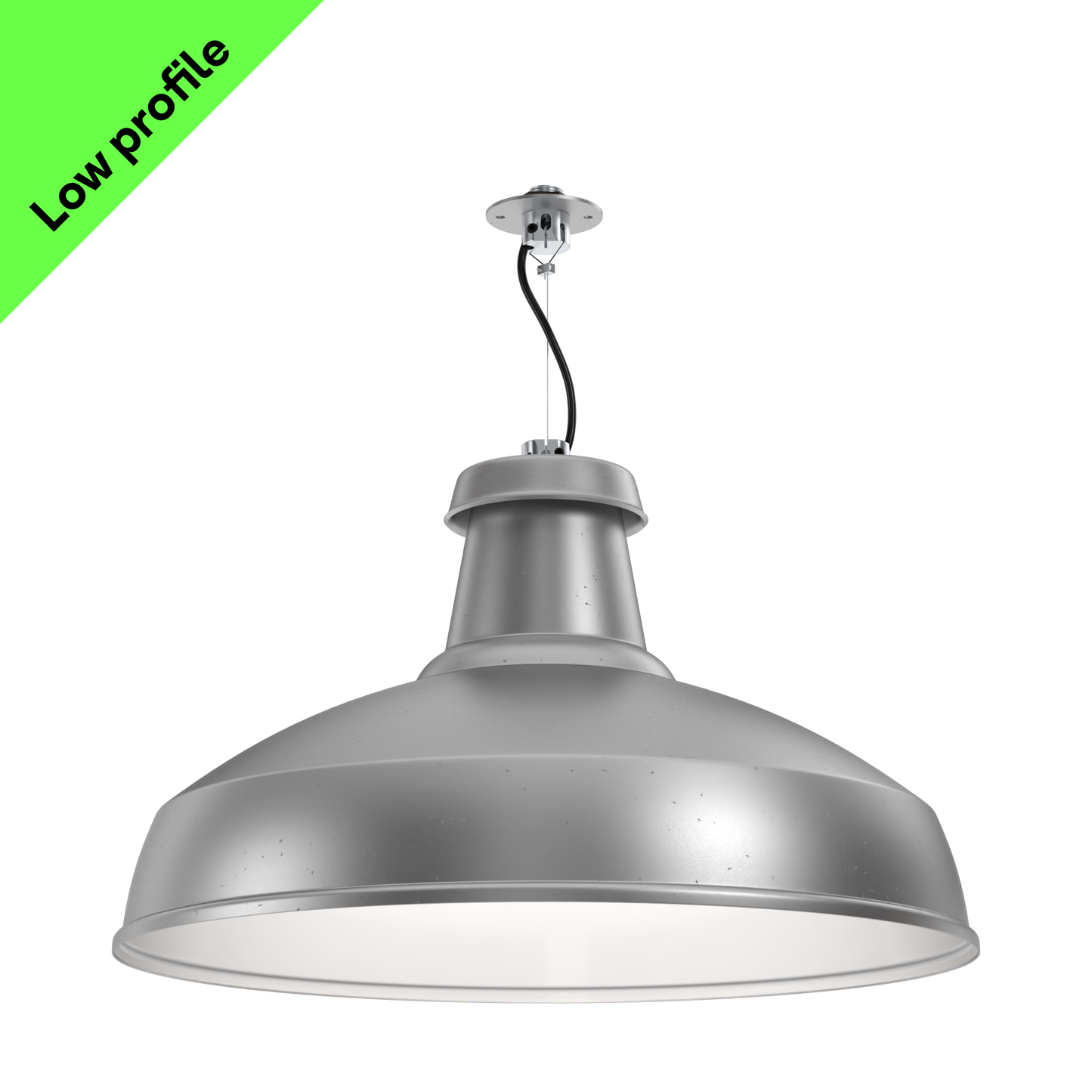

![A paint-free architectural XL pendant light on a low-profile, flat mounting disc with BESA hole spacings](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-XL-Reflekter-Disc-Monopoint-Stone-Rumbled-Hero_09d36f2e-36ab-4509-886a-30c372dd7a09.png?v=1695865129&width=1445)

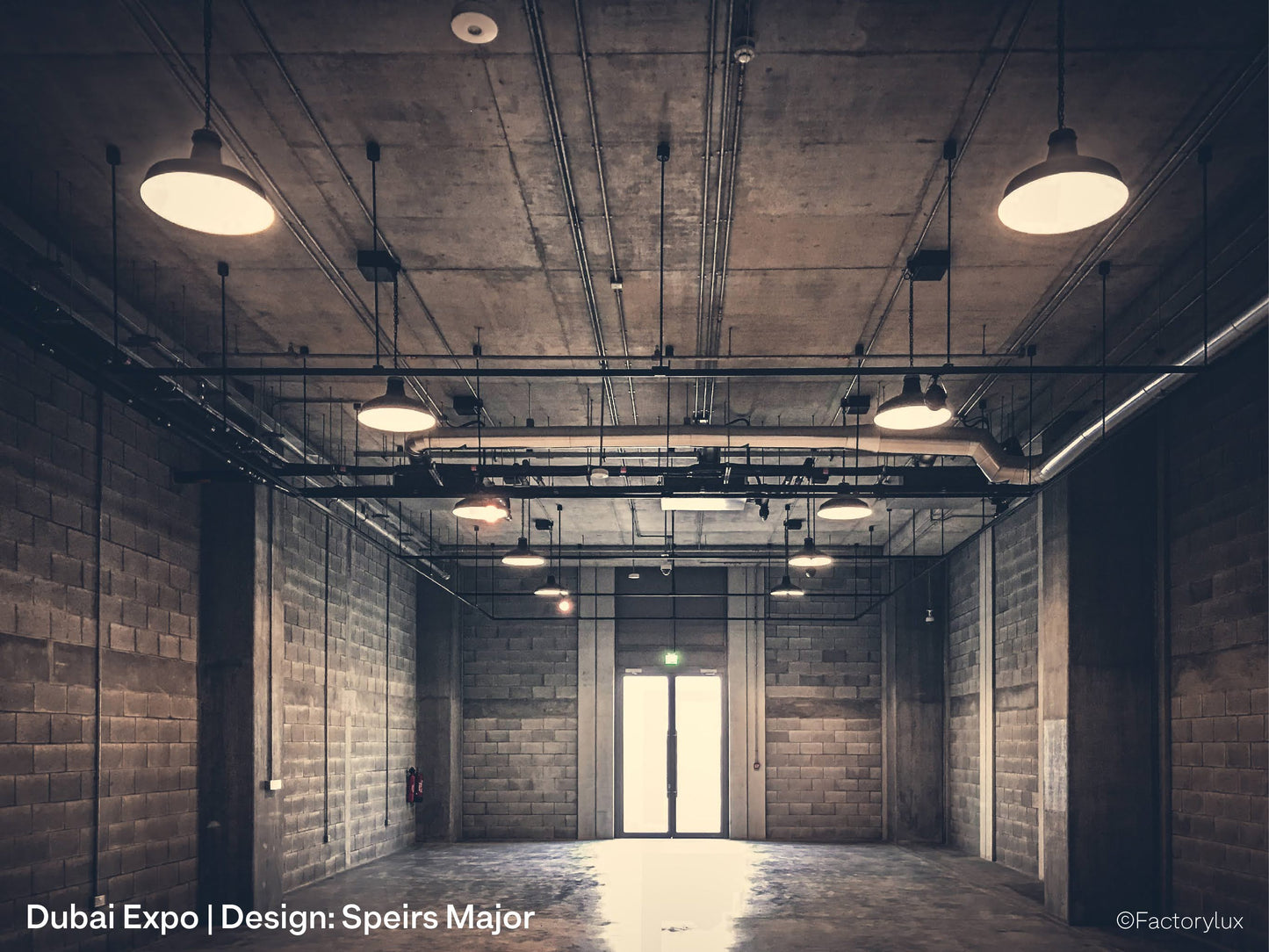

![Expo exhibition centre in Dubai, with beton-brut concrete walls and raw aluminium architectural pendant lights](http://factorylux.com/cdn/shop/files/Dubai-Expo-Speirs-Major-Pendant-Lighting_66195beb-7daa-4c07-95c1-52d4fdd26e52.jpg?v=1696355617&width=1445)

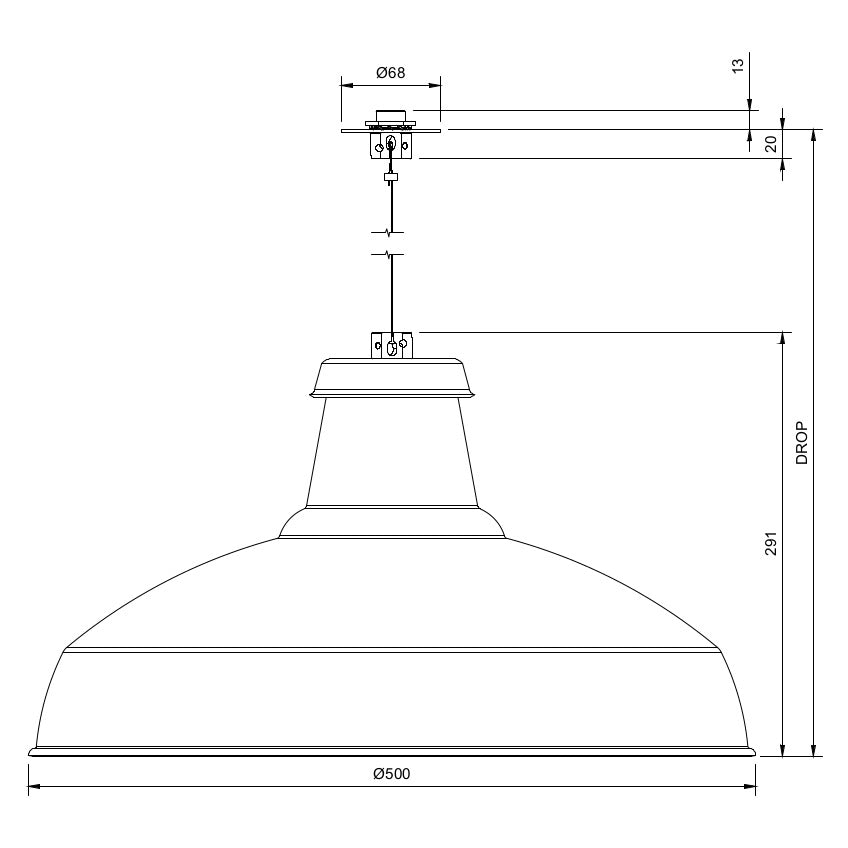

![Technical drawing of an extra large circular economy pendant light on a low-profle, disc mount with BESA hole spacings](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-XL-Reflekter-Disc-Monopoint-Line-Drawing_975aa82b-fb40-42de-a323-78c290818d1a.jpg?v=1696620394&width=1445)

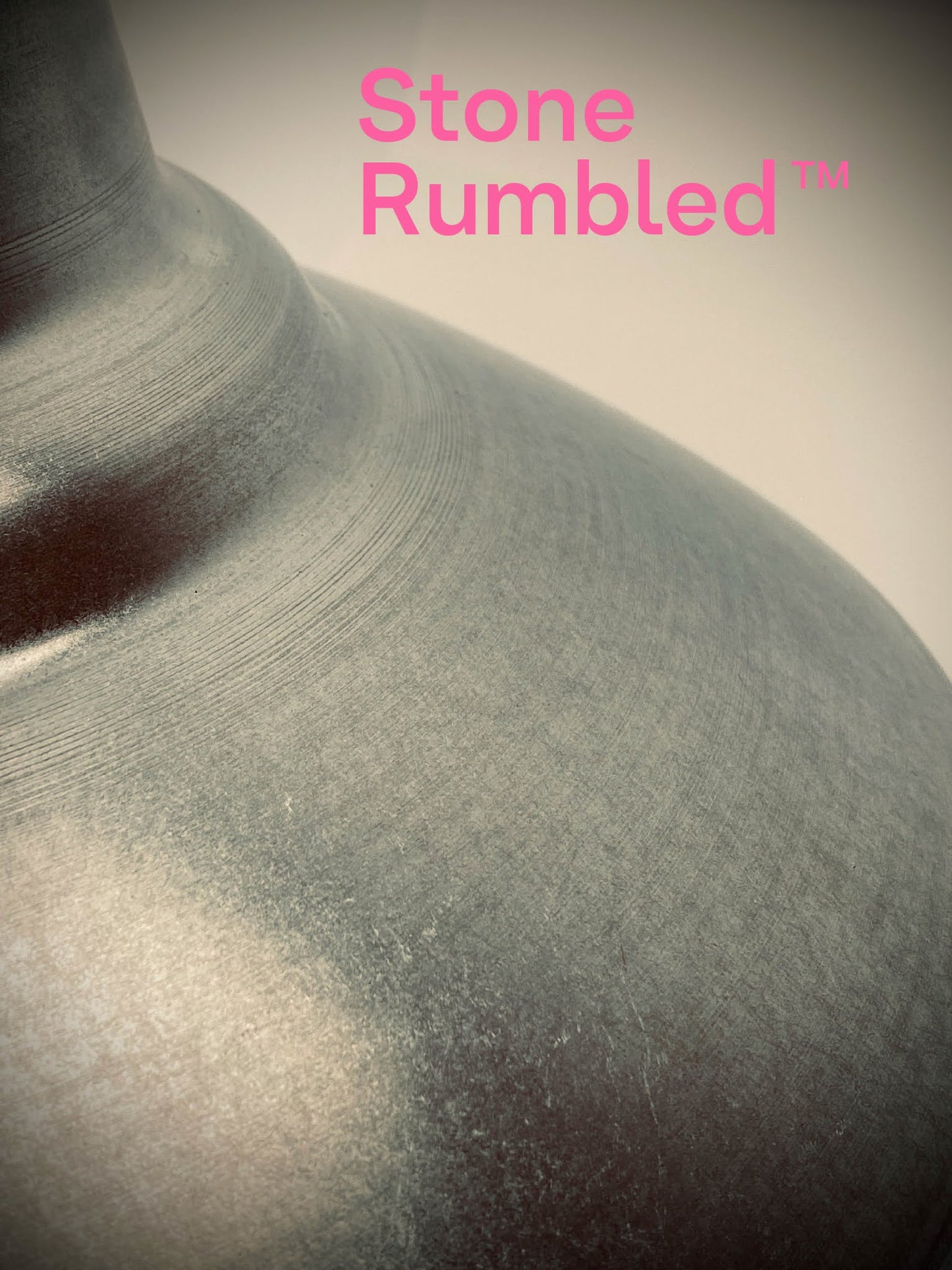

![Close up of a sustainable raw aluminium pendant light for architects, revealing a wabi-sabi surface texture](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Colour-Texture-Close-Up_1f703e95-4276-4647-b250-9d33c50093b0.jpg?v=1696620394&width=1445)

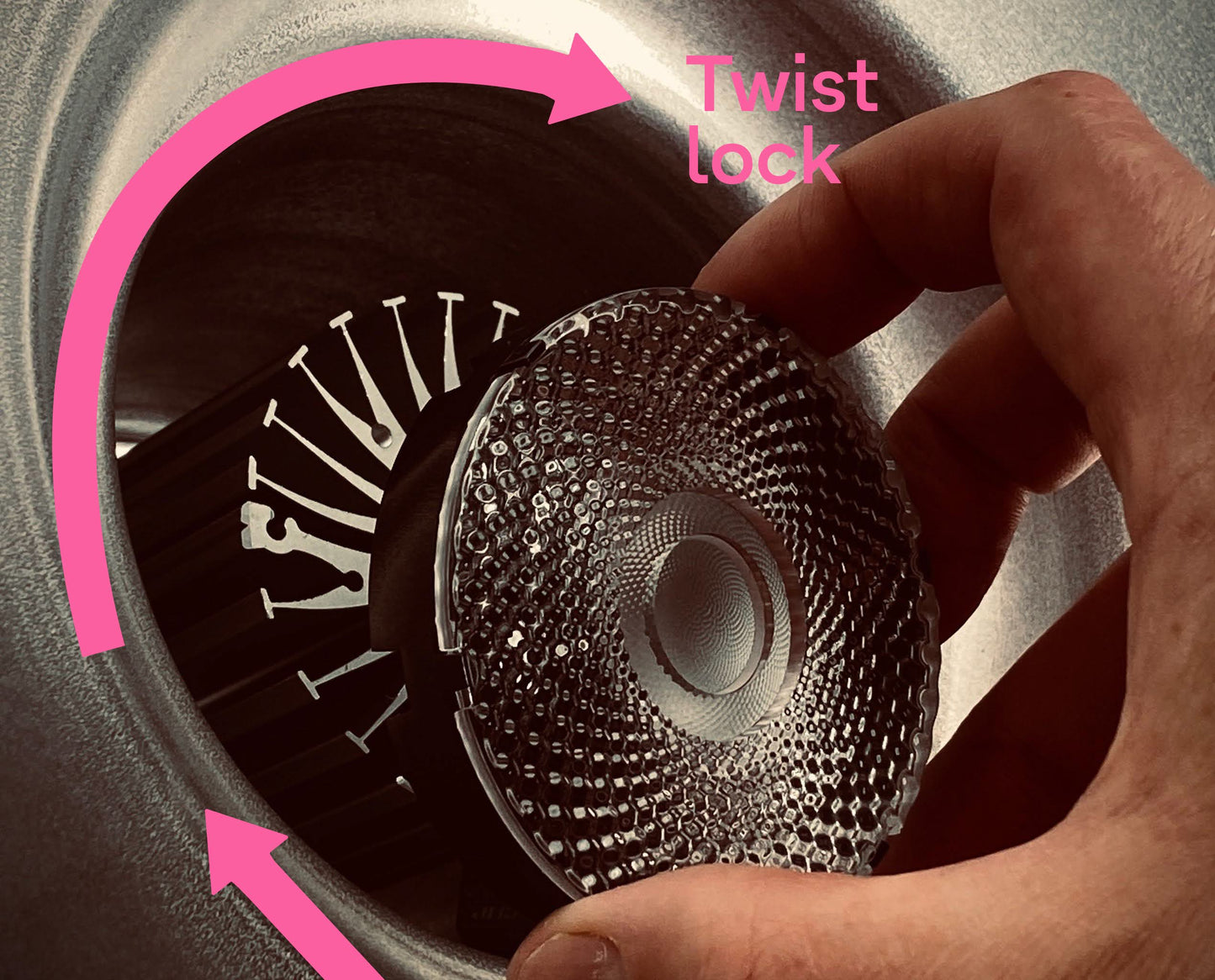

![How to insert the lens into a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Removable-Lens_adb09228-14a0-4b0f-84dd-2252bff46f70.jpg?v=1696620394&width=1445)

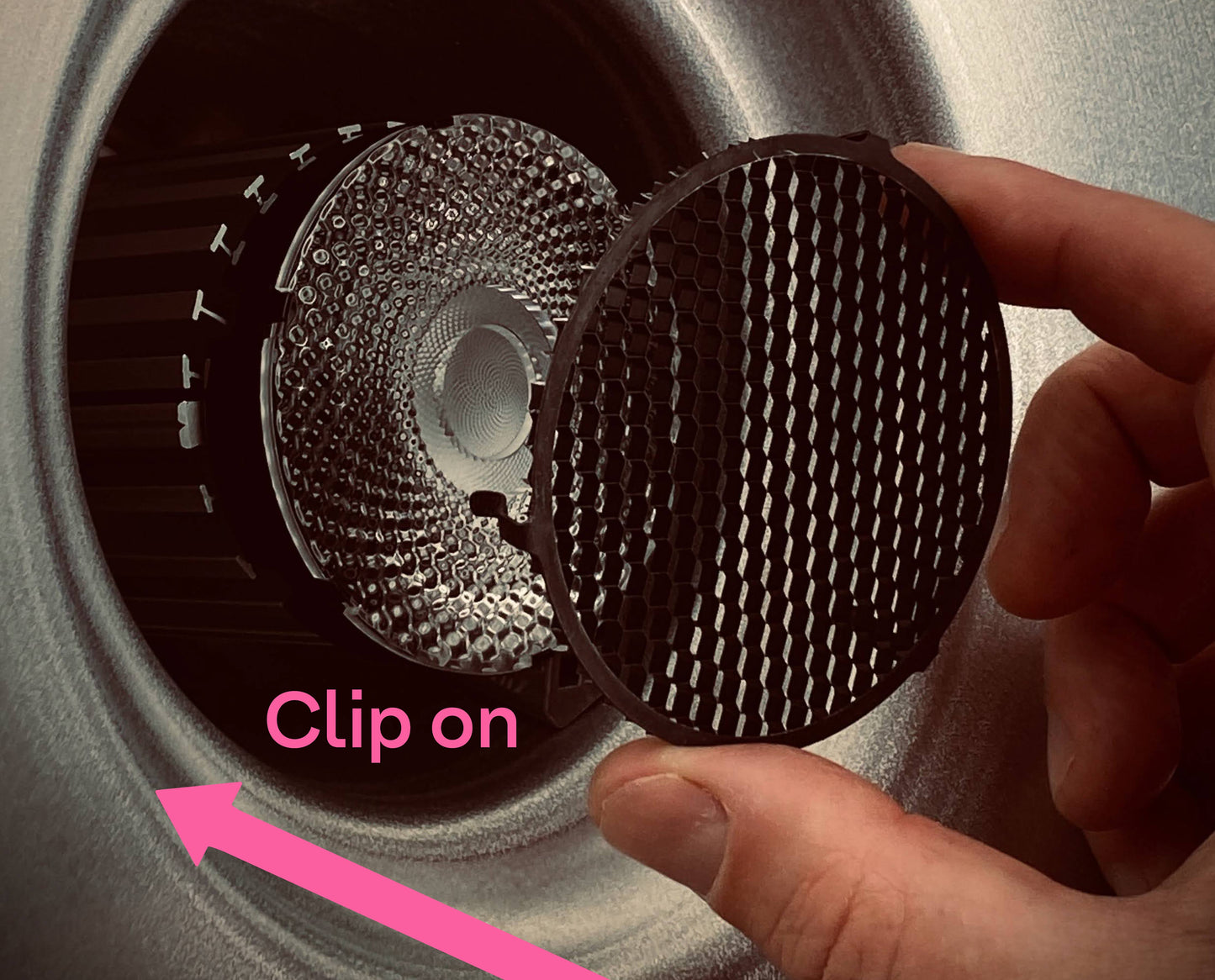

![How to attach honeycomb louvre onto a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Honeycomb-Louvre_c3c8d06a-13ac-4d3f-8106-569594422e23.jpg?v=1696620394&width=1445)

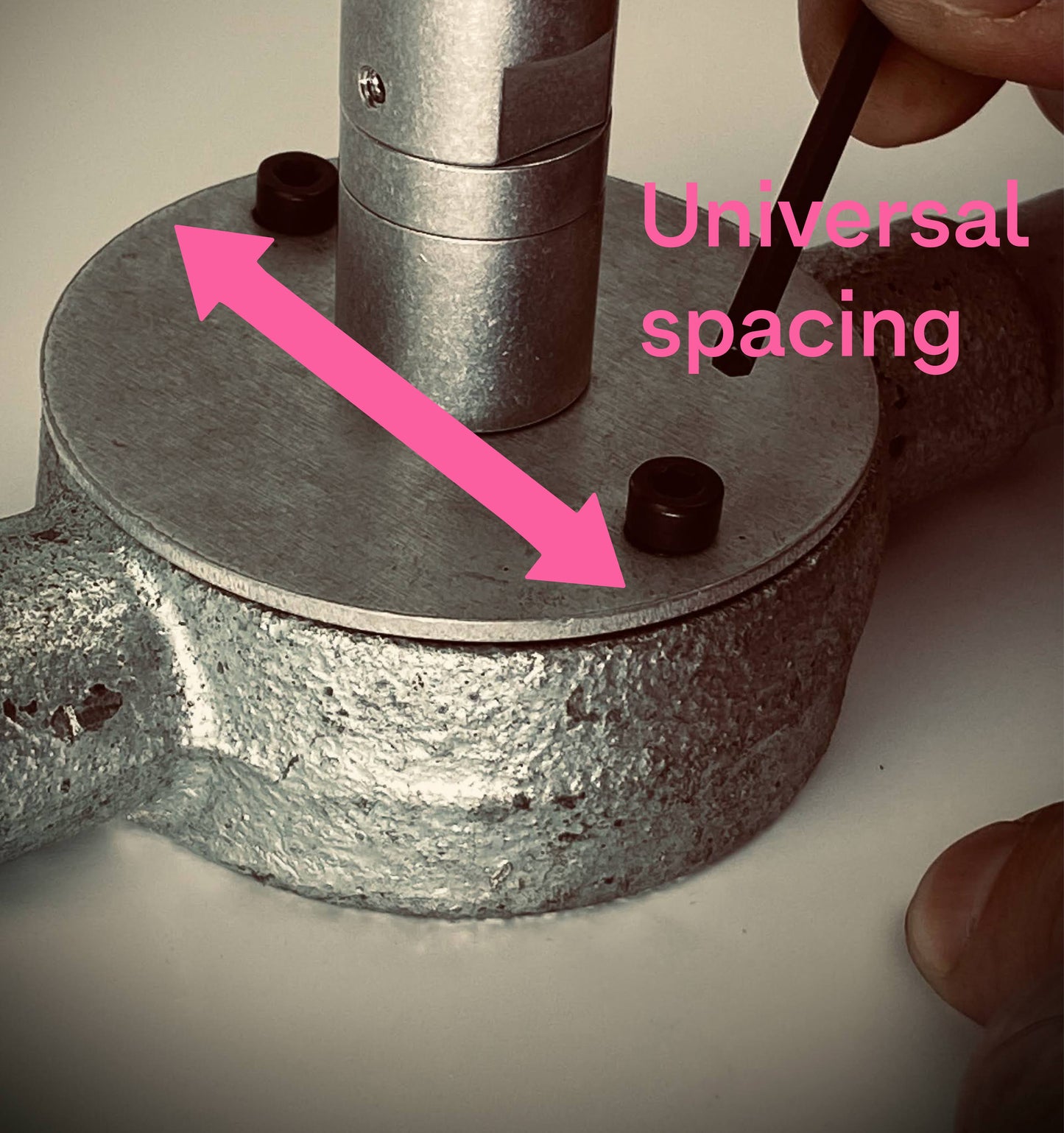

![How to install disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Base-Install-Stone-Rumbled_b072aeb6-1184-4e4a-9cb7-58d9df41cb3a.jpg?v=1696620394&width=1445)

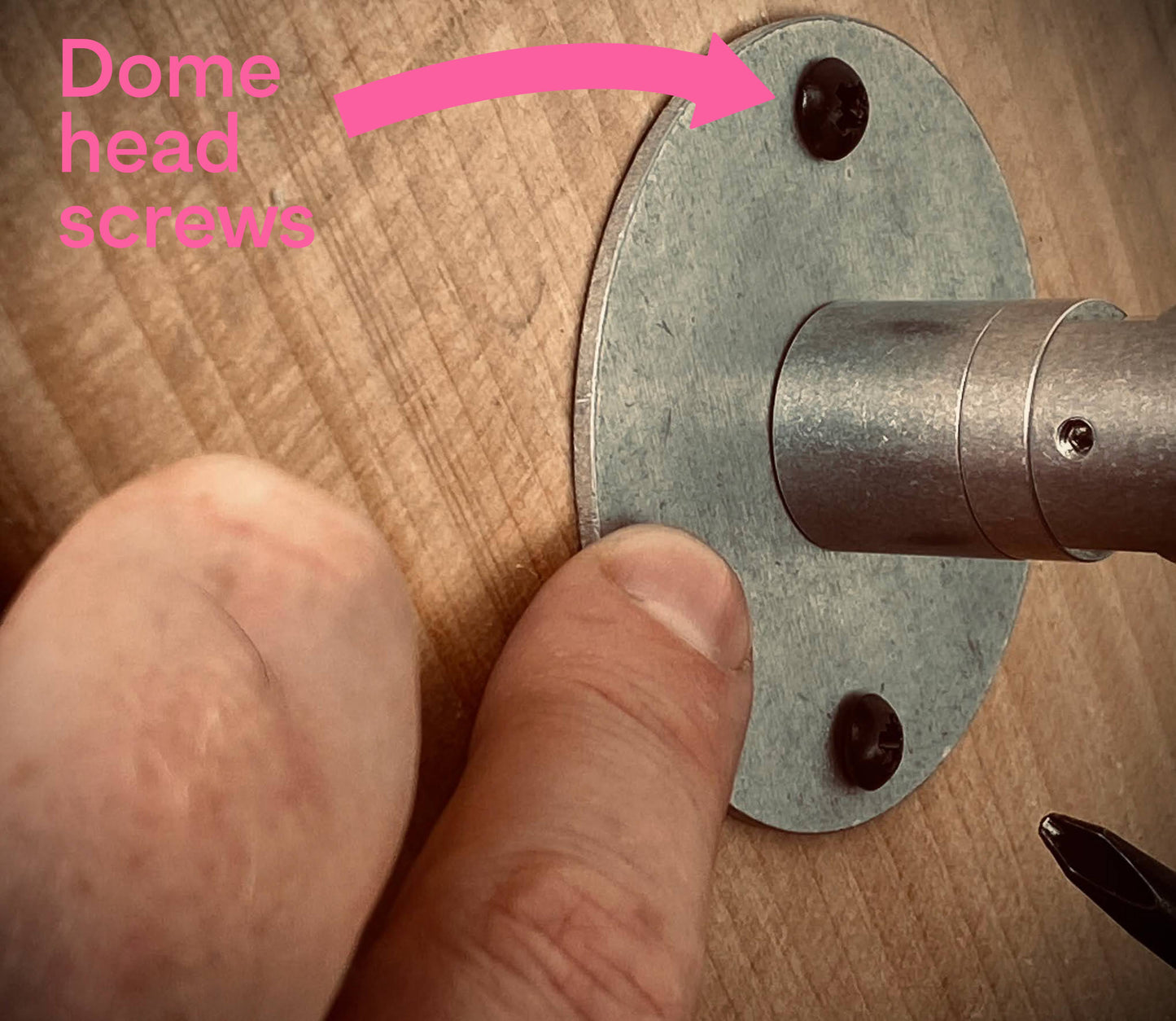

![How to install disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Top-Install-Stone-Rumbled_e0cd341f-0f48-48d1-a199-a8d9d69e96ba.jpg?v=1696620394&width=1445)

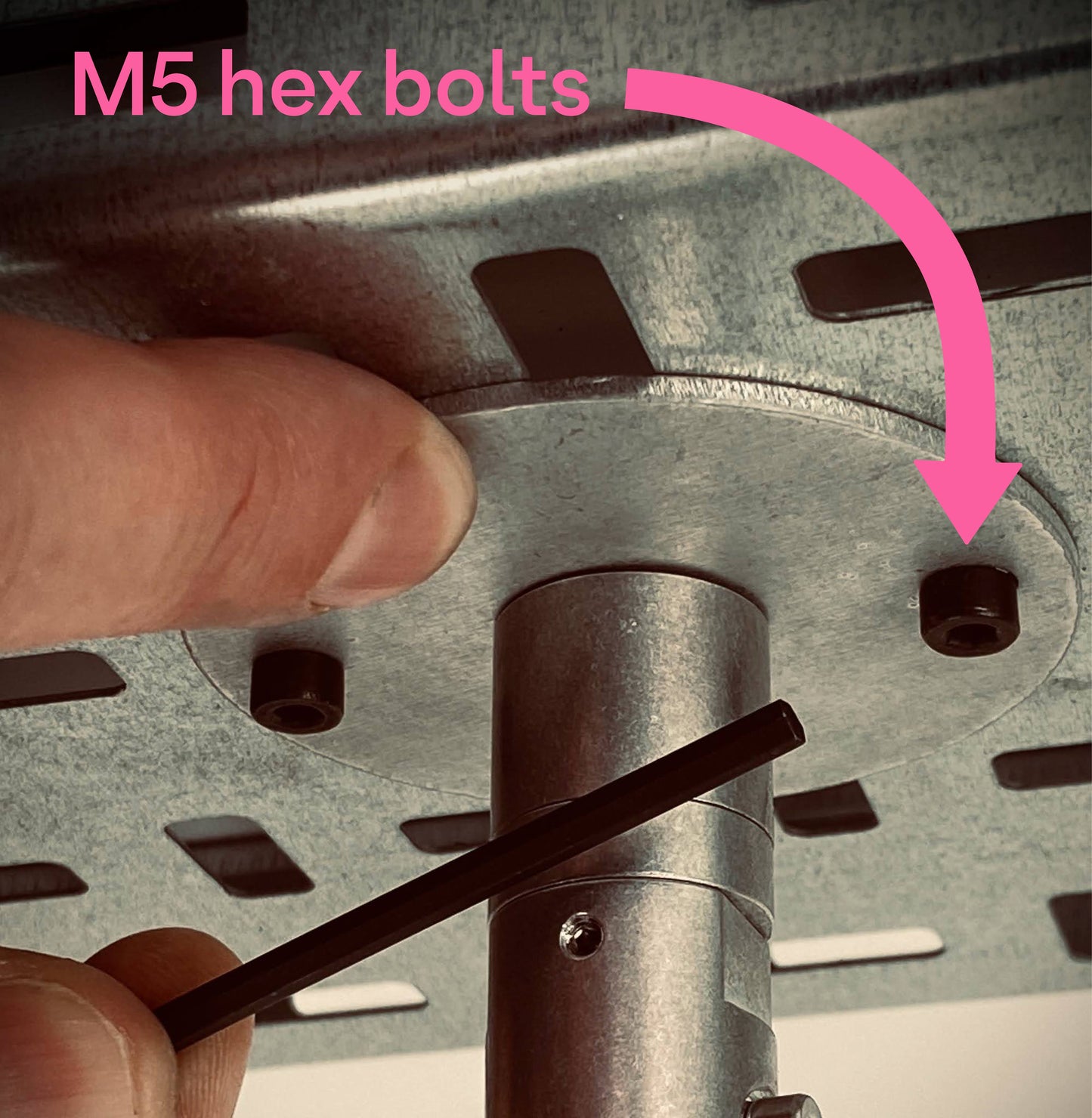

![Installed disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Complete-Install-Stone-Rumbled_fd651e98-48a6-438d-a3e9-976832ced752.jpg?v=1696620394&width=1445)

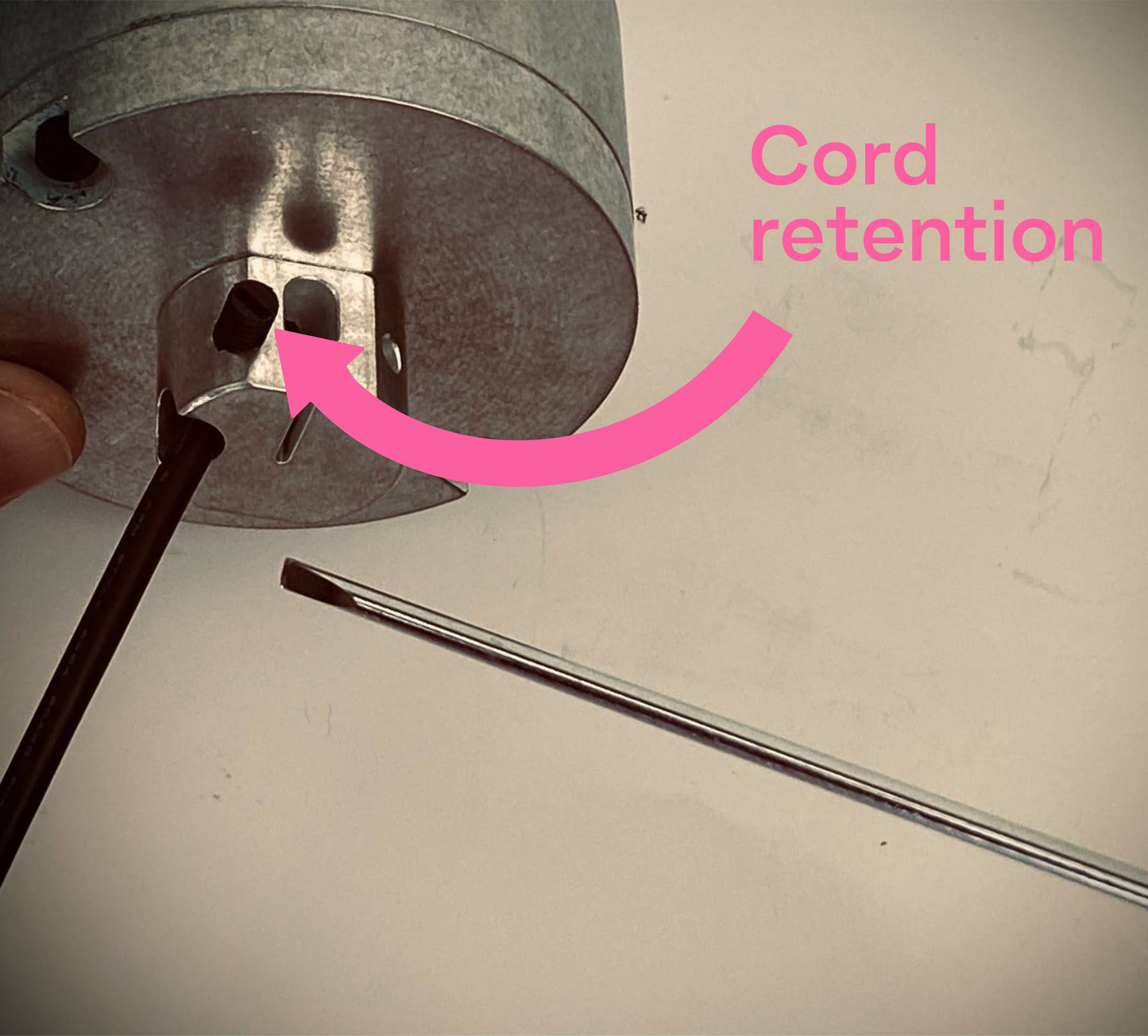

![Illustration of electrical cable adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Cable-Adjust_9a9f0f75-7285-41dc-a967-5aa05098586b.jpg?v=1696620394&width=1445)

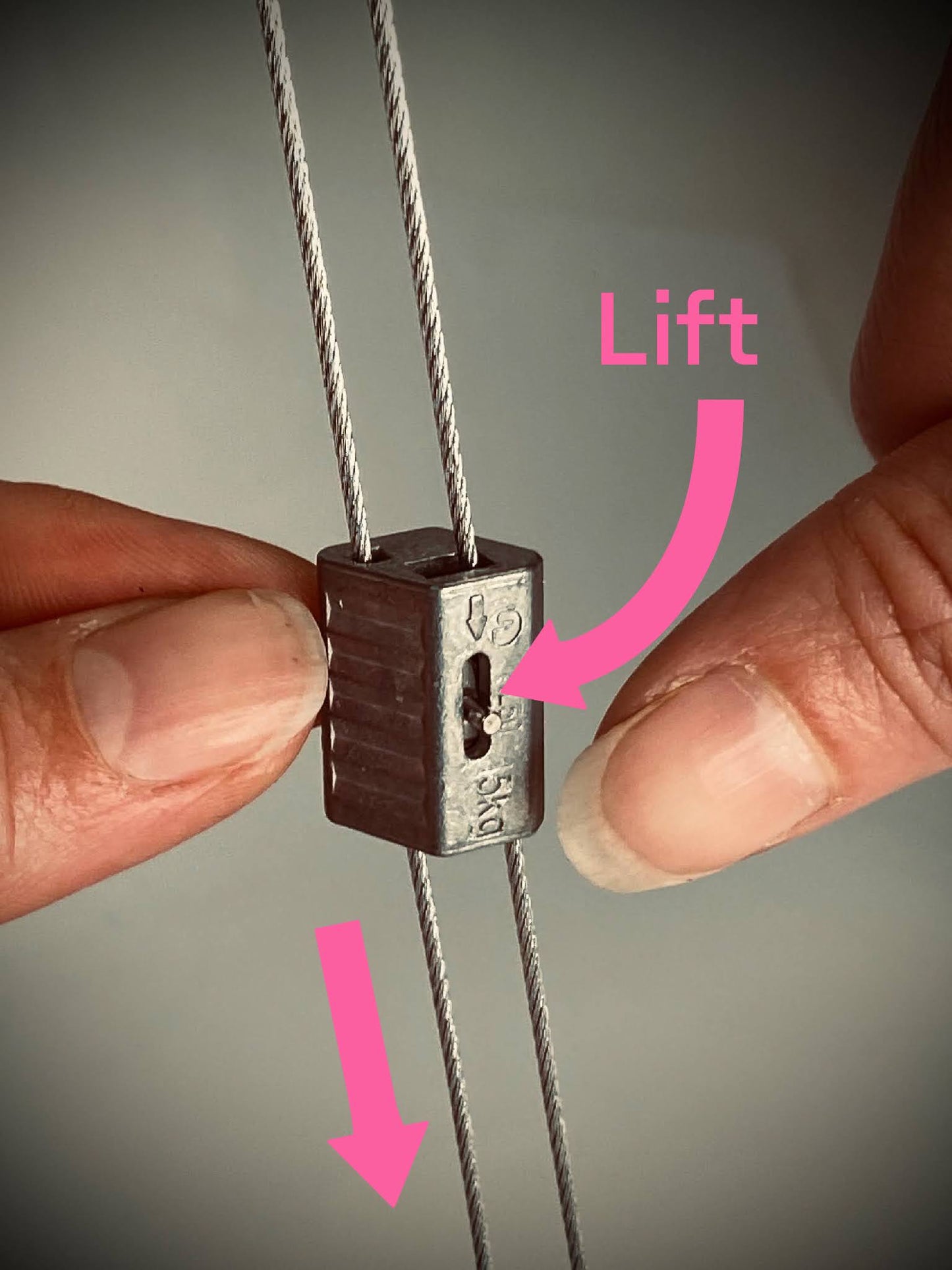

![Illustration of suspension wire adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Suspension-Wire-Adjust_8cb27f52-3cf5-4d7a-9e05-fa3a63229ef0.jpg?v=1696620394&width=1445)

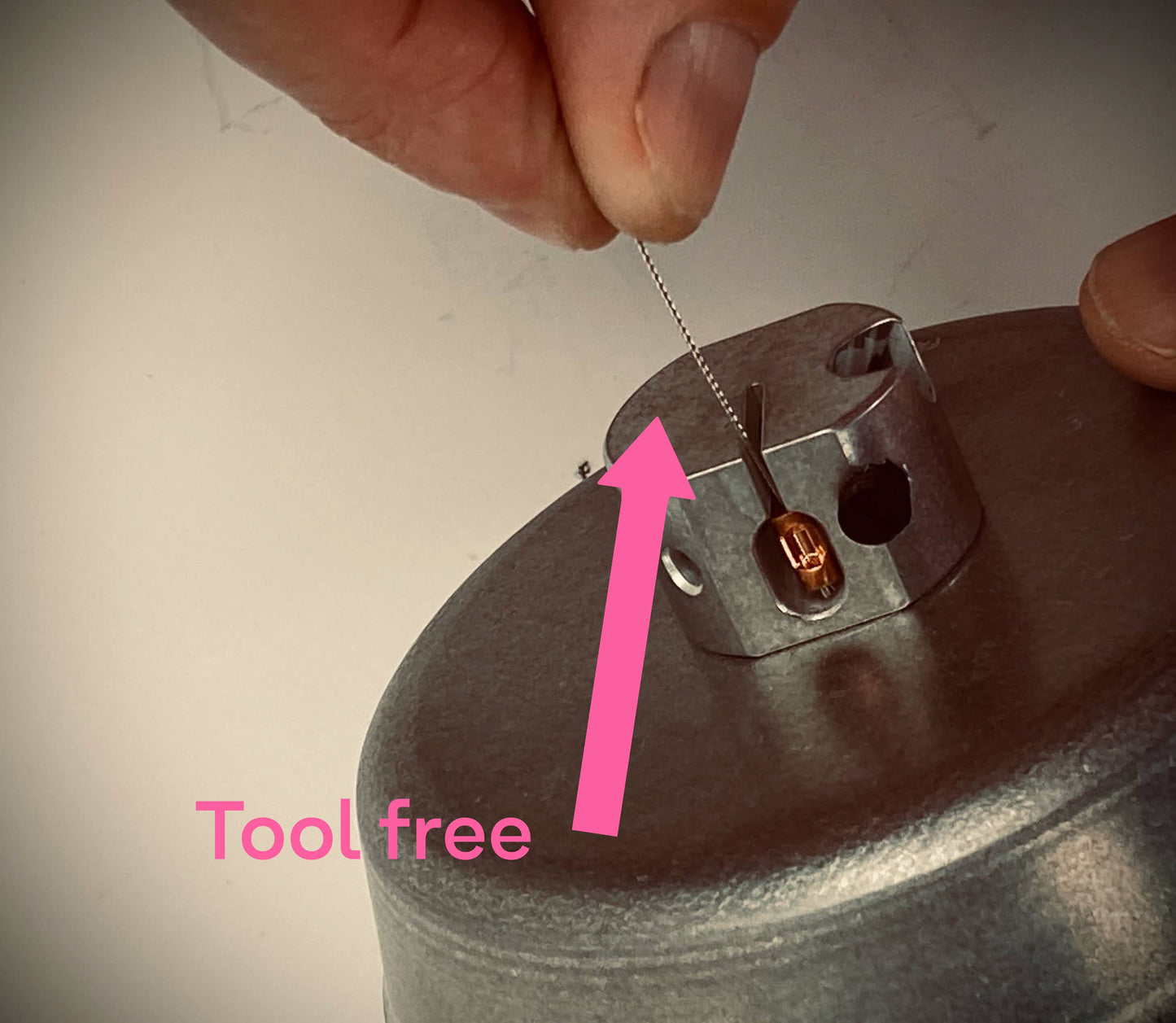

![Illustration of suspension wire installation for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Reflekter-Stone-Rumbled-Suspension-Wire_f652ccb8-e625-451d-b1c8-0b7a90289706.jpg?v=1696620394&width=1445)

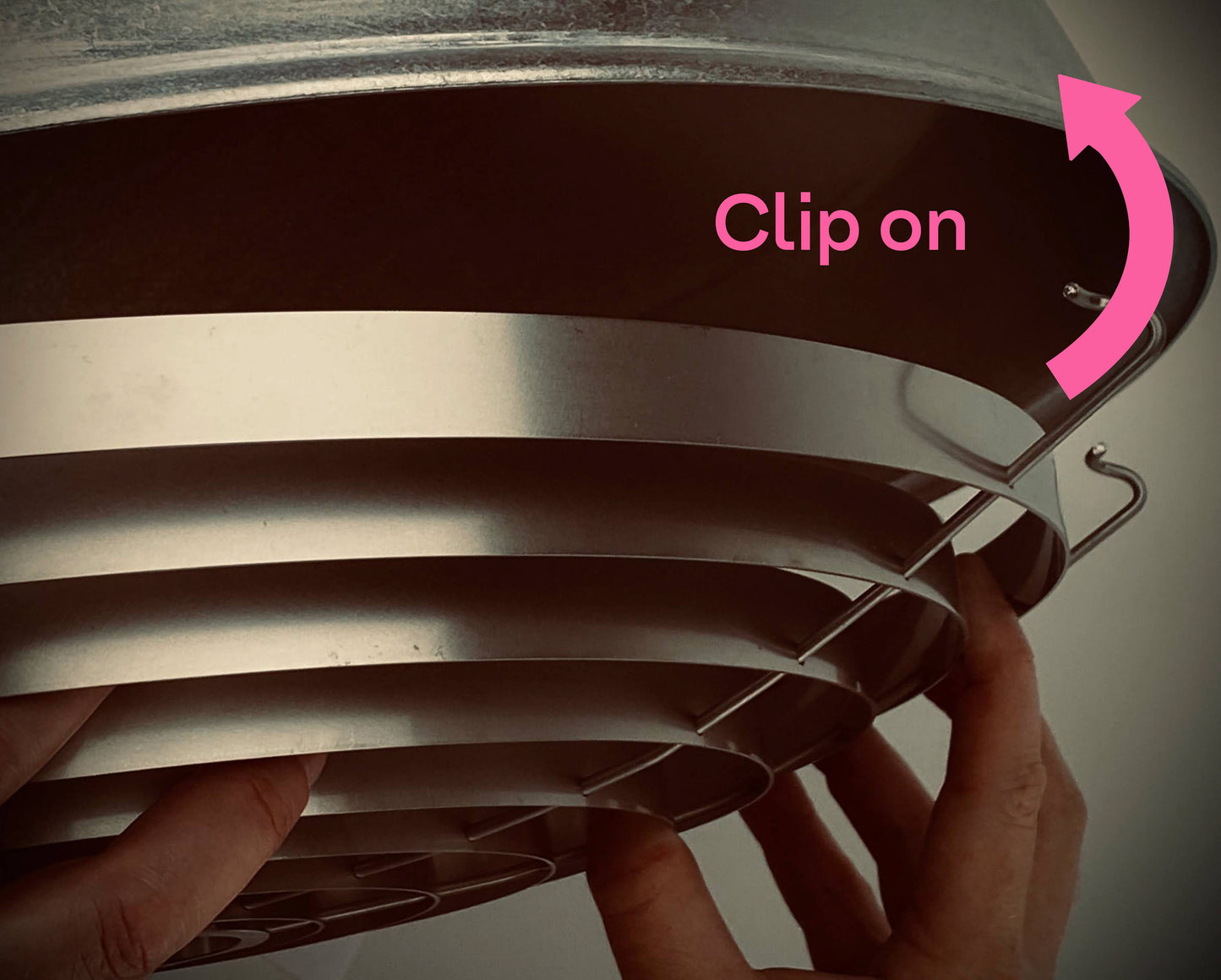

![A concentric louvre accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Concentric-Louvre_f914950a-aeb9-4d14-958e-bfb21db24c3c.jpg?v=1696620382&width=1445)

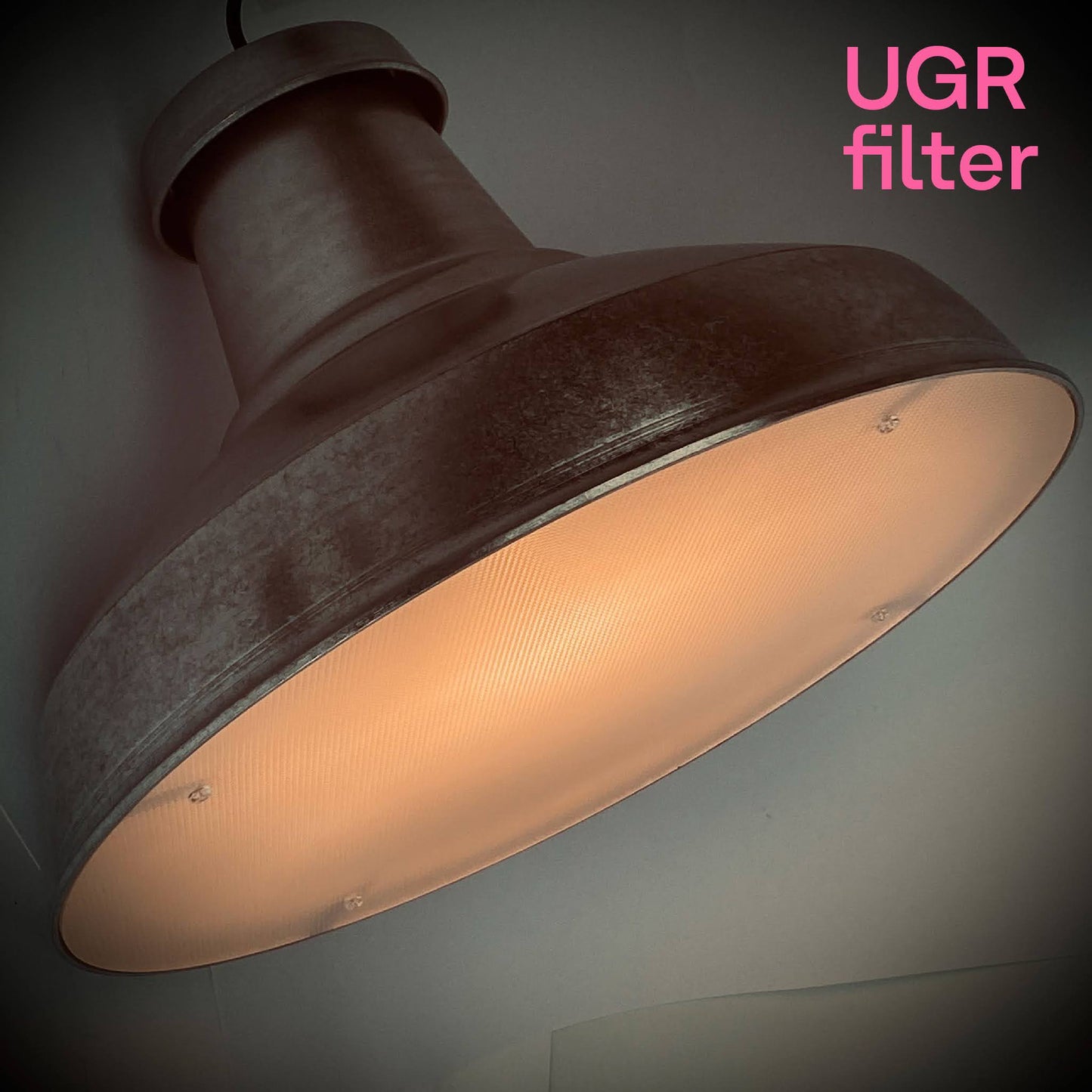

![A UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR_3cb02c4c-e84a-4116-a5dd-728e33c90e7e.jpg?v=1696620405&width=1445)

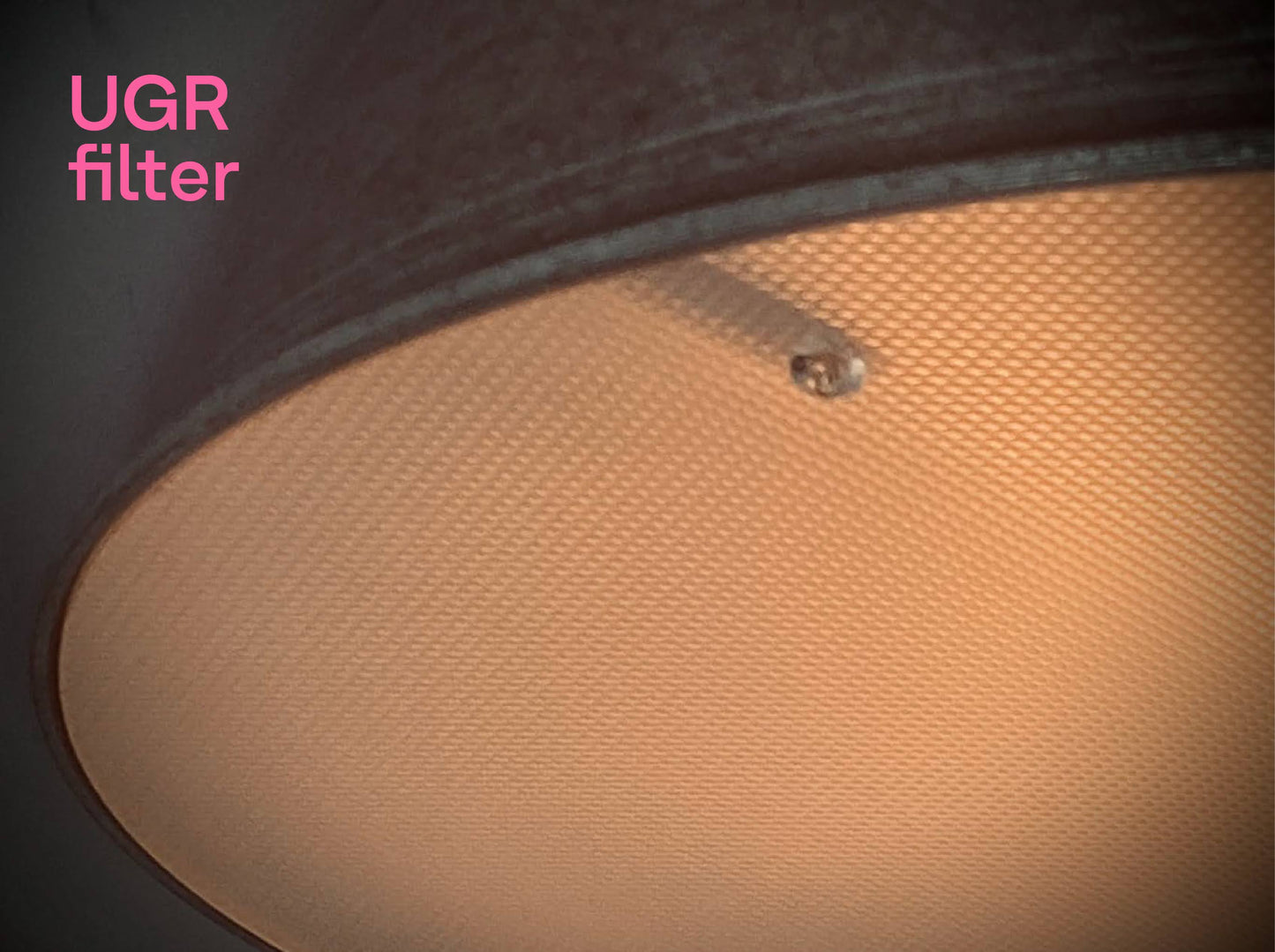

![Close up of UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR-Filter_64e5e370-3a57-4c16-8234-3ef5dd4d2de1.jpg?v=1696620405&width=1445)

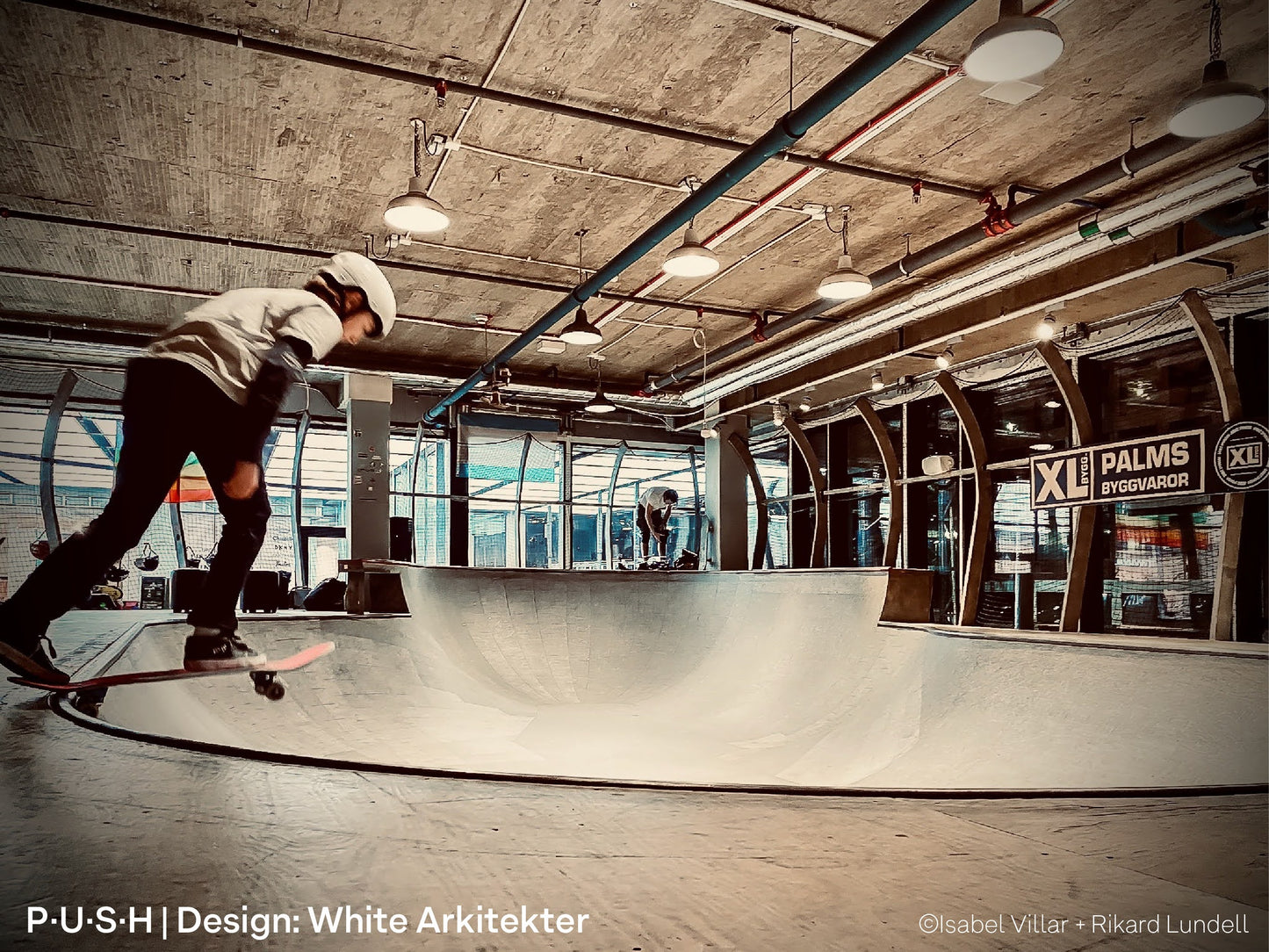

![Skateboarders, skating at an indoor skatepark, illuminated by high-output architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-1_b00766e4-4689-4b09-8e6a-946631896e42.jpg?v=1696621007&width=1445)

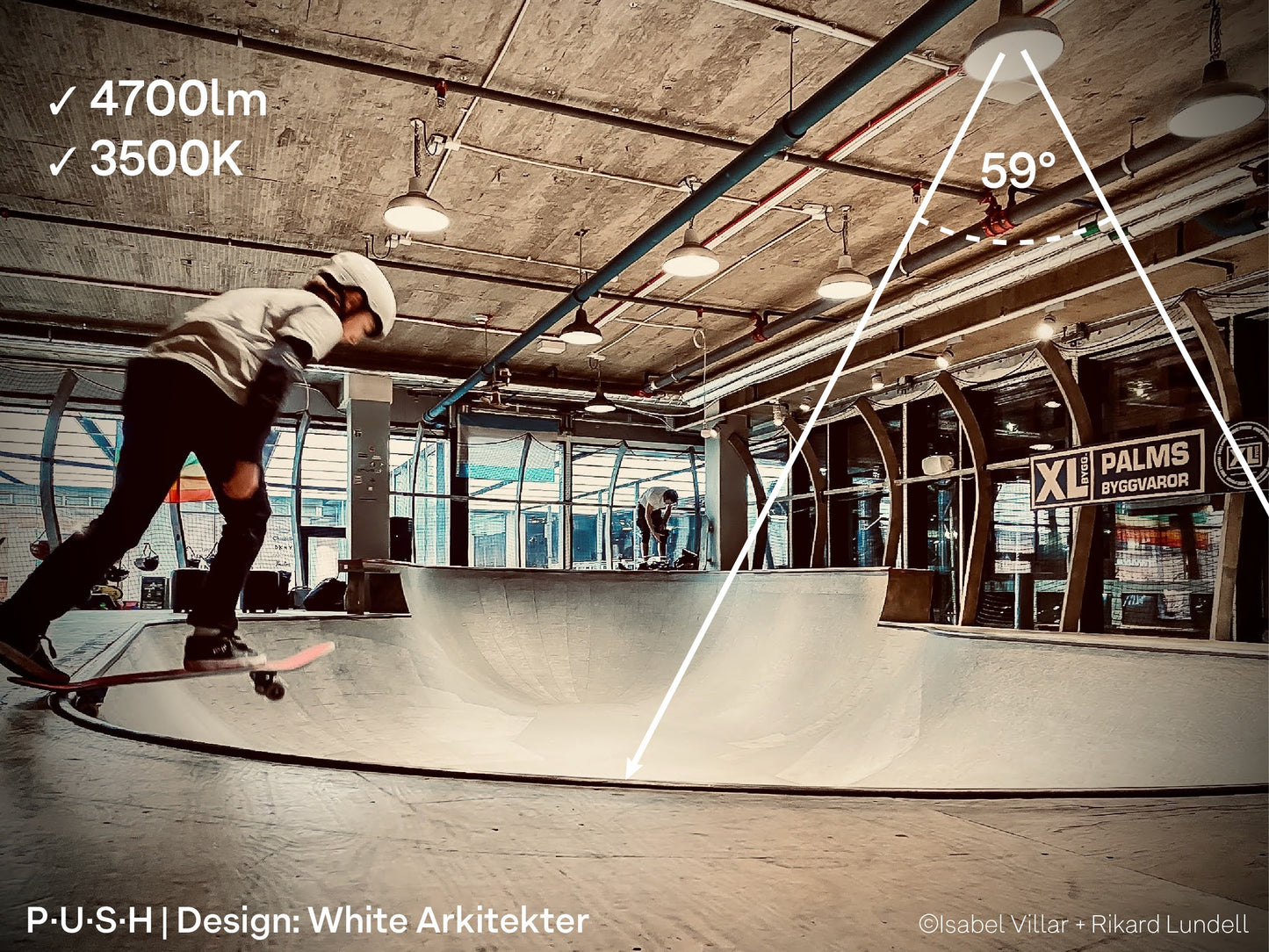

![Skateboarders, skating at an indoor skatepark, illuminated by 4700lm 3500K architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-2_405733a5-73c3-46fc-baff-0598409b9459.jpg?v=1696621007&width=1445)

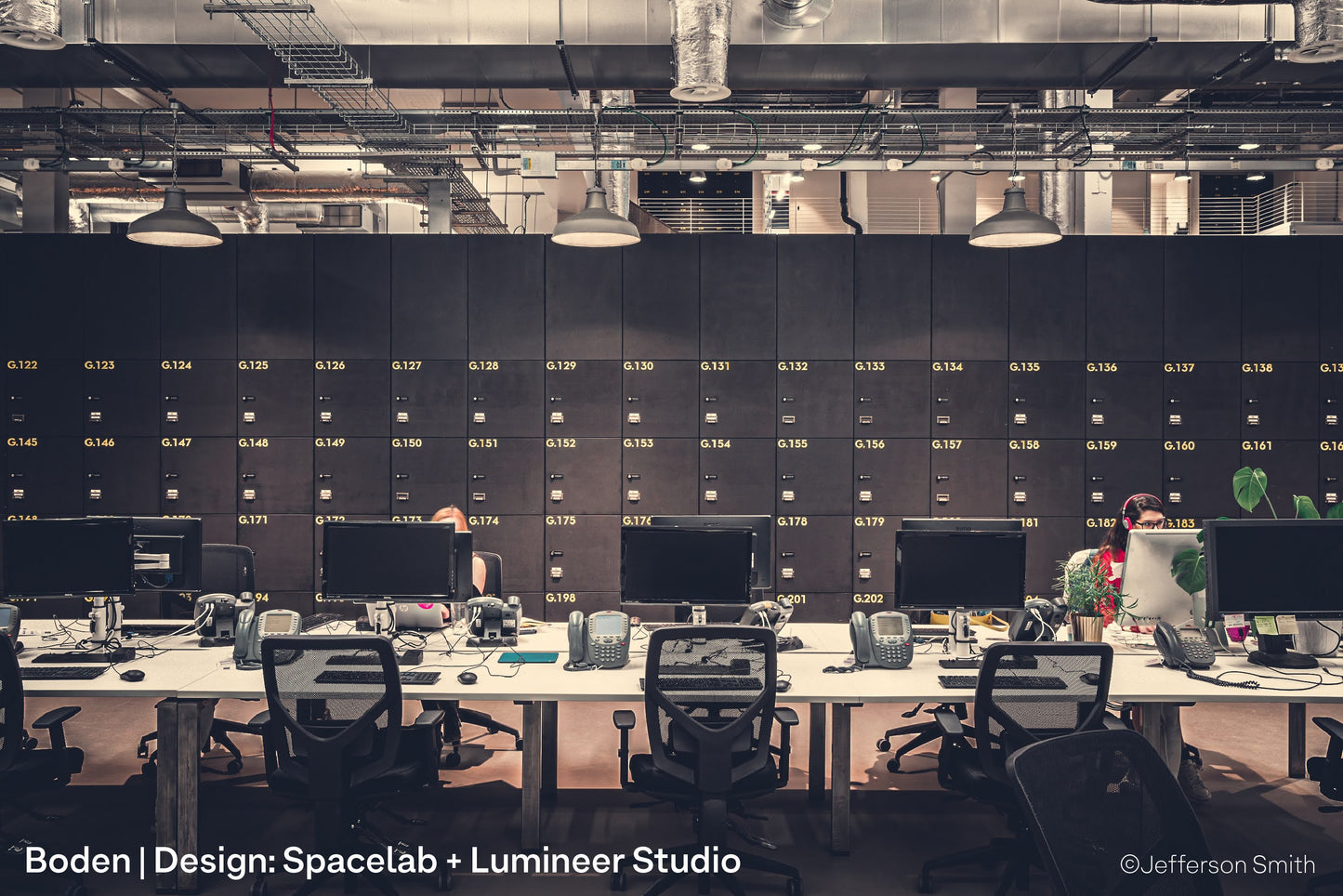

![Contemporary office workers in Boden's fashionable London HQ with architectural pendant lighting](http://factorylux.com/cdn/shop/files/Boden-HQ-Office-Lighting-Space-Lab-Reflekter-Pendant-1_b1ec987d-4ebe-4116-bce3-6193670e00ed.jpg?v=1696621019&width=1445)

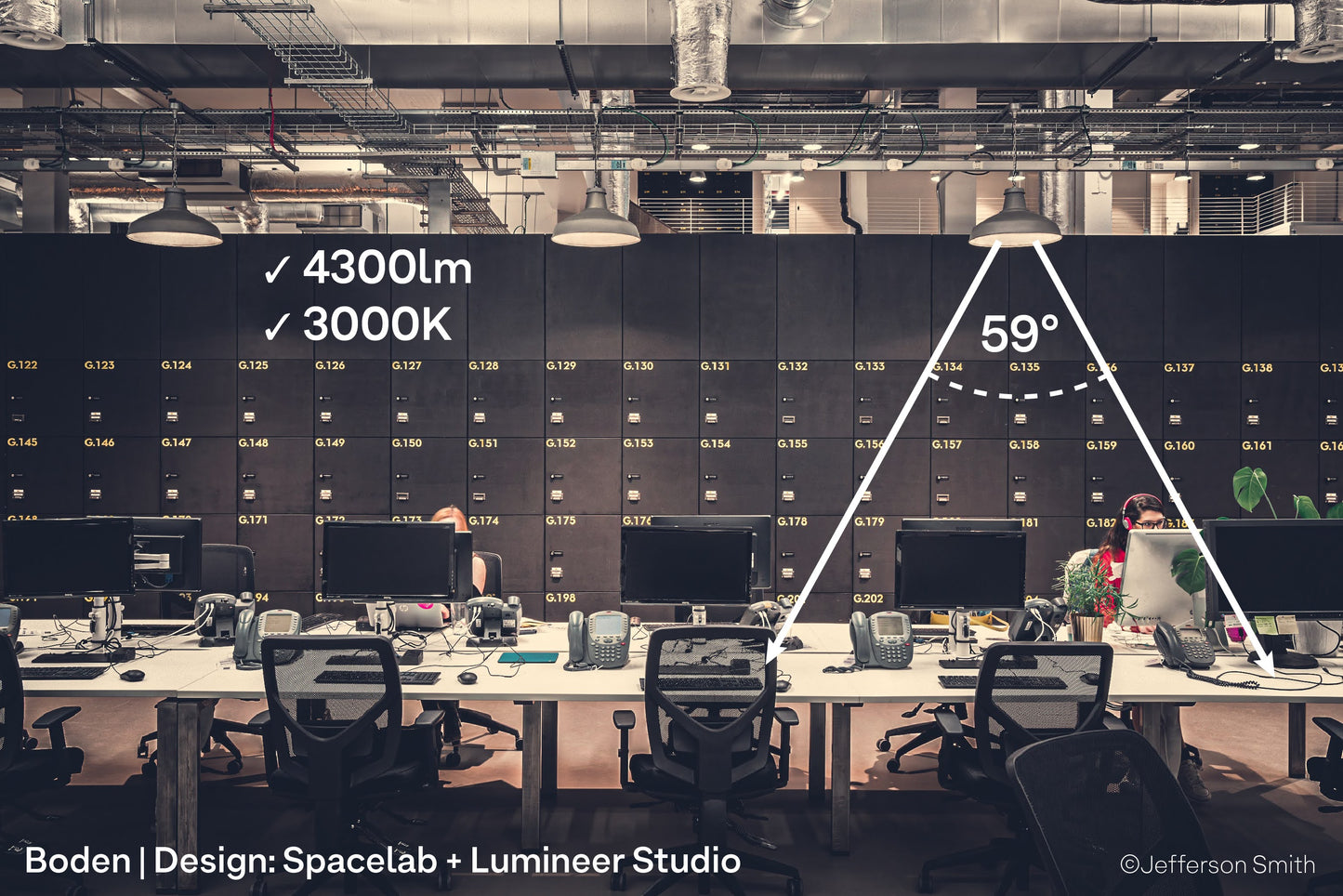

![Contemporary office workers in Boden's London HQ with architectural pendants at the correct light level](http://factorylux.com/cdn/shop/files/Boden-HQ-Office-Lighting-Space-Lab-Reflekter-Pendant-2_06dec98d-b4bc-4109-b4cc-102cf864abfd.jpg?v=1696621018&width=1445)
