Reflekter™ XL | Stone-Rumbled™ | Large Monopoint
Reflekter™ XL | Stone-Rumbled™ | Large Monopoint
Downloads
Downloads
- Datasheet | .PDF
- User Instructions | .PDF
- 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
- BIM / Revit Families | .RVT
- Photometric 2700K | .PDF
- Photometric 3000K | .PDF
- Photometric 4000K | .PDF
- Photometric 2700K, 3000K, 4000K | .IES
- Photometric 2700K, 3000K, 4000K | .LDT
- Augmented Reality | .GLB
- View Lookbook 2024 | .JPG
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 4kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 96.9 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0

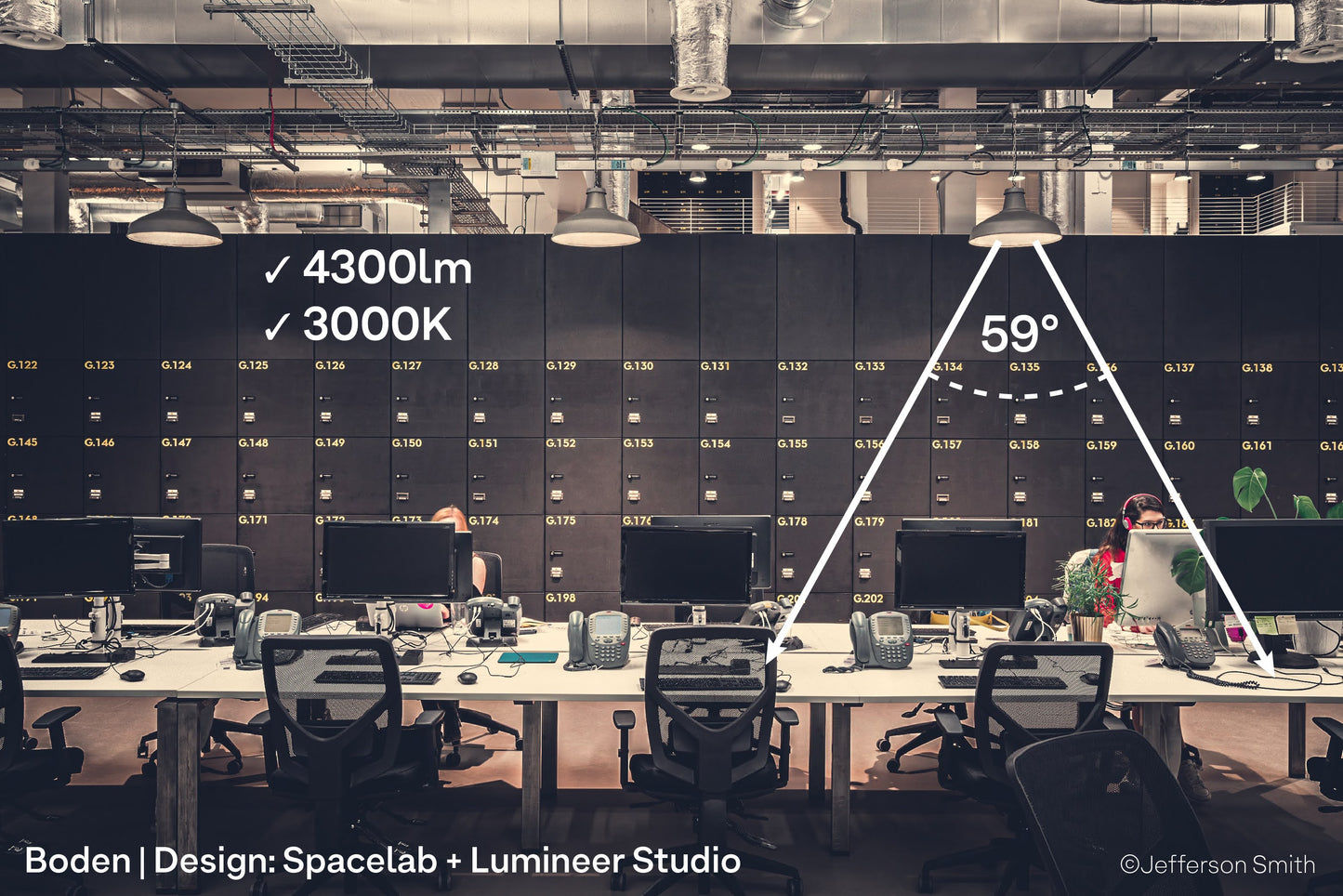

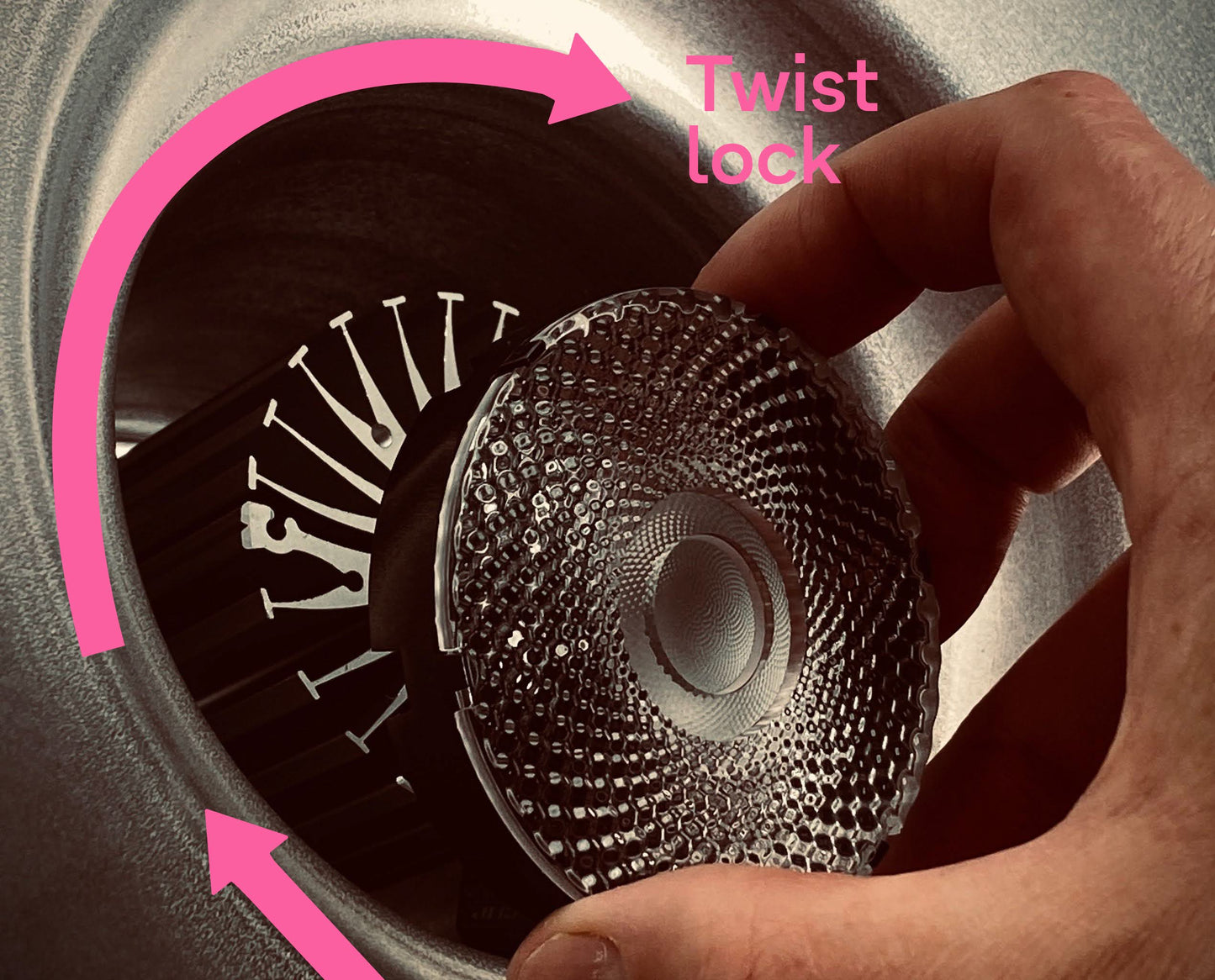

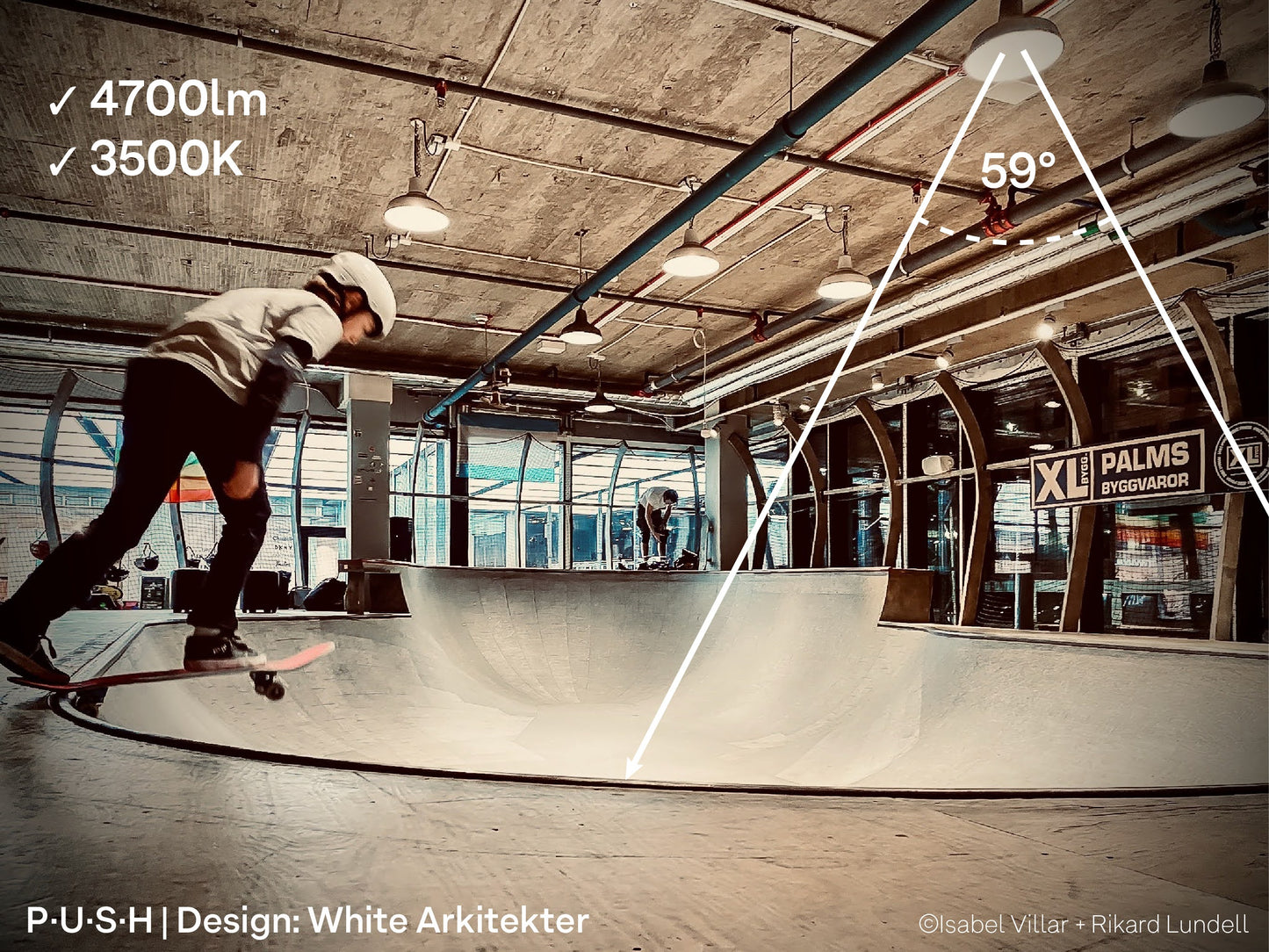

- Optics / Beam Angles: 21°, 38°, 59°, UGR

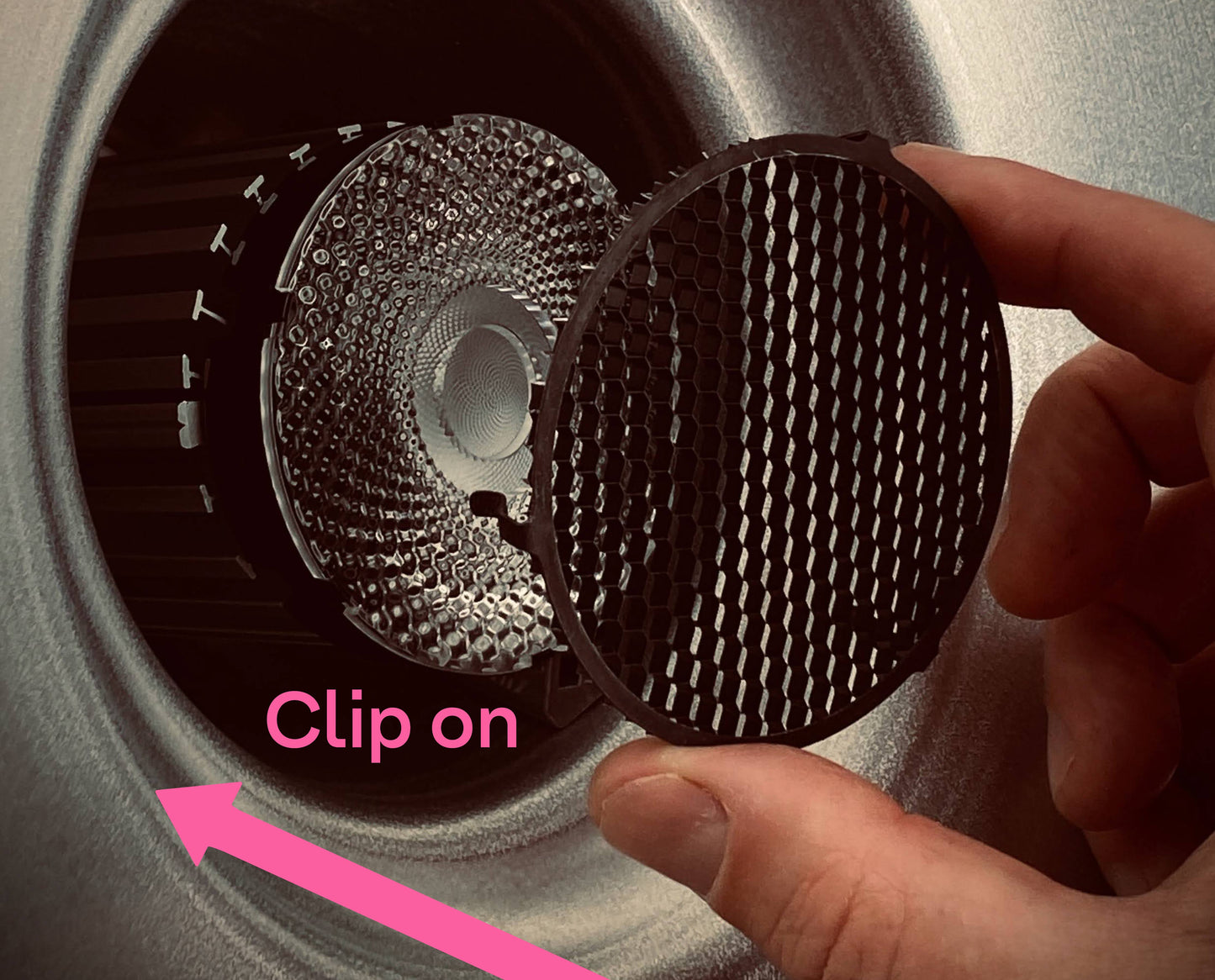

- Accessories: Honeycomb Louvre | Concentric Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description

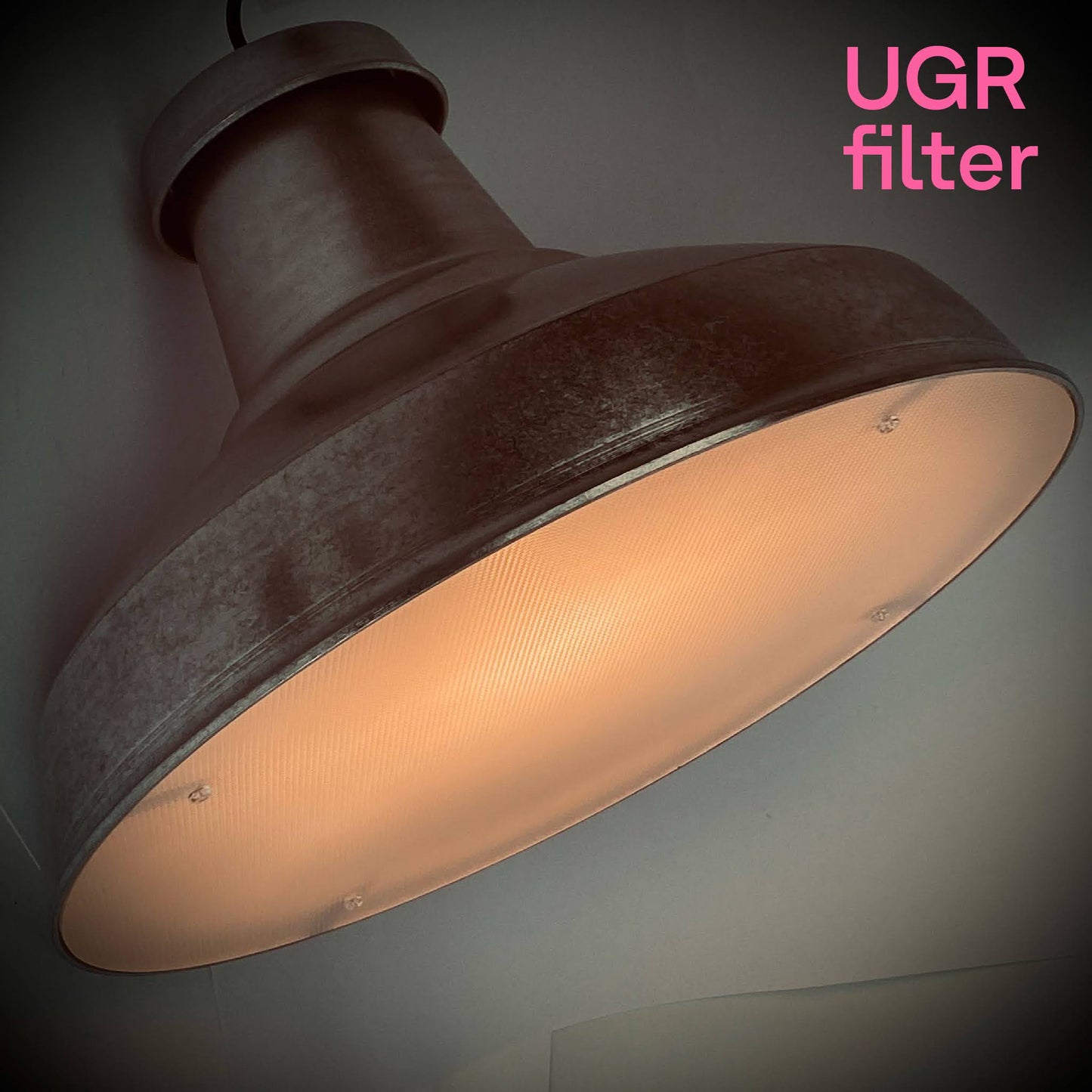

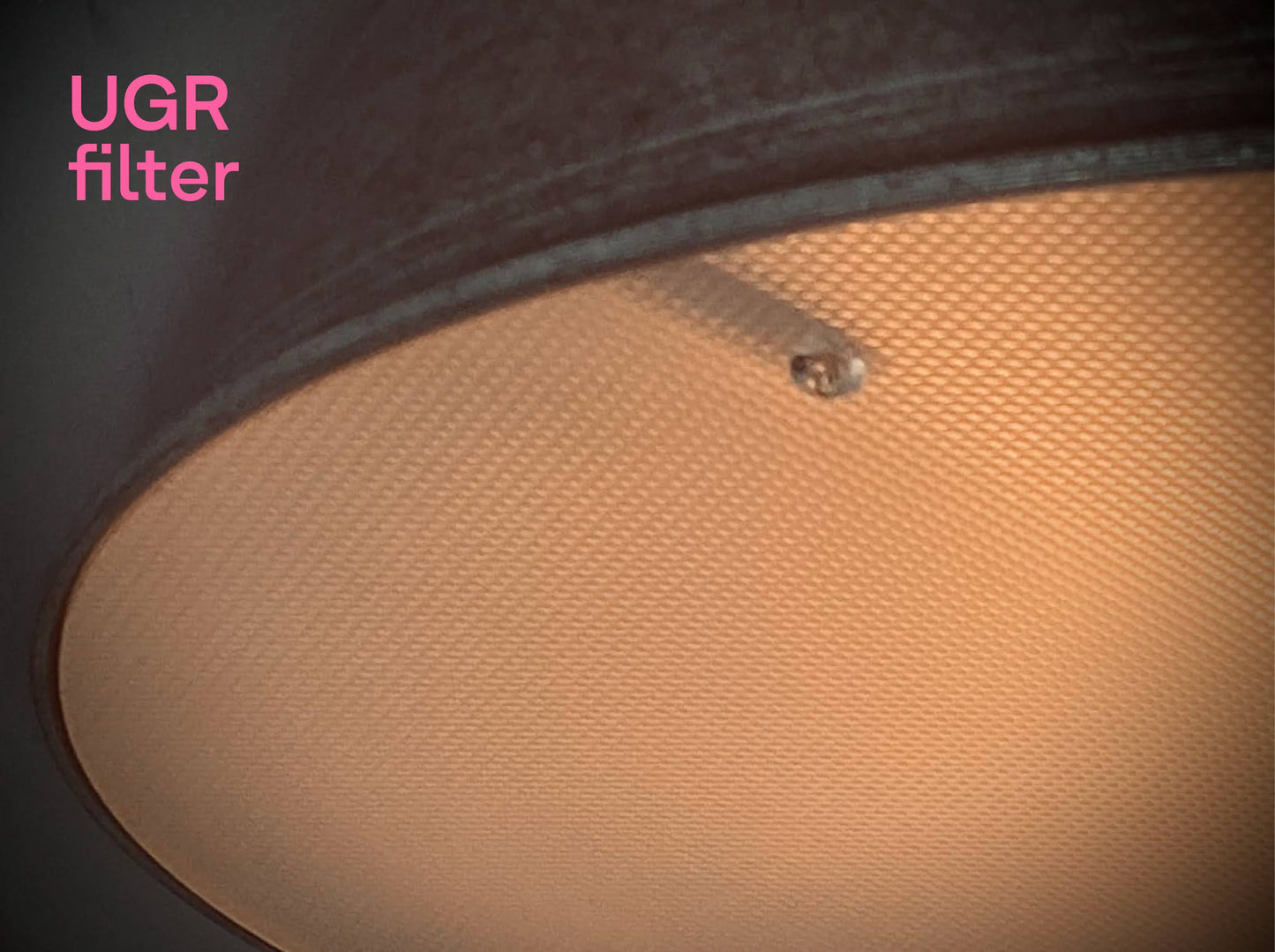

This architectural pendant light delivers up to 4750lm and the potential for 'closed loop' Circular Economy. A ⌀360mm 'L' version is also available. Choose from different luminaire optics and accessories, including UGR (Unified Glare Ratio) filters.

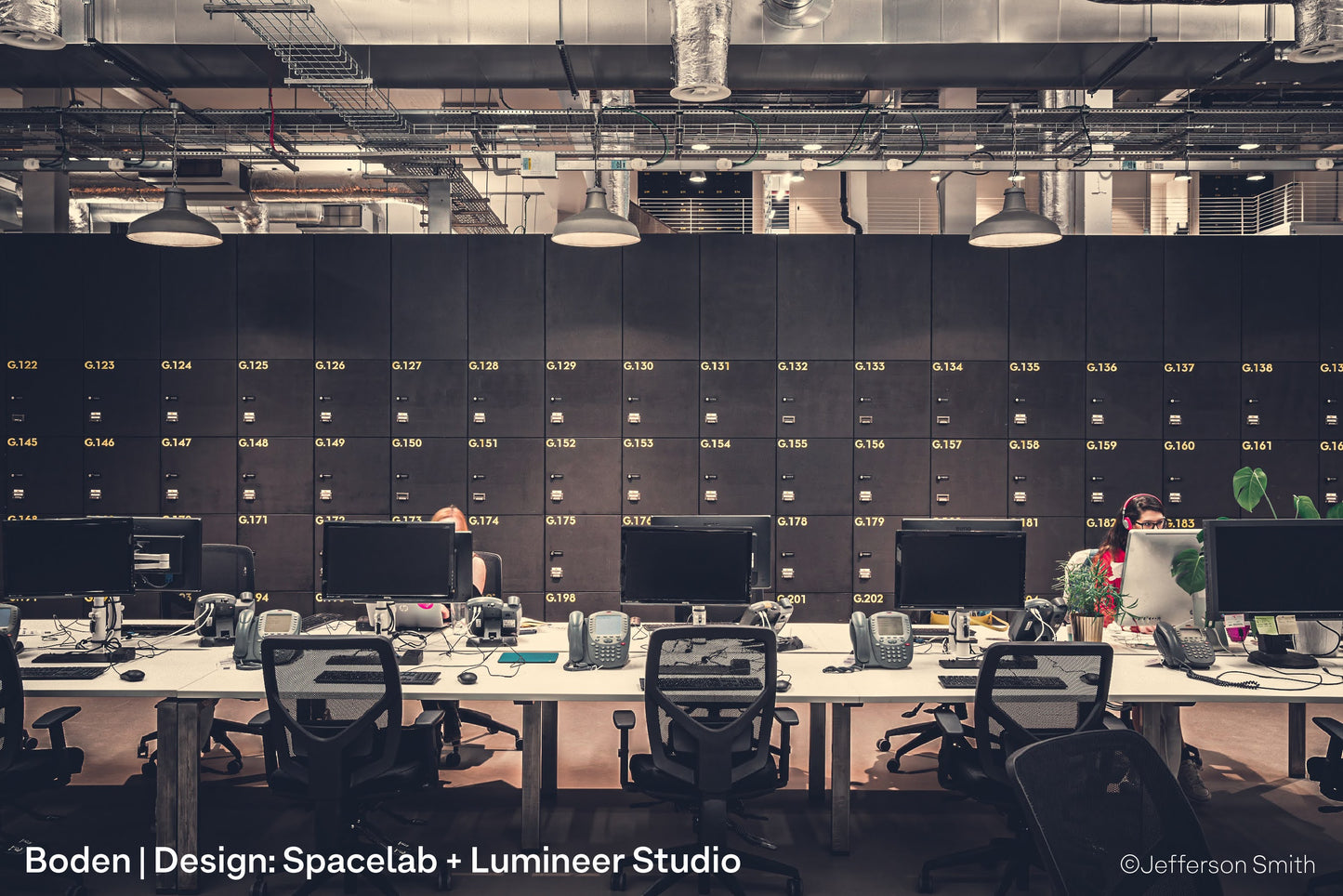

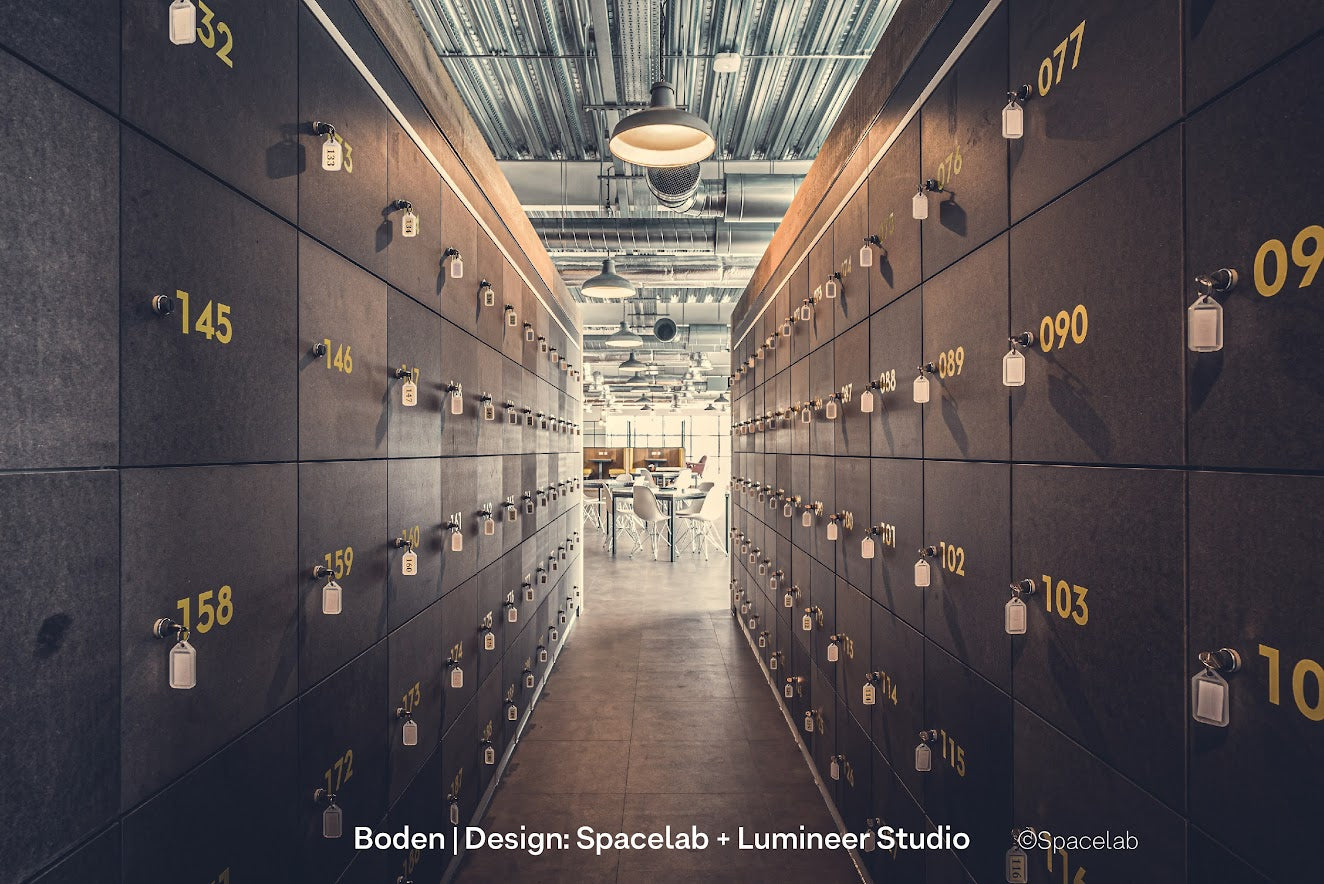

Spotify, Autodesk and Google all use Reflekter™ as office lighting, by getting the LED closer to the subject, less product and fewer lumens are required to achieve the same lux level - installations can be faster and running costs lower compared to traditional linear lighting.

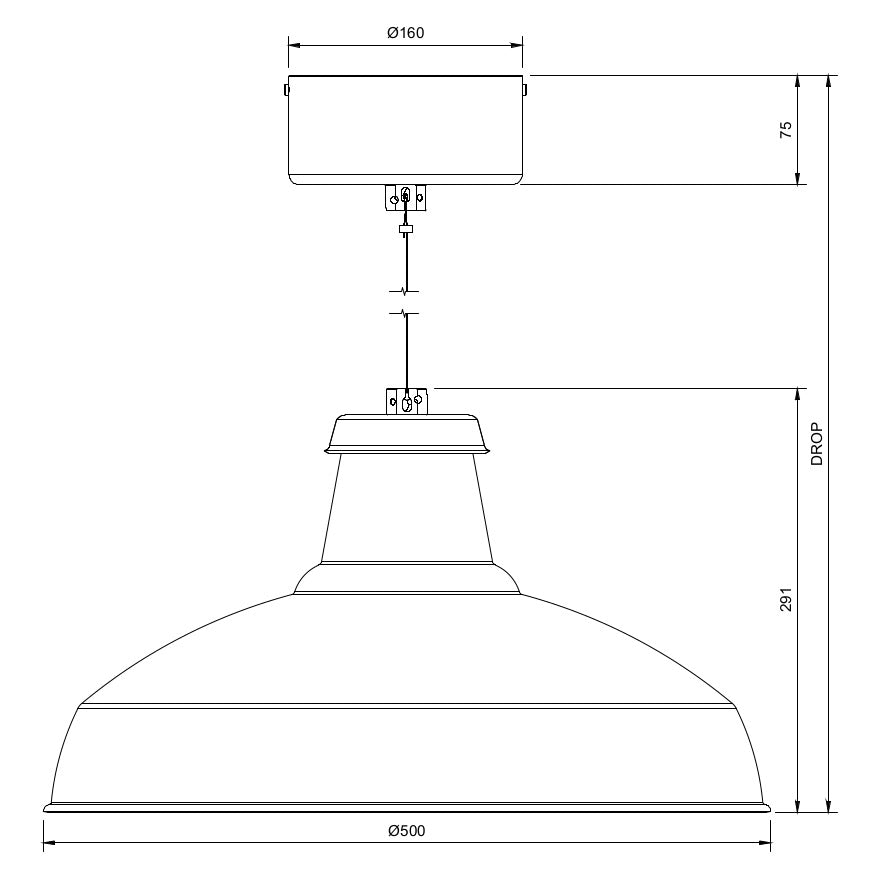

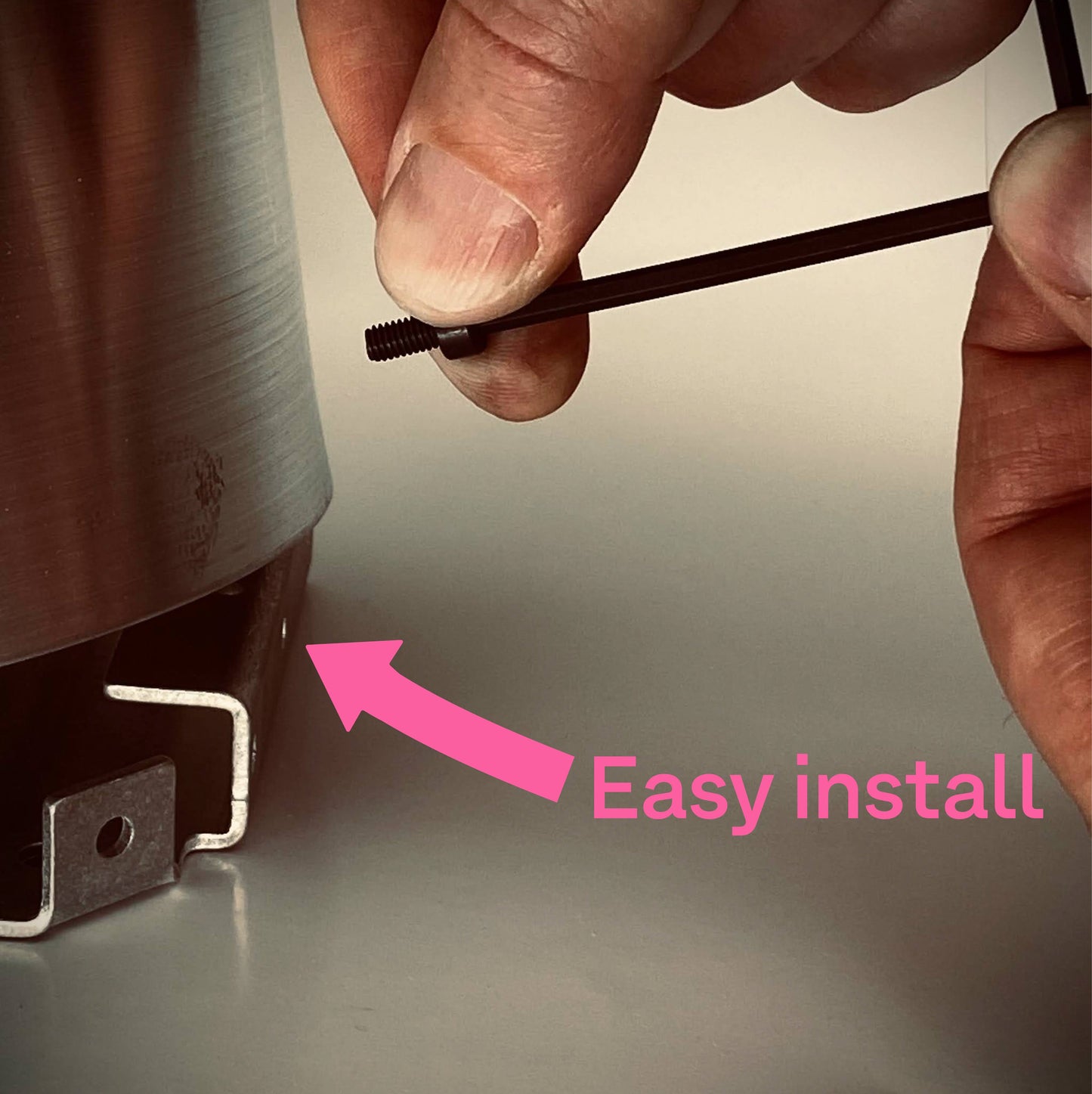

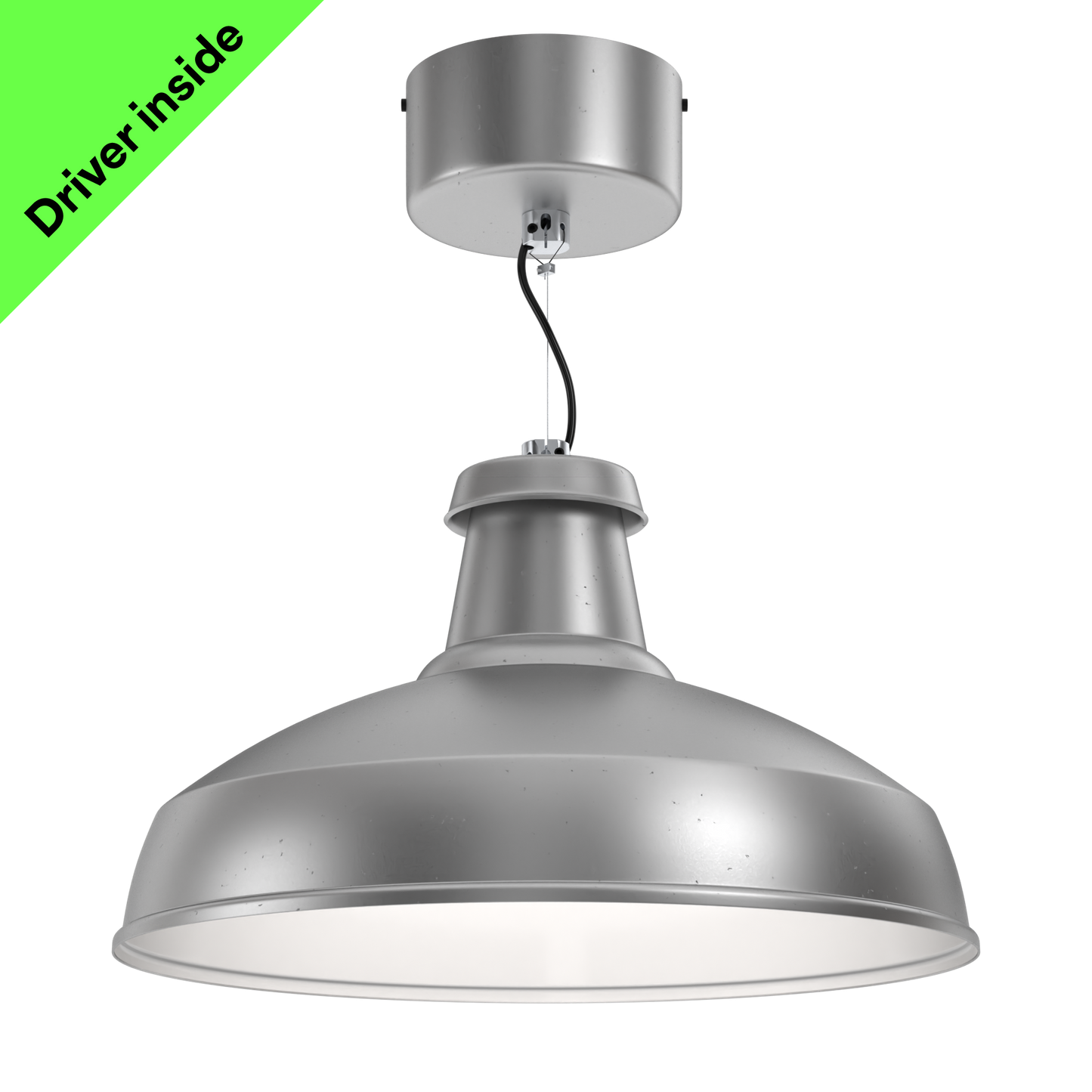

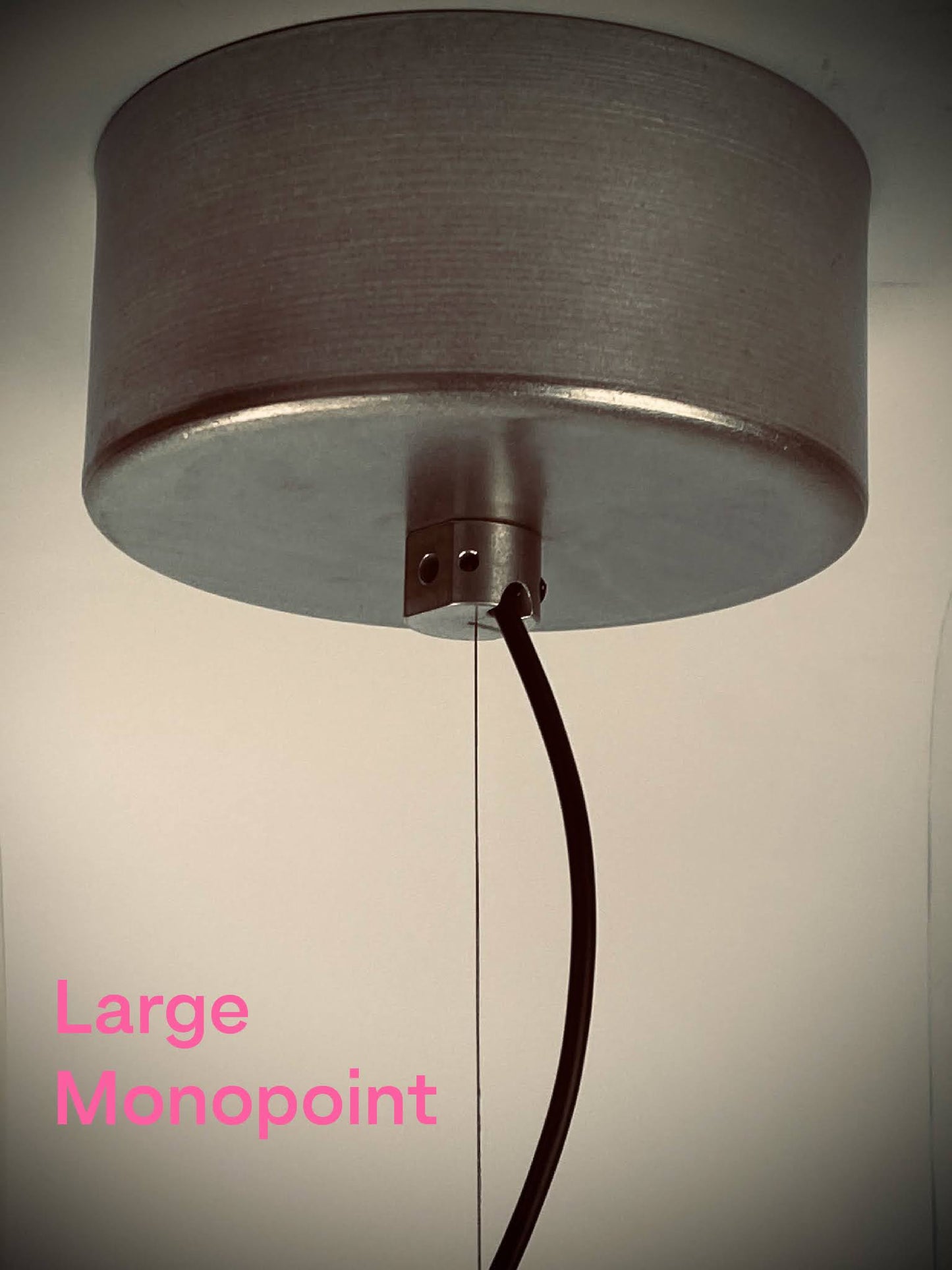

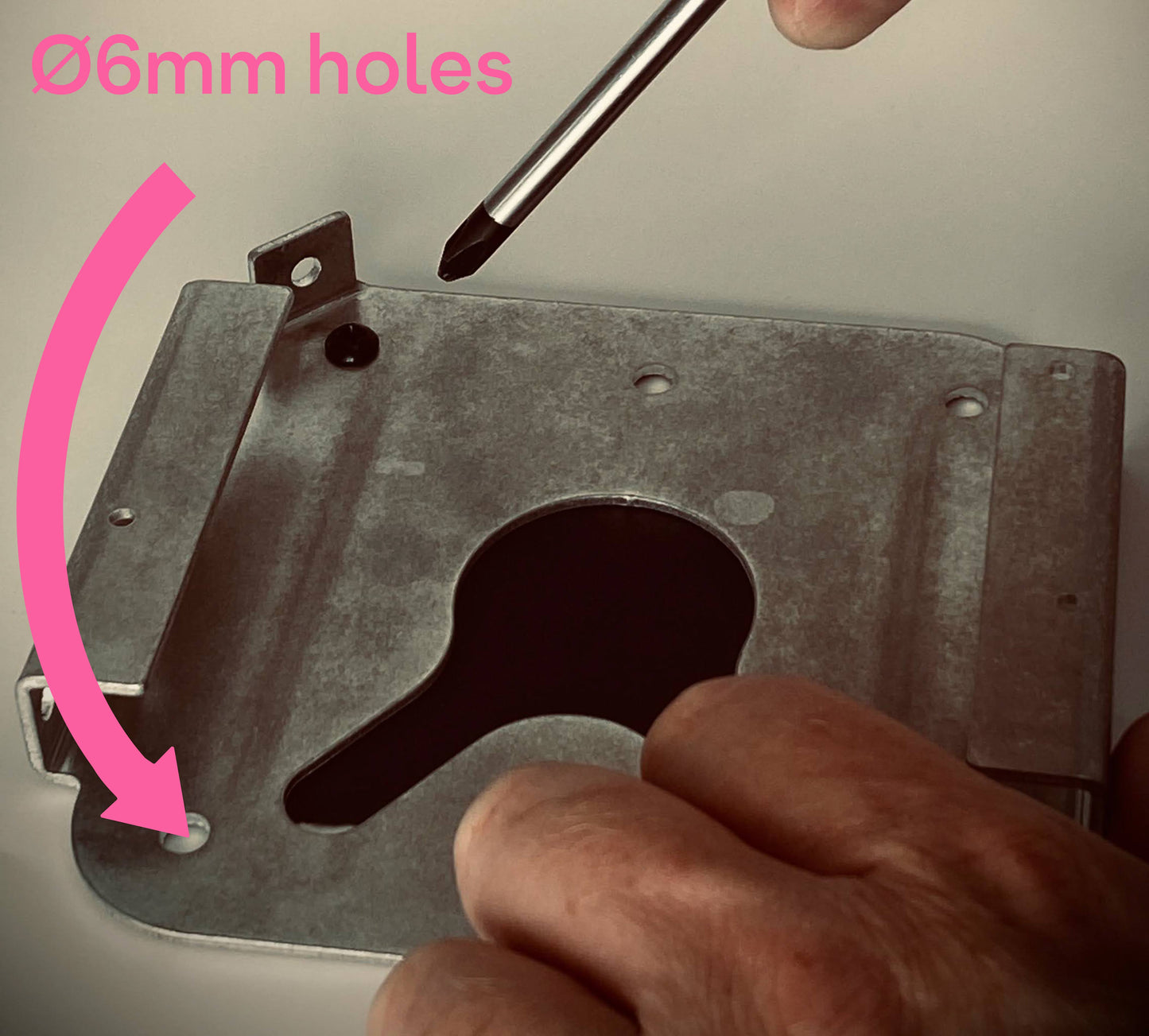

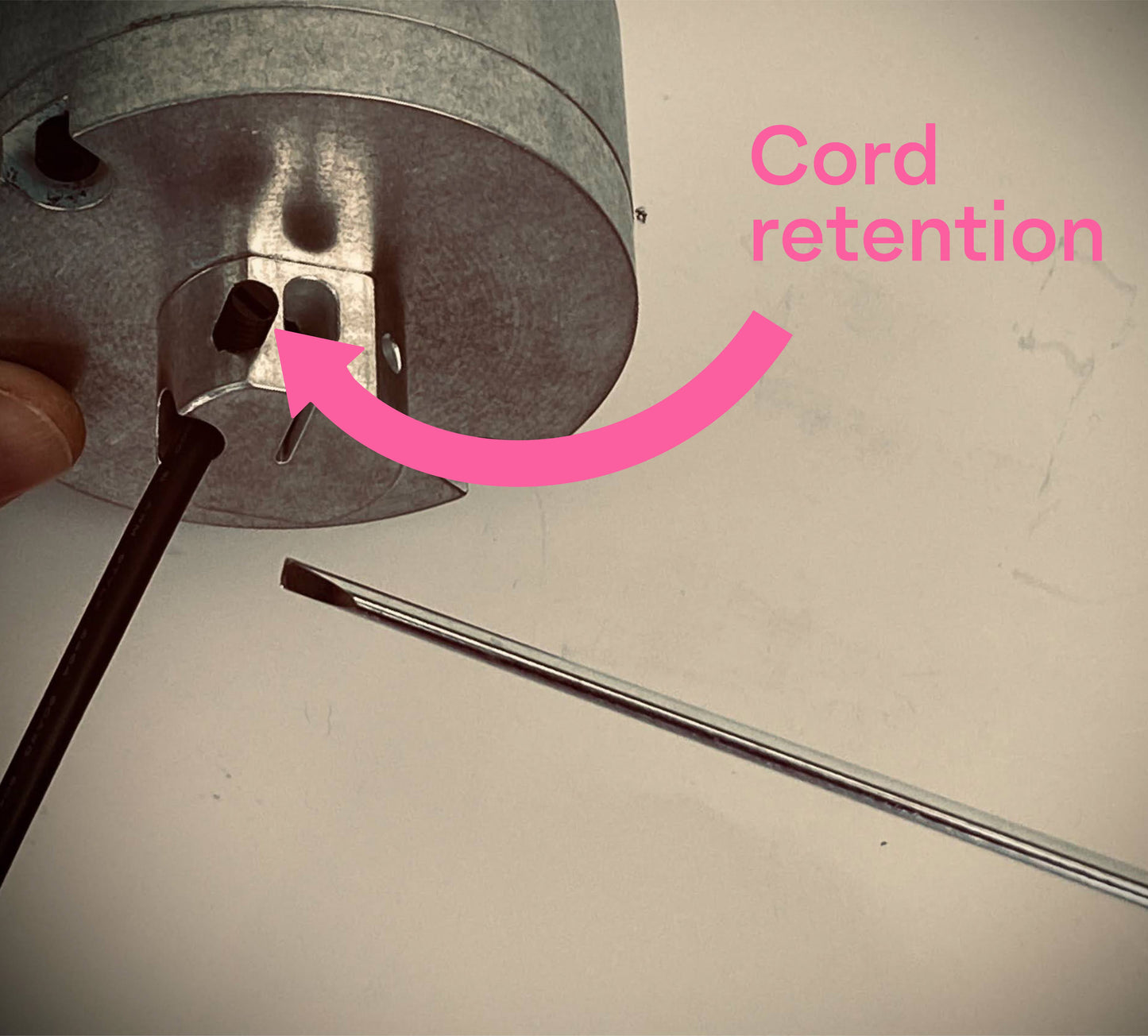

'Large Monopoint' is a 160mm diameter X 75mm deep circular Pendant light mounting / enclosure that's big enough to house the driver and all electrical connections. The monopoint body attaches to a separate, surface mounted bracket via M4 bolts located on opposite sides. The bracket itself has standard BESA (50.8mm) hole spacings for fixing to walls, ceilings, cable tray or other suitable surfaces / materials.

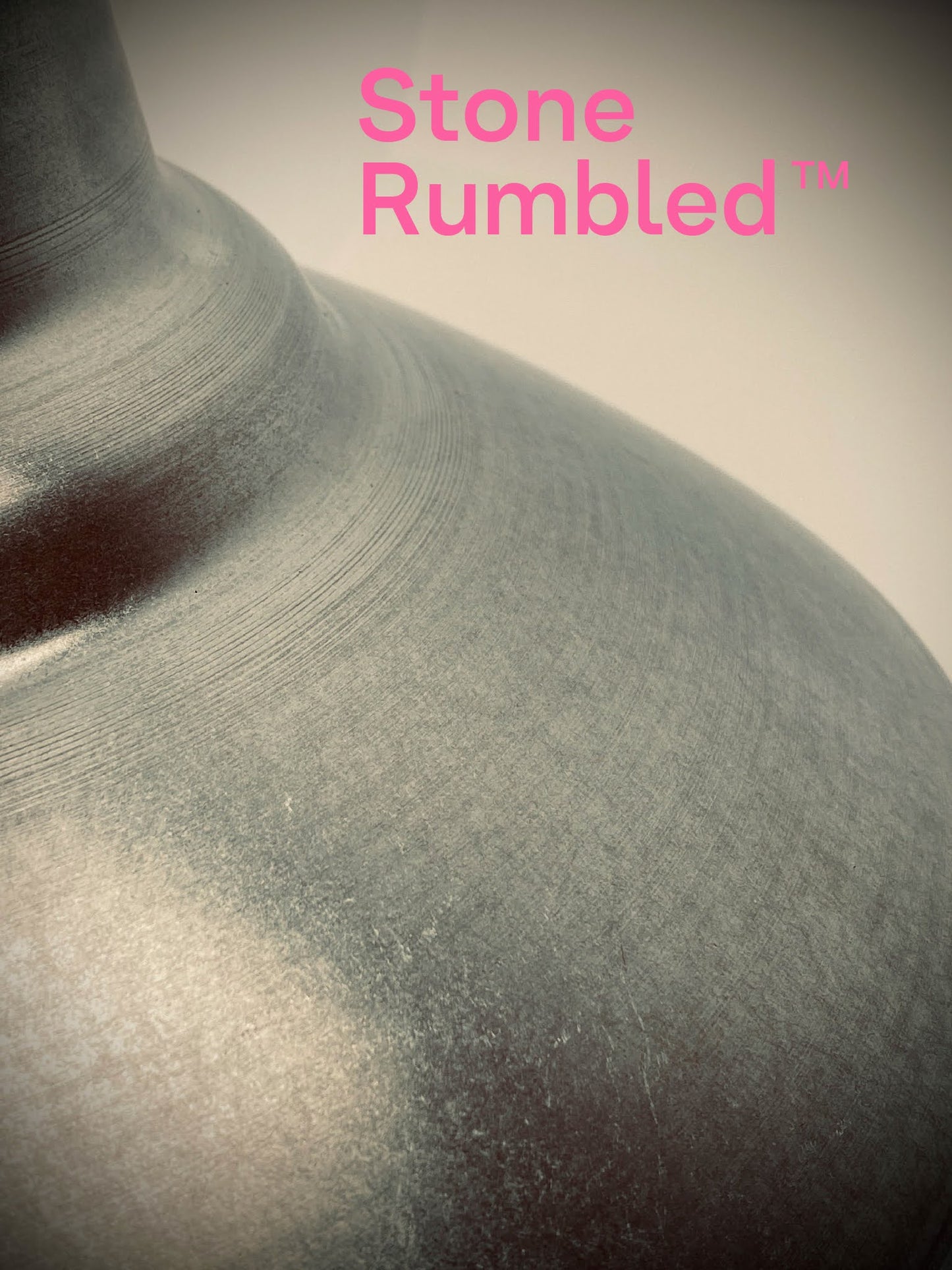

Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from regular paint, plastic & adhesives
- No microplastic pollution
- No VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Stone-Rumbled™ body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines
