Reflekter™ L | Black | Large Monopoint
Reflekter™ L | Black | Large Monopoint
Couldn't load pickup availability
Downloads
Downloads
- Datasheet | .PDF
- User Instructions | .PDF
- 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
- BIM / Revit Families | .RVT
- Photometric 2700K | .PDF
- Photometric 3000K | .PDF
- Photometric 4000K | .PDF
- Photometric 2700K, 3000K, 4000K | .IES
- Photometric 2700K, 3000K, 4000K | .LDT
- Augmented Reality | .GLB
- View Lookbook 2024 | .JPG
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Black Magic-Paint™
- Weight: 3kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 97.7 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°, UGR
- Accessories: Honeycomb Louvre | Concentric Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural pendant light delivers up to 4750lm and the potential for 'closed loop' Circular Economy. A ⌀500mm 'XL' version is also available. Choose from different luminaire optics and accessories, including UGR (Unified Glare Ratio) filters.
'Large Monopoint' is a 160mm diameter X 75mm deep circular Pendant light mounting / enclosure that's big enough to house the driver and all electrical connections. The monopoint body attaches to a separate, surface mounted bracket via M4 bolts located on opposite sides. The bracket itself has standard BESA (50.8mm) hole spacings for fixing to walls, ceilings, cable tray or other suitable surfaces / materials.
Exterior: 'Black' is our Magic-Paint™ finish for larger aluminium components, such as Reflekter™. The colour is deep and flat. Regular paint and powder coatings create seriously harmful pollution and are a major source (some studies say most) of microplastics in the environment. Magic-Paint™ is made from natural materials such as clay and does not contain any plastics, Isocyanates, VOCs or EPA-listed toxic organics.
Interior: Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from regular paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Black Pendant light and Disc mounting to re-use body components for our 'worn' lighting
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines
![A sustainable, black, architectural pendant light that's designed for circular economy, on a large monopoint mounting](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-L-Reflekter-Large-Monopoint-Black-Hero.png?v=1695865540&width=1445)
![Safe bicycle storage with attractive pendant lighting in the underground concrete parking lot of an office development](http://factorylux.com/cdn/shop/files/100-Liverpool-Street-Chapman-BDSP-Reflekter-Pendant_f4e2c3a9-2dc1-44fb-99f7-3c49c067a985.jpg?v=1696357977&width=1445)
![Technical drawing of a circular economy architectural pendant light with large monopoint mounting](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Large-Reflekter-Large-Monopoint-Line-Drawing_cedf229e-946c-4b24-b5e3-02151a36d8ae.jpg?v=1697128752&width=1445)
![Close up of a sustainable black aluminium pendant light for architects, revealing a matte surface texture](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Black-Colour-Texture-Close-Up_ff09efd1-a90e-4833-a440-1f55a15c6b0a.jpg?v=1697128752&width=1445)
![How to insert the lens into a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Removable-Lens_cb0a50f5-c1c4-4d30-91fe-7318cae16cd1.jpg?v=1697128752&width=1445)
![How to attach honeycomb louvre onto a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Honeycomb-Louvre_f77bd7e5-9dcd-4fb1-be6d-3364a7fe73a4.jpg?v=1697128752&width=1445)
![How to install large monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Base-Install-Stone-Rumbled_b3ce7681-fc30-4c29-ad71-e4a3912af795.jpg?v=1697128752&width=1445)

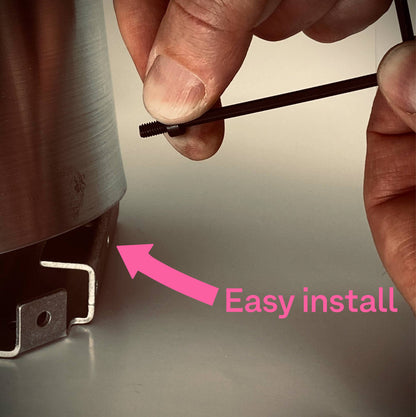

![How to install large monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Top-Install-Stone-Rumbled_f3e8a32a-a13b-4ef3-a479-fc4496b48075.jpg?v=1697128752&width=1445)

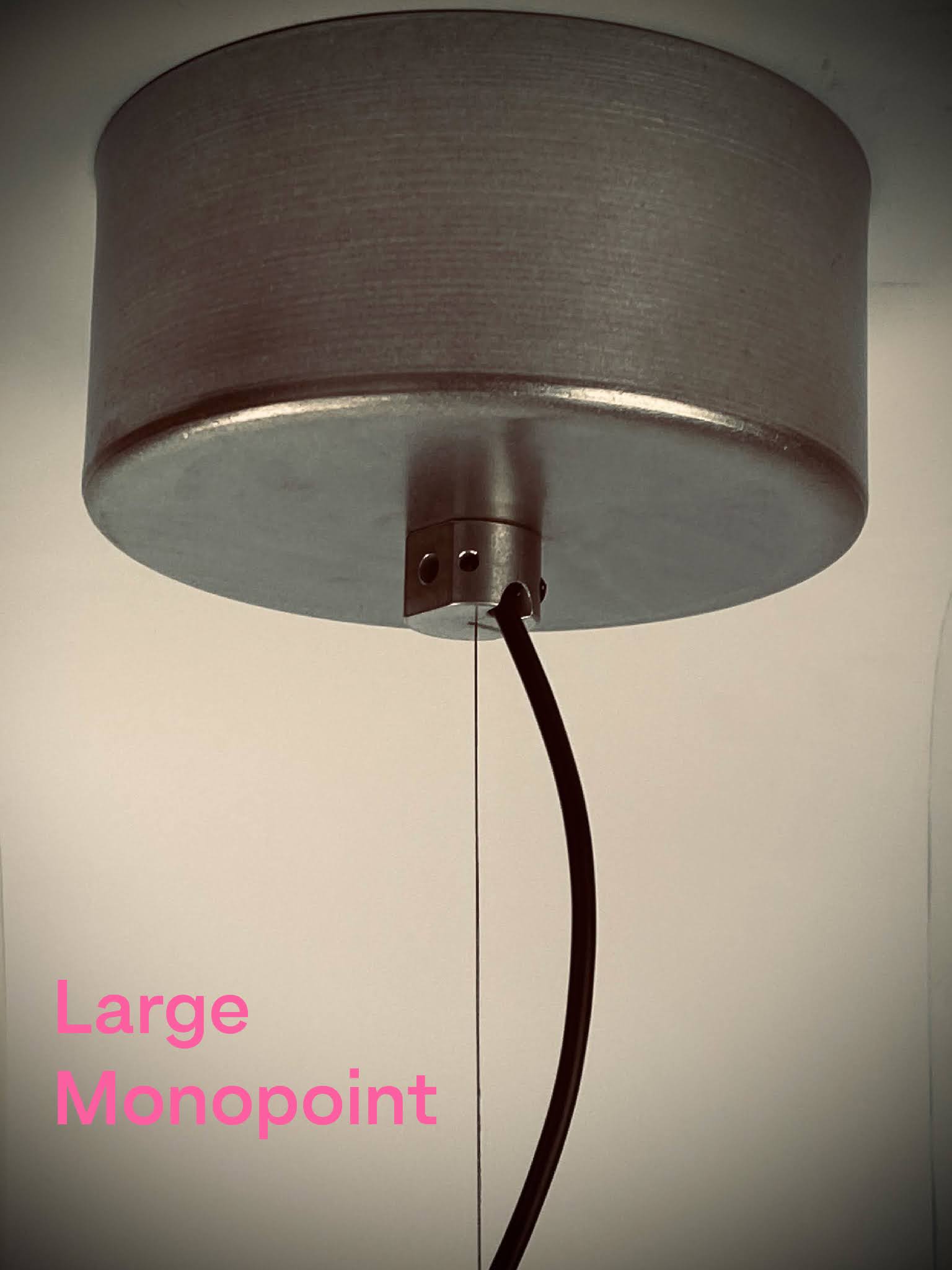

![Installed large monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Complete-Install-Stone-Rumbled_fcd45331-ce5d-46da-b1e1-0004fa77c5fd.jpg?v=1697128752&width=1445)
