Reflekter™ L | Custom Finish | Large Monopoint | 3500K

• Datasheet | .PDF
• User Instructions | .PDF
• 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
• BIM / Revit Families | .RVT
• Photometric 3500K | .PDF
• Photometric 3500K | .IES
• Photometric 3500K | .LDT
• Augmented Reality | .GLB
• View Lookbook 2024 | .JPG

• Supply Voltage: 100-250 V~AC
• Primary Material: Aluminium
• Finish: Custom Finish Magic-Paint™
• Weight: 3kg
• Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
• IP Rating: IP20
• CRI: >90
• Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
• Luminaire Efficacy: Up to 97.7 lm/W at Max output (greater efficacy at lower outputs)
• Current (mA max.): 1050mA
• Power Consumption (max. typ.): 41.4 W
• Colour Temperature: 2700K | 3000K | 3500K | 4000K
• Colour Consistency: ≤ 1x2 MccAdams Ellipses
• Colour Stability: <0.003 ∆ u',v' 50,000 hrs
• Lumen Maintenance: 50,000 hrs L70/B0/F0

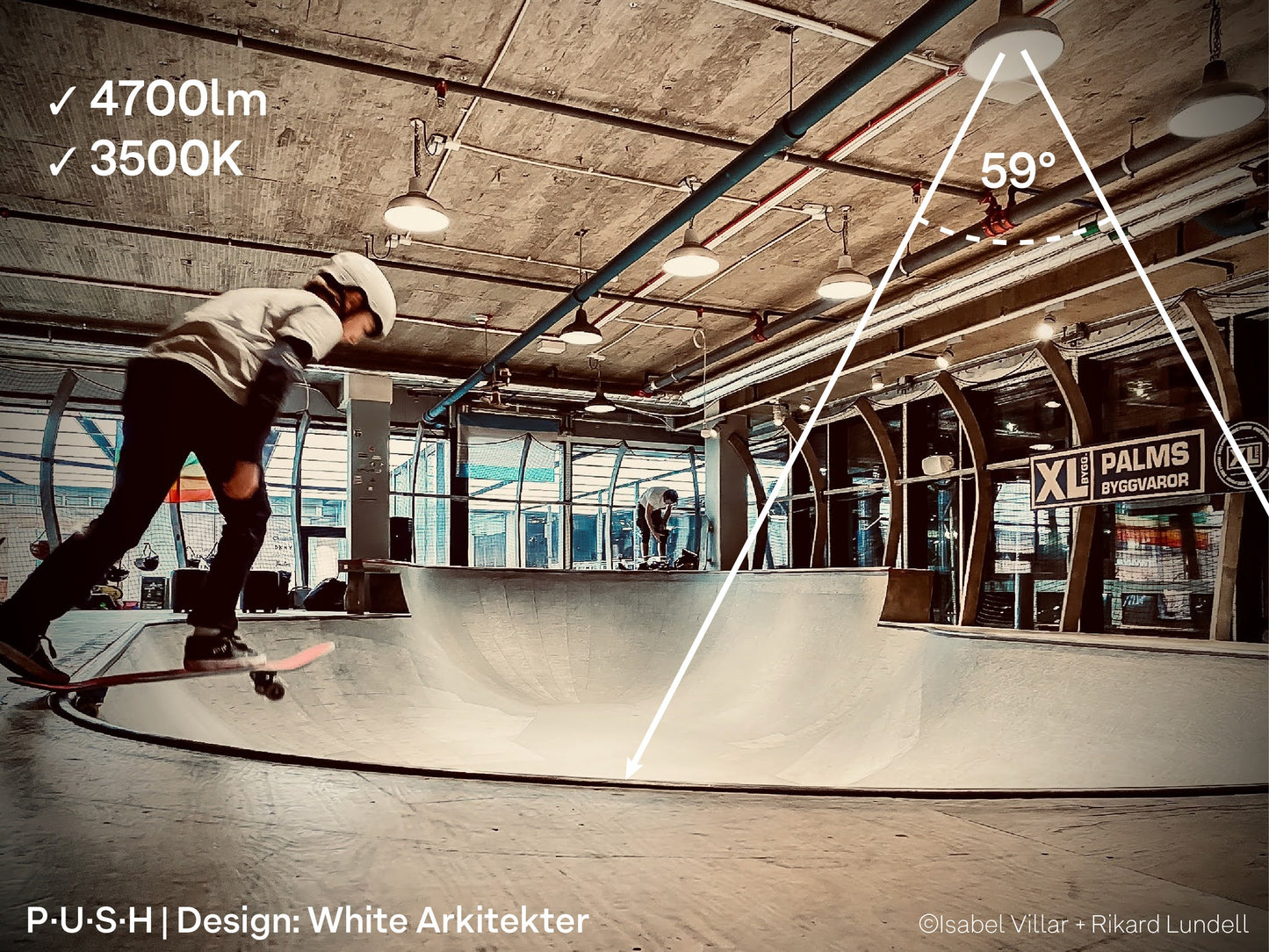

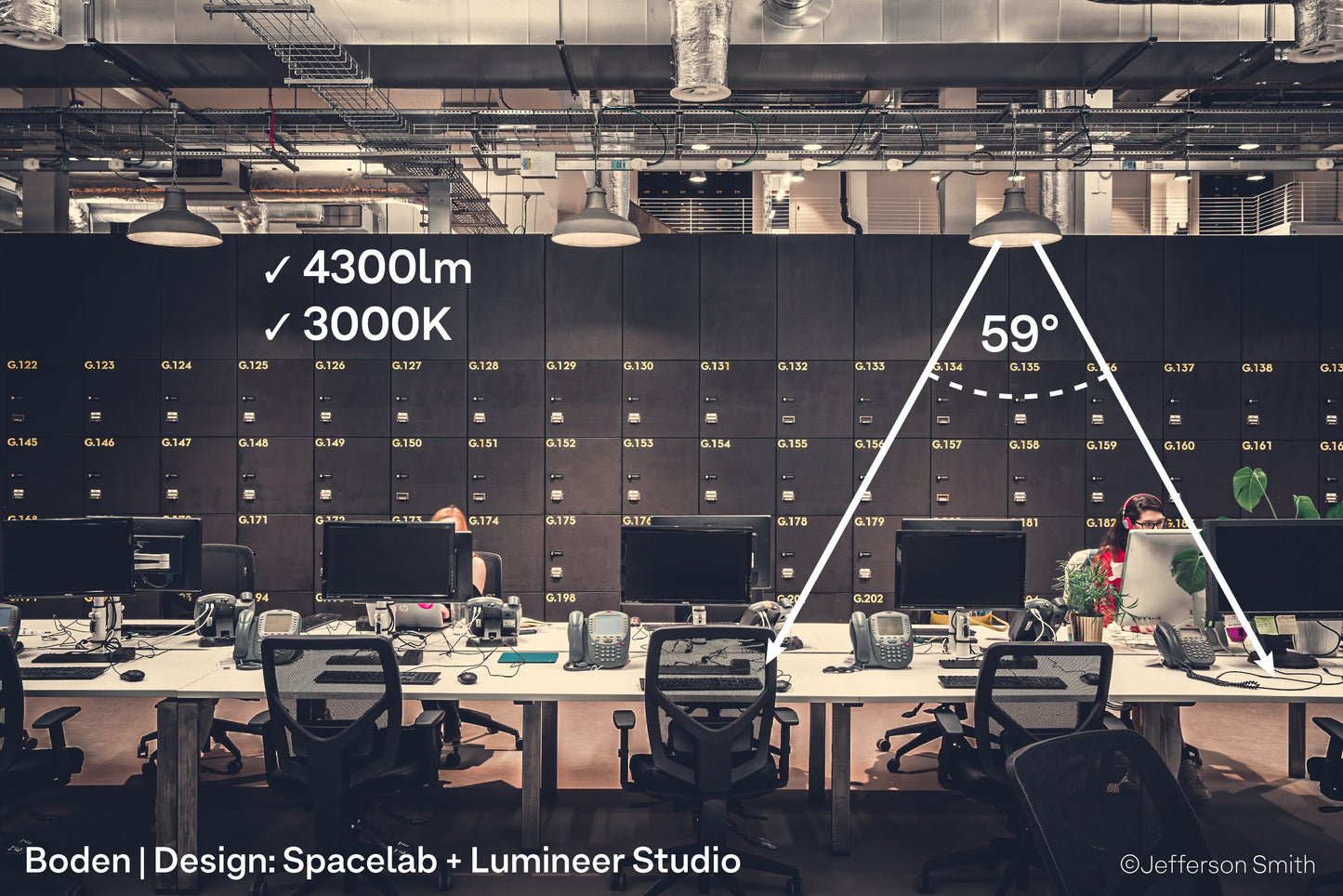

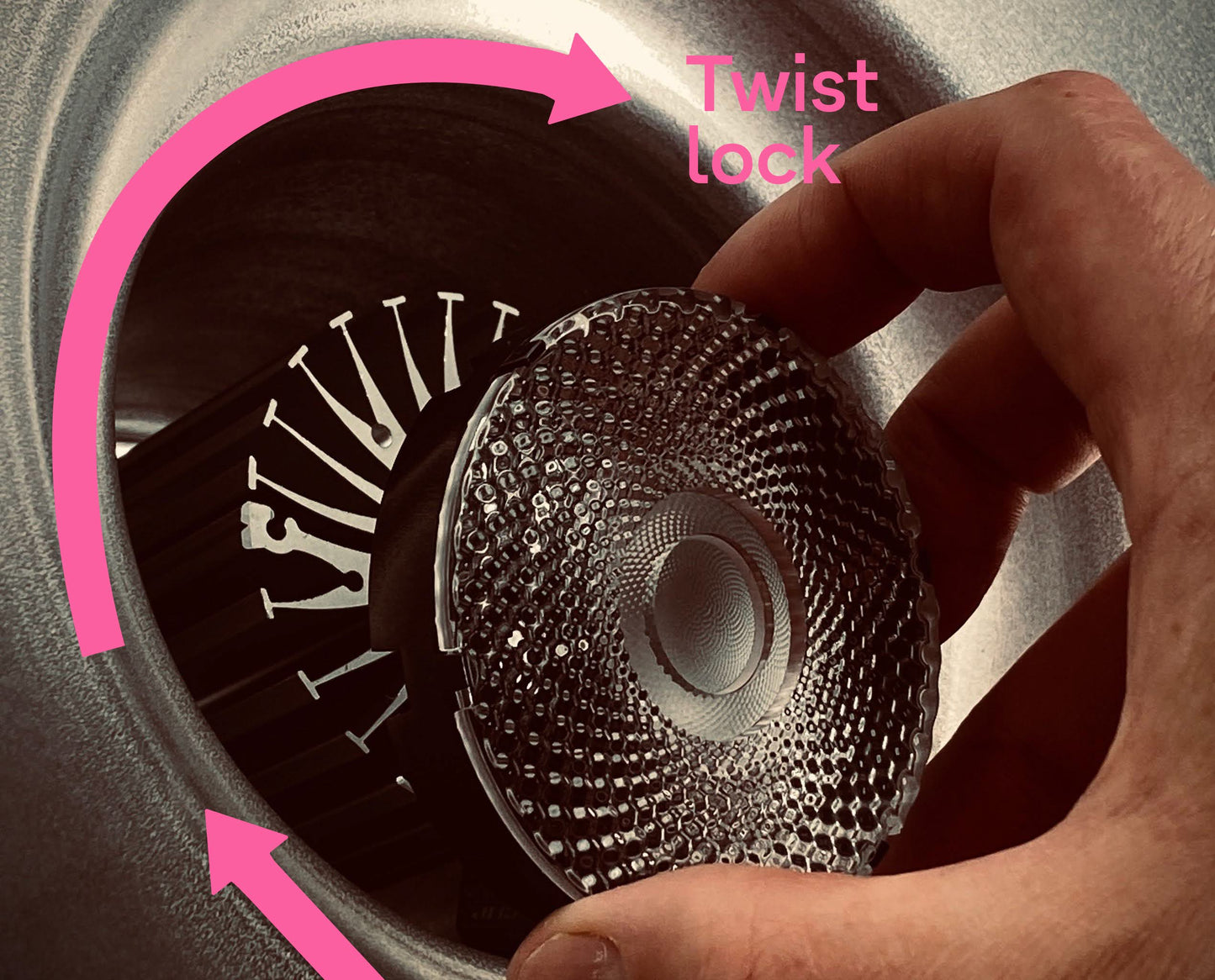

• Optics / Beam Angles: 21°, 38°, 59°, UGR

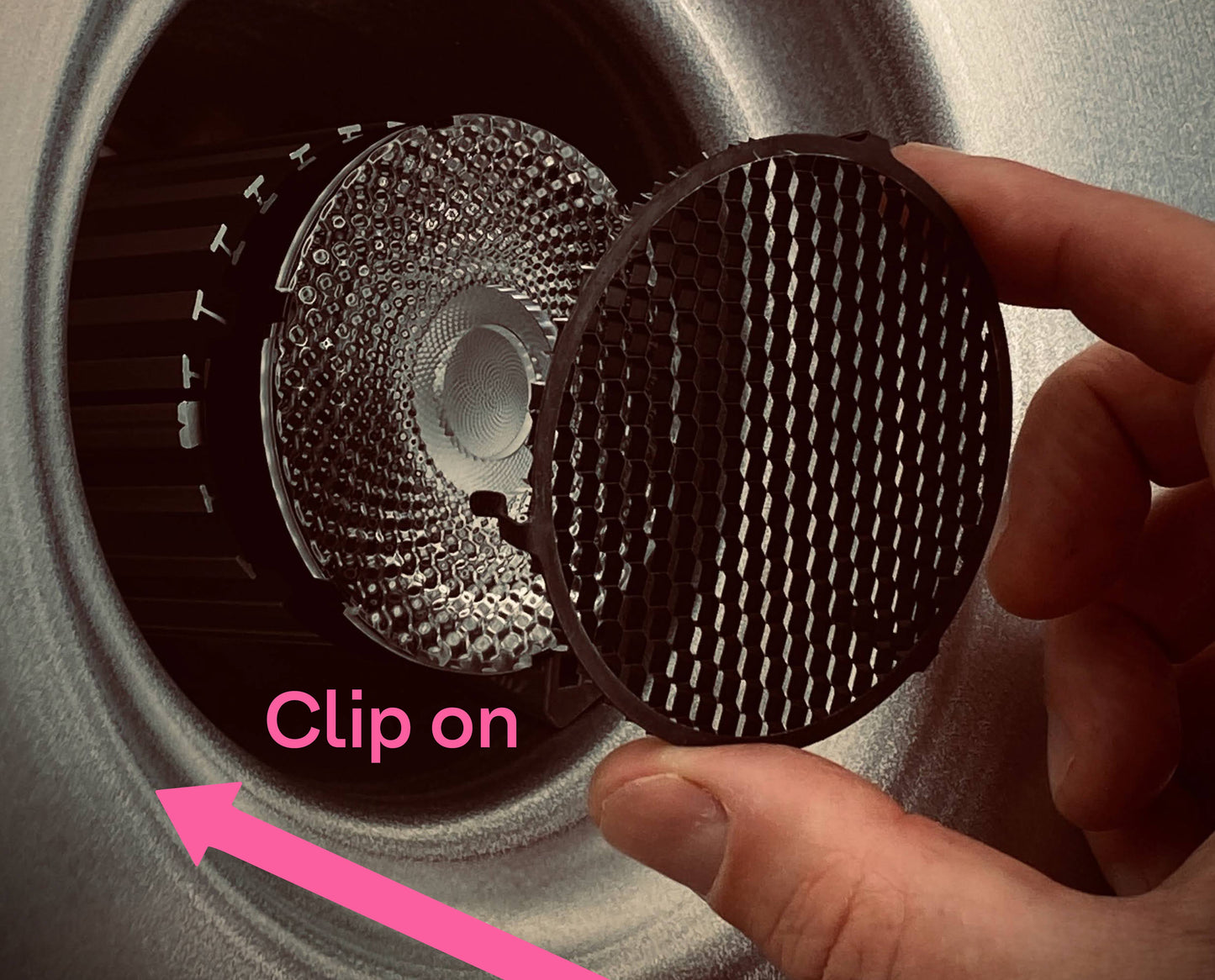

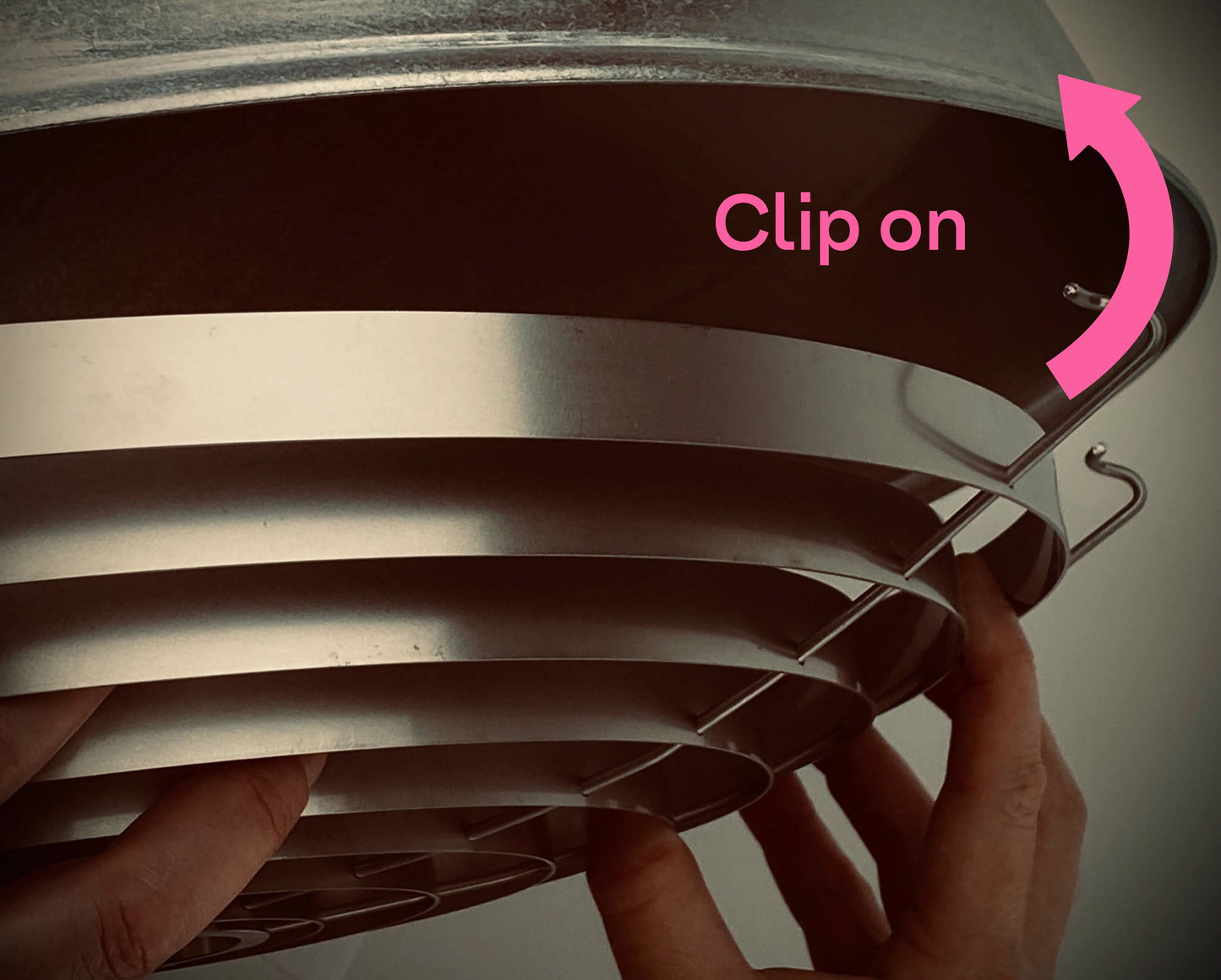

• Accessories: Honeycomb Louvre | Concentric Louvre
• Operating Temp: Ambient -20°C/+25°C
• Control: Switched/1-10V, DALI, Casambi
• Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
• Manufacture: UK

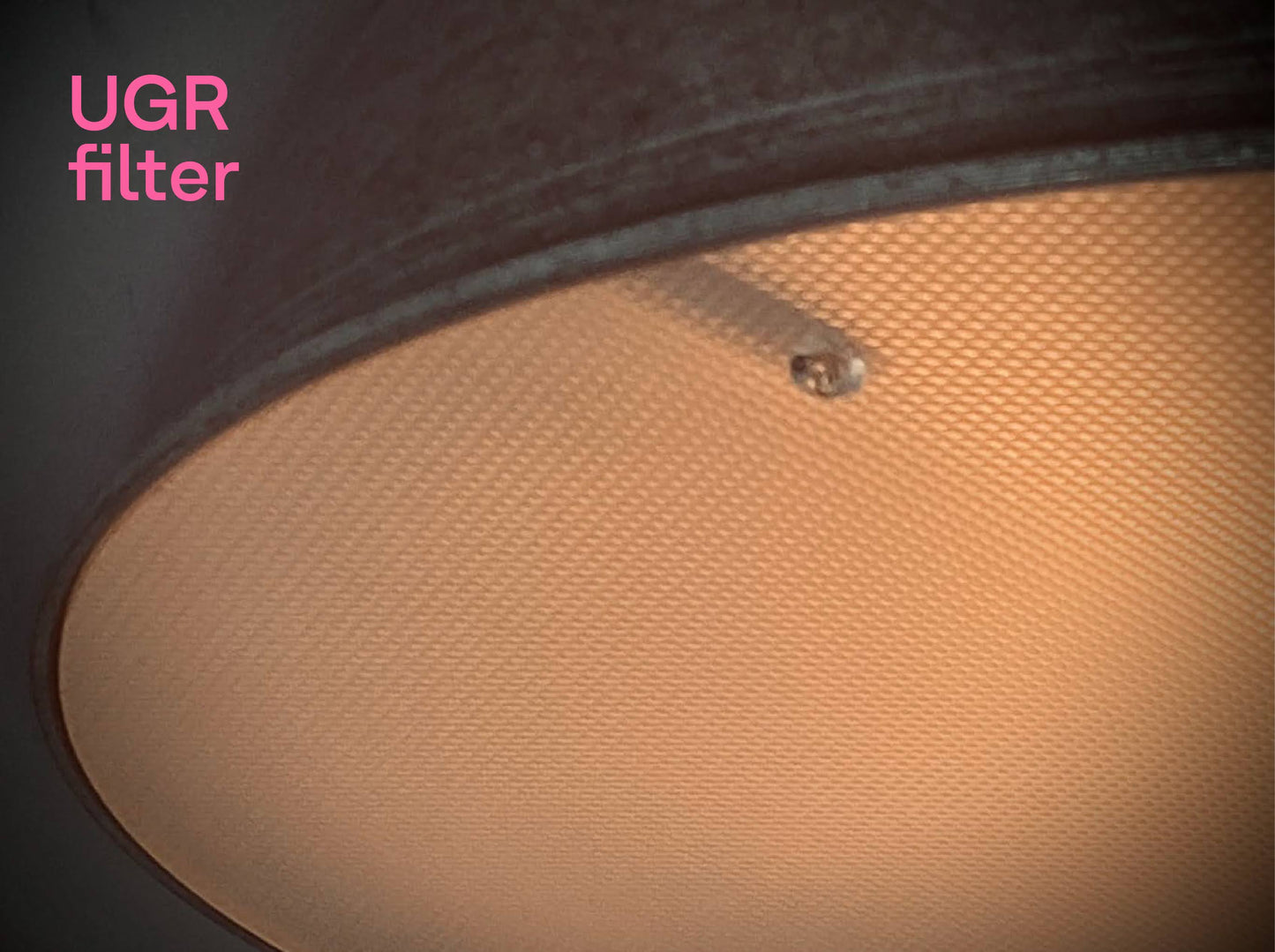

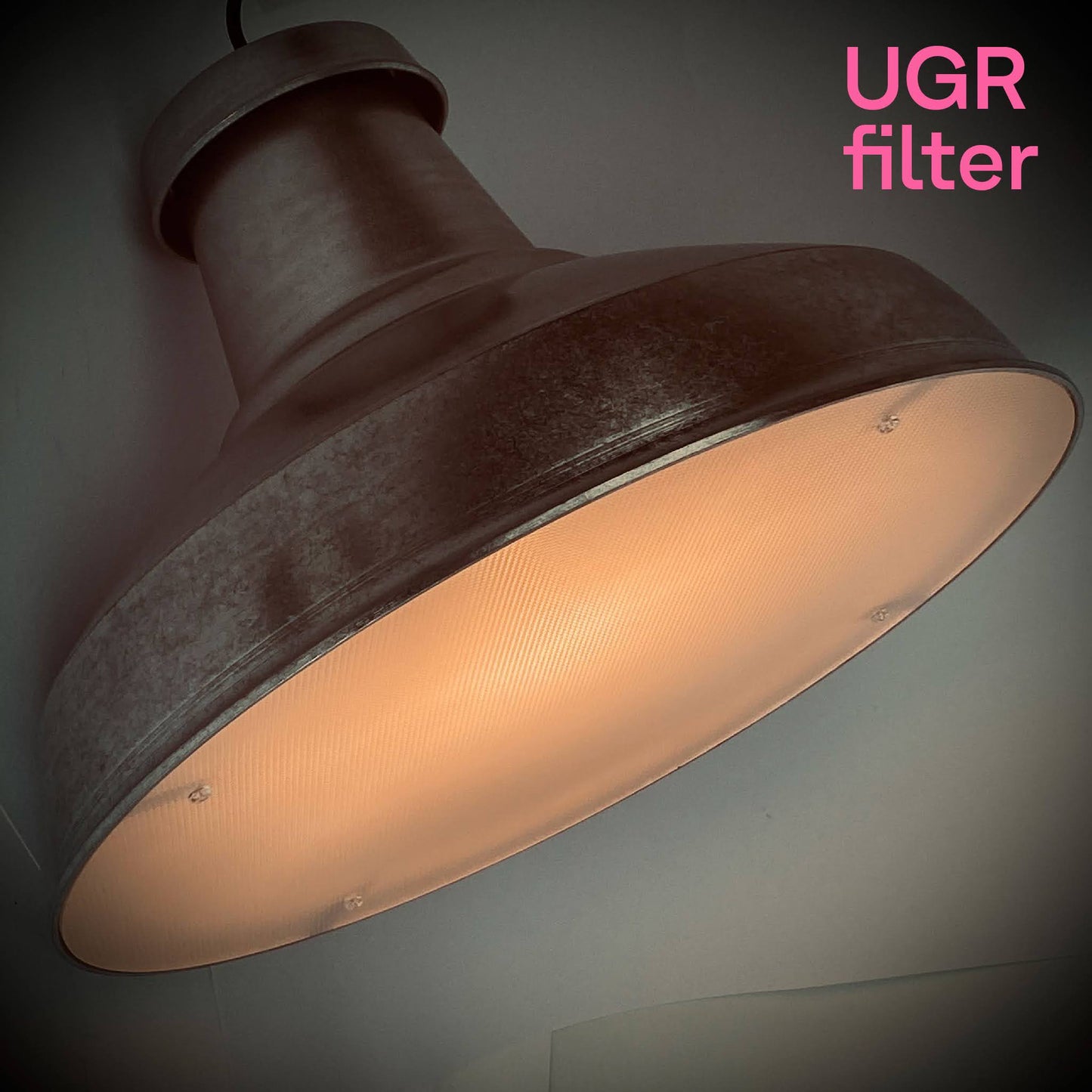

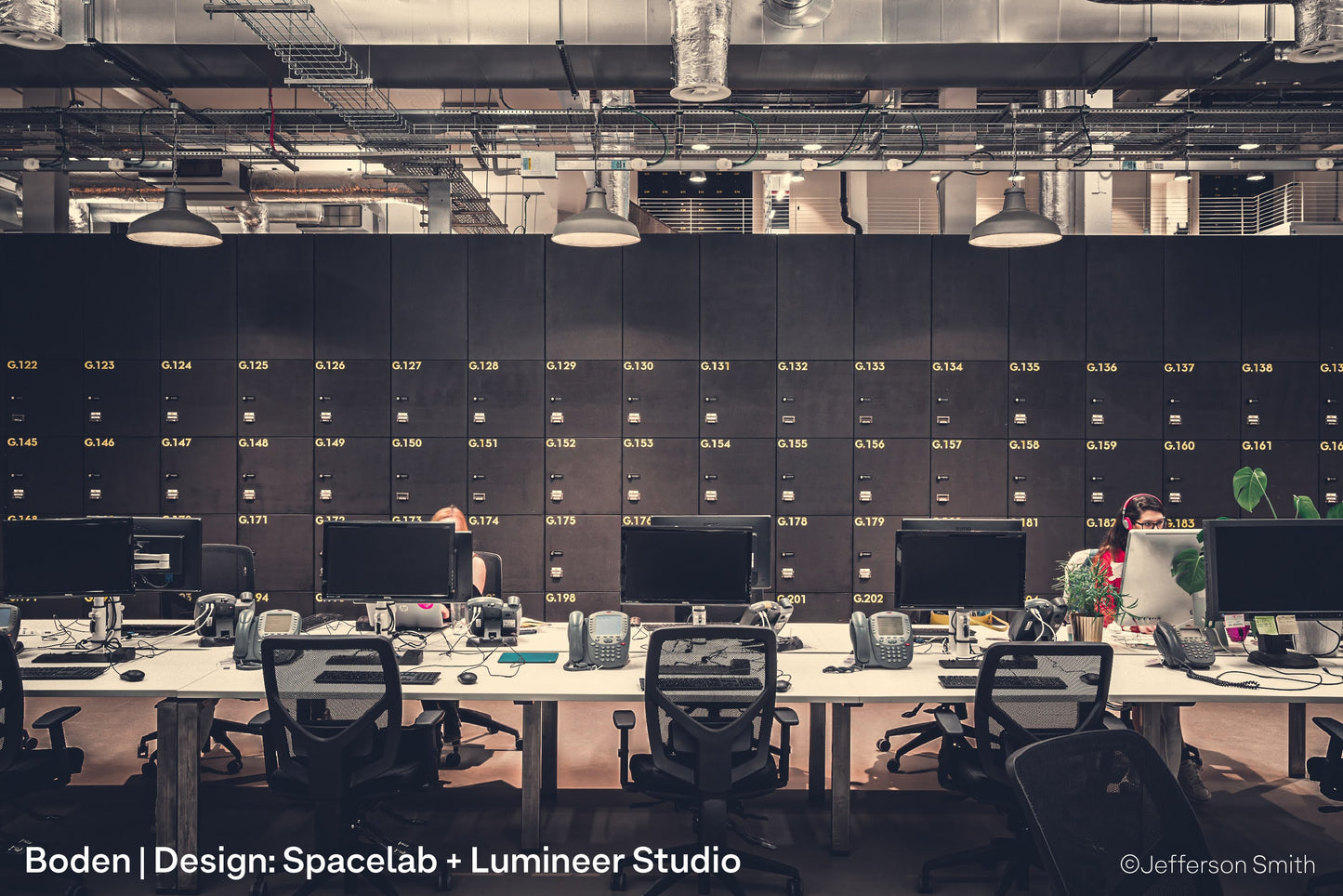

This architectural pendant light delivers up to 4750lm and the potential for 'closed loop' Circular Economy. A ⌀500mm 'XL' version is also available. Choose from different luminaire optics and accessories, including UGR (Unified Glare Ratio) filters.

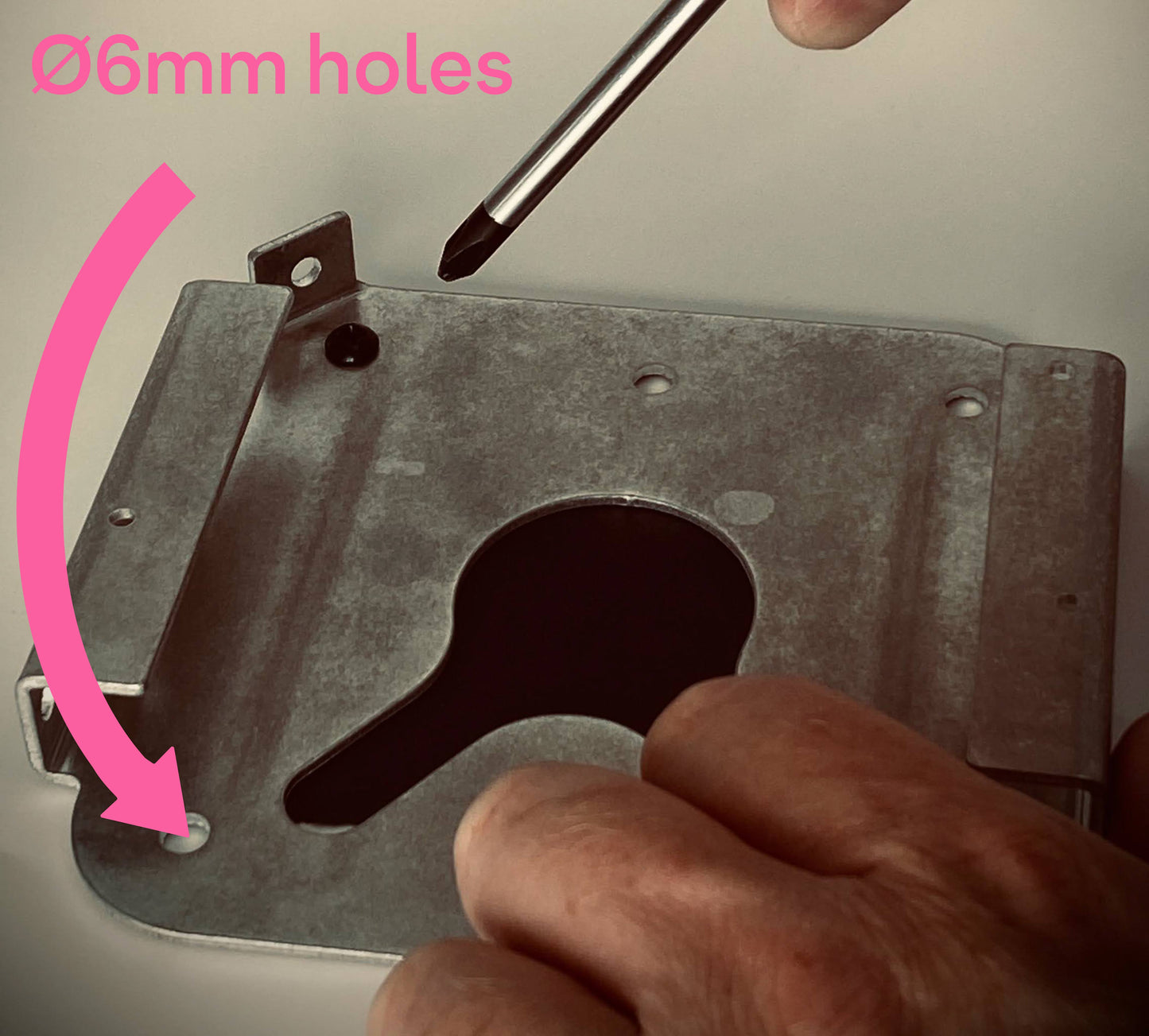

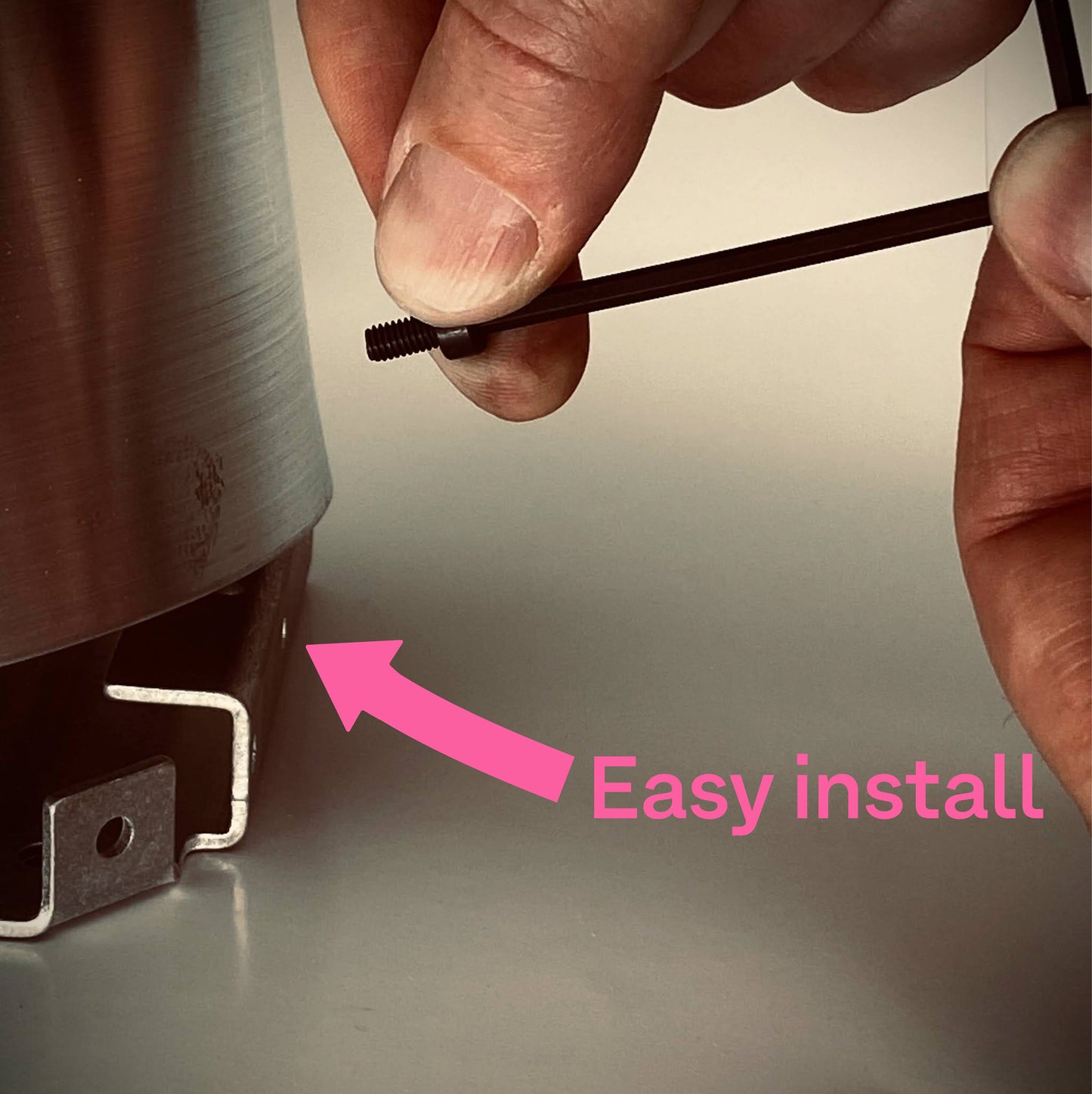

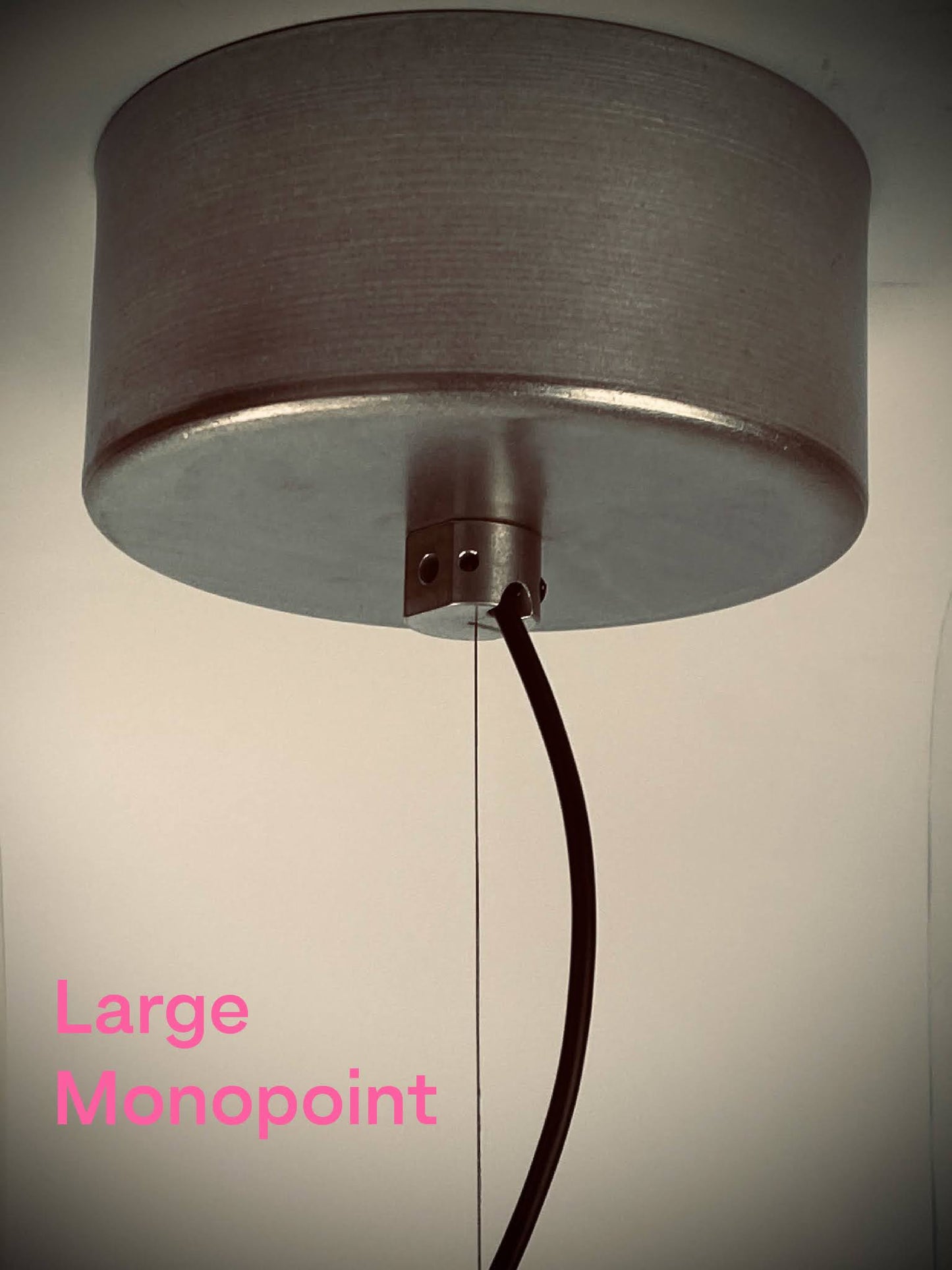

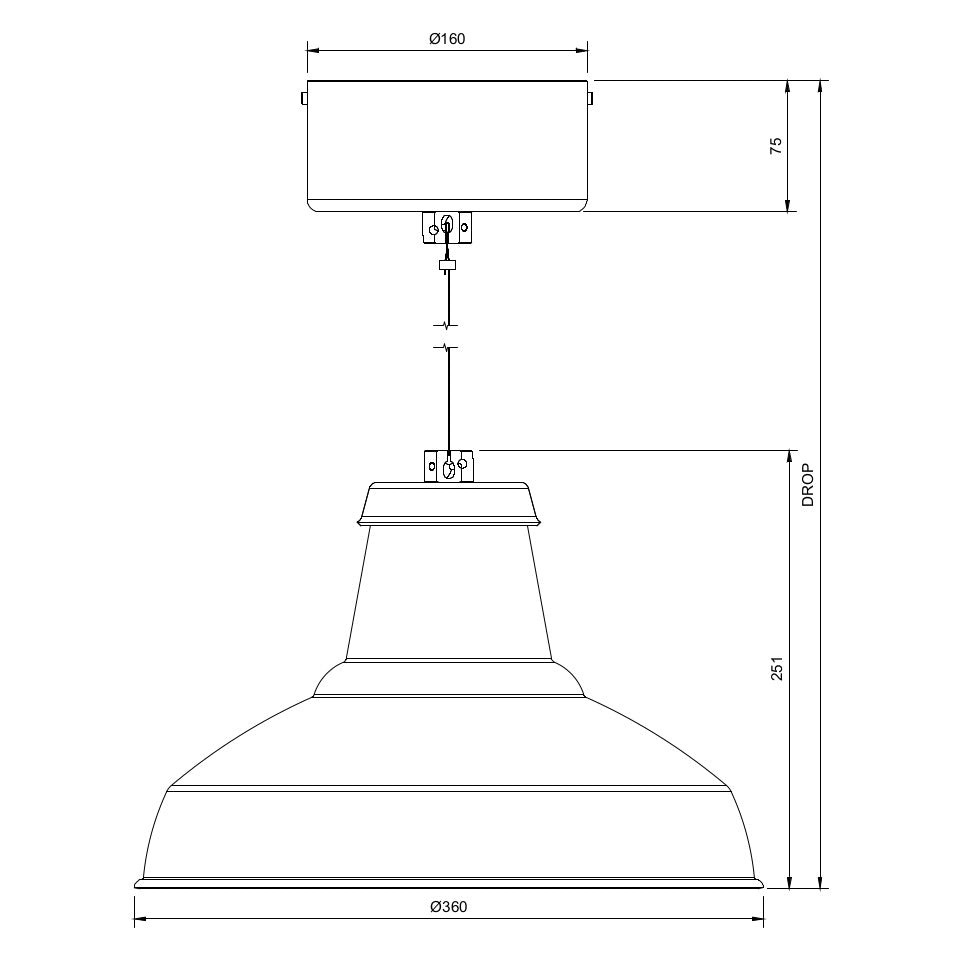

'Large Monopoint' is a 160mm diameter X 75mm deep circular Pendant light mounting / enclosure that's big enough to house the driver and all electrical connections. The monopoint body attaches to a separate, surface mounted bracket via M4 bolts located on opposite sides. The bracket itself has standard BESA (50.8mm) hole spacings for fixing to walls, ceilings, cable tray or other suitable surfaces / materials.

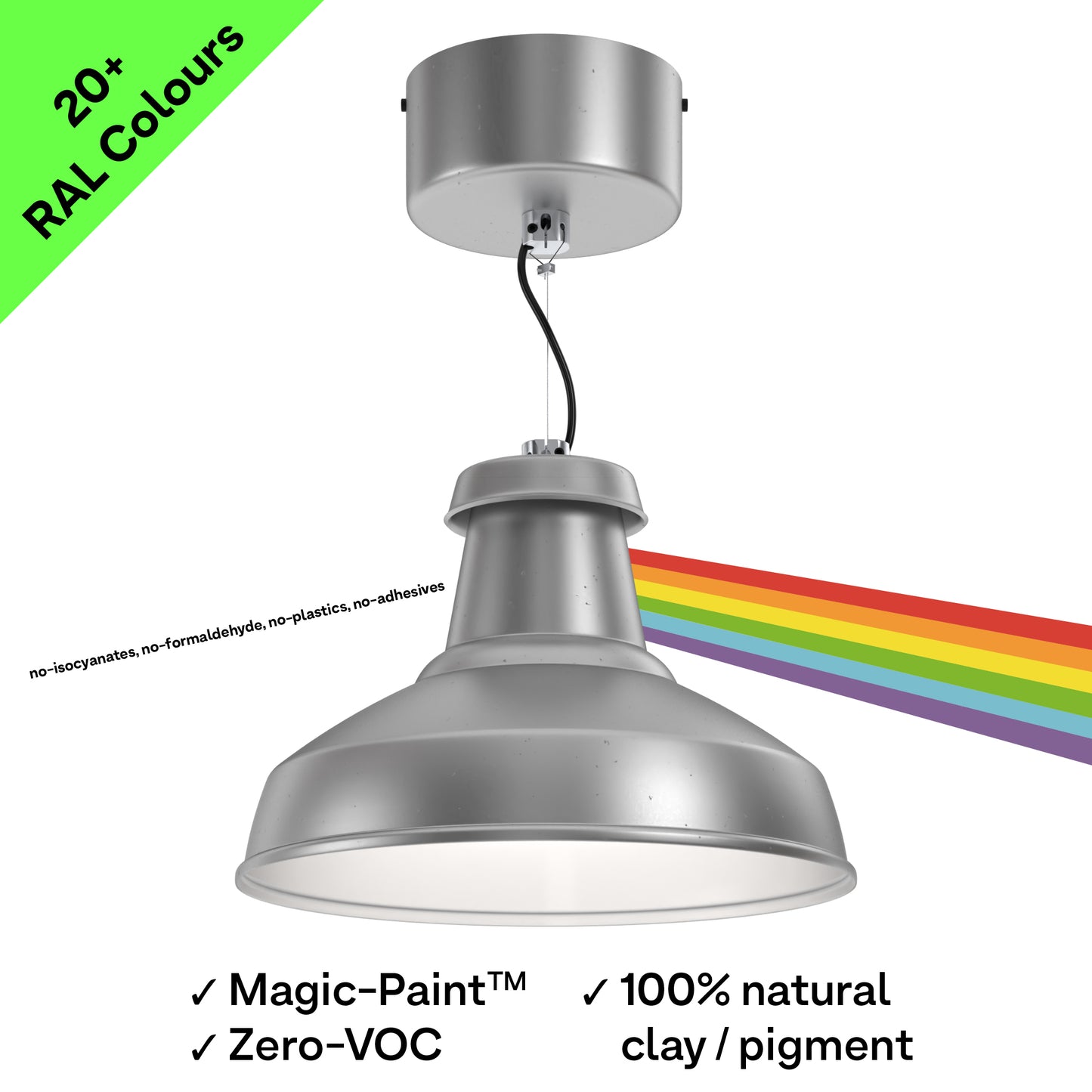

'Custom Finish' is our Magic-Paint™ solution for projects that require any finish other than black or Stone-Rumbled™, choose a colour match from 250+ RAL codes. Regular paint and powder coatings create seriously harmful pollution and are a major source (some studies say most) of microplastics in the environment. Magic-Paint™ is made from natural materials such as clay and does not contain any plastics, Isocyanates, VOCs or EPA-listed toxic organics.

Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.

Body:

• 100% free-from regular paint, plastic & adhesives
• No microplastic pollution
• No Isocyanates or VOC (volatile organic compound) off-gassing
• Repair, upgrade or disassemble with standard tools

Electronics:

• High-efficacy, replaceable LED
• Long-life, replaceable driver
• PVC-free cables

Closed Loop Circular Economy:

• Make-Unmake™: our factory can disassemble 'used' Black Pendant light and Disc mounting to re-use body components for our 'worn' lighting
• Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
• 100% Designed & assembled in Yorkshire
• Component origins include UK, EU, Mexico, Taiwan, China & Phillipines
