Reflekter™ L | Stone-Rumbled™ | Disc Monopoint | 3500K
Reflekter™ L | Stone-Rumbled™ | Disc Monopoint | 3500K
Couldn't load pickup availability
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 3kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 97.7 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°, UGR
- Accessories: Honeycomb Louvre | Concentric Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural pendant light delivers up to 4750lm and the potential for 'closed loop' Circular Economy. A ⌀500mm 'XL' version is also available. Choose from different luminaire optics and accessories, including UGR (Unified Glare Ratio) filters.
Spotify, Autodesk and Google all use Reflekter™ as office lighting, by getting the LED closer to the subject, less product and fewer lumens are required to achieve the same lux level - installations can be faster and running costs lower compared to traditional linear lighting.
Disc-Monopoint is our smallest, most low-profile luminaire mounting. A completely flat, 65mm diameter x 2mm thick circular plate with standard BESA (50.8mm) hole spacings. Fix to conduit box, pattress or surface mount to cable tray, timber, cladding or other suitable material.
Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Stone-Rumbled body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines

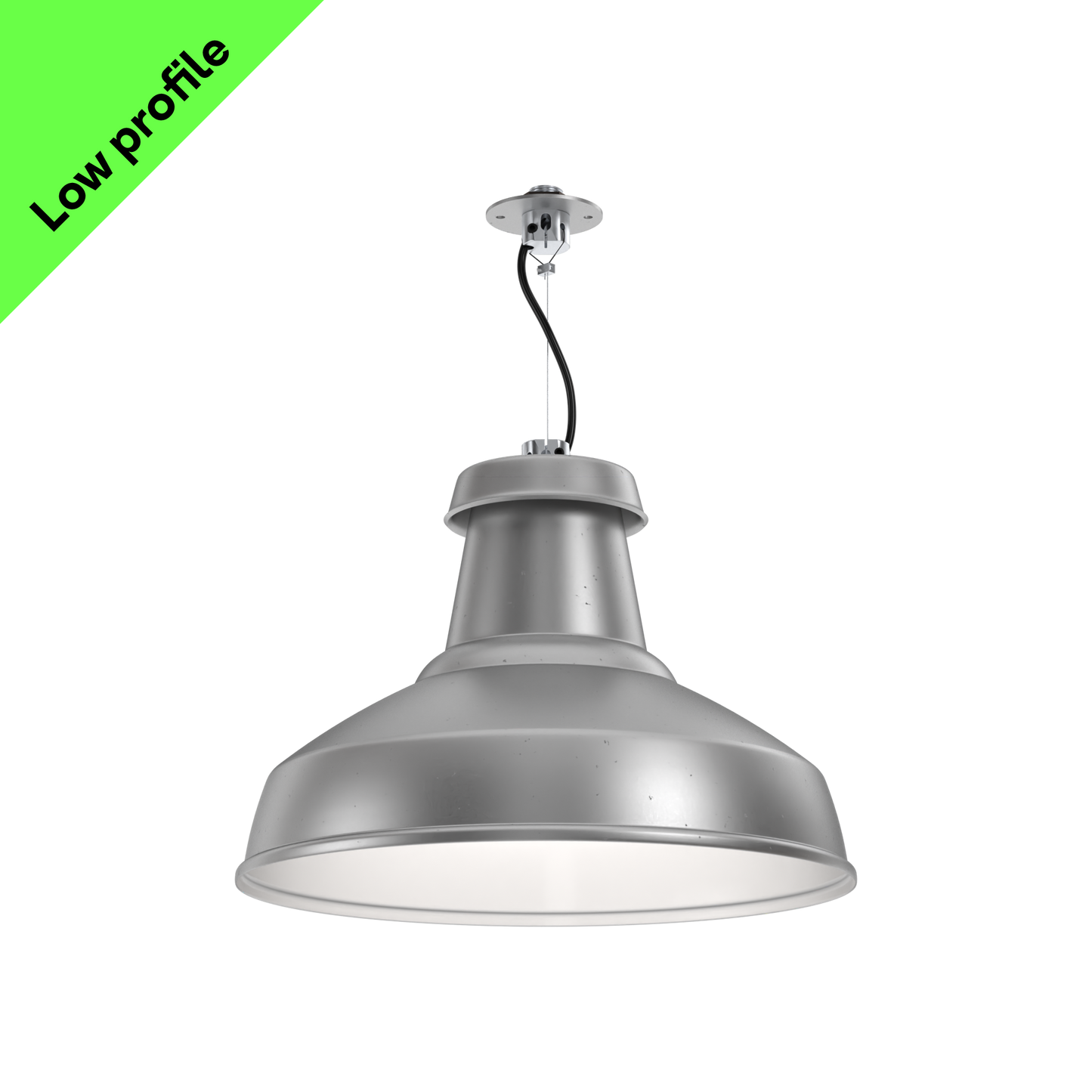

![A sustainable, paint-free architectural pendant light that's designed for circular economy, on a low-profile mounting disc](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-L-Reflekter-Disc-Monopoint-Stone-Rumbled-Hero.png?v=1695865710&width=1445)

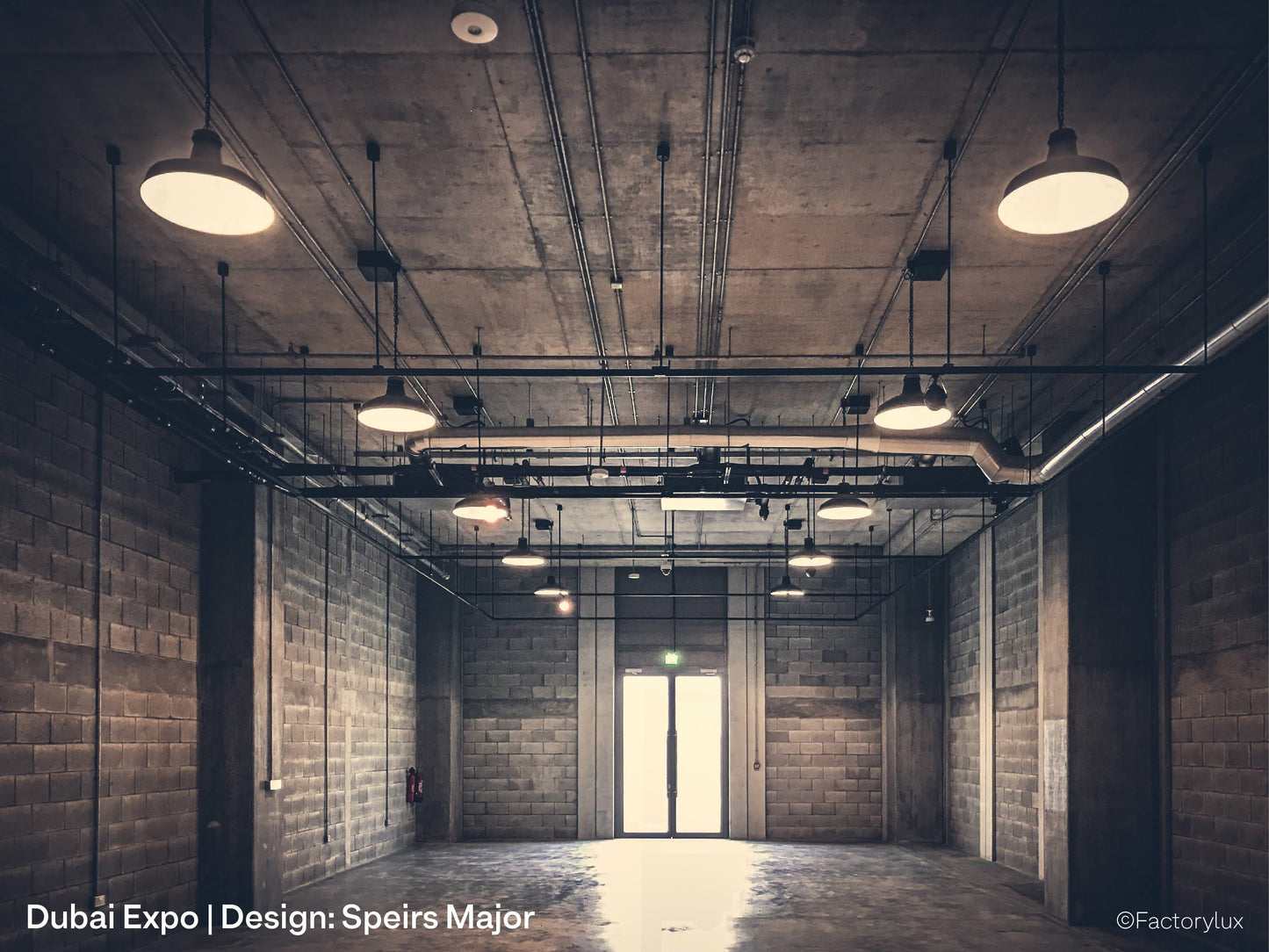

![Expo exhibition centre in Dubai, with beton-brut concrete walls and raw aluminium architectural pendant lights](http://factorylux.com/cdn/shop/files/Dubai-Expo-Speirs-Major-Pendant-Lighting_ea32bd68-dc25-4d78-8b4f-441ddce3adf2.jpg?v=1696358180&width=1445)

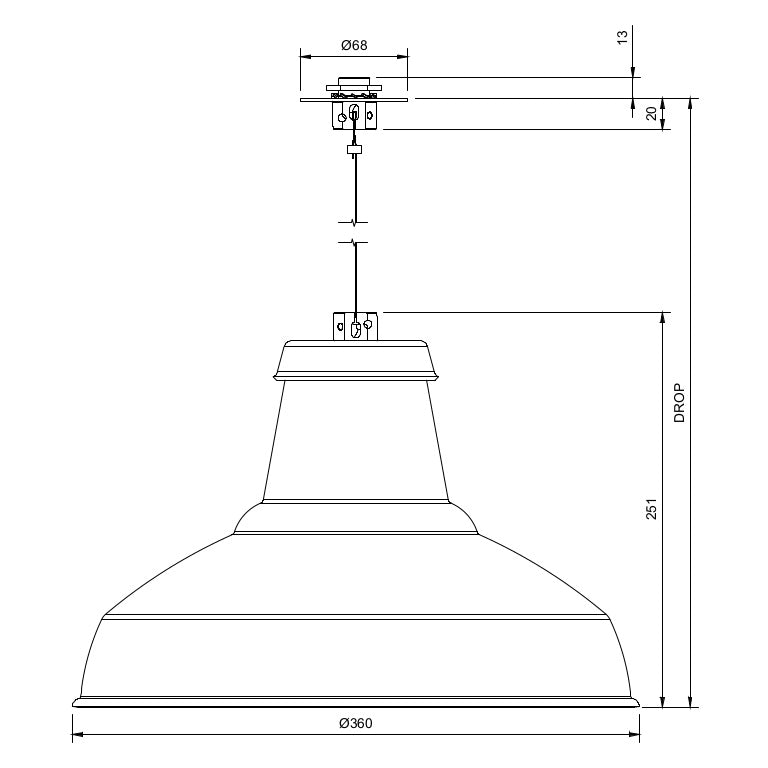

![Technical drawing of a circular economy architectural pendant light on a low-profle, disc mount with BESA hole spacings](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Large-Reflekter-Disc-Monopoint-Line-Drawing_6d4575f4-0a49-4772-8b99-09945c573e8c.jpg?v=1697129154&width=1445)

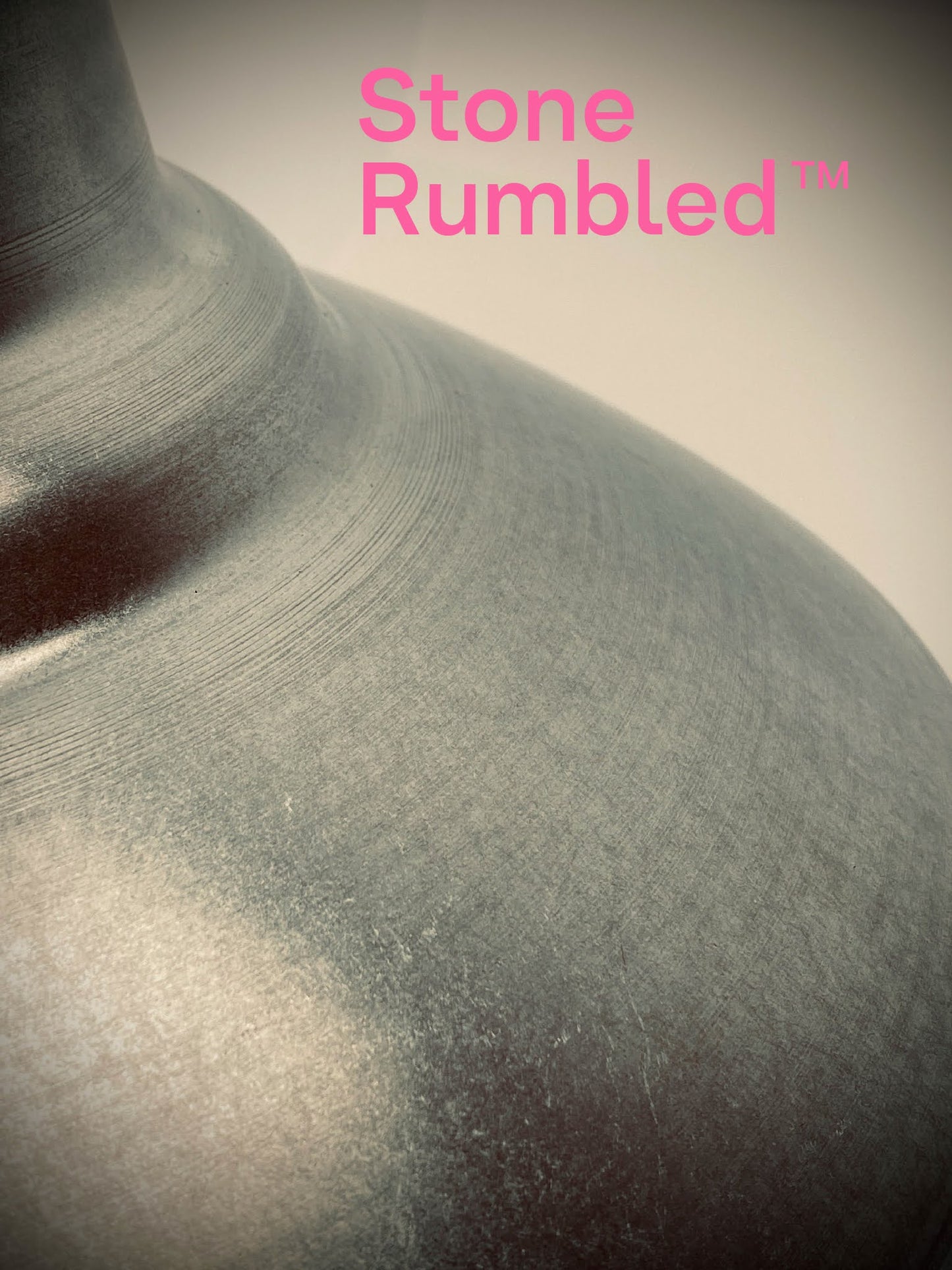

![Close up of a sustainable raw aluminium pendant light for architects, revealing a wabi-sabi surface texture](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Colour-Texture-Close-Up_9dfeb429-0947-432d-8c64-5556e94d974e.jpg?v=1697129986&width=1445)

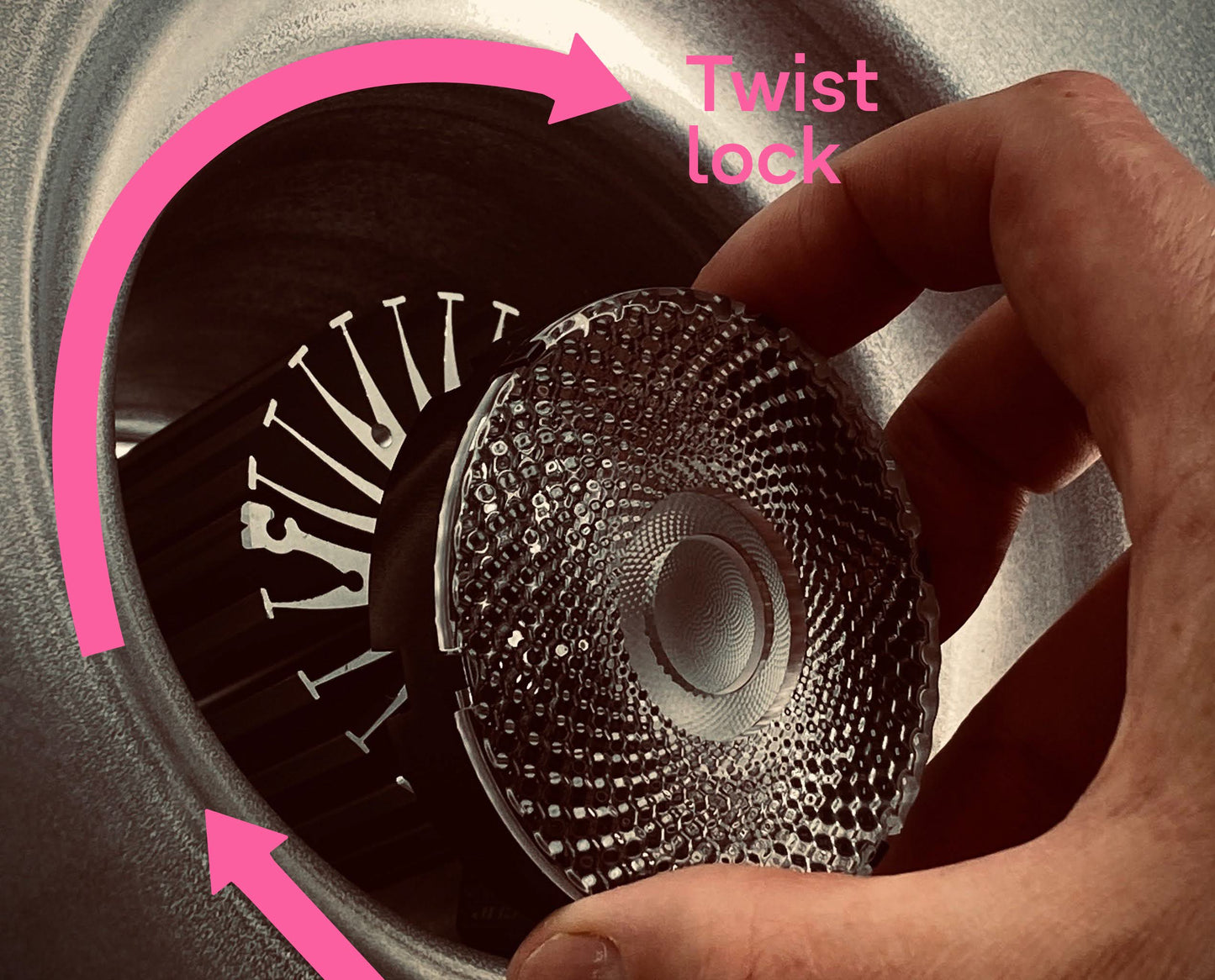

![How to insert the lens into a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Removable-Lens_b062f030-6310-462f-a542-2779f029236d.jpg?v=1697129986&width=1445)

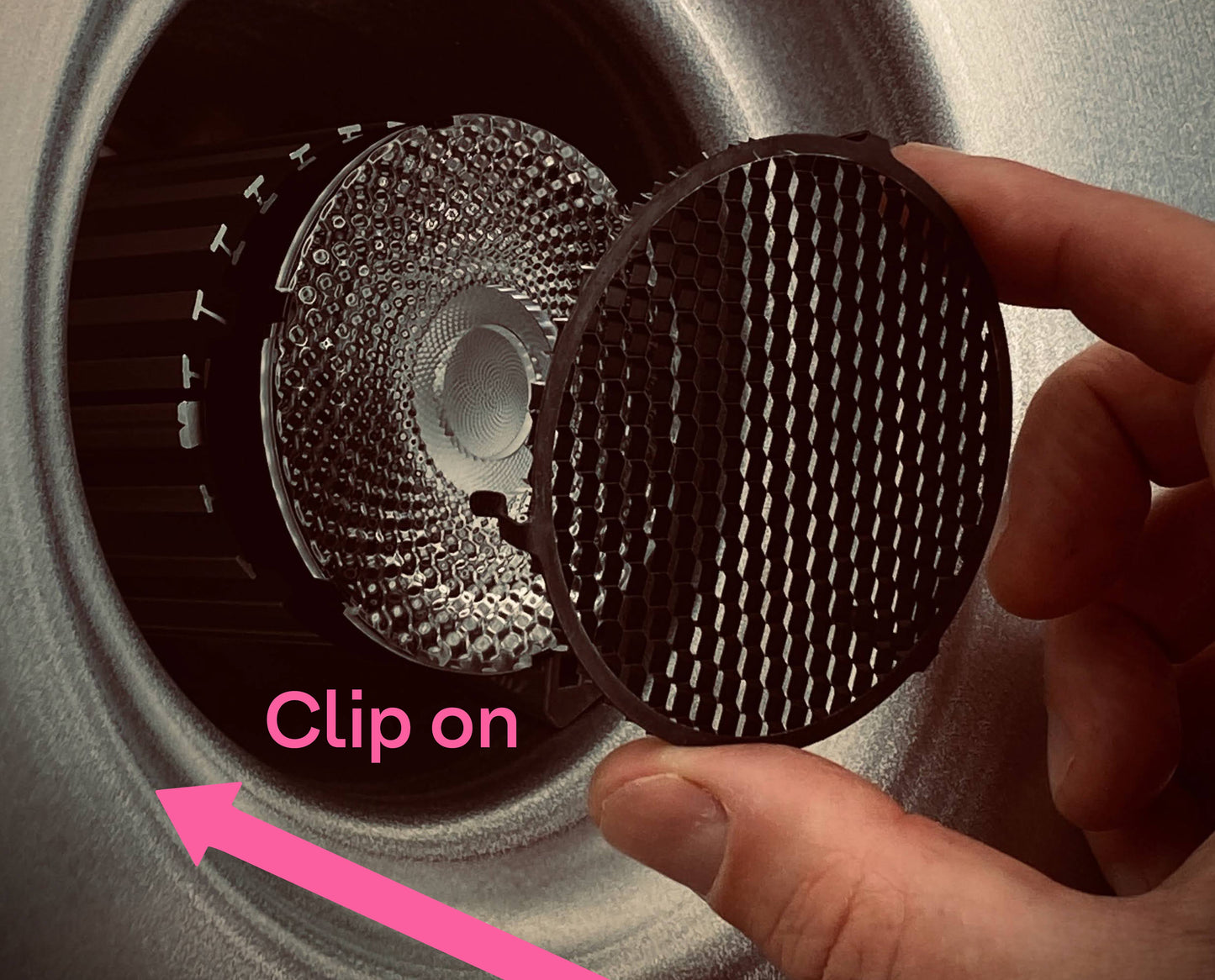

![How to attach honeycomb louvre onto a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Honeycomb-Louvre_b976eb08-c629-4995-8ca0-57dda1debef7.jpg?v=1697129986&width=1445)

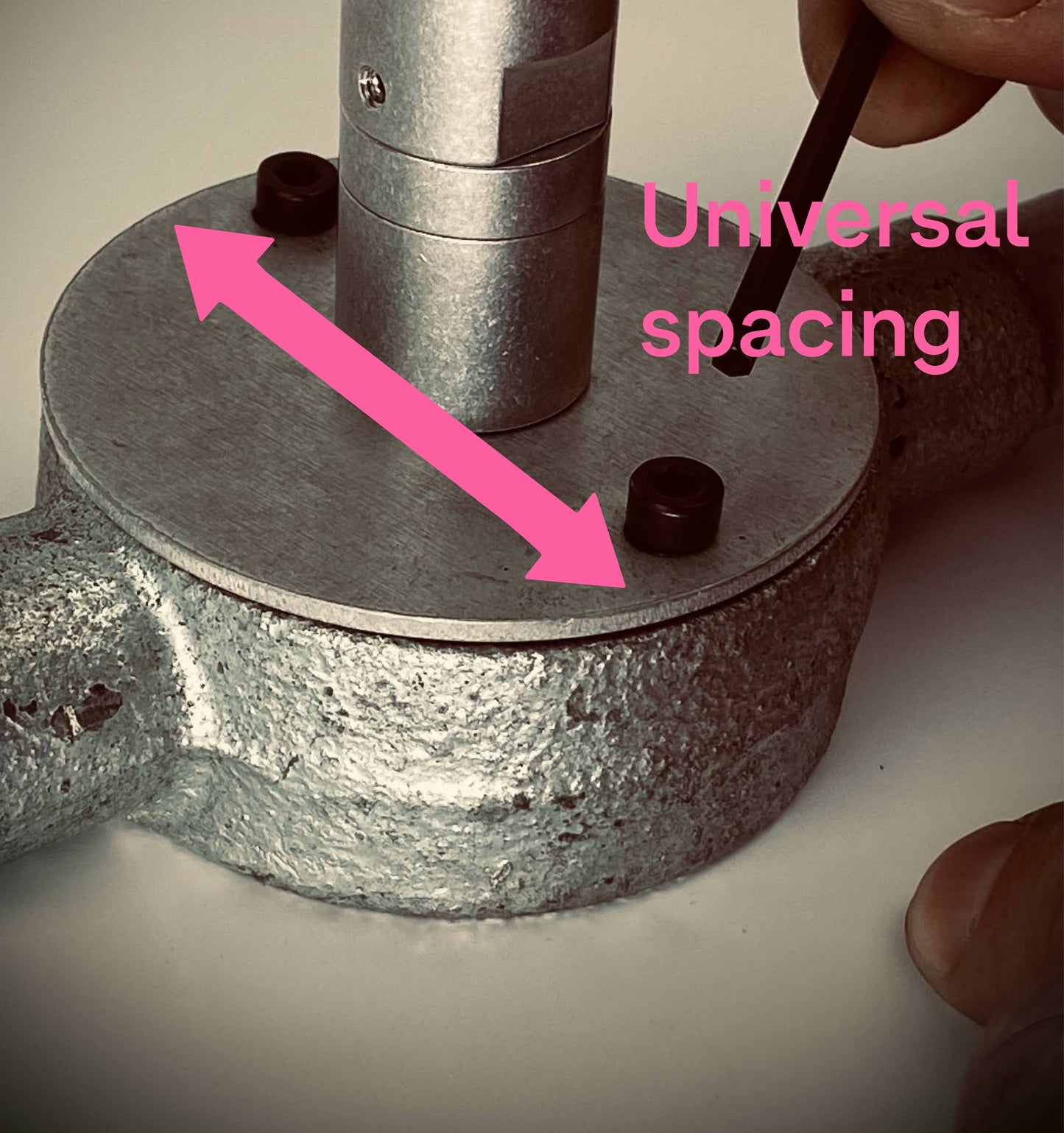

![How to install disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Base-Install-Stone-Rumbled_1557de10-8e26-4cf6-9058-82fed882a6aa.jpg?v=1697129986&width=1445)

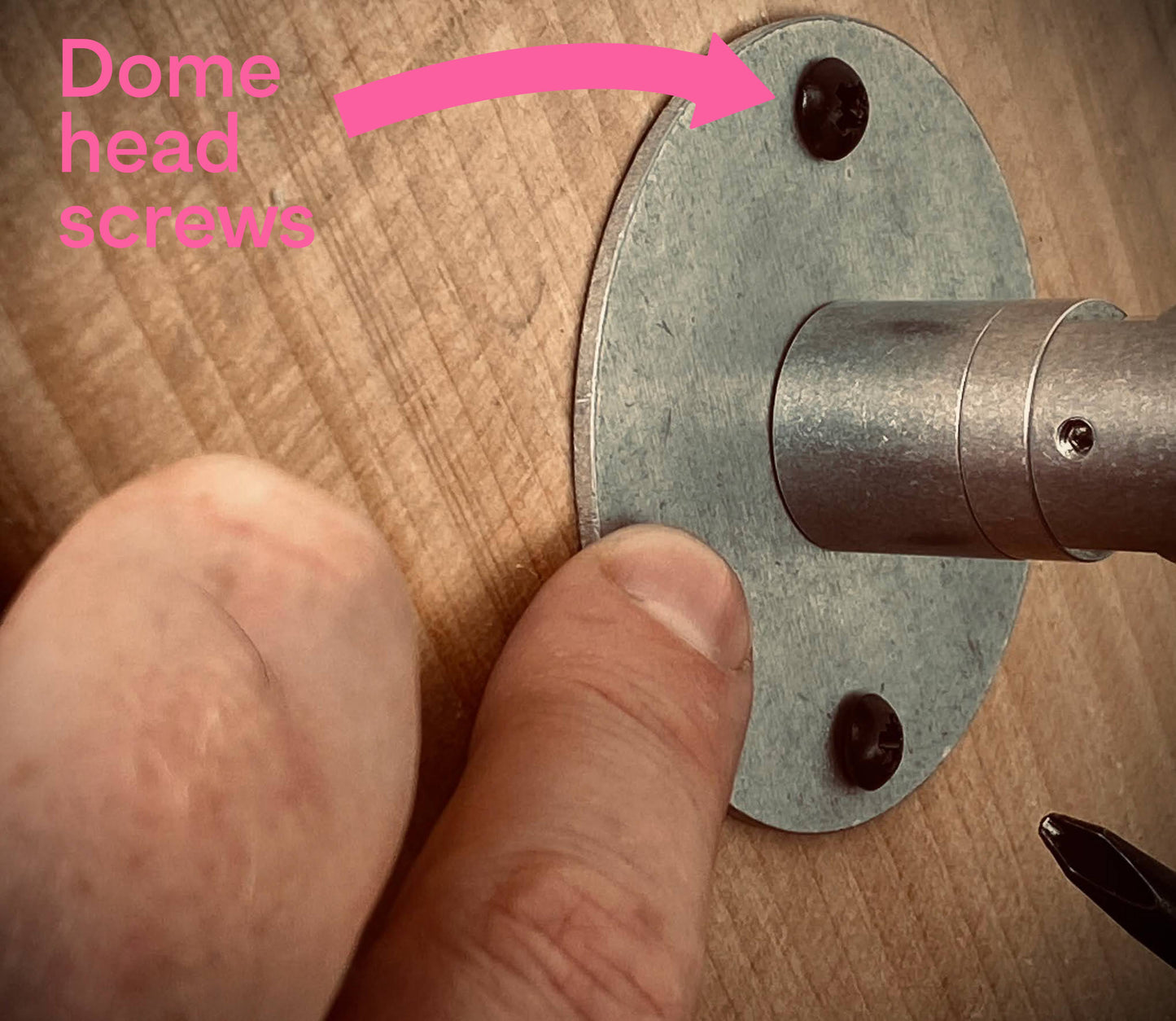

![How to install disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Top-Install-Stone-Rumbled_f7a02492-1ec7-4e72-90c7-db0d5d550de7.jpg?v=1697129986&width=1445)

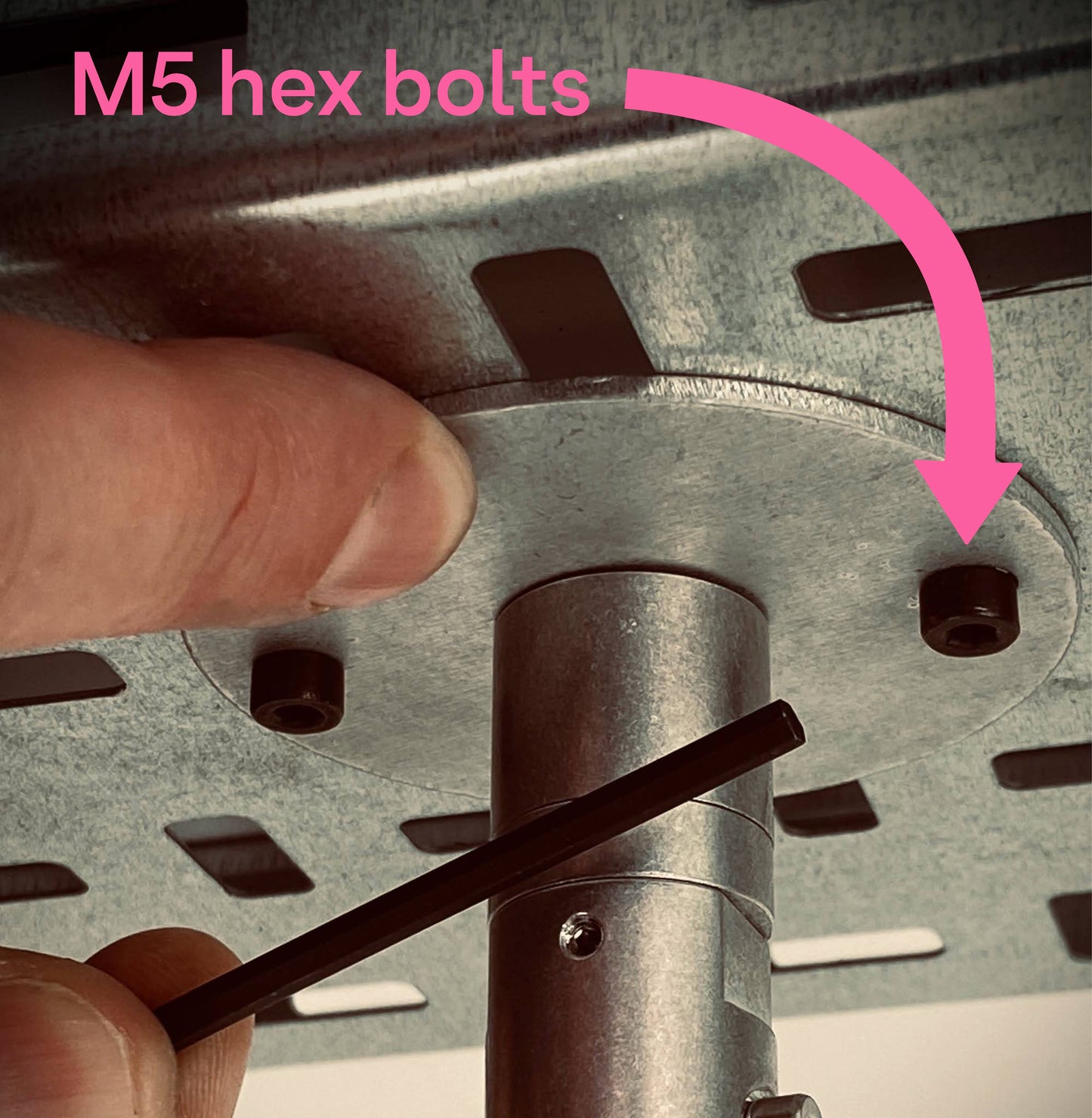

![Installed disc monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Complete-Install-Stone-Rumbled_4eee7170-2706-45c5-baa9-97ddb4270945.jpg?v=1697129986&width=1445)

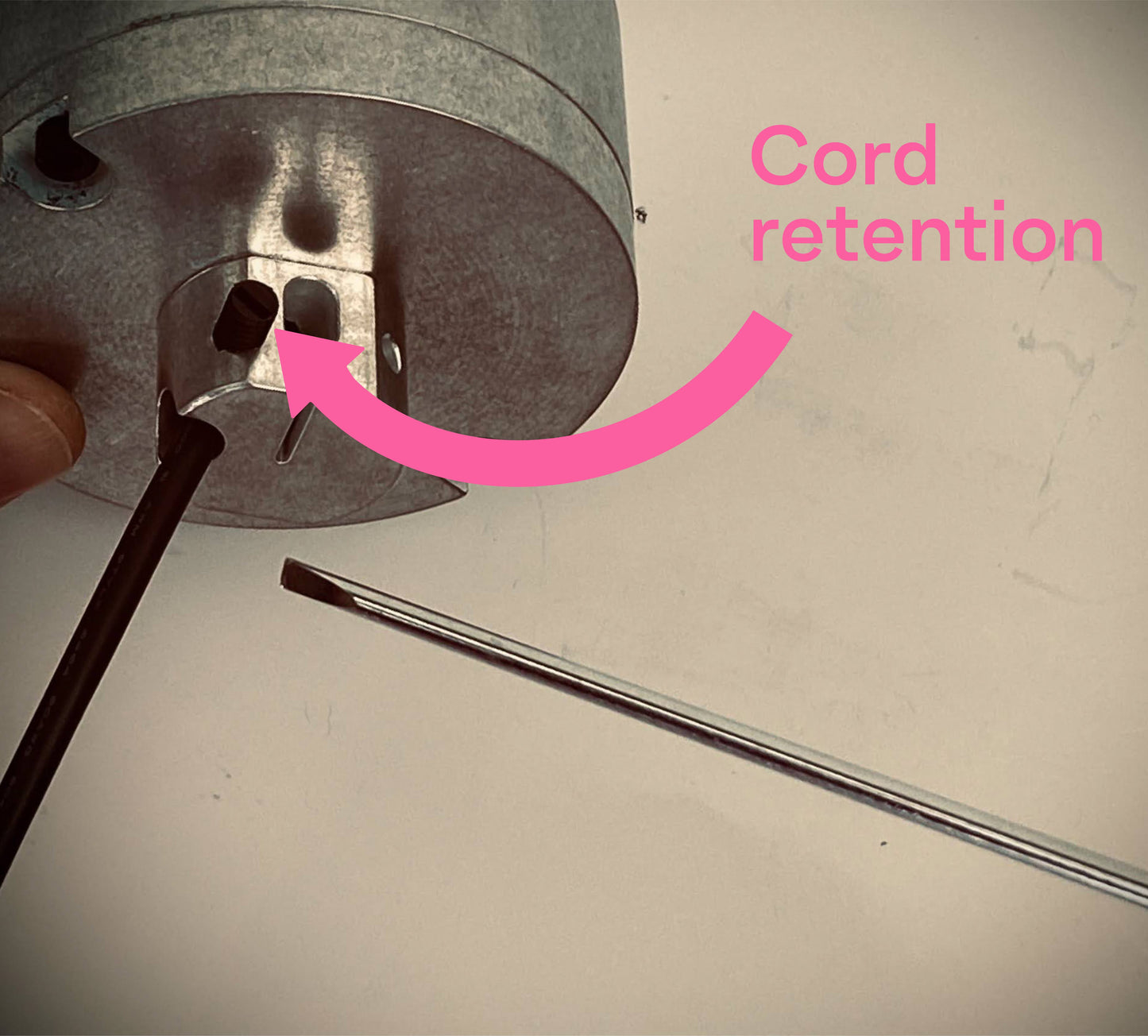

![Illustration of electrical cable adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Cable-Adjust_c052ca6d-3669-4104-b505-3fce41f1b563.jpg?v=1697129986&width=1445)

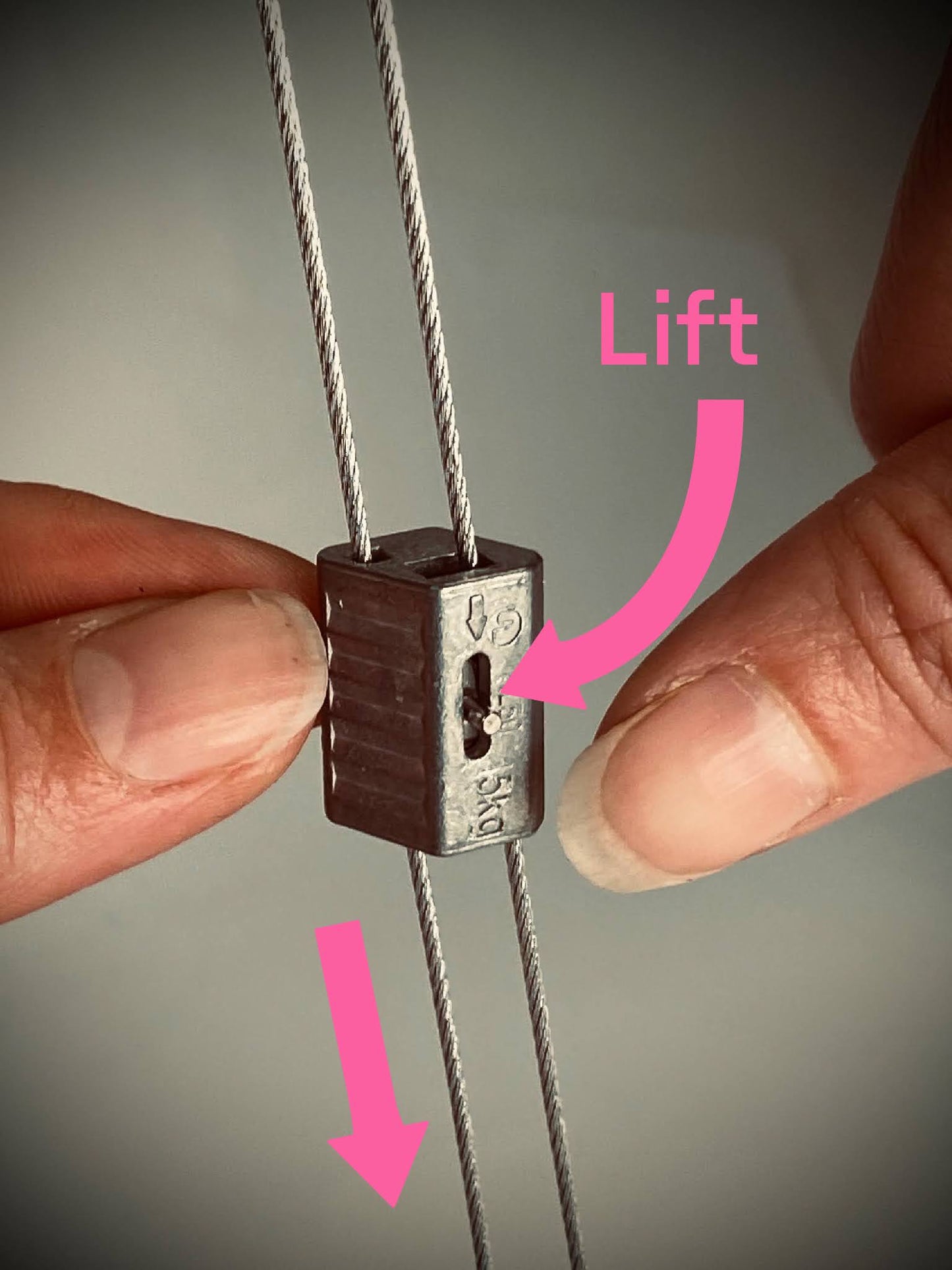

![Illustration of suspension wire adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Suspension-Wire-Adjust_48e07a2e-6dae-4f65-8eff-723b93bcc65d.jpg?v=1697129986&width=1445)

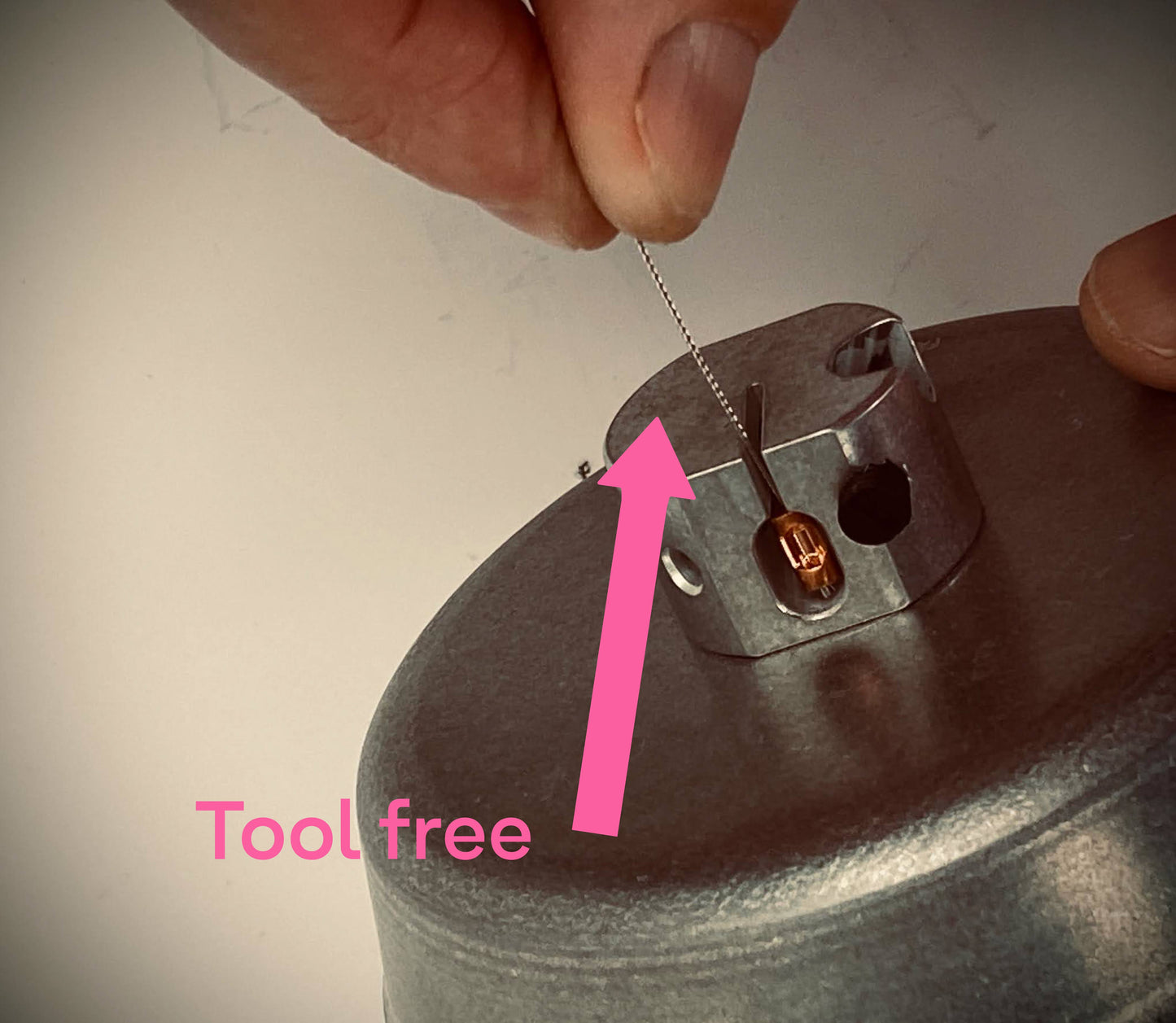

![Illustration of suspension wire installation for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Reflekter-Stone-Rumbled-Suspension-Wire_249af906-fa30-433d-b57c-bcd9d8be3055.jpg?v=1697129986&width=1445)

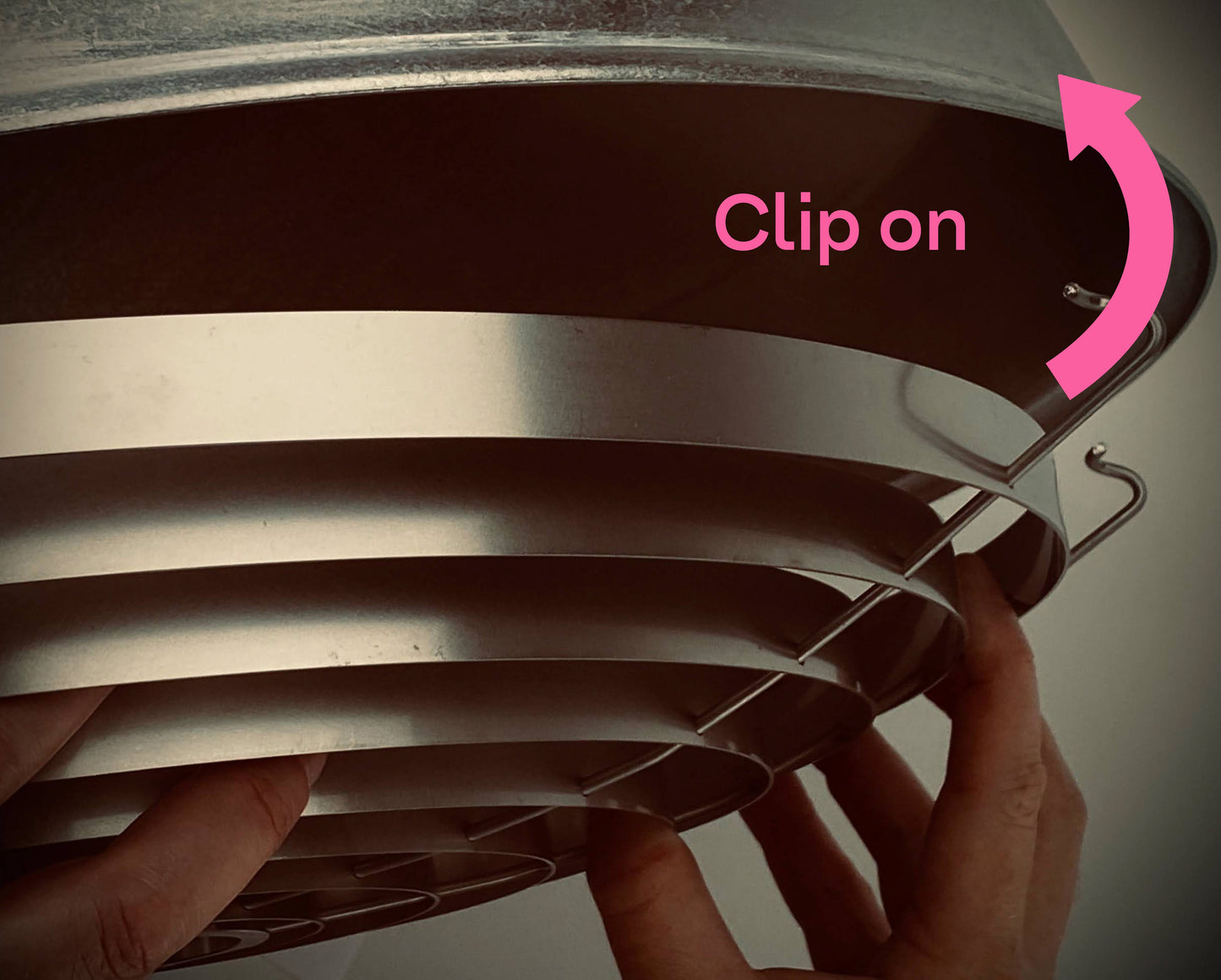

![A concentric louvre accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Concentric-Louvre_d1a6cc1f-c3ef-41c6-80d6-3d278b43e401.jpg?v=1697129986&width=1445)

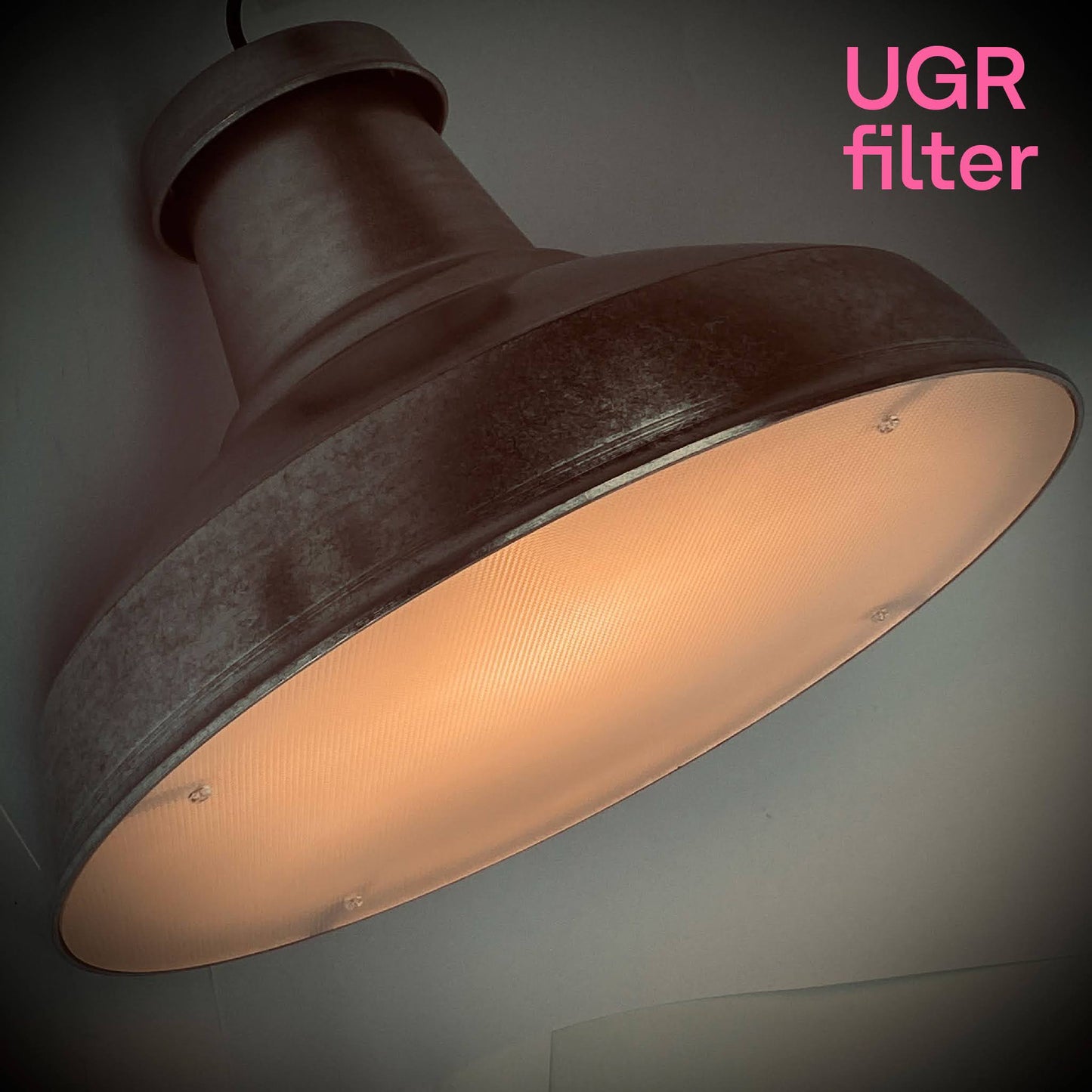

![A UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR_3026577c-07d1-4944-9cac-1cfed9329c6b.jpg?v=1697129986&width=1445)

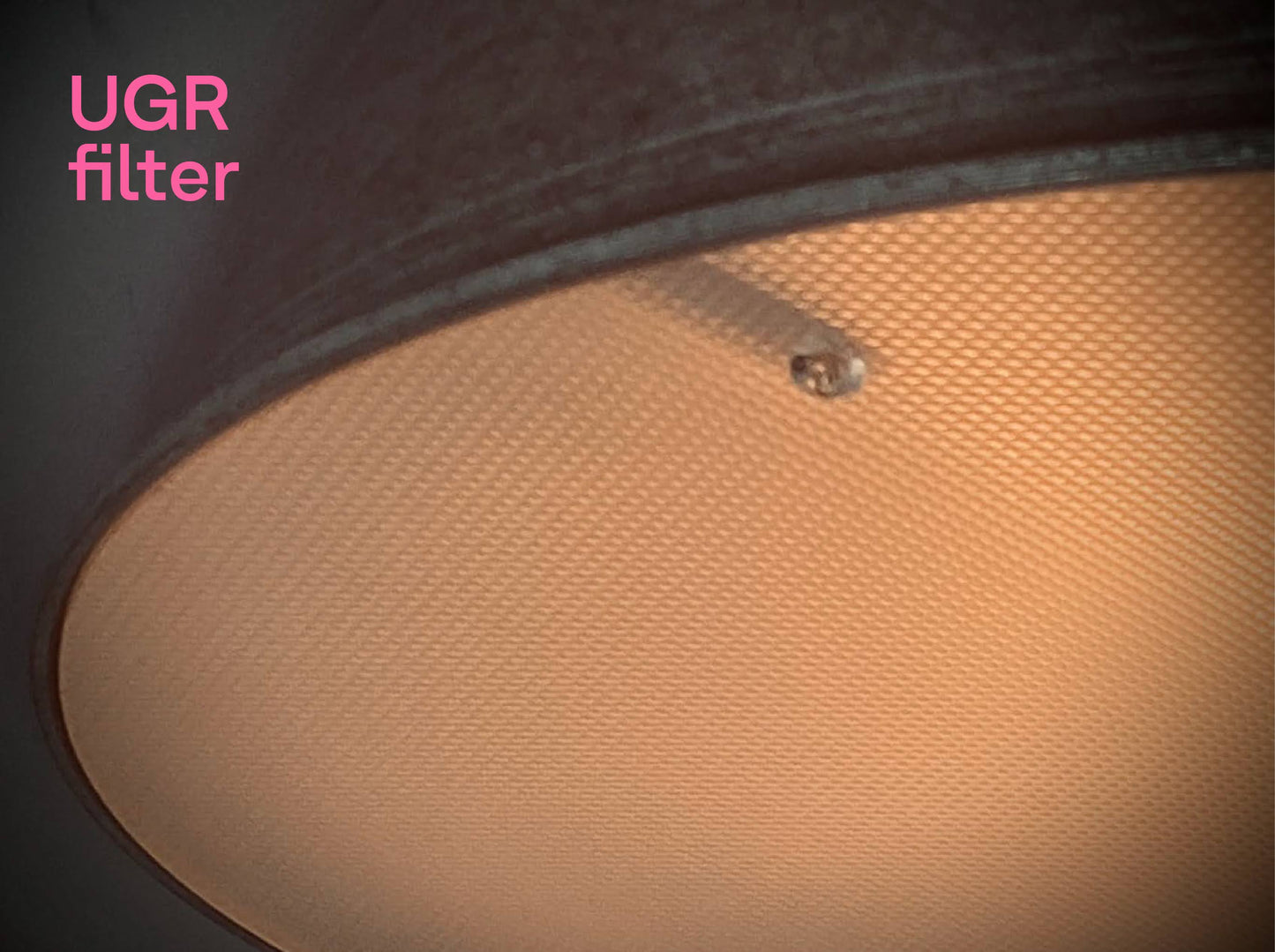

![Close up of UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR-Filter_1f2799b9-f506-4009-9789-50621916facf.jpg?v=1697129986&width=1445)

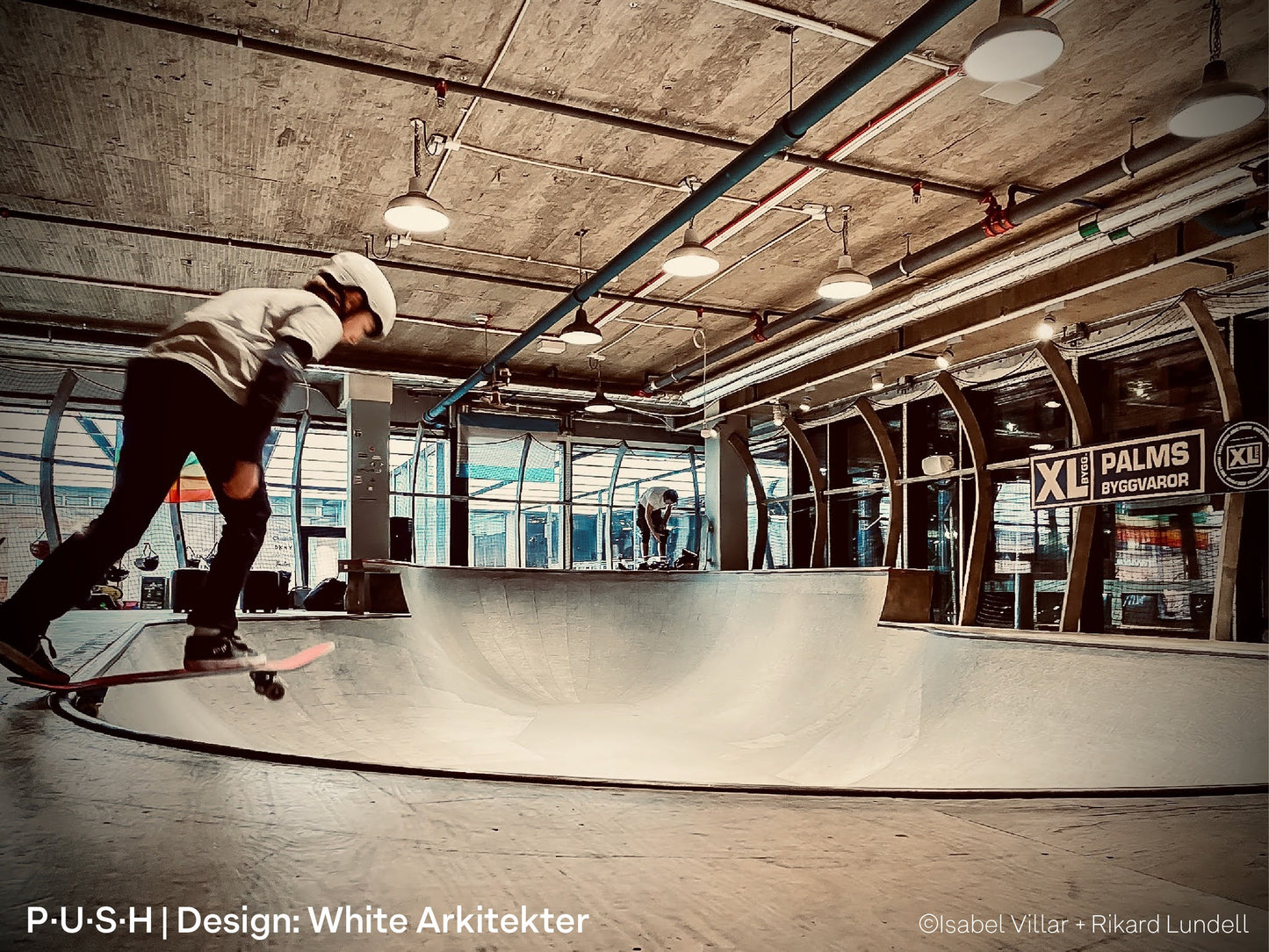

![Skateboarders, skating at an indoor skatepark, illuminated by high-output architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-1_706d5f59-9a3d-4cd5-86d9-479a7e52c69f.jpg?v=1697129986&width=1445)

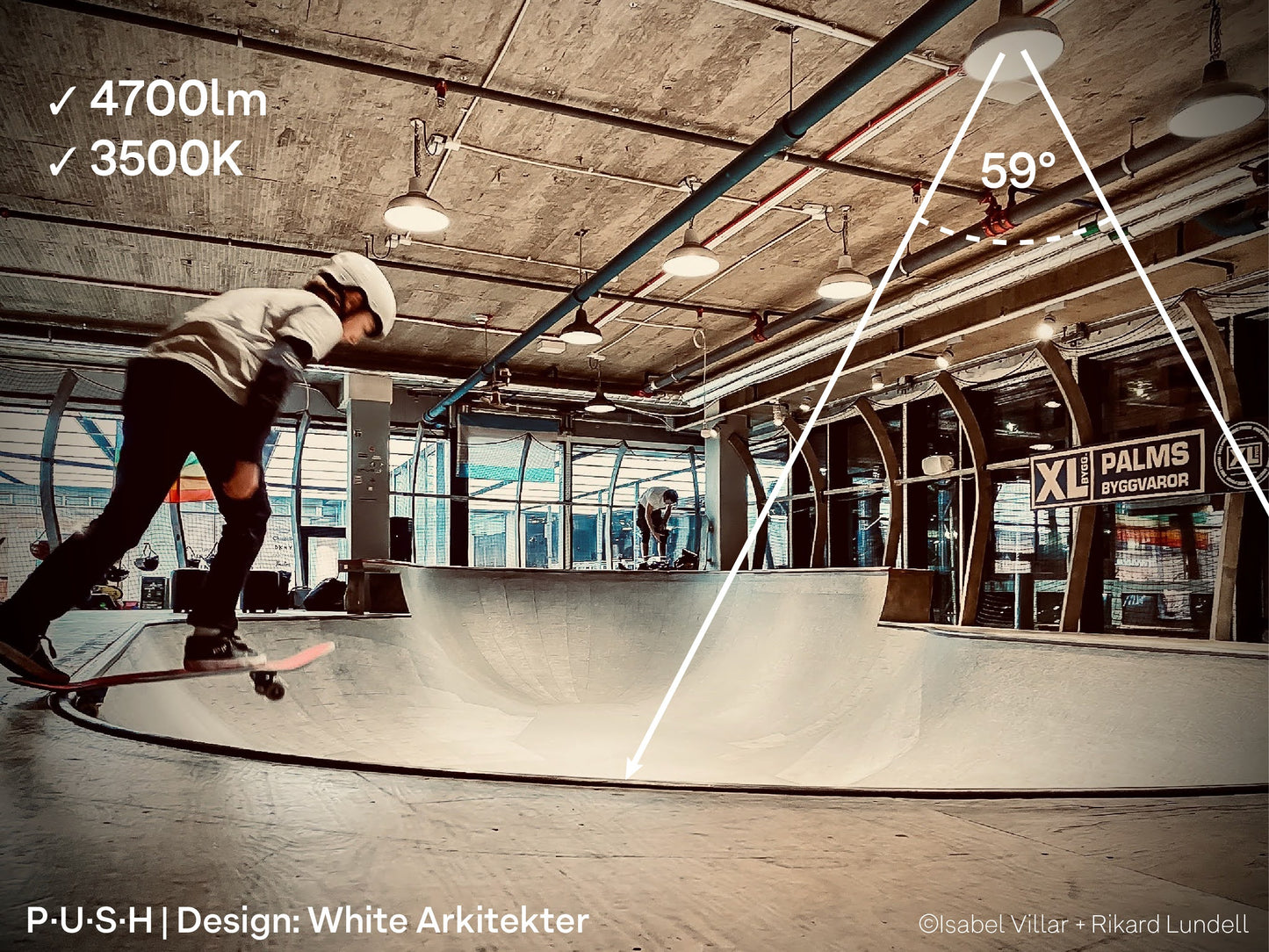

![Skateboarders, skating at an indoor skatepark, illuminated by 4700lm 3500K architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-2_82854ee7-7ed7-4acc-87ae-6157316a77a0.jpg?v=1697129986&width=1445)

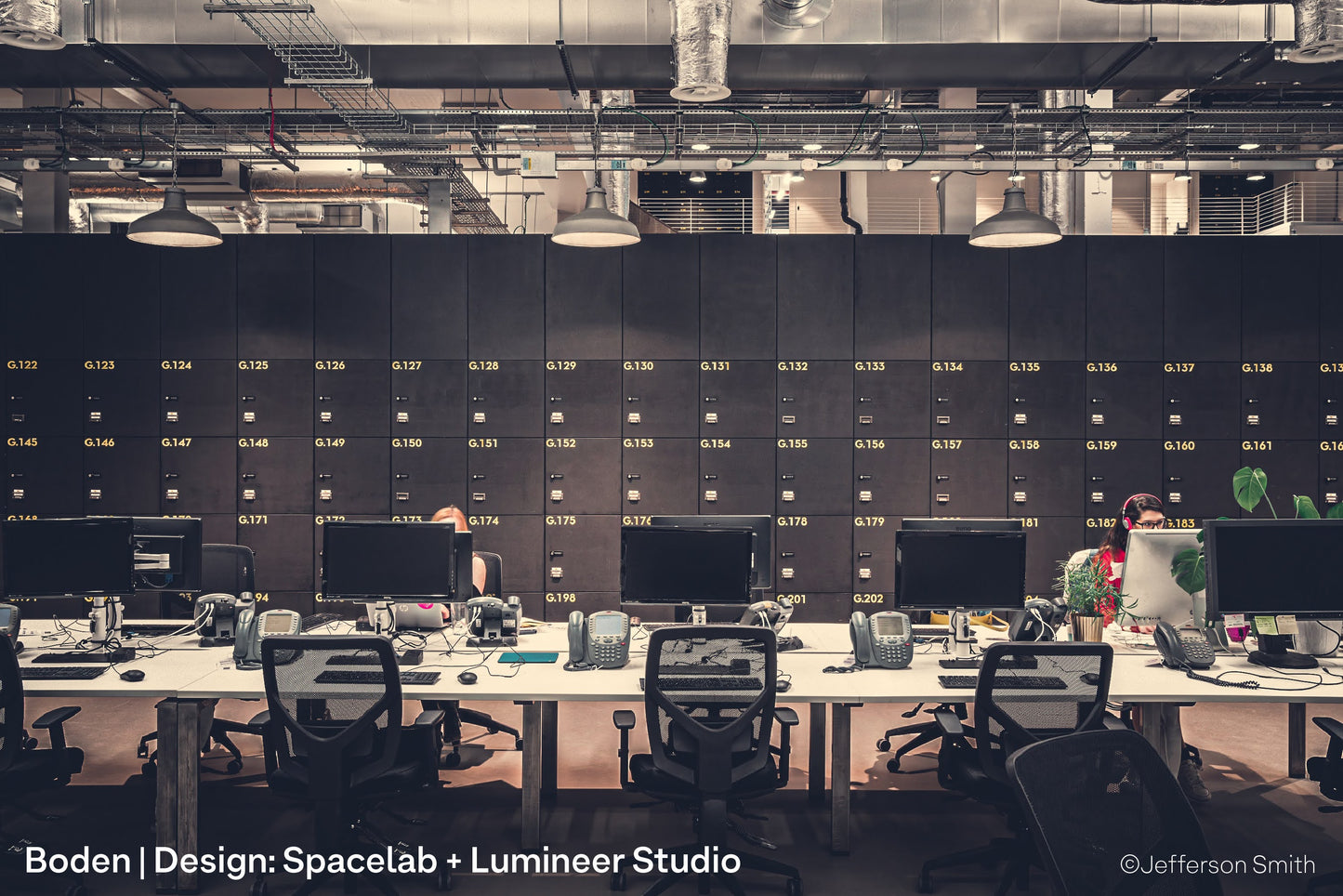

![Contemporary office workers in Boden's fashionable London HQ with architectural pendant lighting](http://factorylux.com/cdn/shop/files/Boden-HQ-Office-Lighting-Space-Lab-Reflekter-Pendant-1_3d747497-41b5-4a84-a6f8-d68115640e7d.jpg?v=1697129986&width=1445)

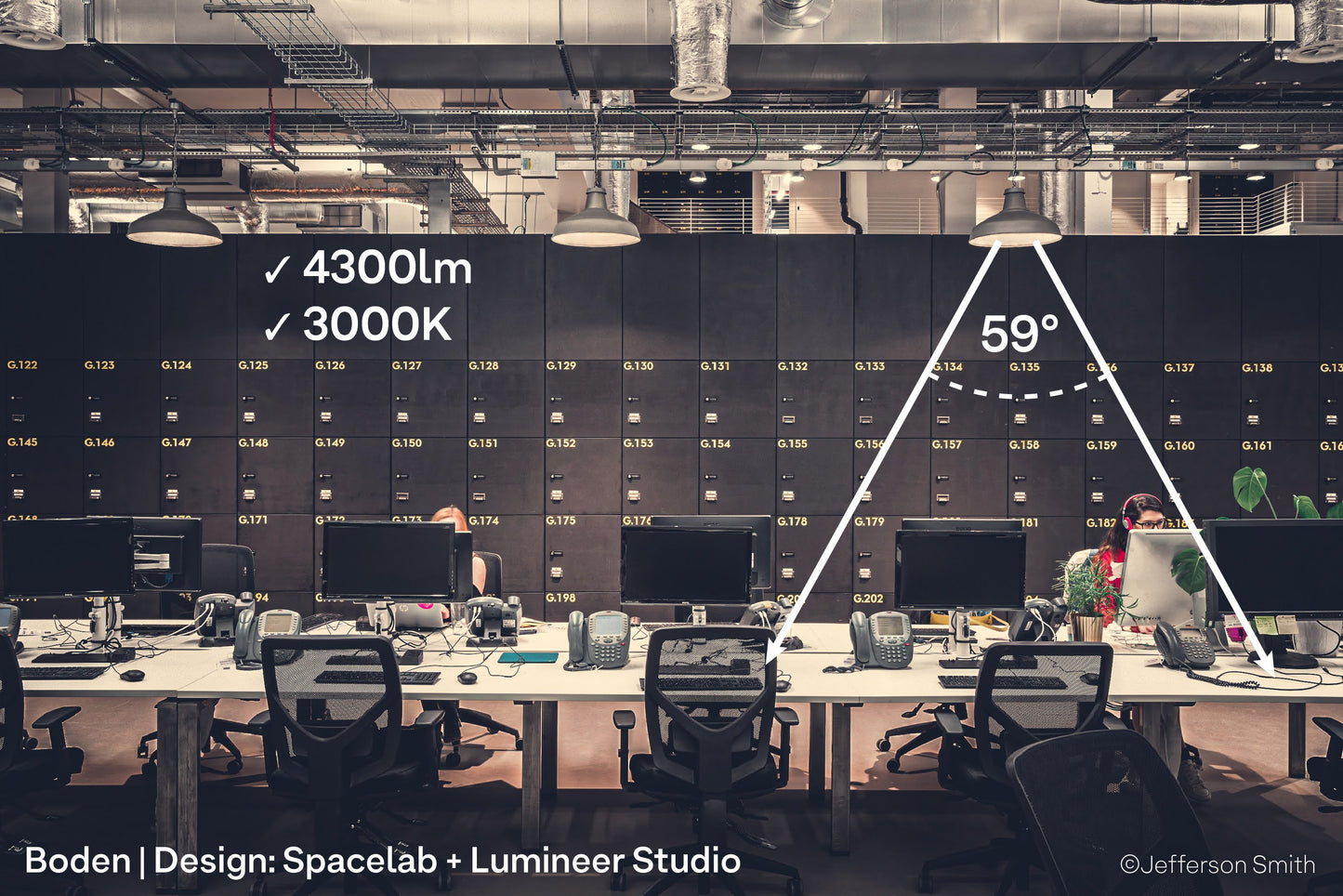

![Contemporary office workers in Boden's London HQ with architectural pendants at the correct light level](http://factorylux.com/cdn/shop/files/Boden-HQ-Office-Lighting-Space-Lab-Reflekter-Pendant-2_cbb19908-39b6-4a4a-aeee-2d6dec65999b.jpg?v=1697129986&width=1445)
