Reflekter™ L | Stone-Rumbled™ | Large Monopoint
Reflekter™ L | Stone-Rumbled™ | Large Monopoint
Couldn't load pickup availability
Downloads
Downloads
- Datasheet | .PDF
- User Instructions | .PDF
- 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
- BIM / Revit Families | .RVT
- Photometric 2700K | .PDF
- Photometric 3000K | .PDF
- Photometric 4000K | .PDF
- Photometric 2700K, 3000K, 4000K | .IES
- Photometric 2700K, 3000K, 4000K | .LDT
- Augmented Reality | .GLB
- View Lookbook 2024 | .JPG
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 3kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 97.7 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°, UGR
- Accessories: Honeycomb Louvre | Concentric Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural pendant light delivers up to 4750lm and the potential for 'closed loop' Circular Economy. A ⌀500mm 'XL' version is also available. Choose from different luminaire optics and accessories, including UGR (Unified Glare Ratio) filters.
Spotify, Autodesk and Google all use Reflekter™ as office lighting, by getting the LED closer to the subject, less product and fewer lumens are required to achieve the same lux level - installations can be faster and running costs lower compared to traditional linear lighting.
'Large Monopoint' is a 160mm diameter X 75mm deep circular Pendant light mounting / enclosure that's big enough to house the driver and all electrical connections. The monopoint body attaches to a separate, surface mounted bracket via M4 bolts located on opposite sides. The bracket itself has standard BESA (50.8mm) hole spacings for fixing to walls, ceilings, cable tray or other suitable surfaces / materials.
Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from regular paint, plastic & adhesives
- No microplastic pollution
- No VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Stone-Rumbled body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines
![A sustainable, paint-free architectural pendant light that's designed for circular economy, on a large monopoint mounting](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-L-Reflekter-Large-Monopoint-Stone-Rumbled-Hero.png?v=1695865830&width=1445)

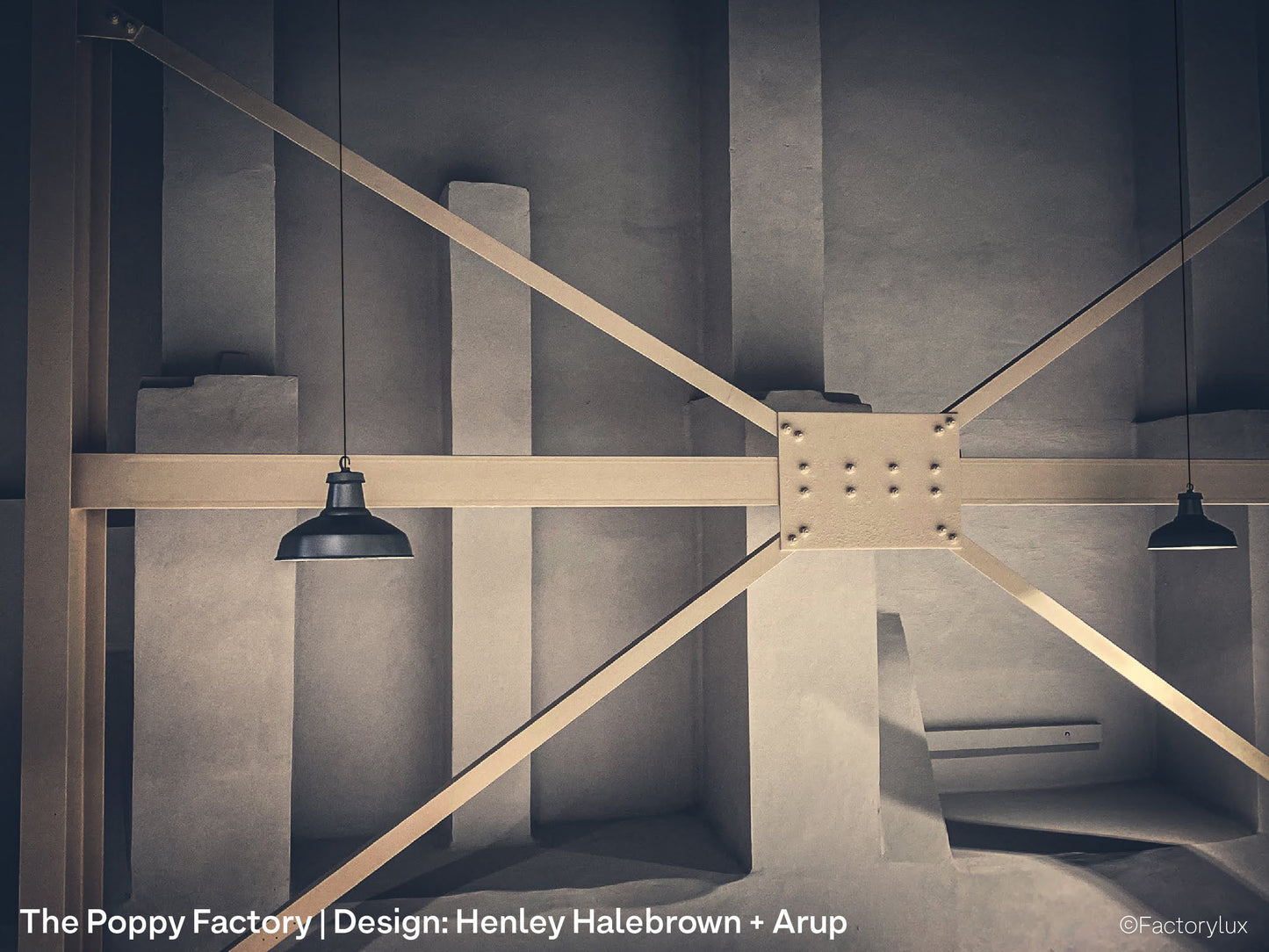

![Architectural pendant lights suspended from monopoints in the open plan office at Royal British Legion Poppy Factory](http://factorylux.com/cdn/shop/files/Poppy-Factory-Henley-Halebrown-Arup-Pendant-Lighting-1_0fc53cec-ede2-49a0-9474-2c8027c7b837.jpg?v=1696358542&width=1445)

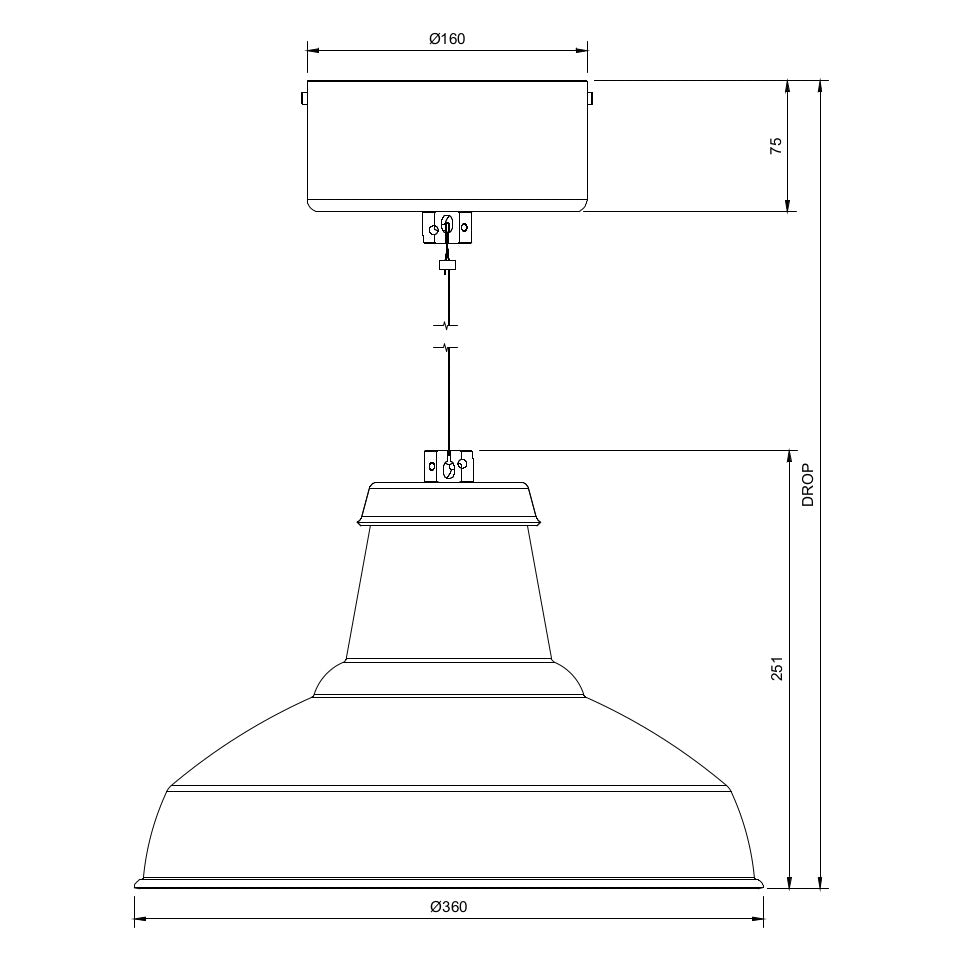

![Technical drawing of a circular economy architectural pendant light with large monopoint mounting](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Large-Reflekter-Large-Monopoint-Line-Drawing_7ae6b29d-2161-436f-b55f-d7b376957f2a.jpg?v=1697129170&width=1445)

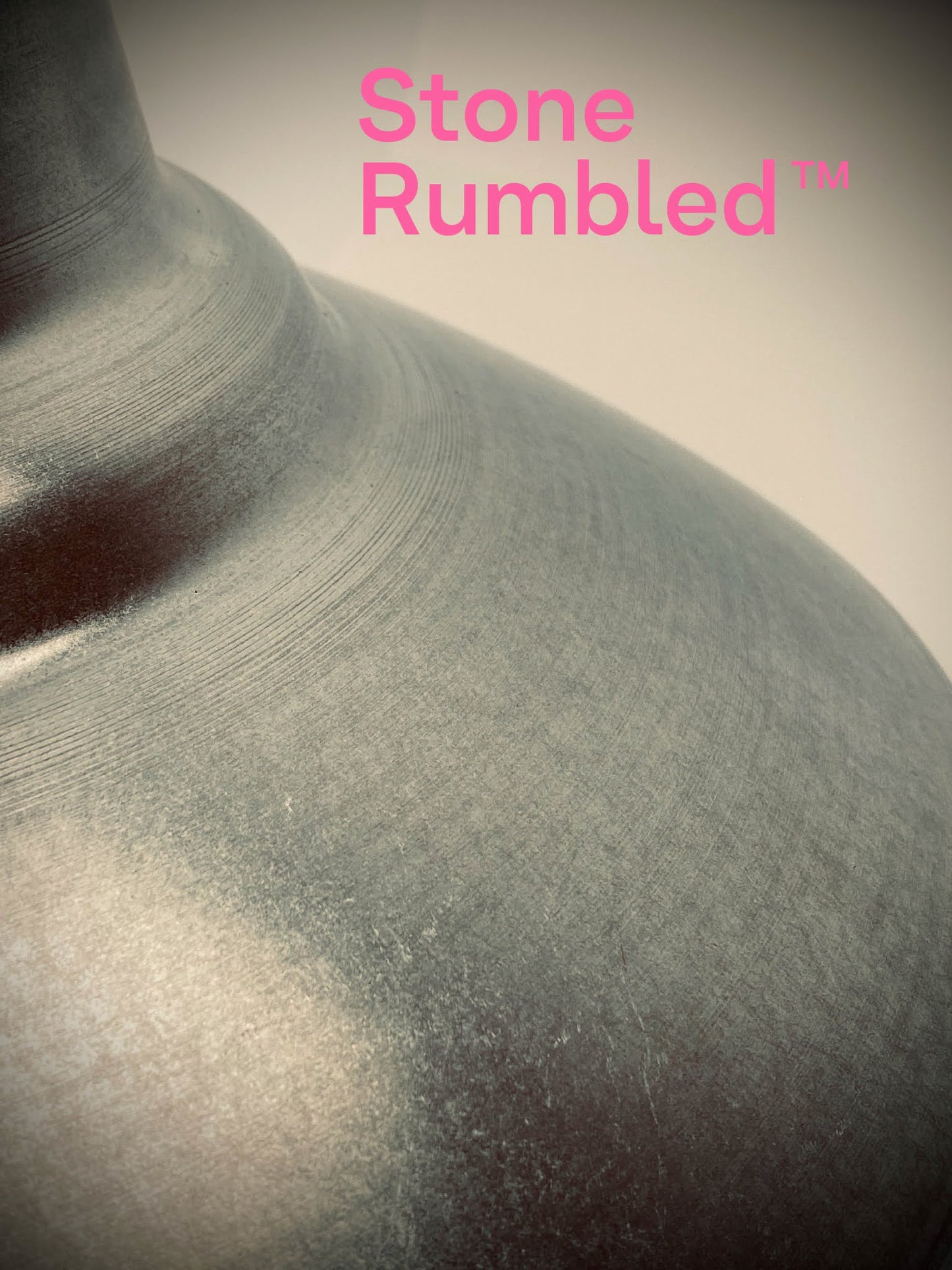

![Close up of a sustainable raw aluminium pendant light for architects, revealing a wabi-sabi surface texture](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Colour-Texture-Close-Up_4d83b986-dd52-408a-a804-b765f78ab2be.jpg?v=1697129958&width=1445)

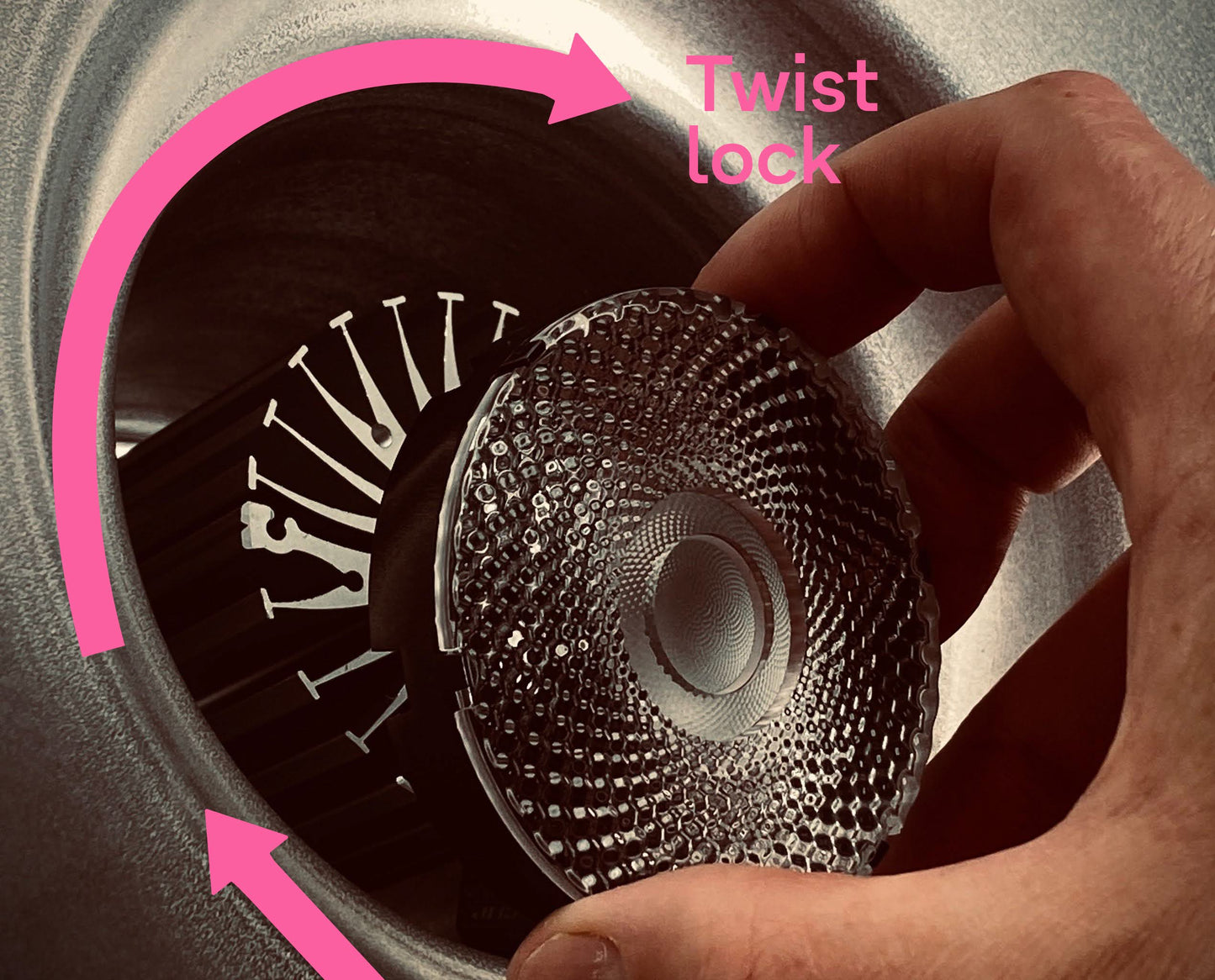

![How to insert the lens into a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Removable-Lens_3a27b6eb-495d-4d1a-a16d-2da91350e547.jpg?v=1697129958&width=1445)

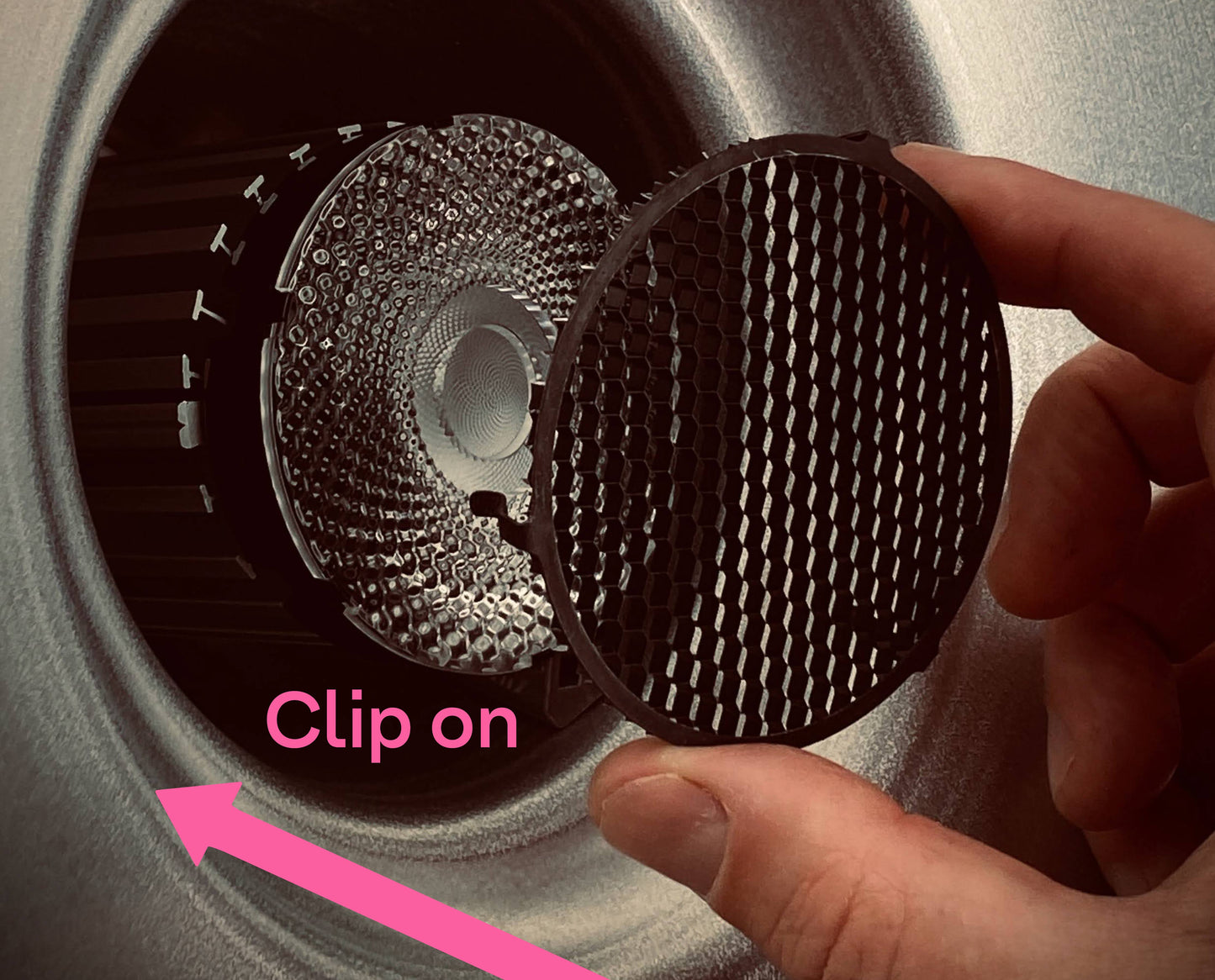

![How to attach honeycomb louvre onto a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Sustainable-Pendant-Light-Reflekter-Honeycomb-Louvre_cfdbafdc-0735-4dbe-aa7e-c3439a44d40e.jpg?v=1697129958&width=1445)

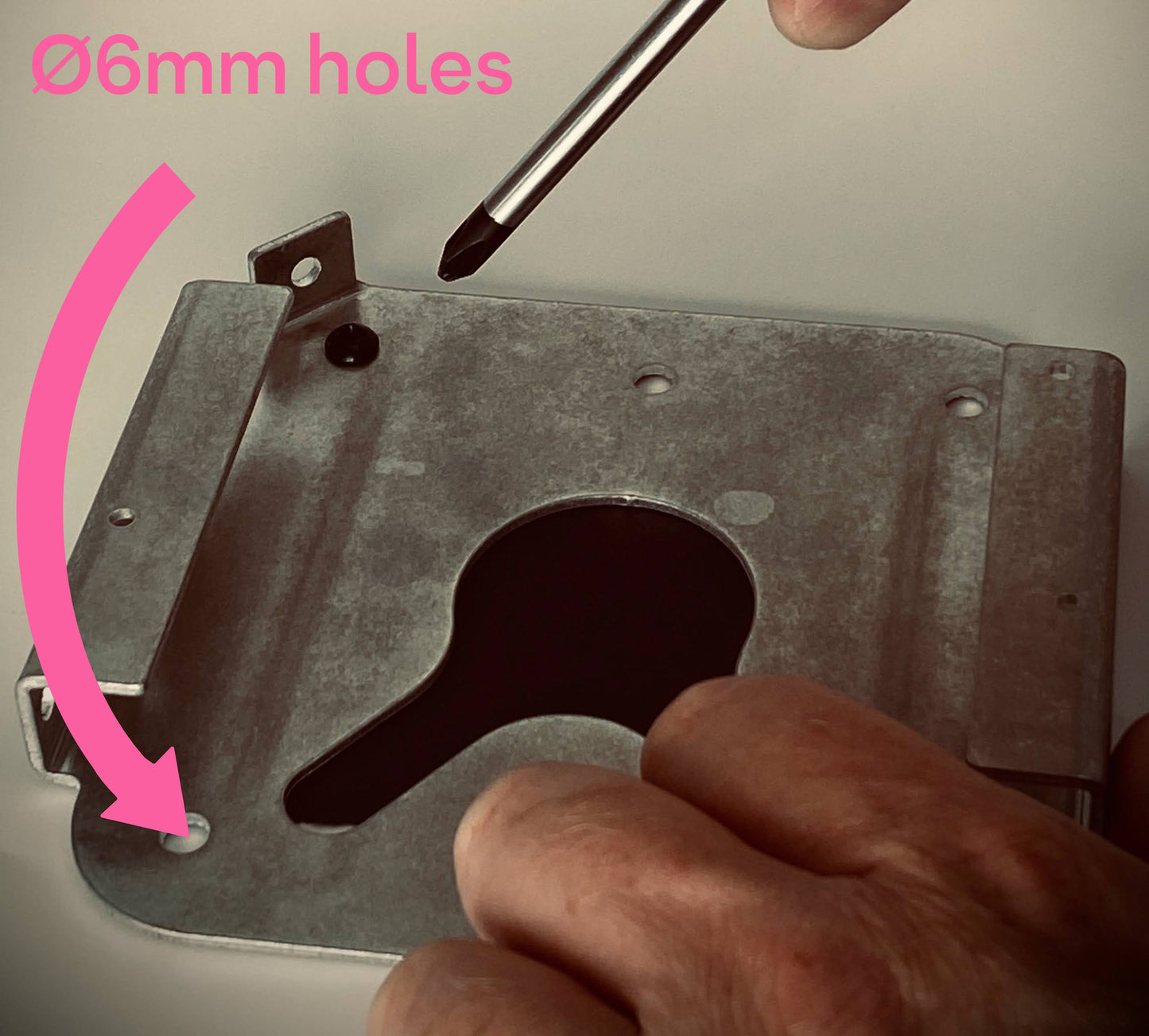

![How to install large monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Base-Install-Stone-Rumbled_52fd0d91-a295-4145-b0d4-4d4d38e74054.jpg?v=1697129958&width=1445)

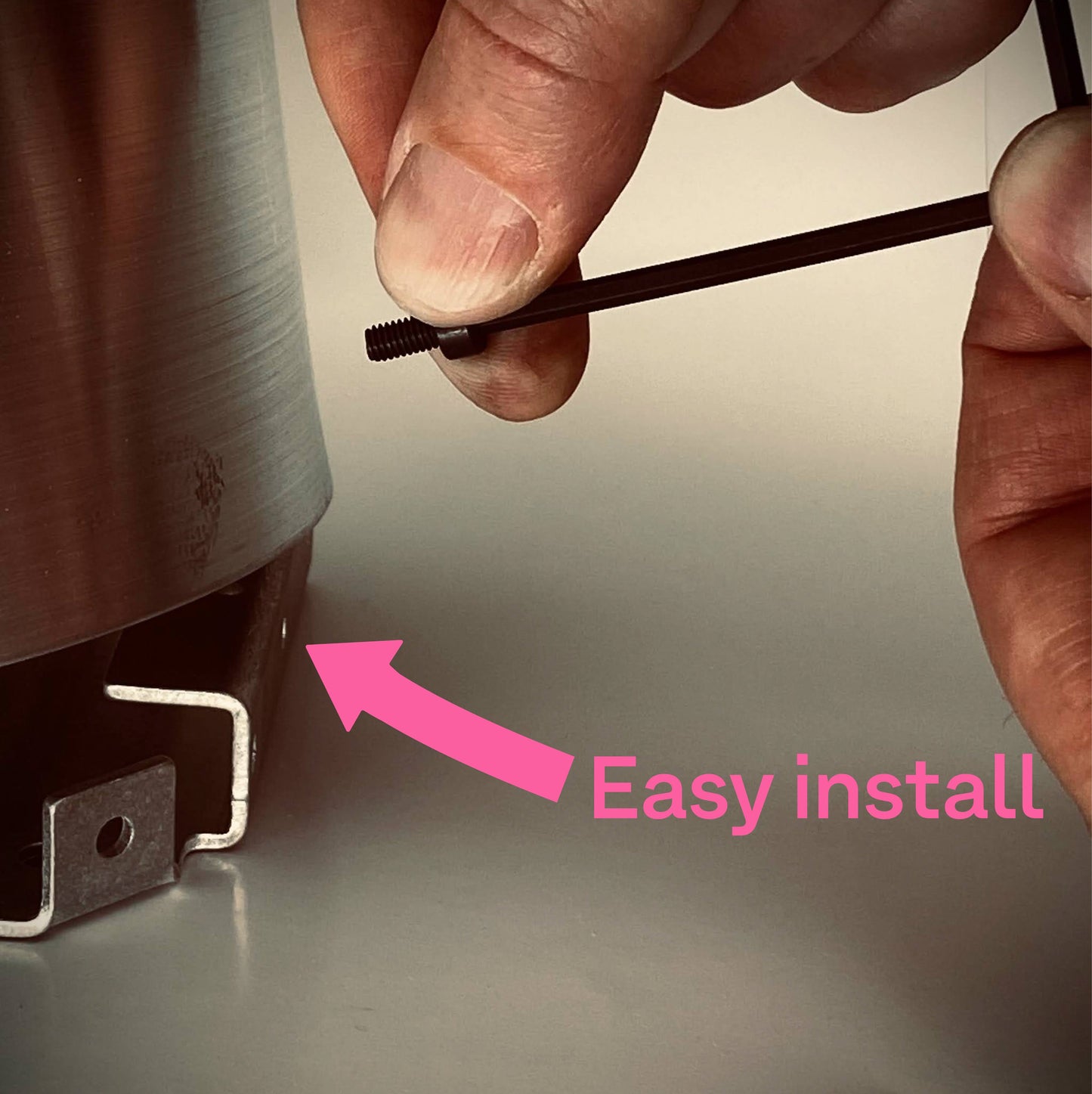

![How to install large monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Top-Install-Stone-Rumbled_4c2d84f0-189f-4a8d-b802-f56d1513a5af.jpg?v=1697129958&width=1445)

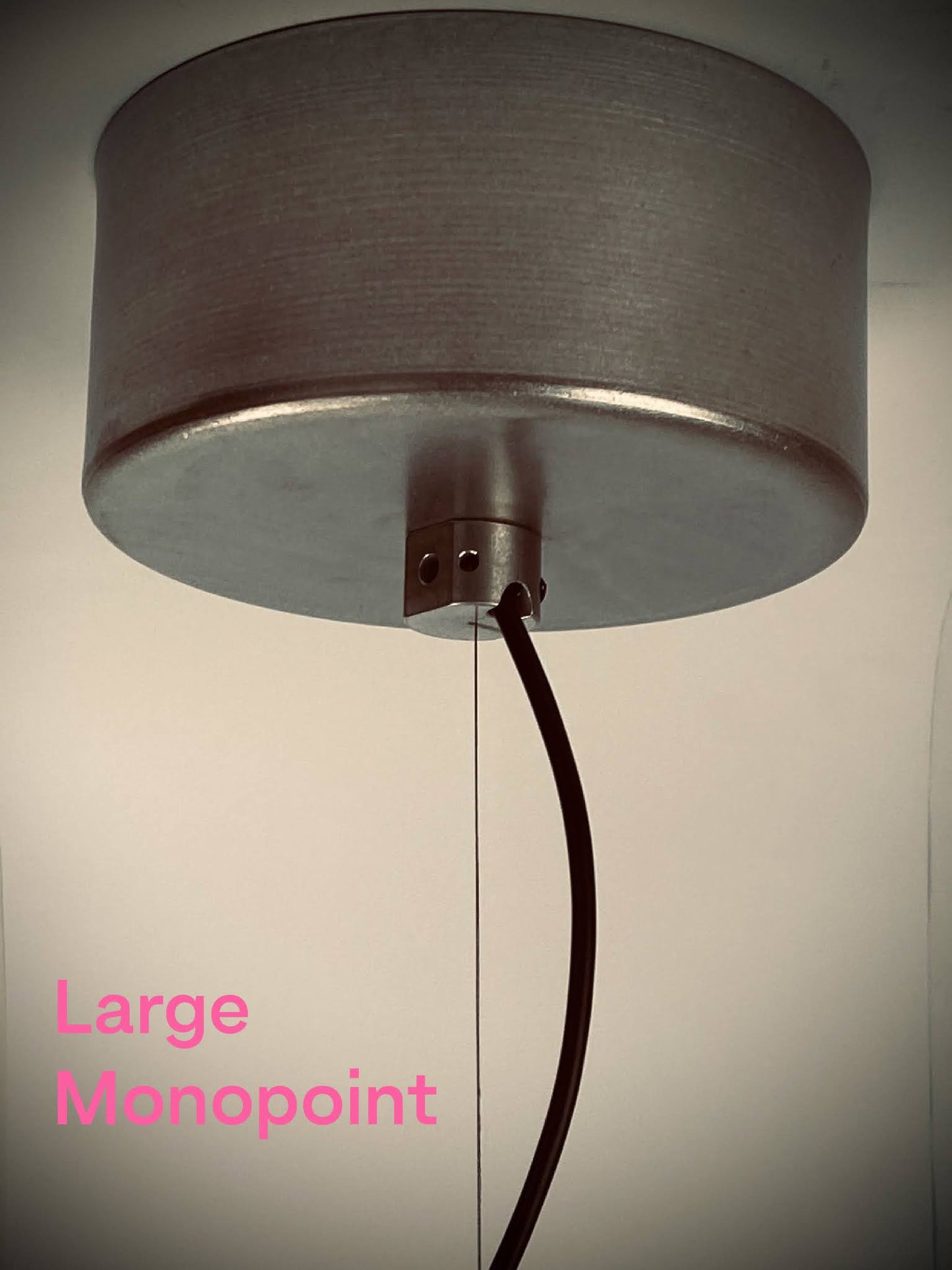

![Installed large monopoint for a sustainable architectural pendant that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Complete-Install-Stone-Rumbled_d0b3f832-4ada-48f8-8561-af911da78abf.jpg?v=1697129958&width=1445)

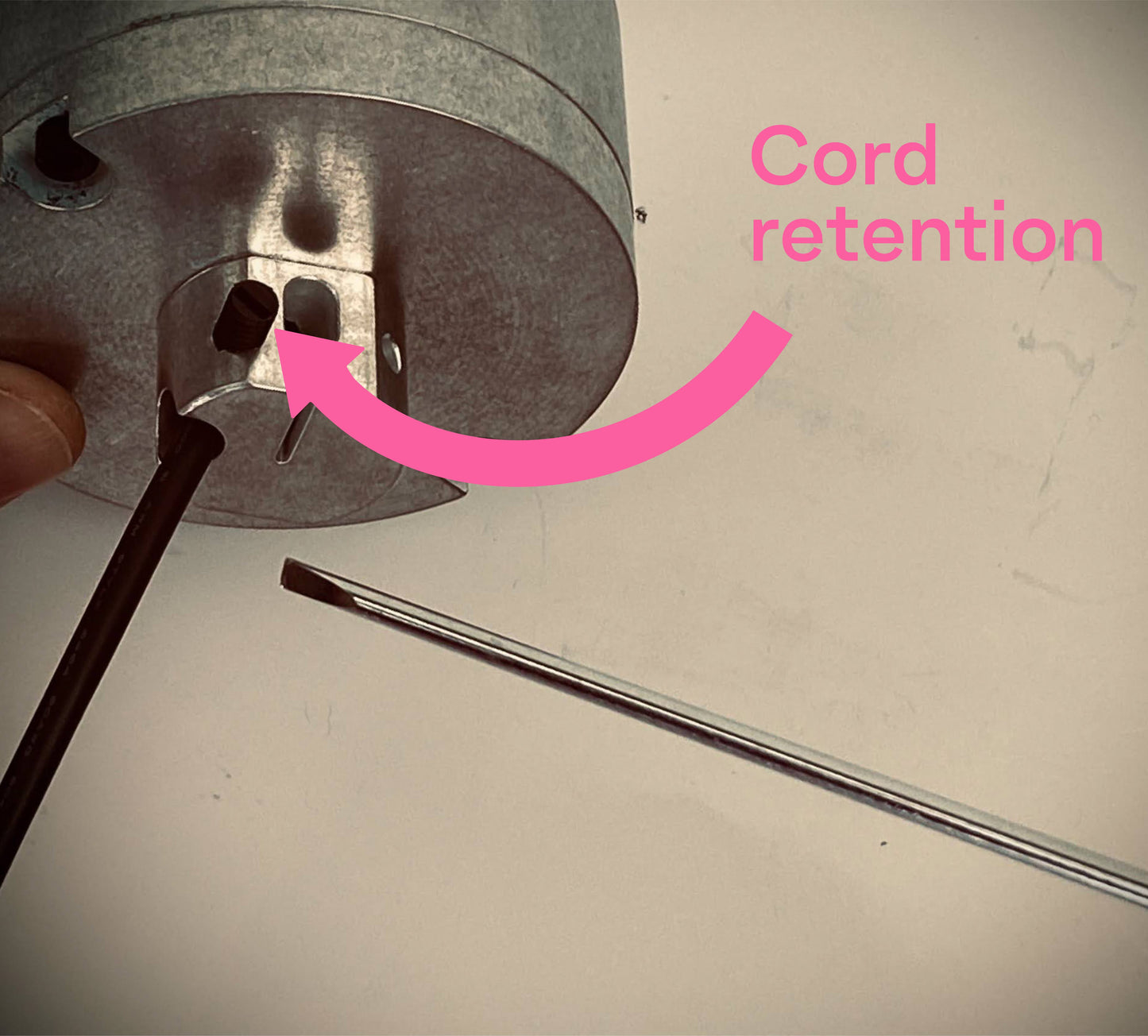

![Illustration of electrical cable adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Cable-Adjust_6c778df6-d95b-47ad-98b2-b60a3de34ae5.jpg?v=1697129958&width=1445)

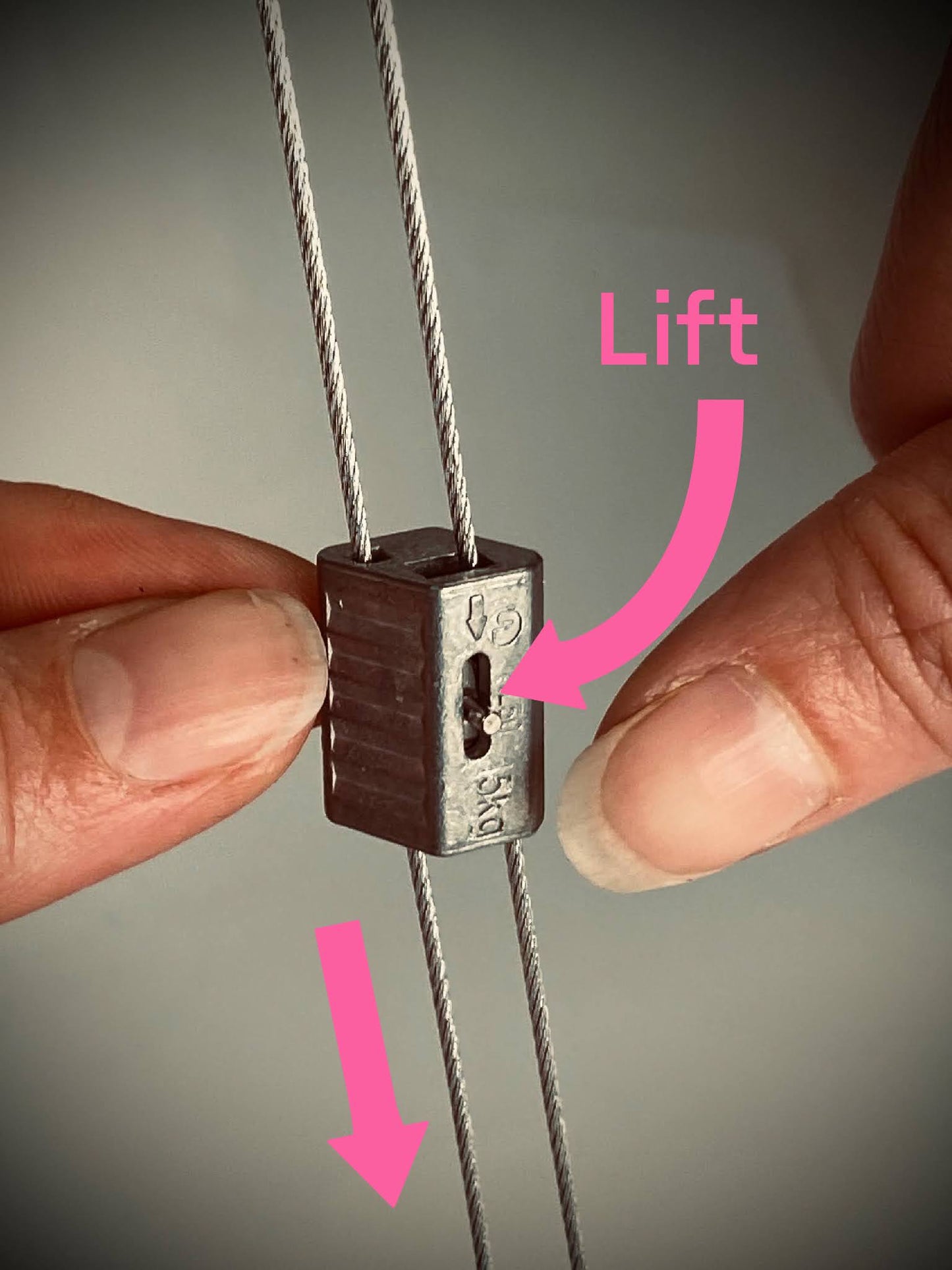

![Illustration of suspension wire adjustment for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Suspension-Wire-Adjust_0ccbce45-cfb8-41ba-89ae-6b8b82ebddef.jpg?v=1697129958&width=1445)

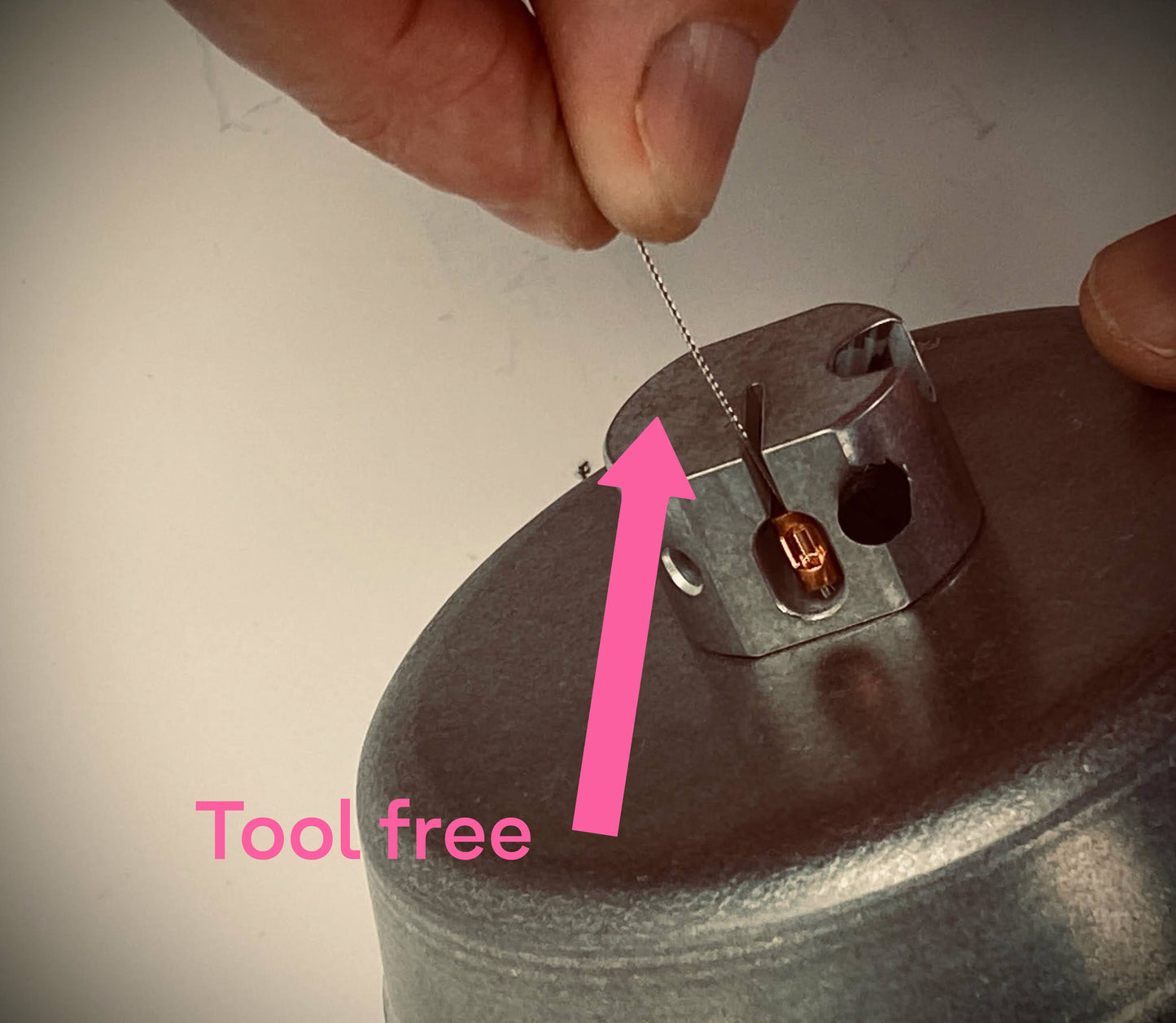

![Illustration of suspension wire installation for architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Reflekter-Stone-Rumbled-Suspension-Wire_735b16b3-a1ee-4343-8807-e5ff4ec7e822.jpg?v=1697129958&width=1445)

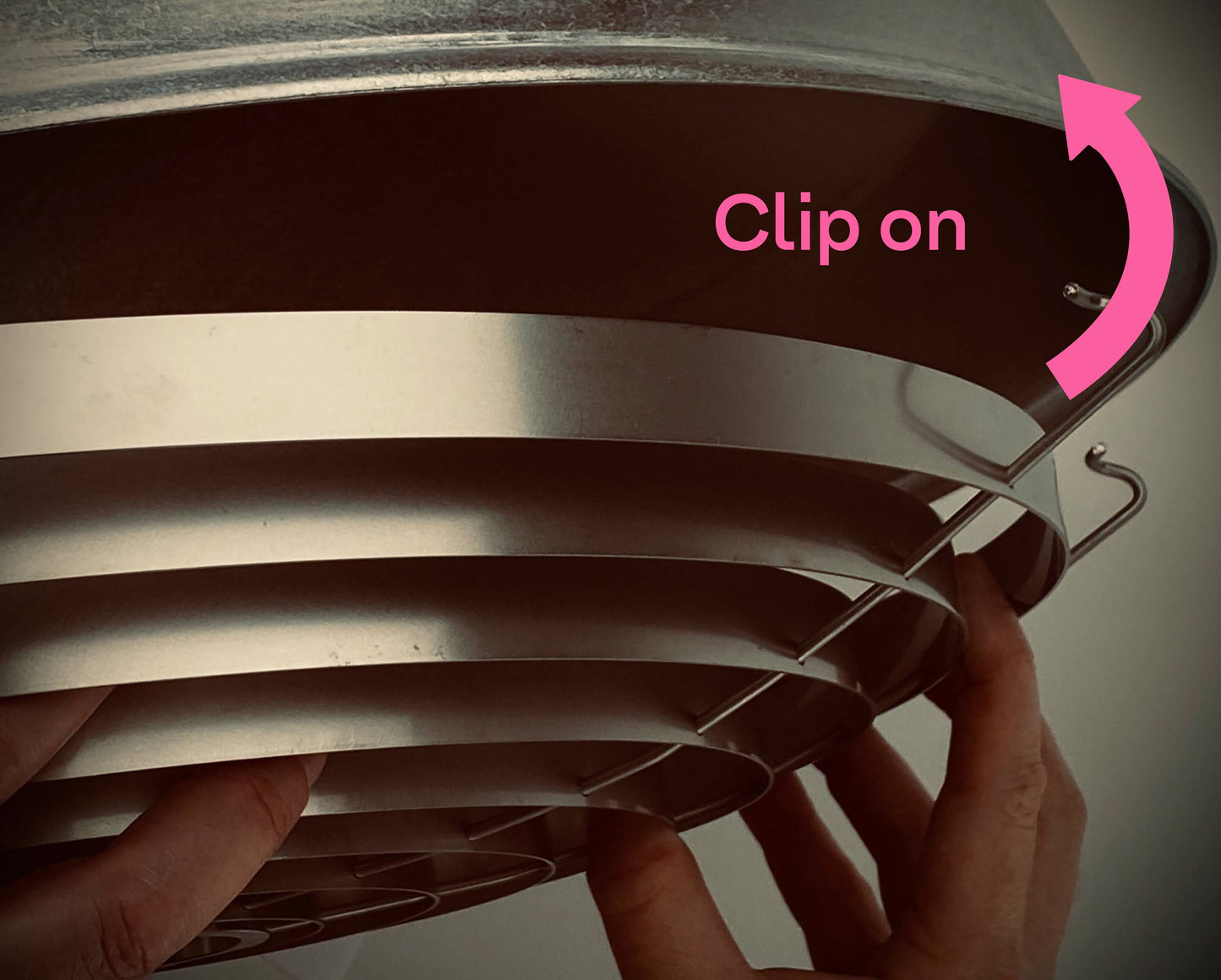

![A concentric louvre accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-Concentric-Louvre_409fd725-7011-4ad1-a755-986038f5717d.jpg?v=1697129958&width=1445)

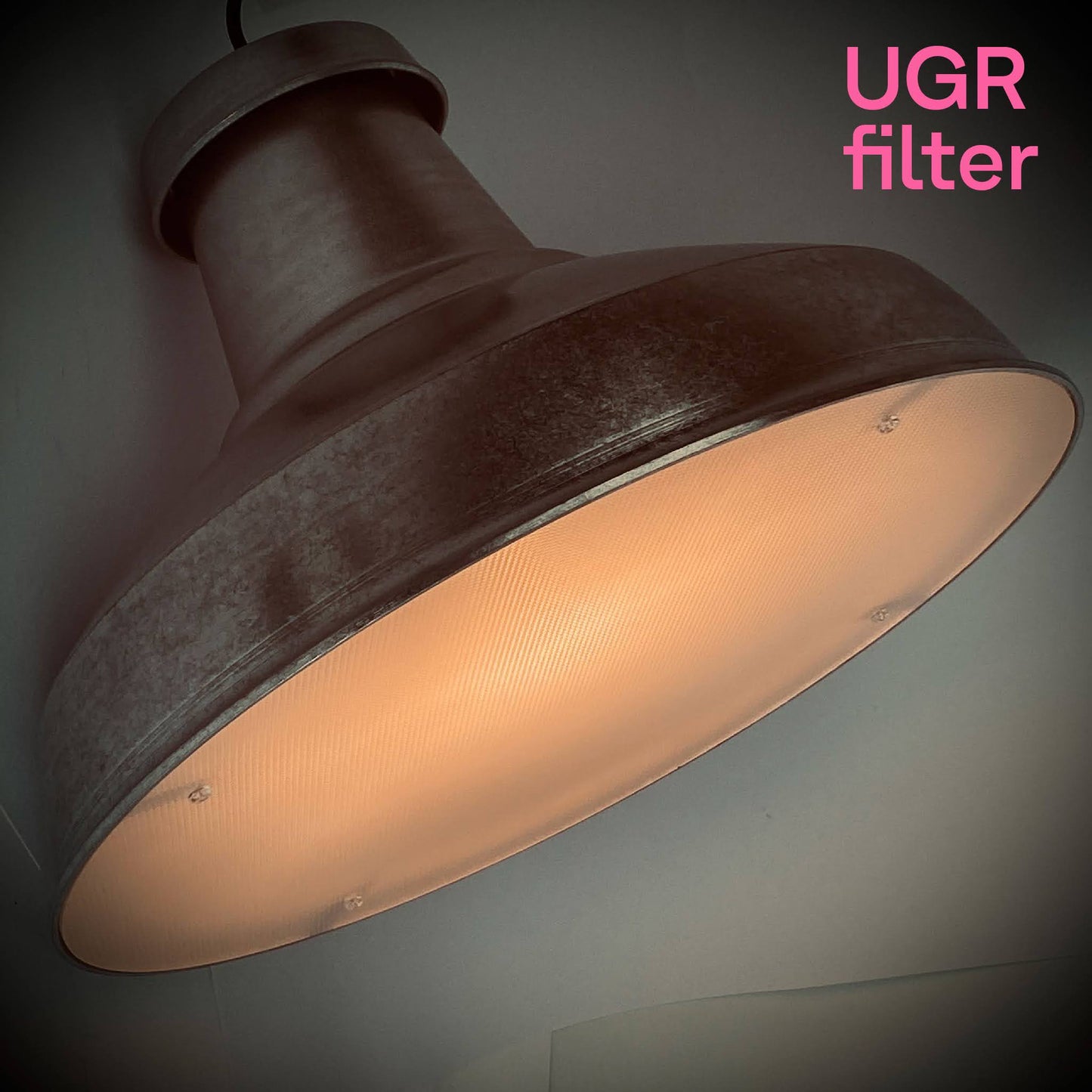

![A UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR_a1a9c324-51f3-4219-a7f0-91d1d145caba.jpg?v=1697129958&width=1445)

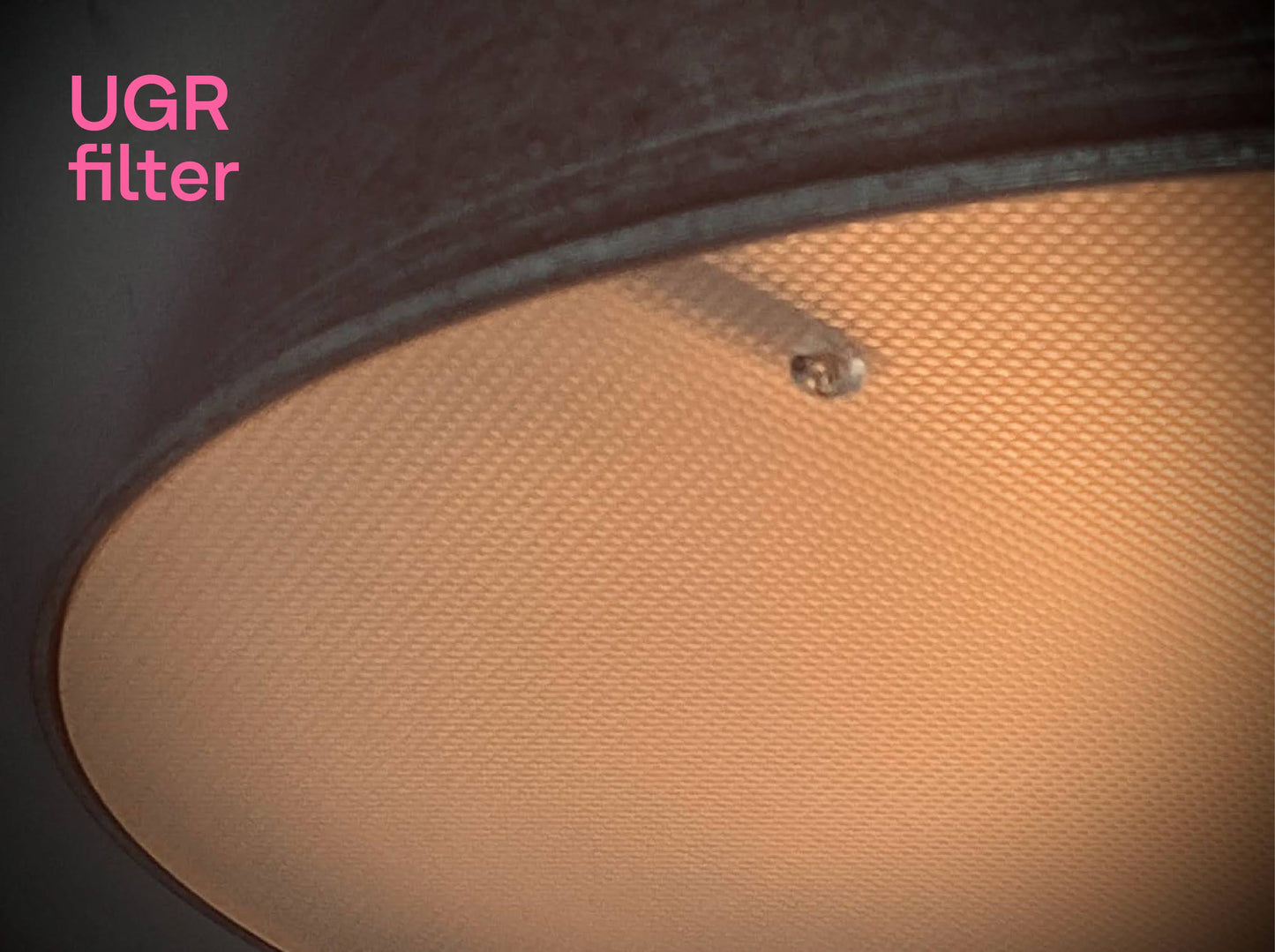

![Close up of UGR filter accessory attached to an architectural pendant light that's designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Light-Reflekter-Stone-Rumbled-UGR-Filter_d705318d-aeb1-4e45-8008-9496cfef87b2.jpg?v=1697129958&width=1445)

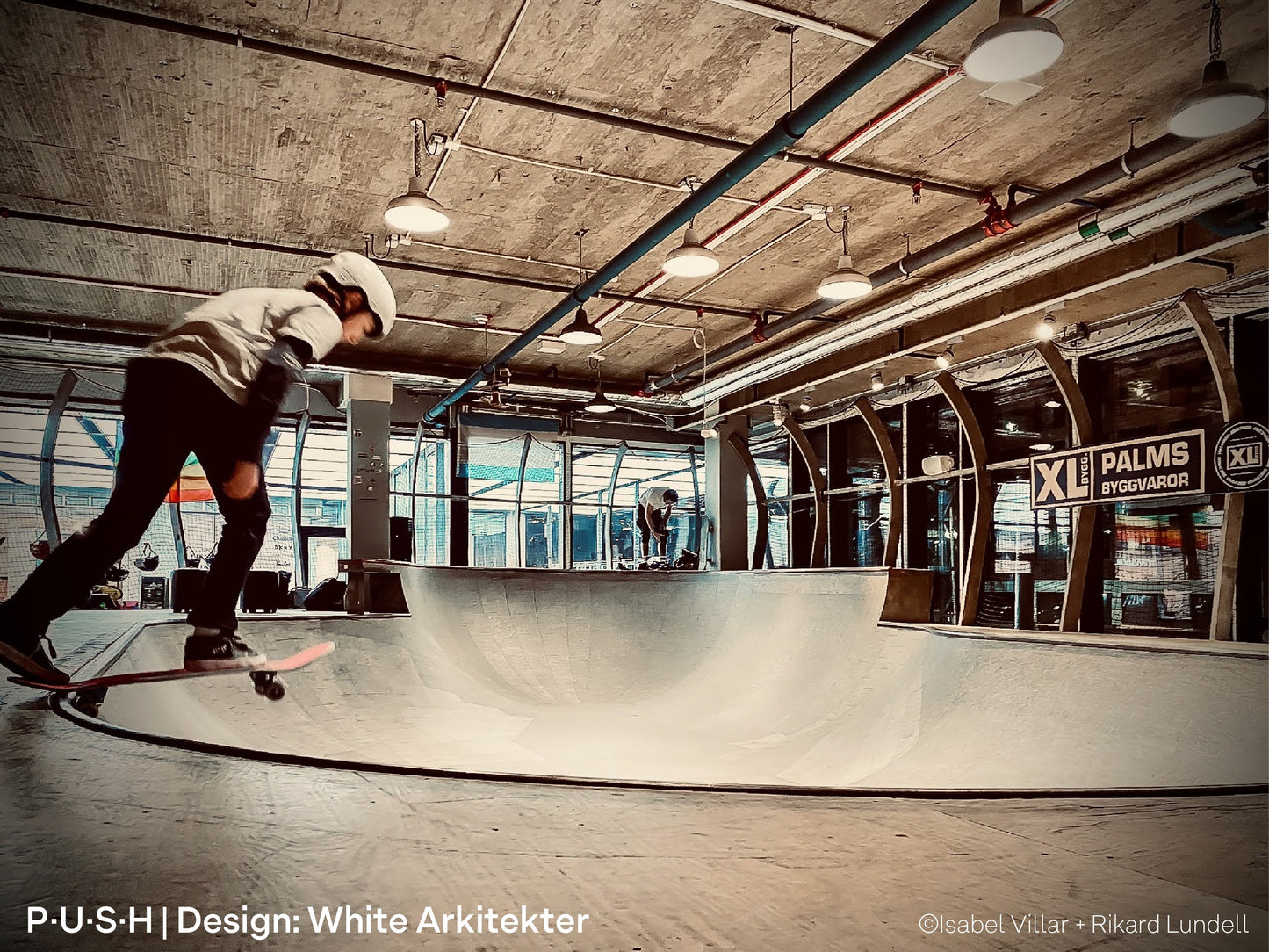

![Skateboarders, skating at an indoor skatepark, illuminated by high-output architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-1_df2133cd-5034-47b8-8928-fb6821f206f6.jpg?v=1697129958&width=1445)
![Skateboarders, skating at an indoor skatepark, illuminated by 4700lm 3500K architectural pendant lights](http://factorylux.com/cdn/shop/files/PUSH-Skate-Park-White-Arkitekter-Reflekter-Pendant-Light-2_e5be64f0-9c2b-434d-92af-57d3c0d90ac9.jpg?v=1697129958&width=1445)

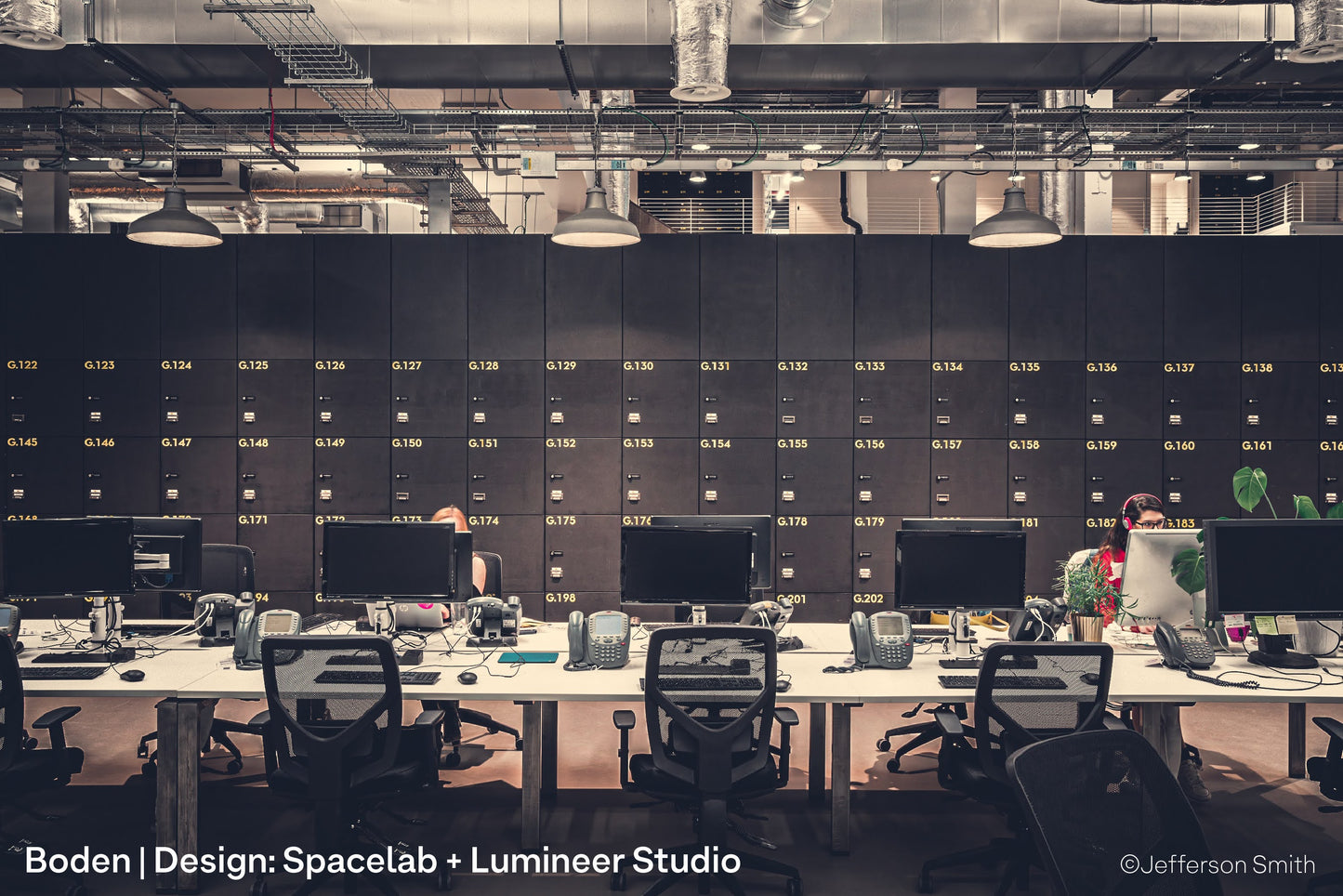

![Contemporary office workers in Boden's fashionable London HQ with architectural pendant lighting](http://factorylux.com/cdn/shop/files/Boden-HQ-Office-Lighting-Space-Lab-Reflekter-Pendant-1_fdb3861b-9e8f-4f58-9ad3-221111e9a5d1.jpg?v=1697129958&width=1445)

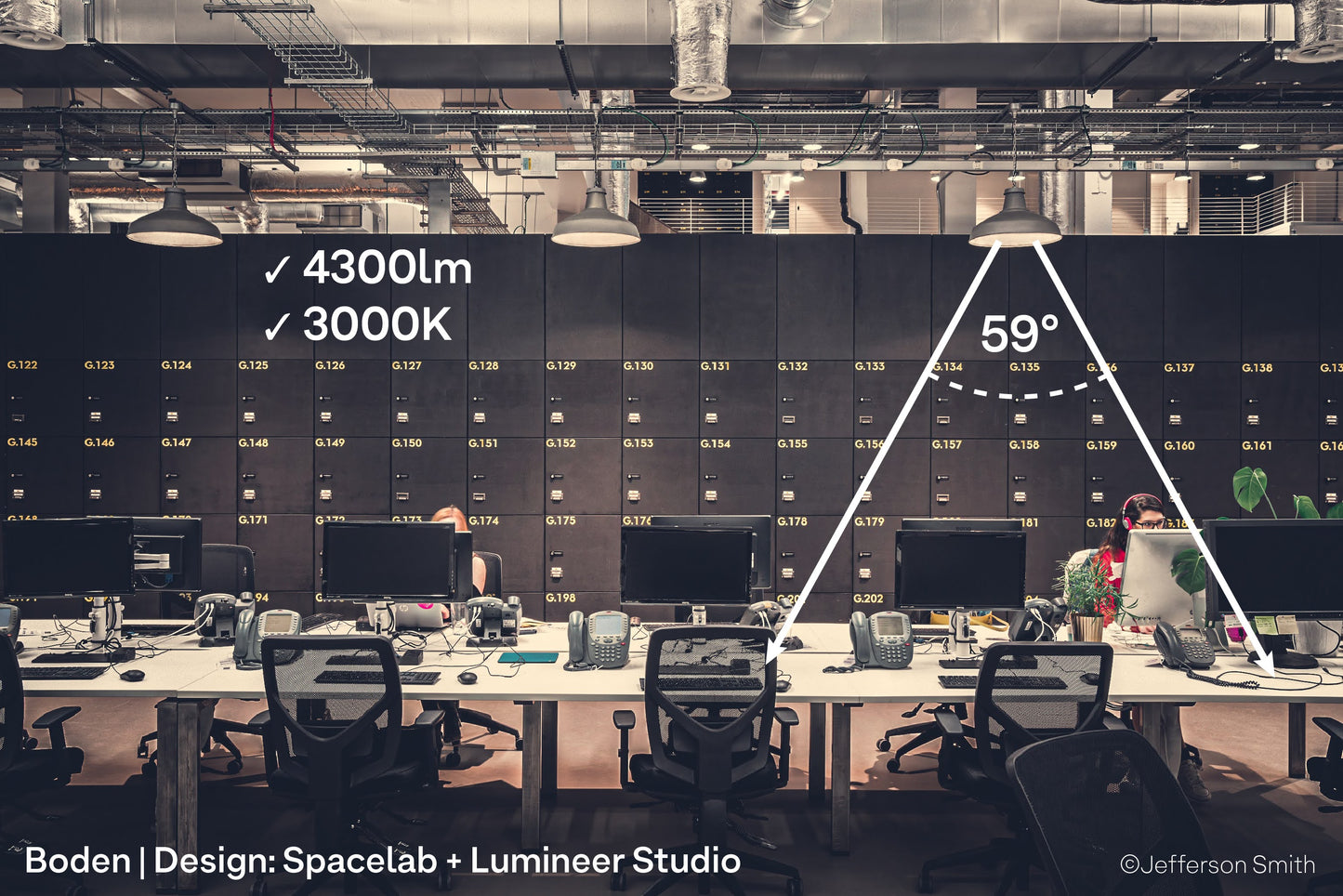

![Contemporary office workers in Boden's London HQ with architectural pendants at the correct light level](http://factorylux.com/cdn/shop/files/Boden-HQ-Office-Lighting-Space-Lab-Reflekter-Pendant-2_13209c99-404a-4e15-bd0d-0df4fca8321a.jpg?v=1697129958&width=1445)
