Replacement Driver

Replacement Driver

FROM: £27.94

Description

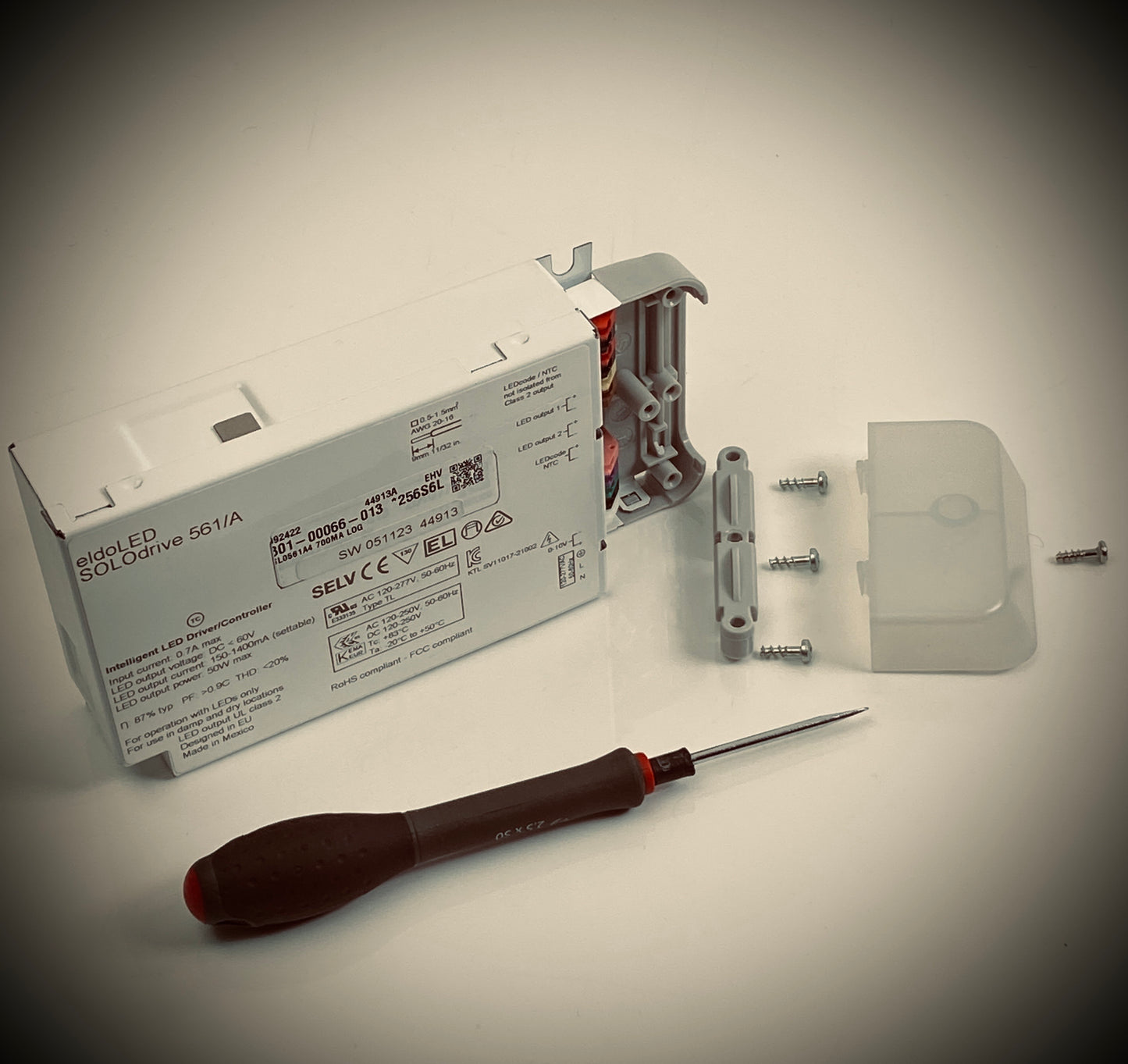

The mechanical aspects of Factorylux lights will live forever, the electronic drivers unfortunately will not and are designed to be user replaceable with less hassle and lower costs.

If you're unsure on the correct model for your light, contact us with the SKU code (on the body of your light or inside the monopoint) or name or address of the location and we'll confirm.

FYI, the next phase of our mission is to bring science-based Circular Economy methodology to all the components within our products, including drivers, which we currently have to procure via global corporations who are less interested in sustainility than we are.

Until then, this is your solution.

Technical Specification

C-DPSU-ELD-SOLO-563S

  • Power: 50W
  • Inout voltage: 100-250 V~AC
  • Efficiency: 85%
  • Power factor: <0.95
  • Output current: 150-1400mA
  • Output voltage: 2-55 V DC
  • Control: DALI-2 & Pulse Dimming
  • Dimming range: 100-0.1%
  • Dimensions: 131.1 x 76.8 x 30.6mm

C-DPSU-ELD-SOLO-563A

  • Power: 50W
  • Inout voltage: 100-250 V~AC
  • Efficiency: 85%
  • Power factor: <0.95
  • Output current: 150-1400mA
  • Output voltage: 2-55 V DC
  • Control: DALI-2 & Pulse Dimming
  • Dimming range: 100-0.1%
  • Dimensions: 153 x 76.7 x 30.2mm

C-DPSU-ELD-SOLO561S

  • Power: 50W
  • Inout voltage: 120-250 V~AC
  • Efficiency: 87.5%
  • Power factor: <0.95
  • Output current: 150-1400mA
  • Output voltage: 2-55 V DC
  • Control: 1-10V
  • Dimming range: 100-0.1%
  • Dimensions: 131.1 x 76.8 x 30.6mm

C-DPSU-ELD-SOLO561A

  • Power: 50W
  • Inout voltage: 120-250 V~AC
  • Efficiency: 87.5%
  • Power factor: <0.95
  • Output current: 150-1400mA
  • Output voltage: 2-55 V DC
  • Control: 1-10V
  • Dimming range: 100-0.1%
  • Dimensions: 153 x 76.7 x 30.2mm

C-DPSU-ELD-SOLO360S

  • Power: 30W
  • Inout voltage: 100-250 V~AC
  • Efficiency: 84%
  • Power factor: <0.9
  • Output current: 150-1400mA
  • Output voltage: 2-55 V DC
  • Control: DALI-2 & Pulse Dimming
  • Dimming range: 100-0.1%
  • Dimensions: 130 x 72 x 28mm

CP-DPSU-ELD-SOLO361S

  • Power: 30W
  • Inout voltage: 120-250 V~AC
  • Efficiency: 85%
  • Power factor: <0.9
  • Output current: 150-1400mA
  • Output voltage: 2-55 V DC
  • Control: 1-10V
  • Dimming range: 100-0.1%
  • Dimensions: 130 x 72 x 28mm

C-DPSU-ELD-SOLO-240A

  • Power: 20W
  • Inout voltage: 220-240 V~AC
  • Efficiency: 80%
  • Power factor: <0.95
  • Output current: 150-1050mA
  • Output voltage: 2-40 V DC
  • Control: DALI-2 & Pulse Dimming
  • Dimming range: 100-0.1%
  • Dimensions: 160 x 41.5 x 30.5mm

C-DPSU-ELD-SOLO-241A

  • Power: 20W
  • Inout voltage: 220-240 V~AC
  • Efficiency: 80%
  • Power factor: <0.95
  • Output current: 150-1050mA
  • Output voltage: 2-40 V DC
  • Control: 1-10V
  • Dimming range: 100-0.1%
  • Dimensions: 160 x 41.5 x 30.5mm
