Replacement Lens
Replacement Lens
FROM: £5
Downloads
Downloads
Technical Specification
Technical Specification

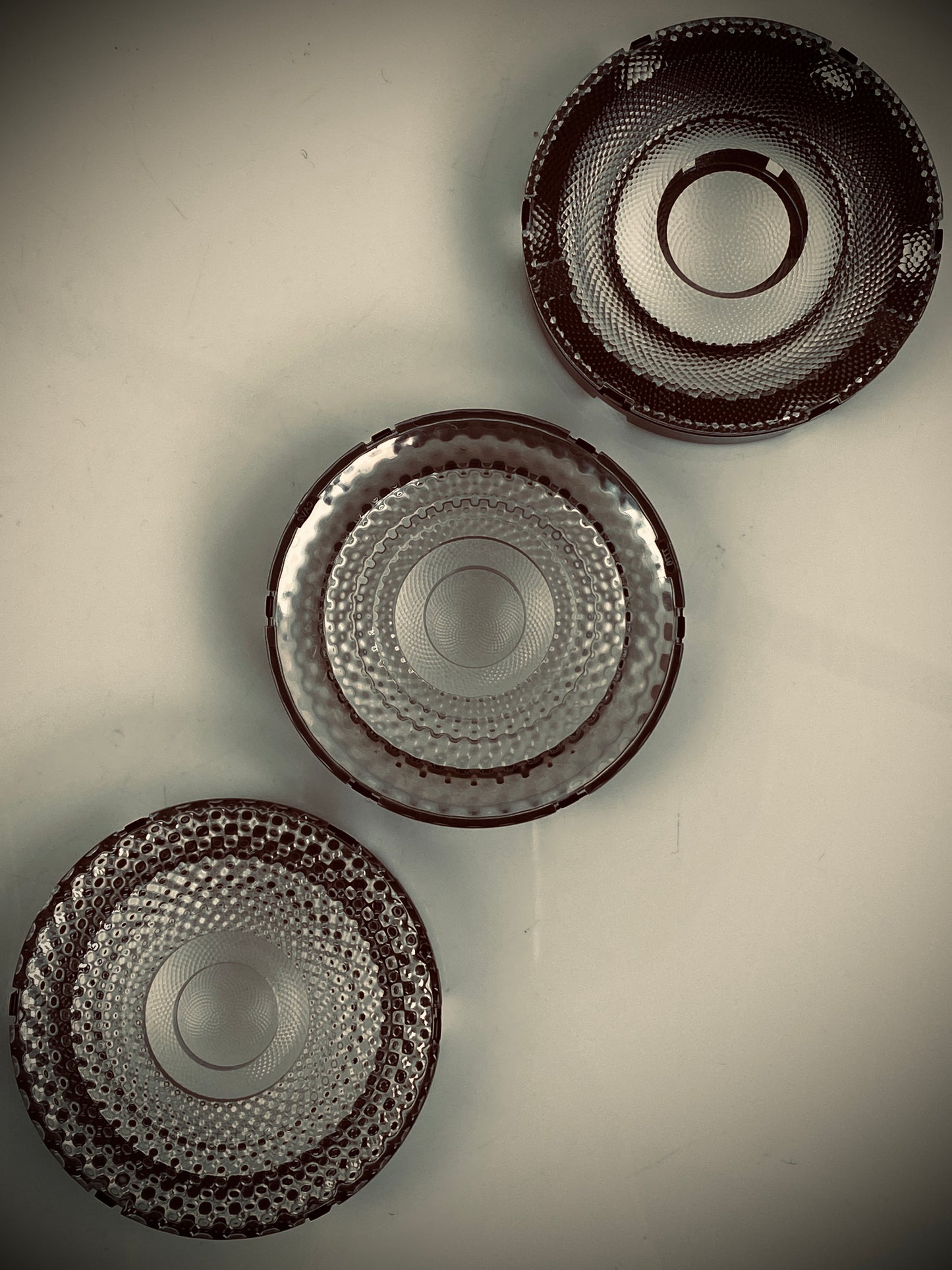

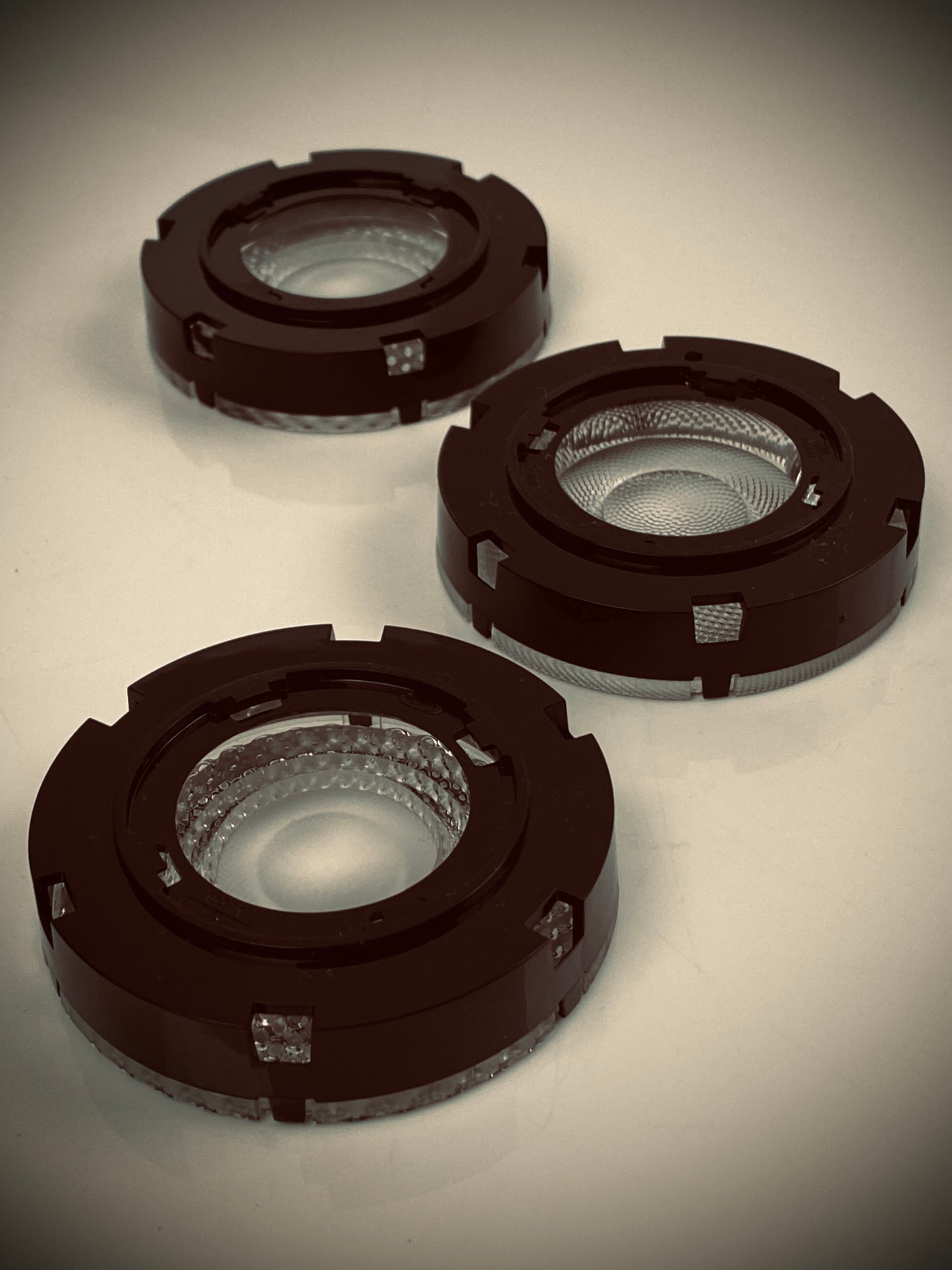

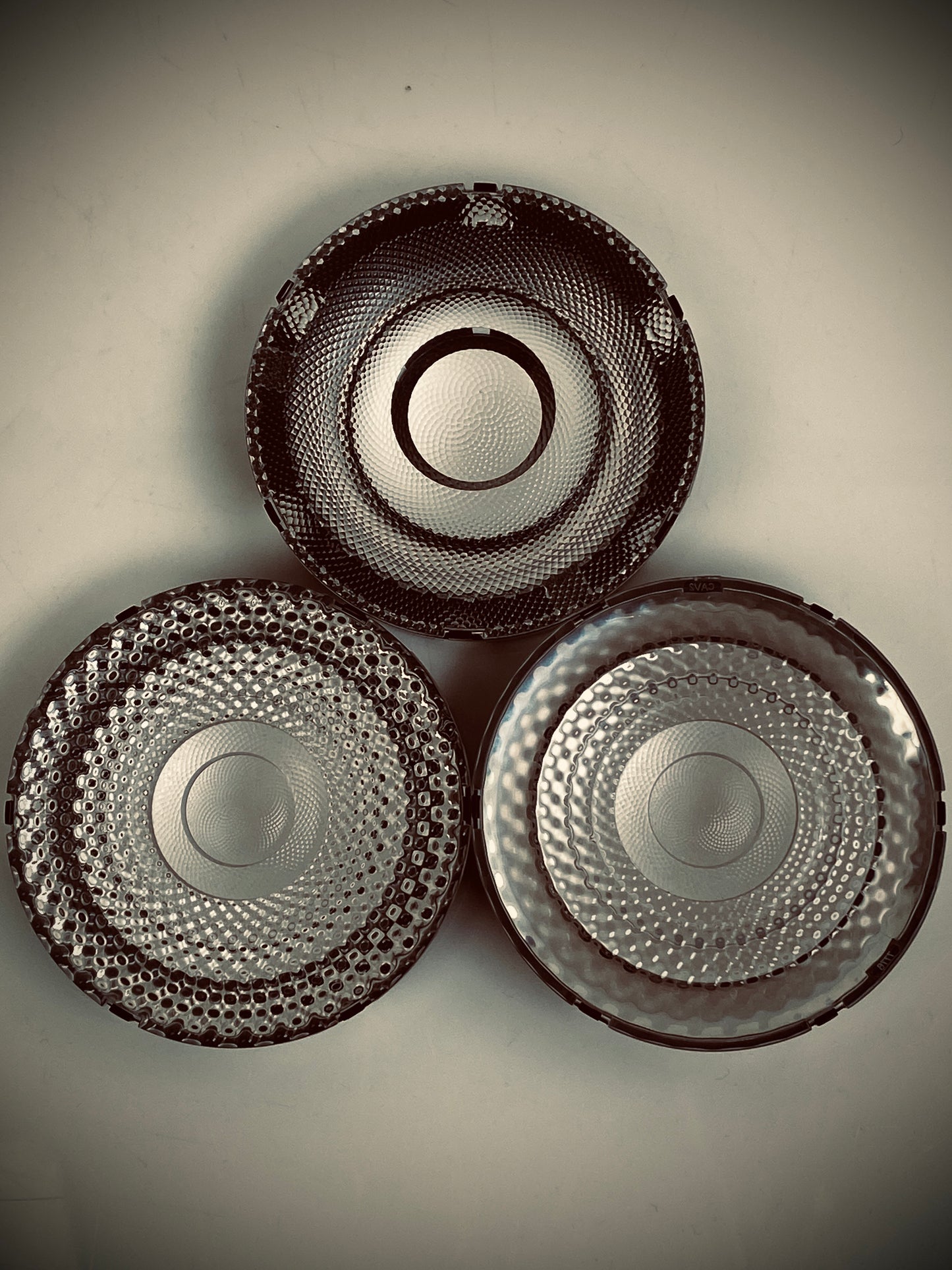

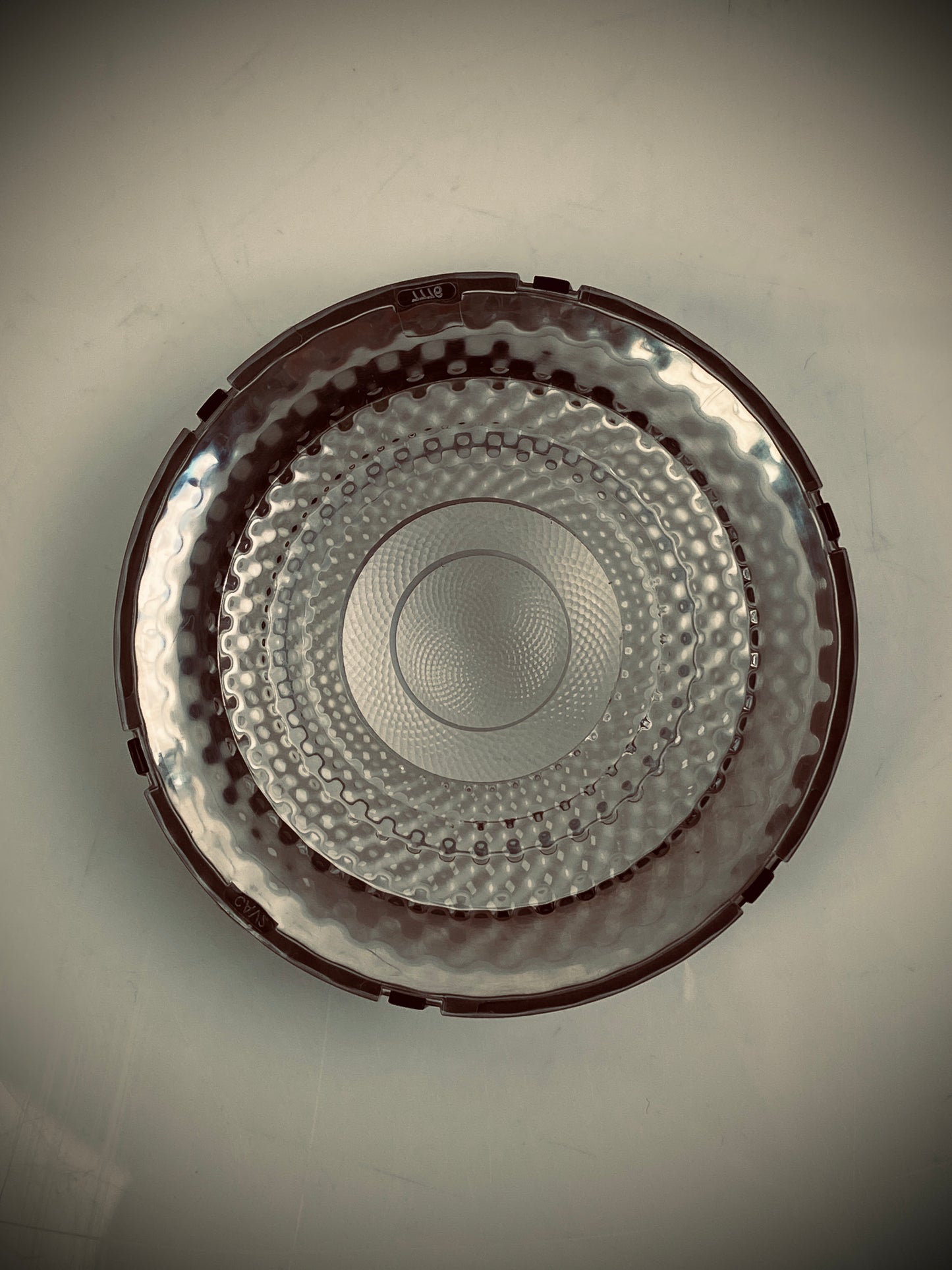

LEDiL - Narrow Beam
- Diameter: 70mm
- Height: 12.68mm
- Material: PMMA/PC
- Beam Angle: 21° (14.5mm XOB)
- Efficiency: 88%

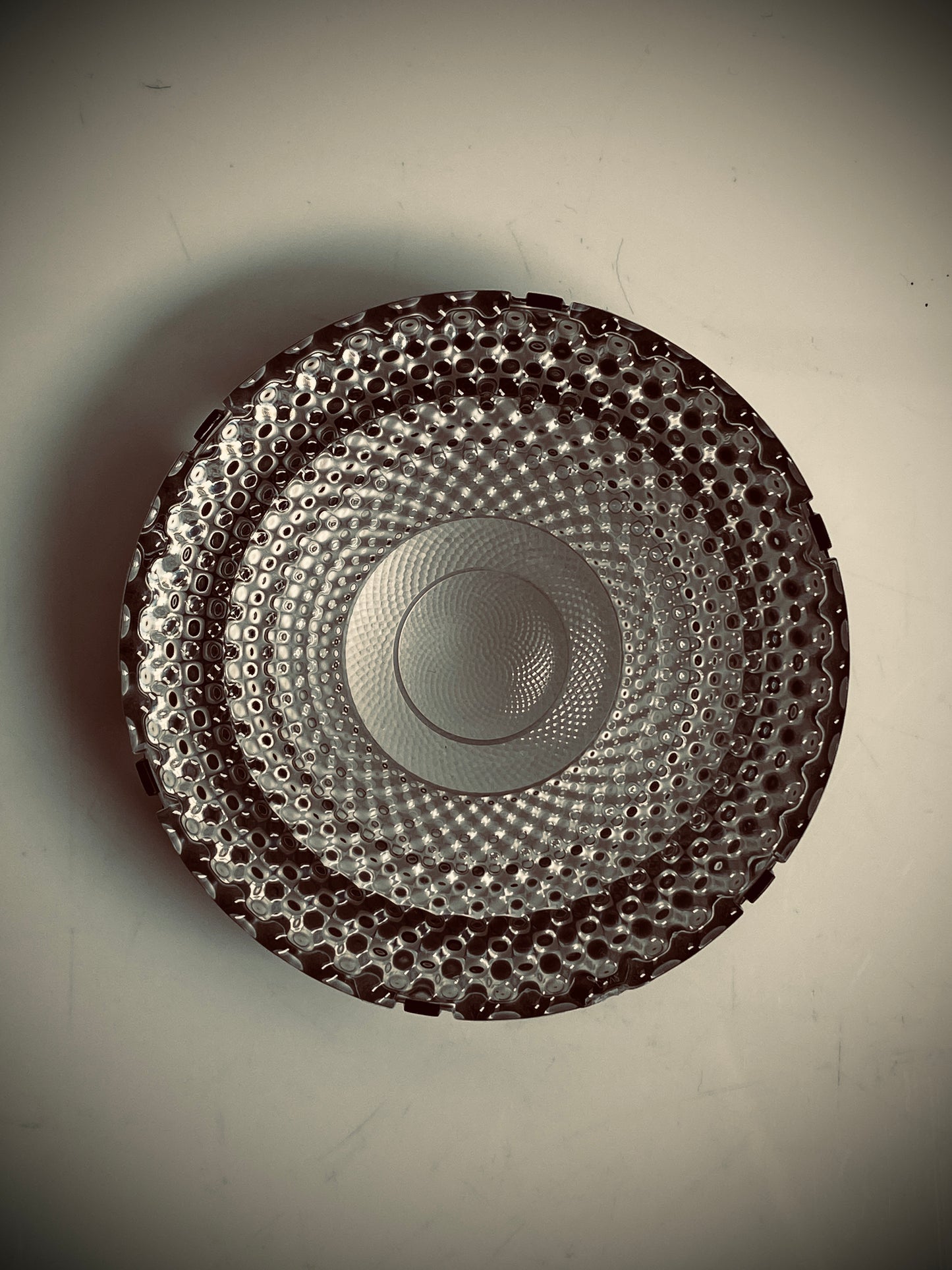

LEDiL - Medium Beam
- Diameter: 70mm
- Height: 12.95mm
- Material: PMMA/PC
- Beam Angle: 38° (14.5mm XOB)
- Efficiency: 86%

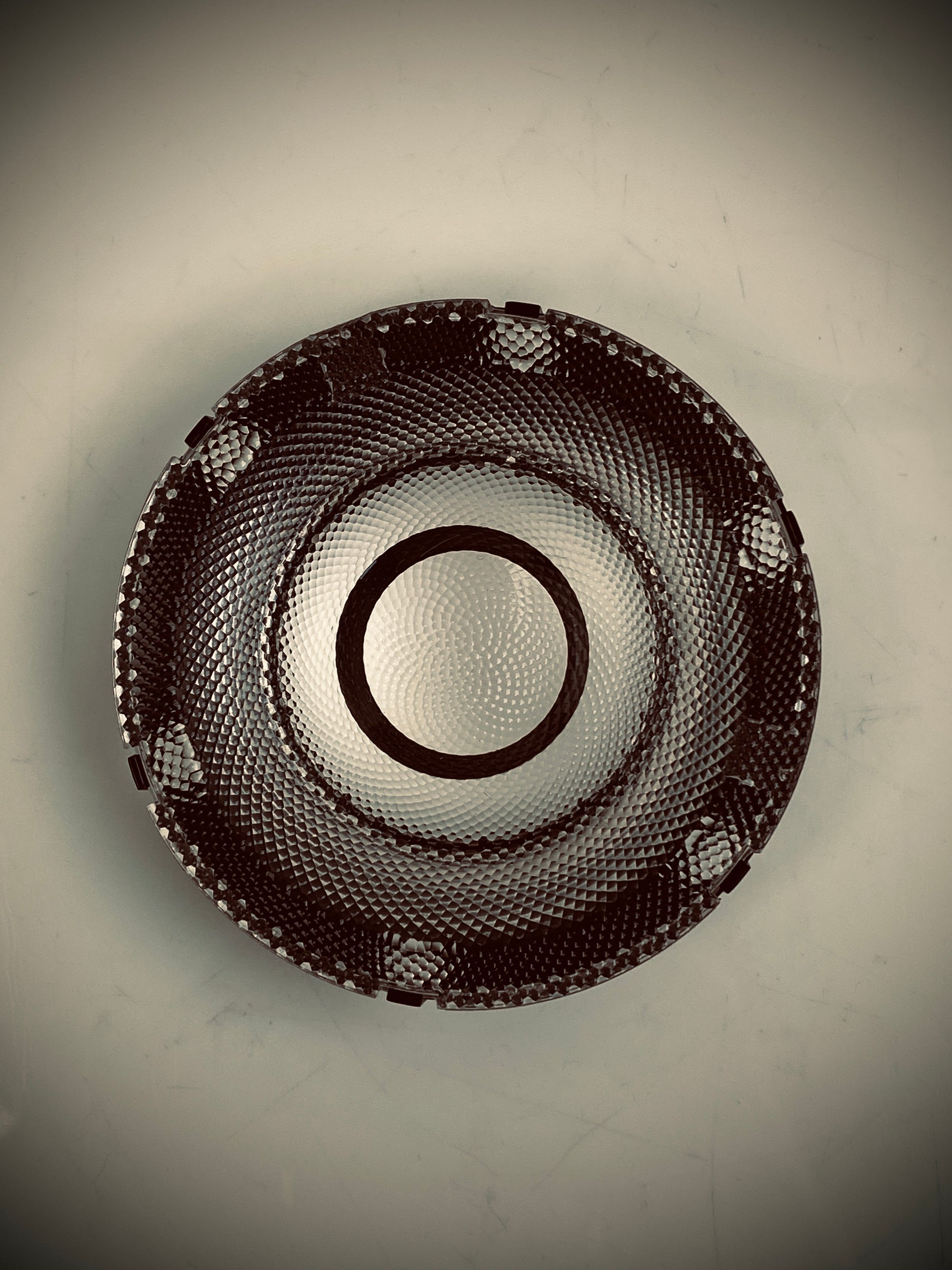

LEDiL - Wide Beam
- Diameter: 70mm
- Height: 12.79mm
- Material: PMMA/PC
- Beam Angle: 59° (14.5mm XOB)
- Efficiency: 88%
LEDiL - Spreader Lens
- Diameter: 70mm
- Height: 13.02mm
- Material: PMMA/PC
- Beam Angle: 22°, 60° (14.5mm XOB)
- Efficiency: 85%
LEDiL - Wall Wash Lens
- Diameter: 70mm
- Height: 11.81mm
- Material: PMMA/PC
- Beam Angle: 35°, 80° (14.5mm XOB)
- Efficiency: 78%
LedLink - Narrow Beam
- Diameter: 70mm
- Height: 17.50mm
- Material: PC
- Beam Angle: 26° (19mm XTM)
- Efficiency: >90%
LedLink - Medium Beam
- Diameter: 70mm
- Height: 17.50mm
- Material: PC
- Beam Angle: 42° (19mm XTM)
- Efficiency: >90%
LedLink - Wide Beam
- Diameter: 70mm
- Height: 17.50mm
- Material: PC
- Beam Angle: 58° (19mm XTM)
- Efficiency: >90%
Description
Description

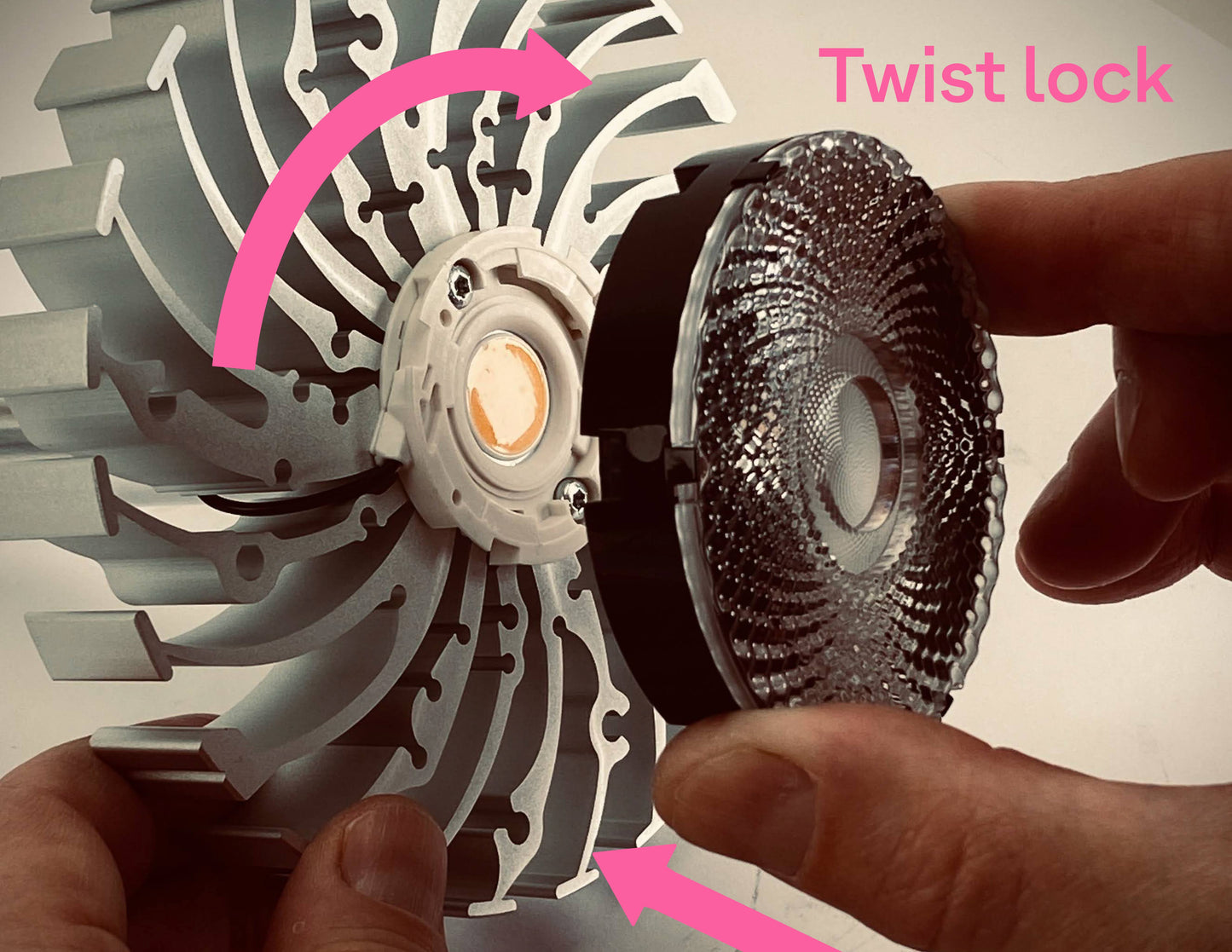

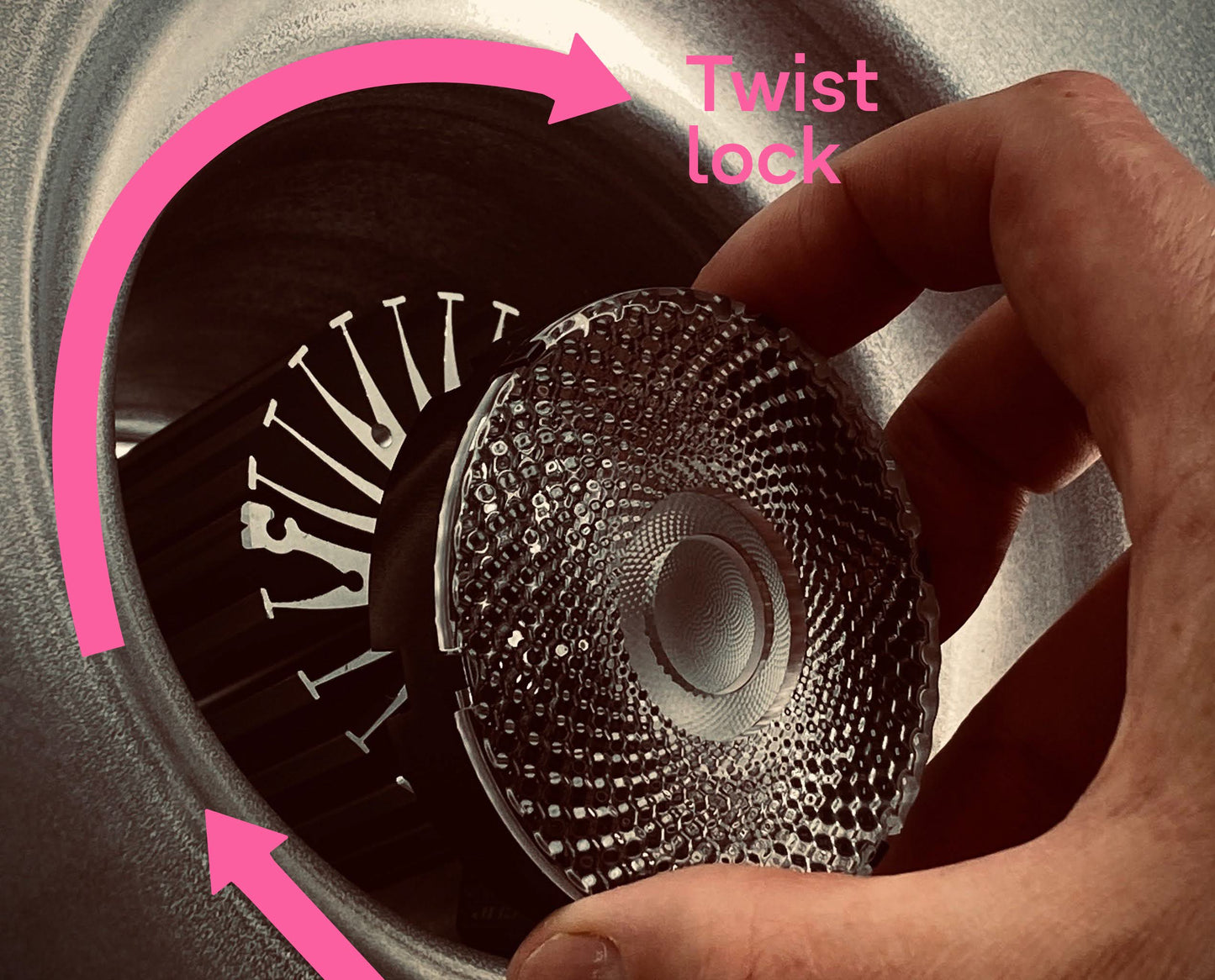

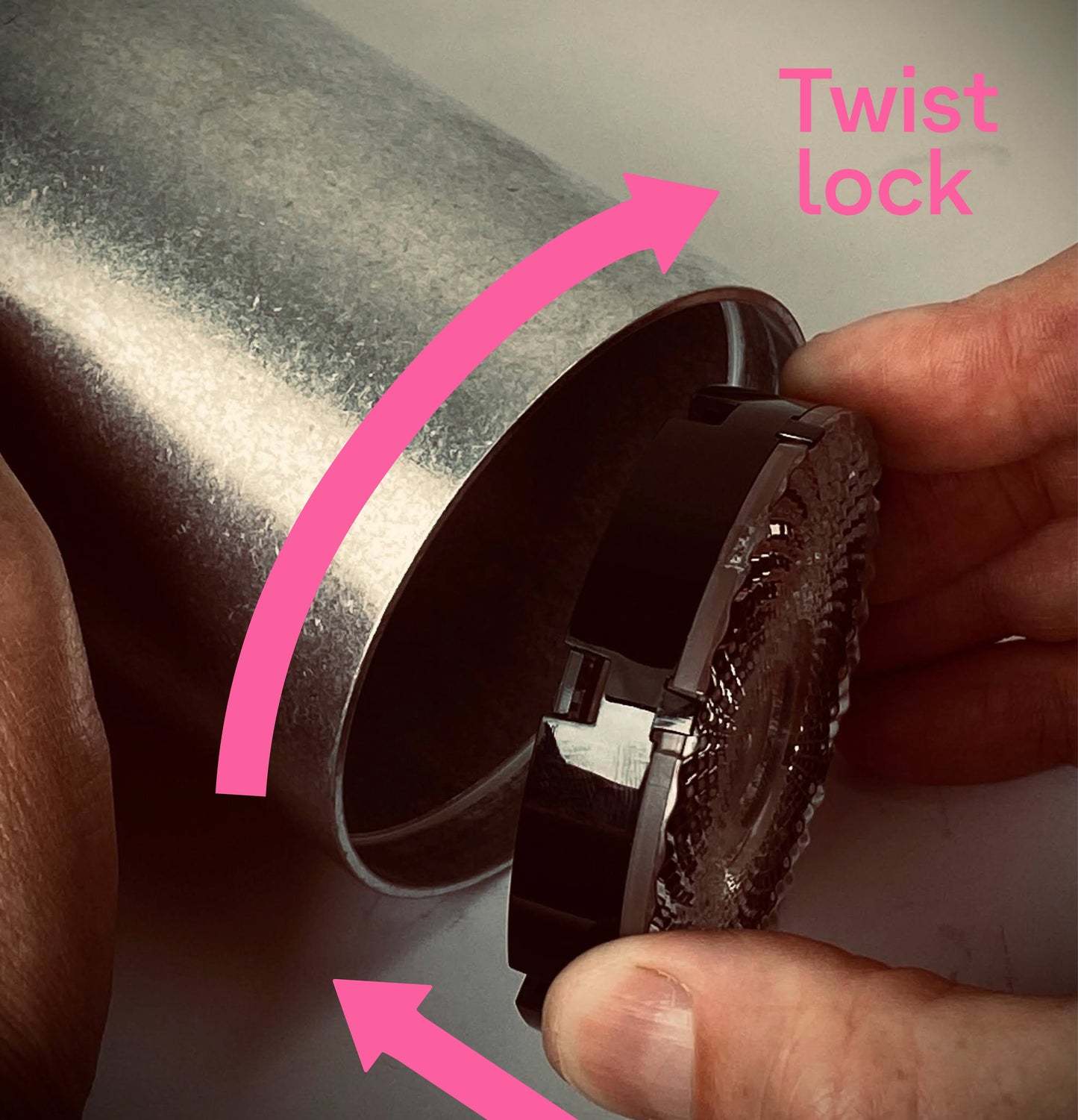

If circumstances or tastes change you might require a different beam angle from your light, this is easily achieved with a user replaceable lens which clips or twist locks (depending which generation product you have) in front of the LED.
If you're unsure on the correct model for your light, contact us with the SKU code (on the body of your light or inside the monopoint) or name or address of the location and we'll confirm.
If you're unsure on the correct model for your light, contact us with the SKU code (on the body of your light or inside the monopoint) or name or address of the location and we'll confirm.
