Skin+Bones™ Pendant | Stone-Rumbled™ | Disc Monopoint
Skin+Bones™ Pendant | Stone-Rumbled™ | Disc Monopoint
Downloads
Downloads
- Datasheet | .PDF
- User Instructions | .PDF

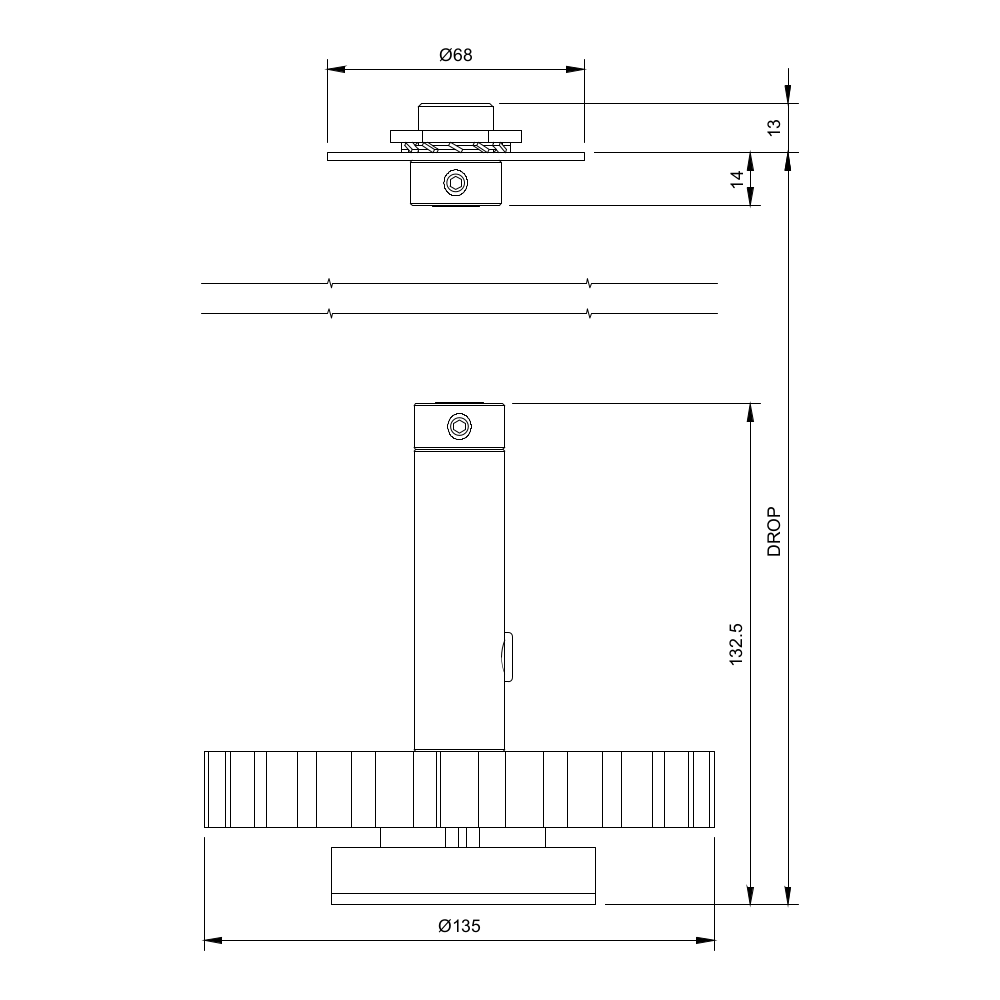

- 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
- BIM / Revit Families | .RVT
- Photometric 2700K | .PDF
- Photometric 3000K | .PDF
- Photometric 4000K | .PDF
- Photometric 2700K, 3000K, 4000K | .IES
- Photometric 2700K, 3000K, 4000K | .LDT
- Augmented Reality | .GLB
- View Lookbook 2024 | .JPG
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 0.6kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 101 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0

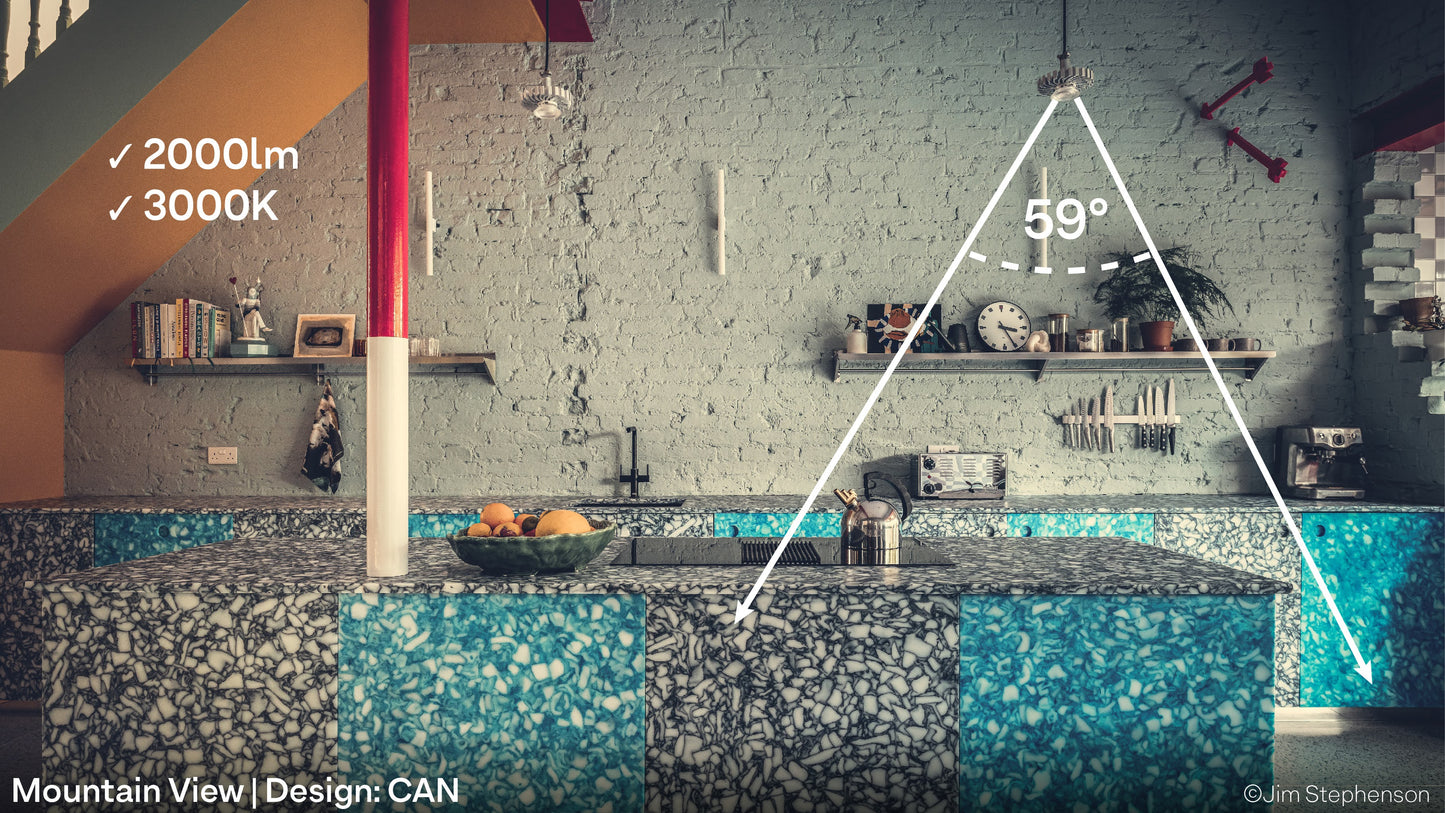

- Optics / Beam Angles: 21°, 38°, 59°

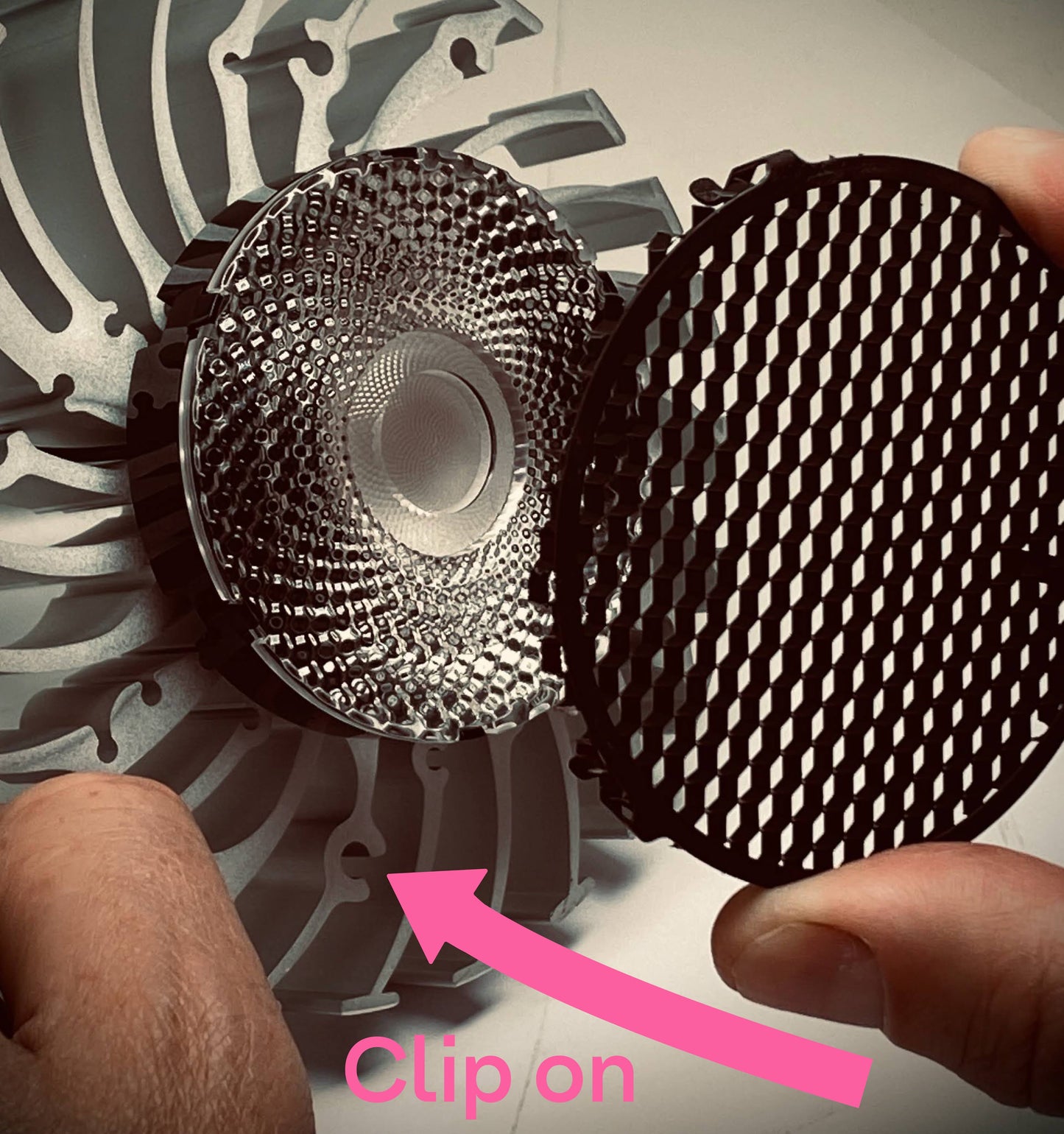

- Accessories: Honeycomb Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural pendant light was the first product we ever DFMA'd (Design For Manufacturing Assembly) from inception. It's an engineering methodology that produced a high-tech product with very unorthodox looks and a low, low price point. Skin+Bones™ delivers so much bounce to the ounce, a 1000m² space can now be professionally lit for under £12k 😳

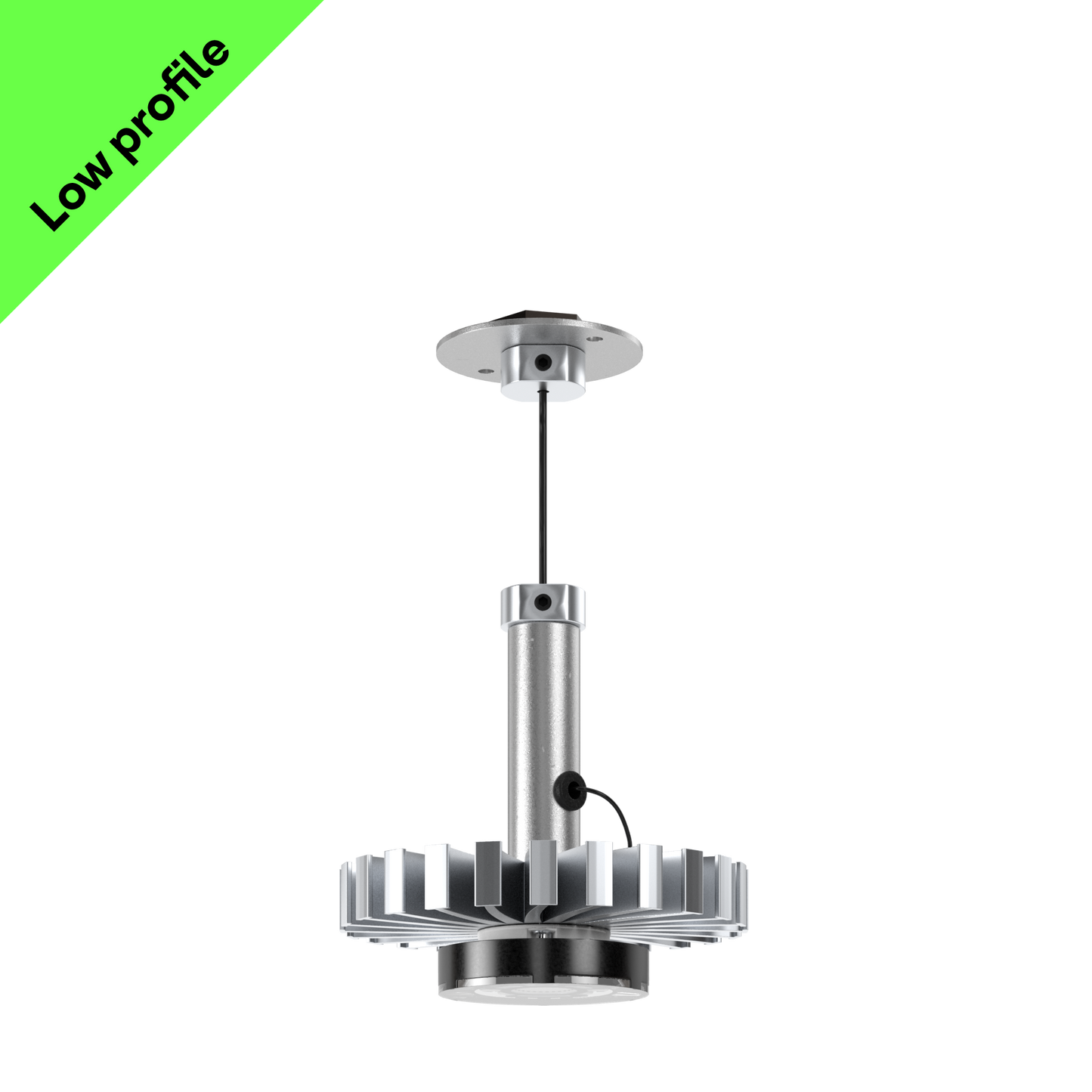

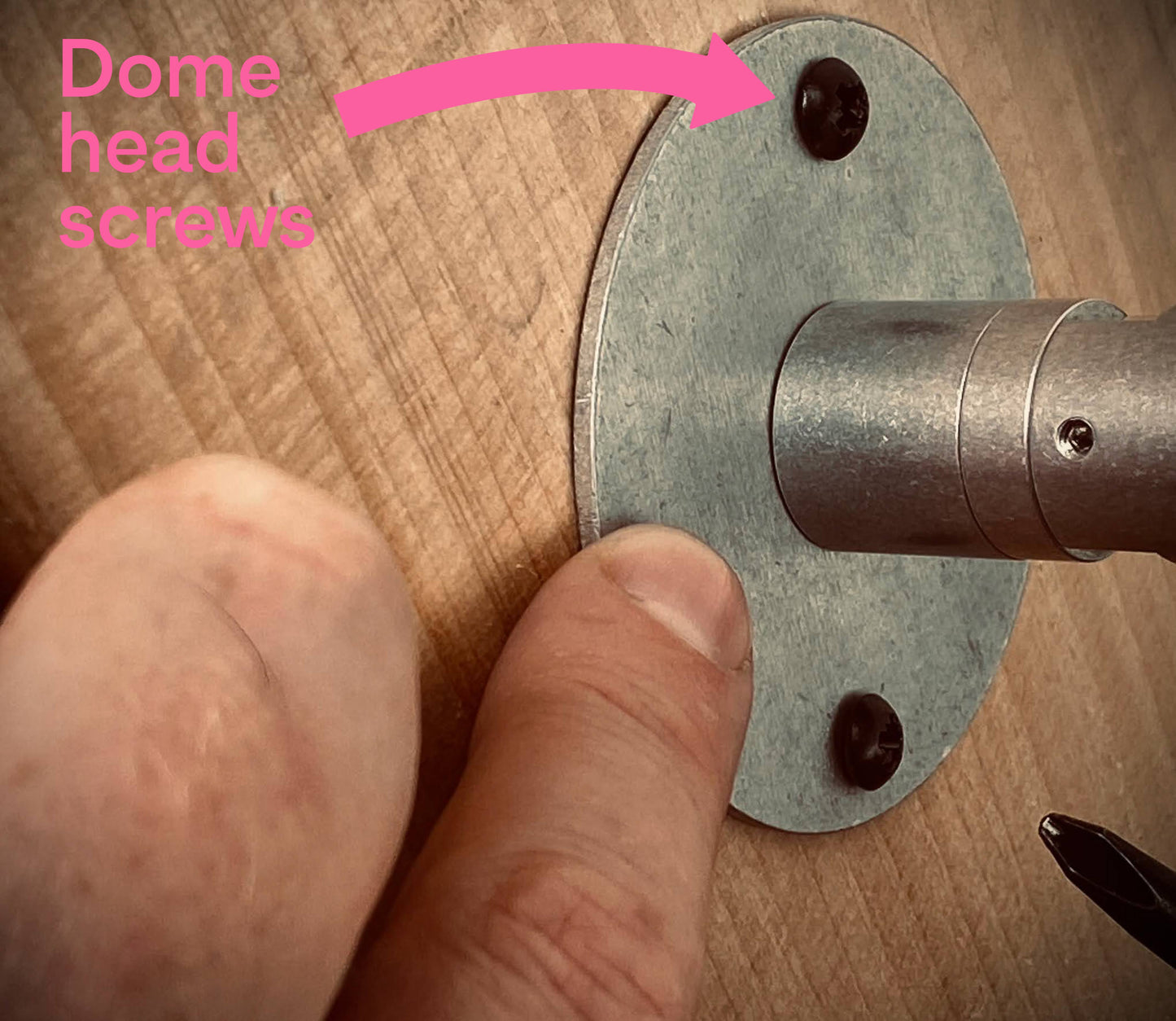

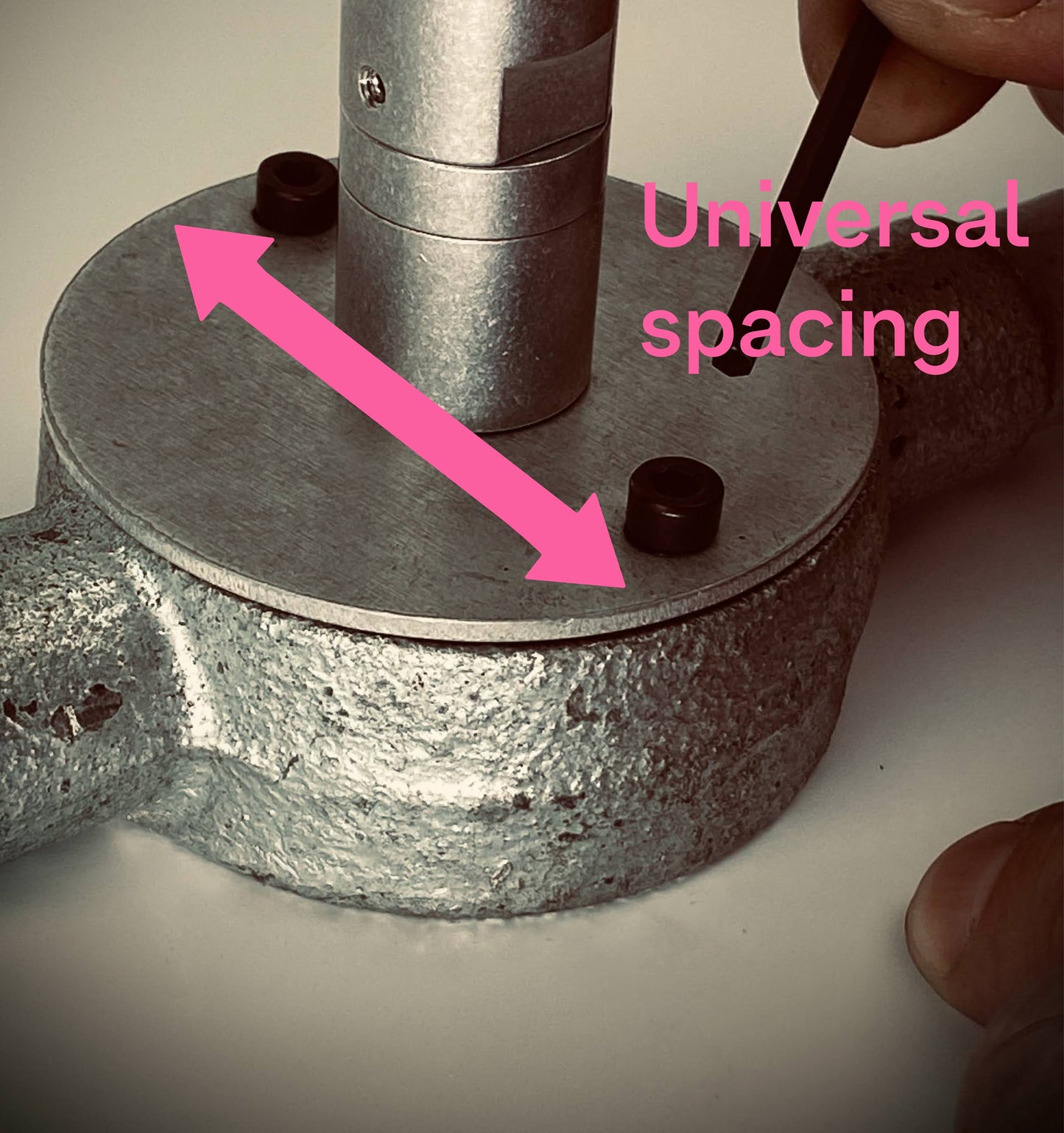

Disc-Monopoint is our smallest, most low-profile luminaire mounting. A completely flat, 65mm diameter x 2mm thick circular plate with standard BESA (50.8mm) hole spacings. Fix to conduit box, pattress or surface mount to cable tray, timber, cladding or other suitable material.

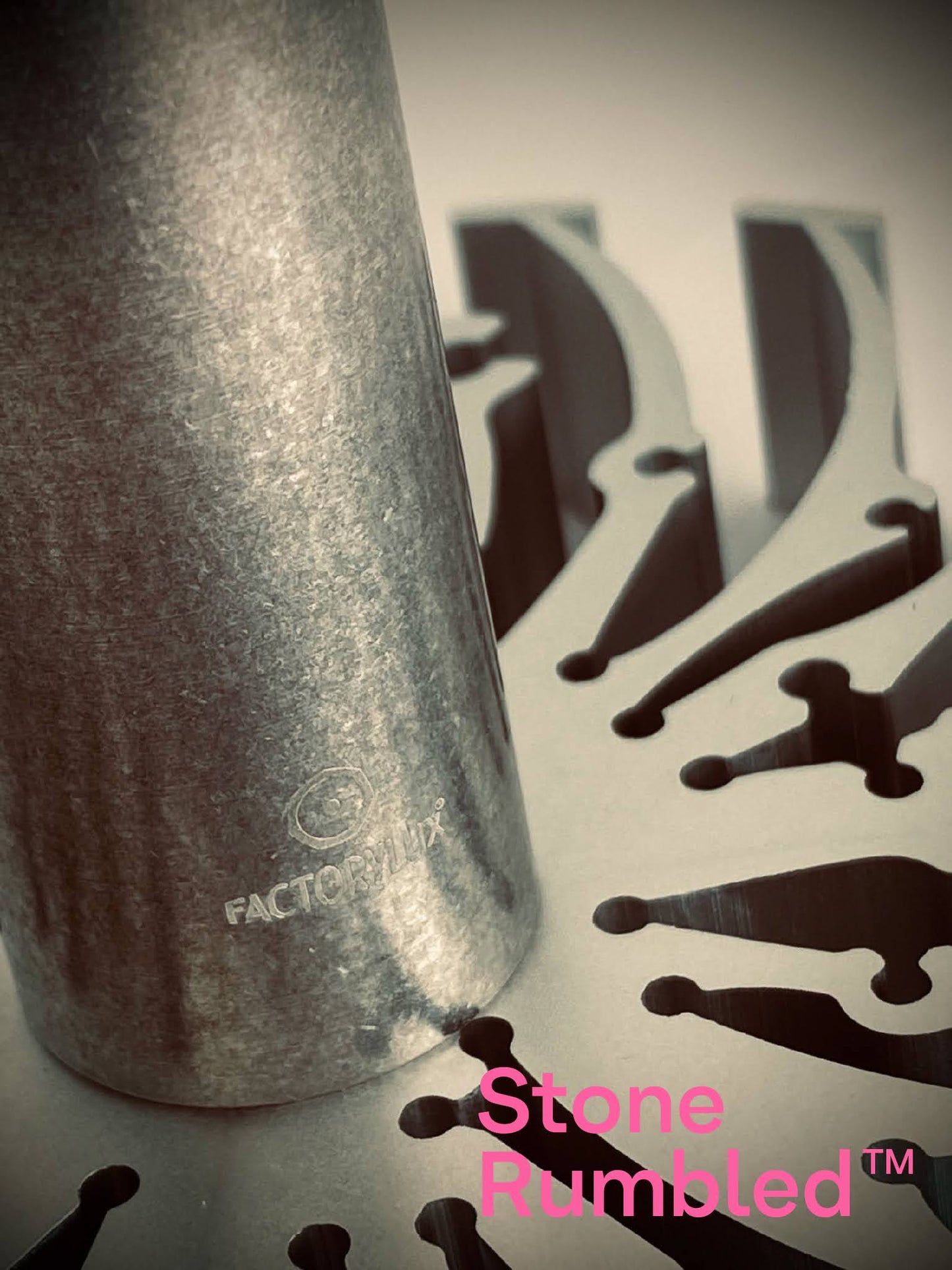

Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:

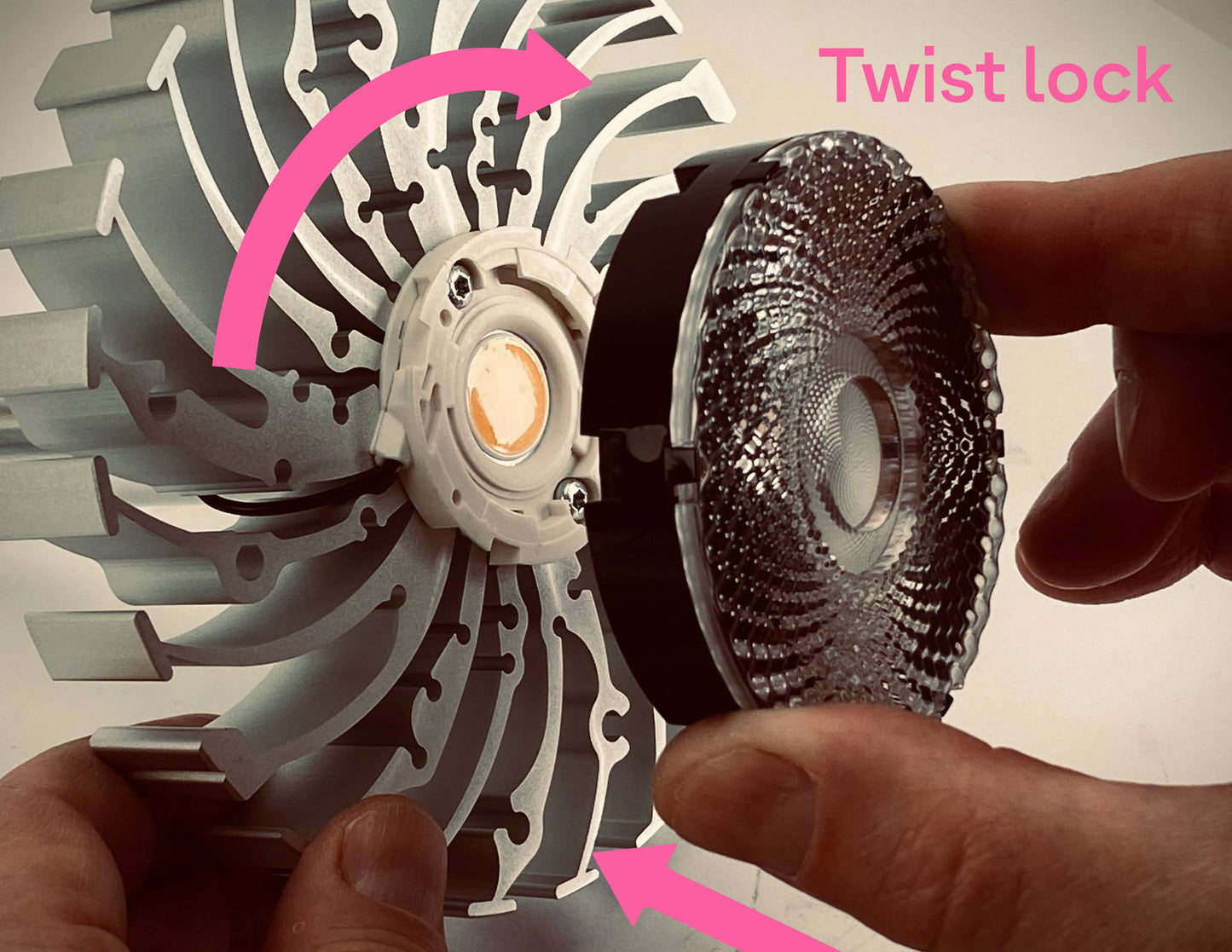

- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Stone-Rumbled body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines
Every Skin+Bones™ pendant or spotlight is designed and assembled in Yorkshire.
Our team deliver sustainable lighting at prices your project can afford.
No sale reps. No agents. No hidden commission.
Our modern, digital-first workflow is simple not salesy. It can deliver big cost savings for your project.
