Ninety-Nine™ | Black | Large Monopoint
Ninety-Nine™ | Black | Large Monopoint
Downloads
Downloads
- Datasheet | .PDF
- User Instructions | .PDF
- 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
- BIM / Revit Families | .RVT
- Photometric 2700K | .PDF
- Photometric 3000K | .PDF
- Photometric 4000K | .PDF
- Photometric 2700K, 3000K, 4000K | .IES
- Photometric 2700K, 3000K, 4000K | .LDT
- Augmented Reality | .GLB
- View Lookbook 2024 | .JPG
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone Rumbled | Black Anodised
- Weight: 0.7kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 2000lm 2700K | 2120lm 3000K | 2270lm 3500K | 2340lm 4000K
- Luminaire Efficacy: Up to 110 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 425mA
- Power Consumption (max. typ.): 16.0 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0

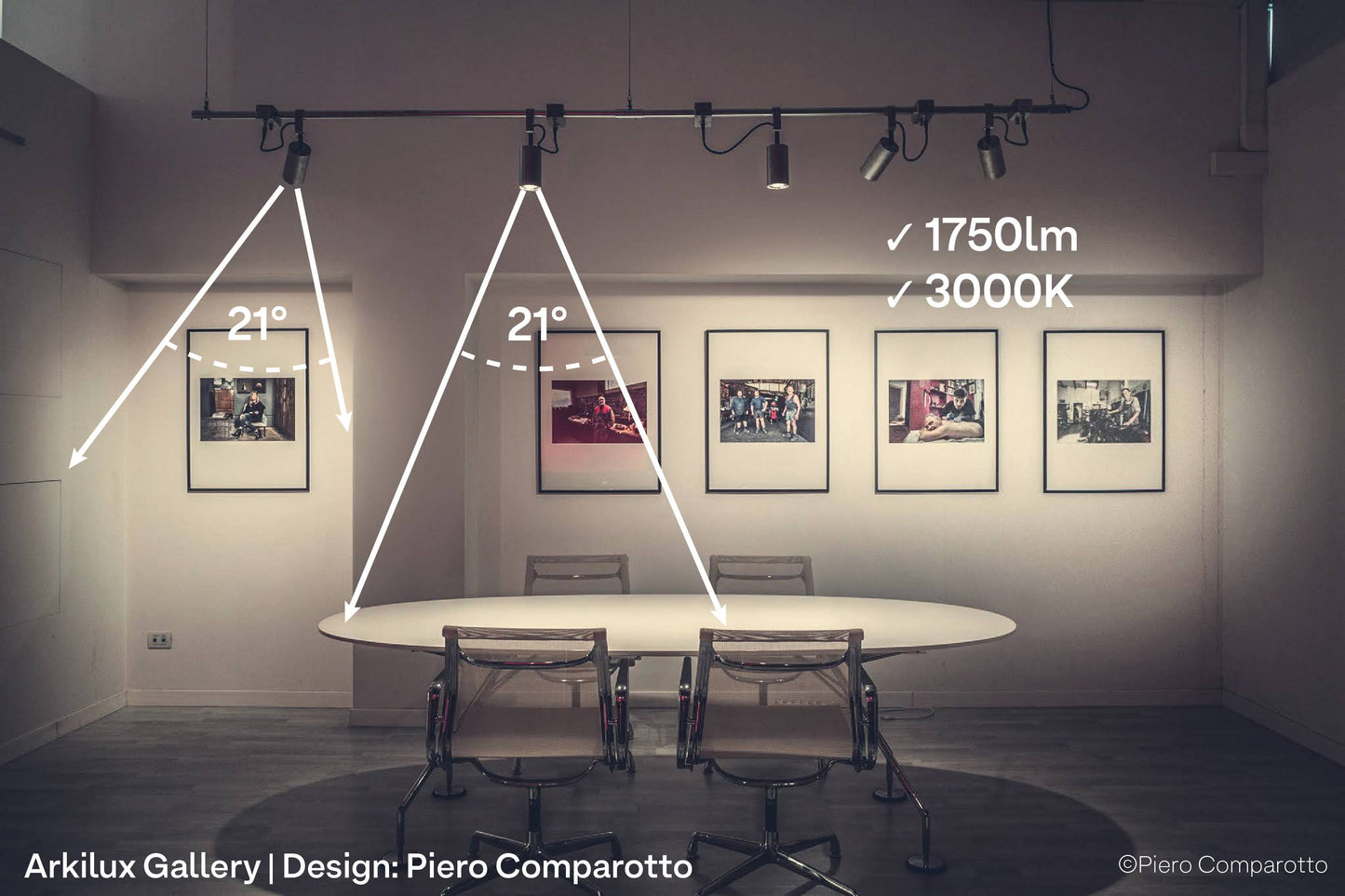

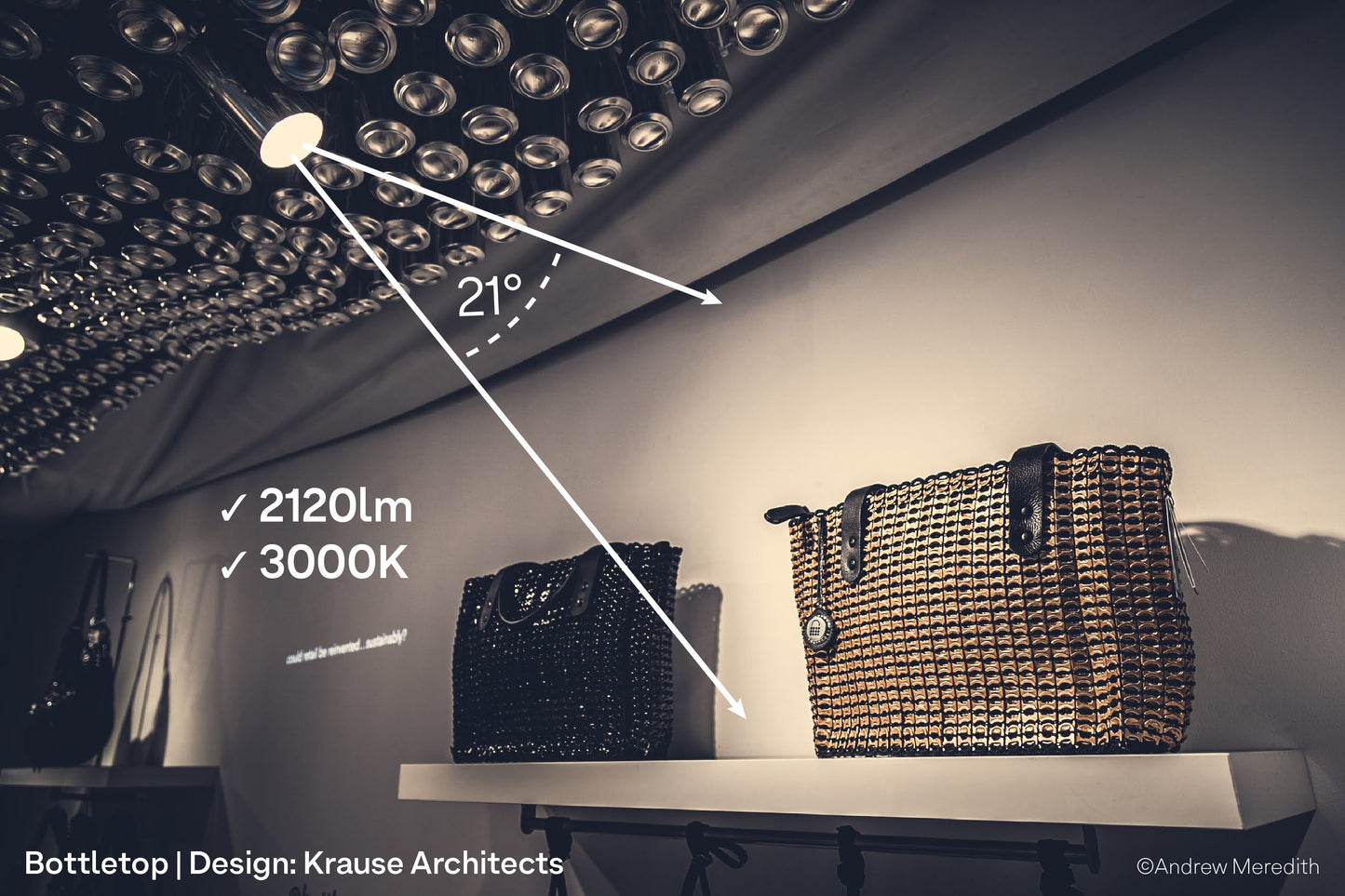

- Optics / Beam Angles: 21°, 38°, 59°, Spreader, Wall Wash

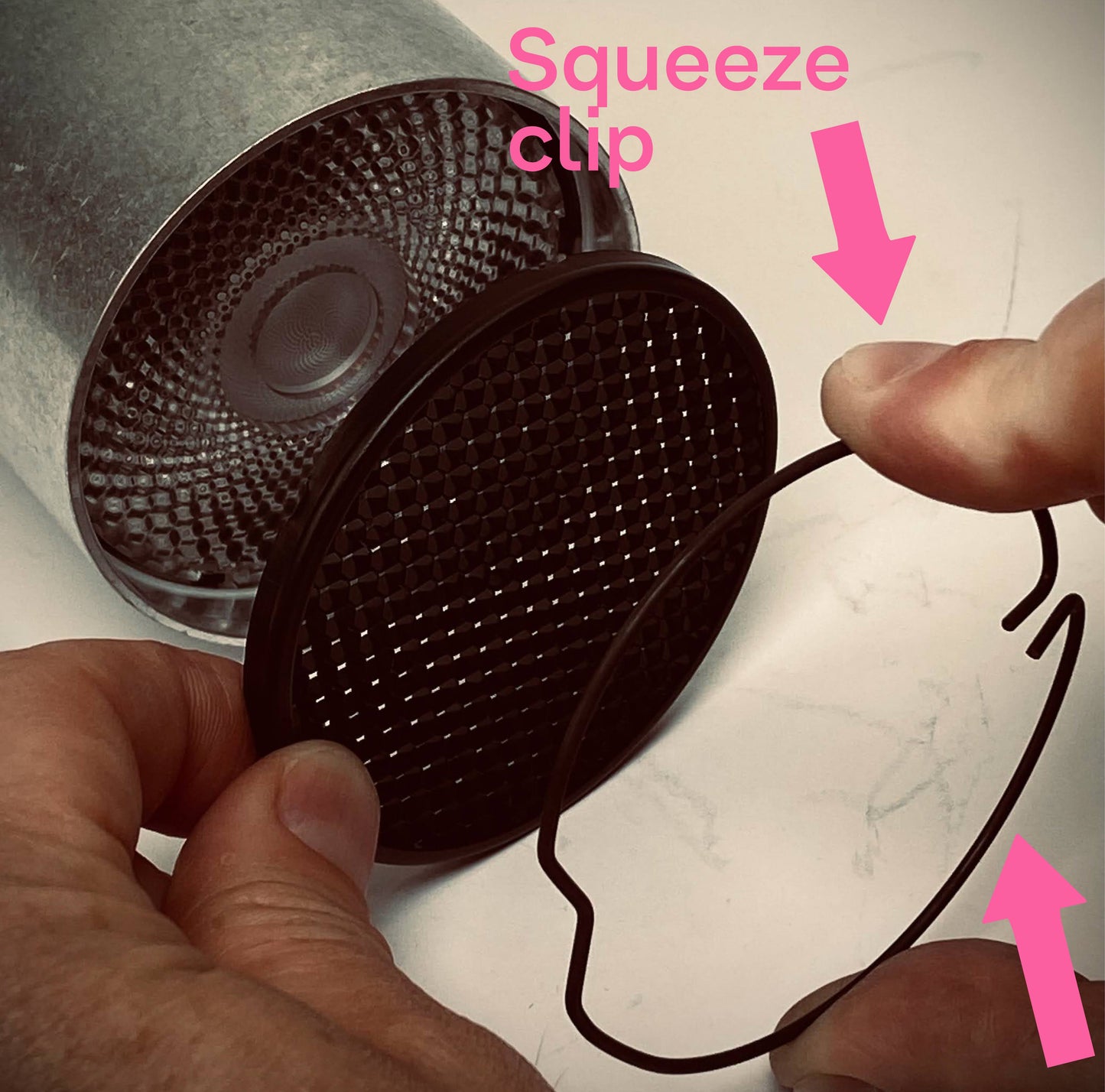

- Accessories: Honeycomb Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description

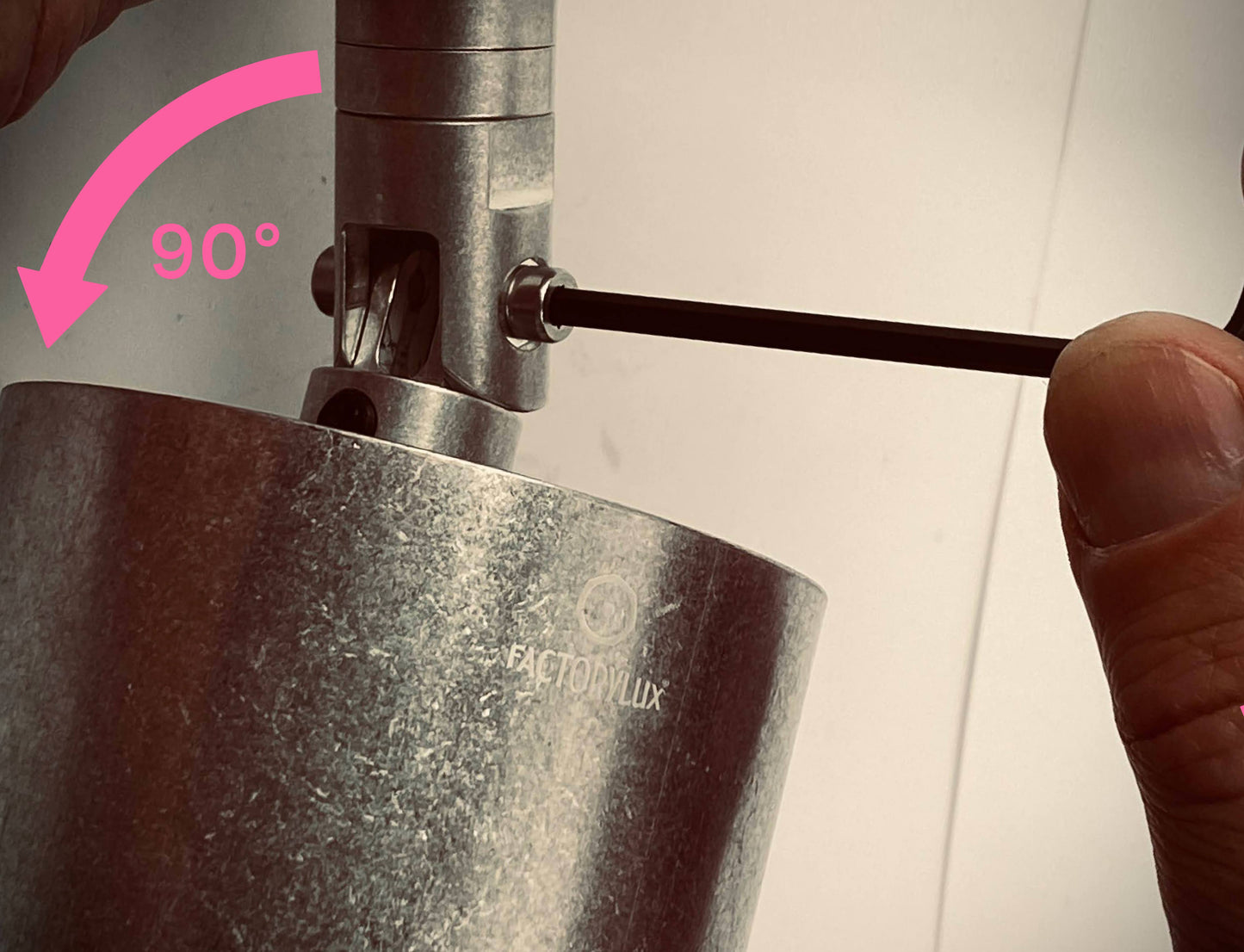

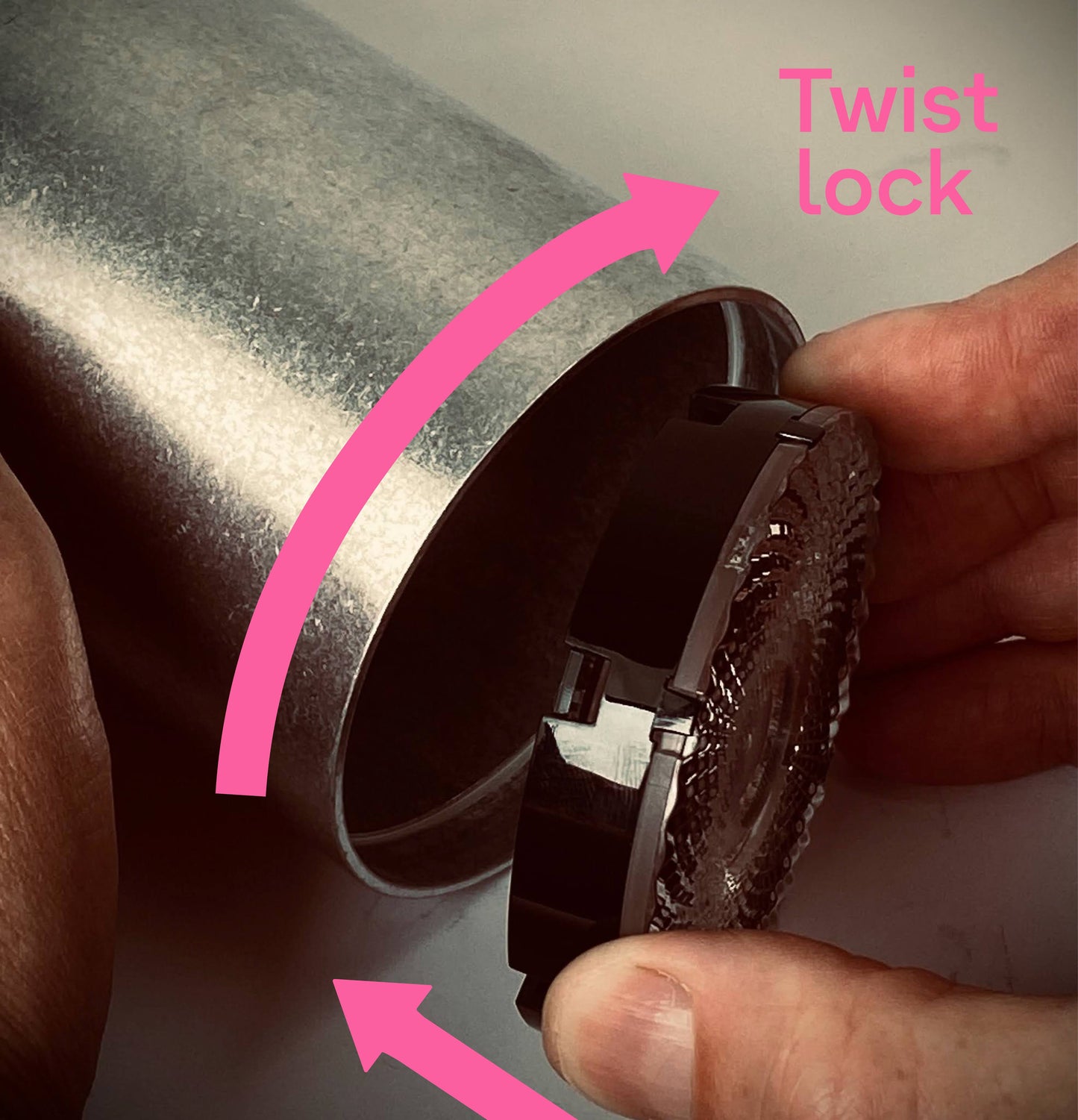

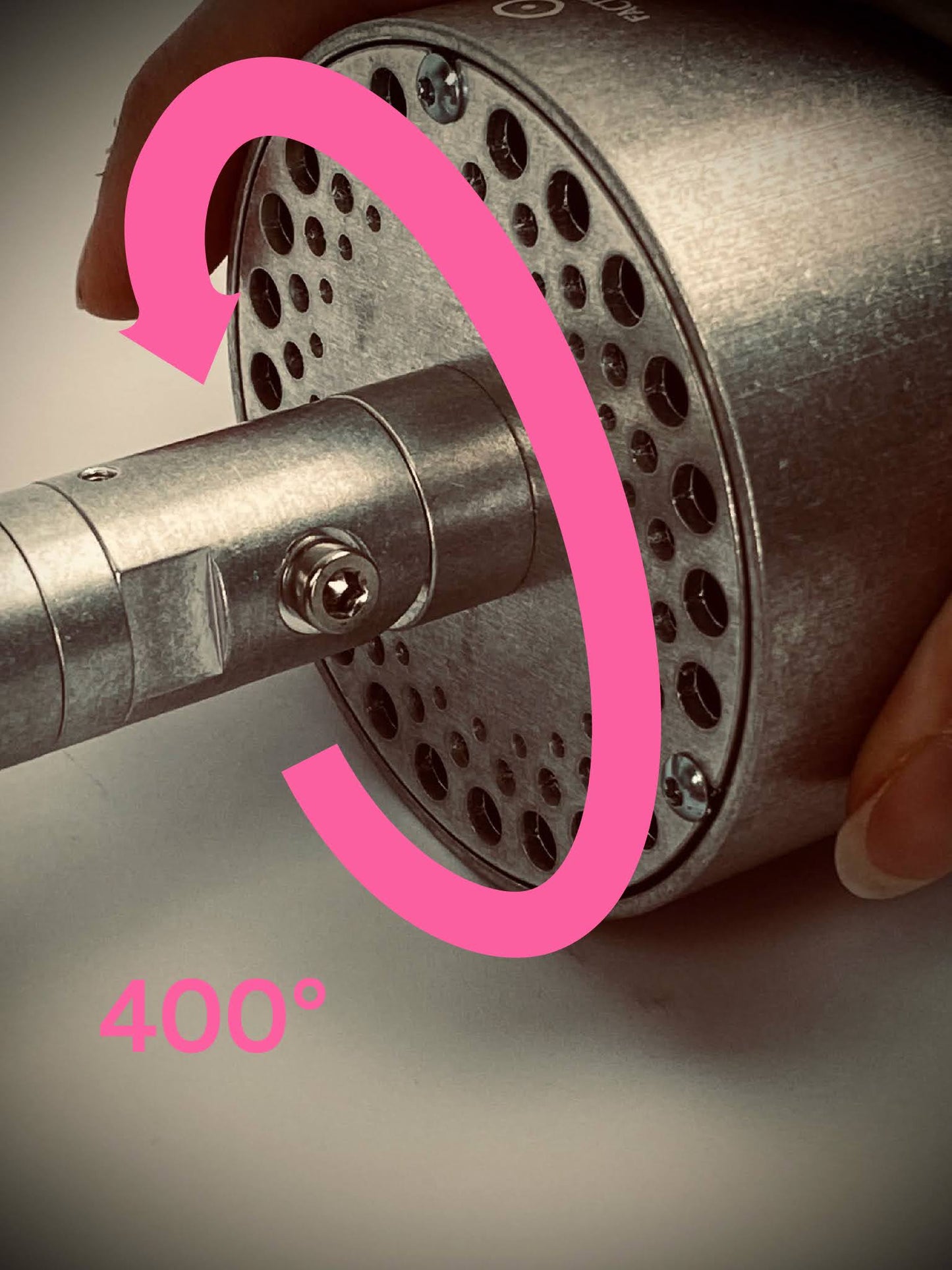

This professional architectural spotlight is designed for Circular Economy. Fully directional with rotation through 400° and lockable tilt, it can be specified with different luminaire optics and accessories.

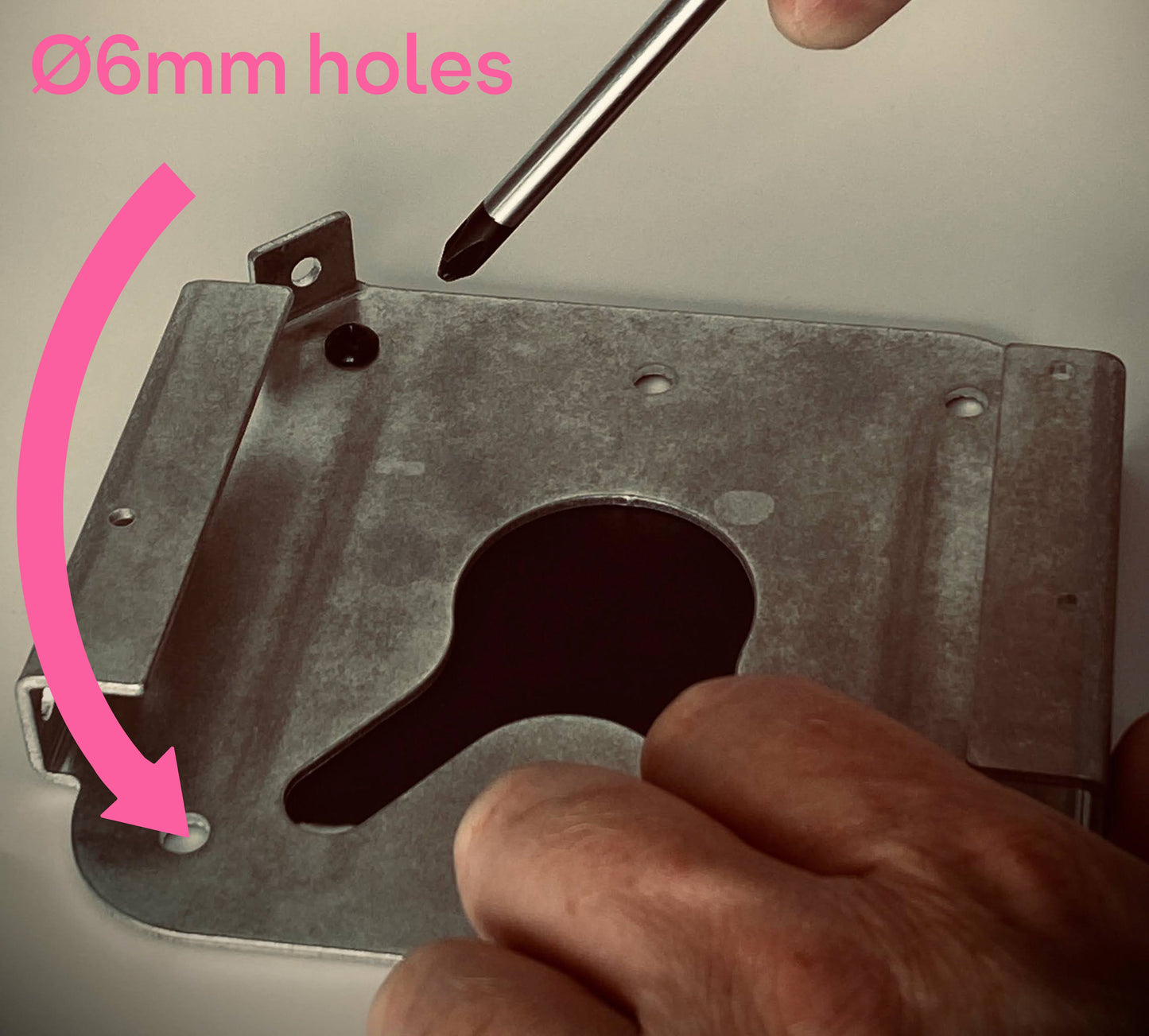

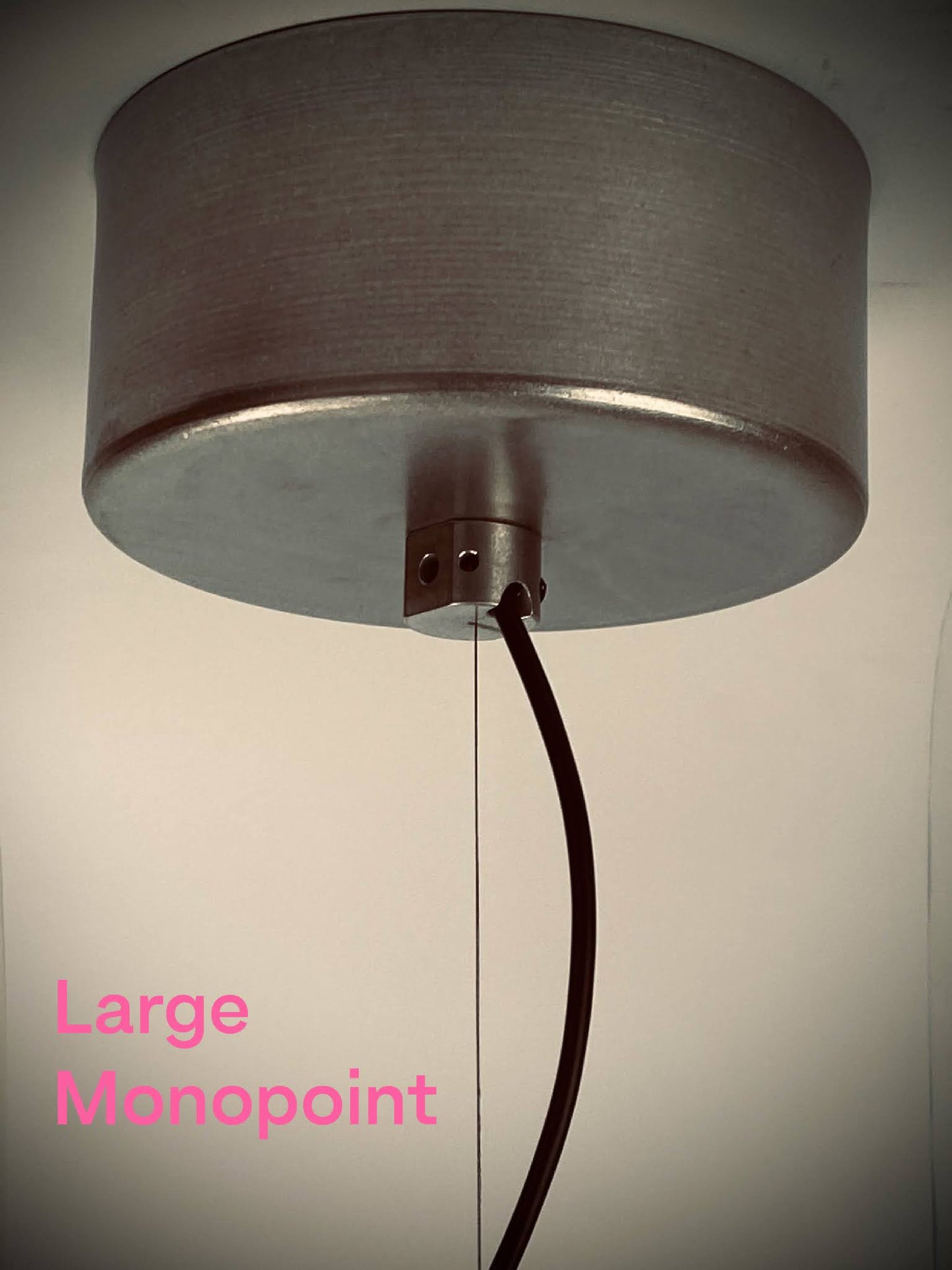

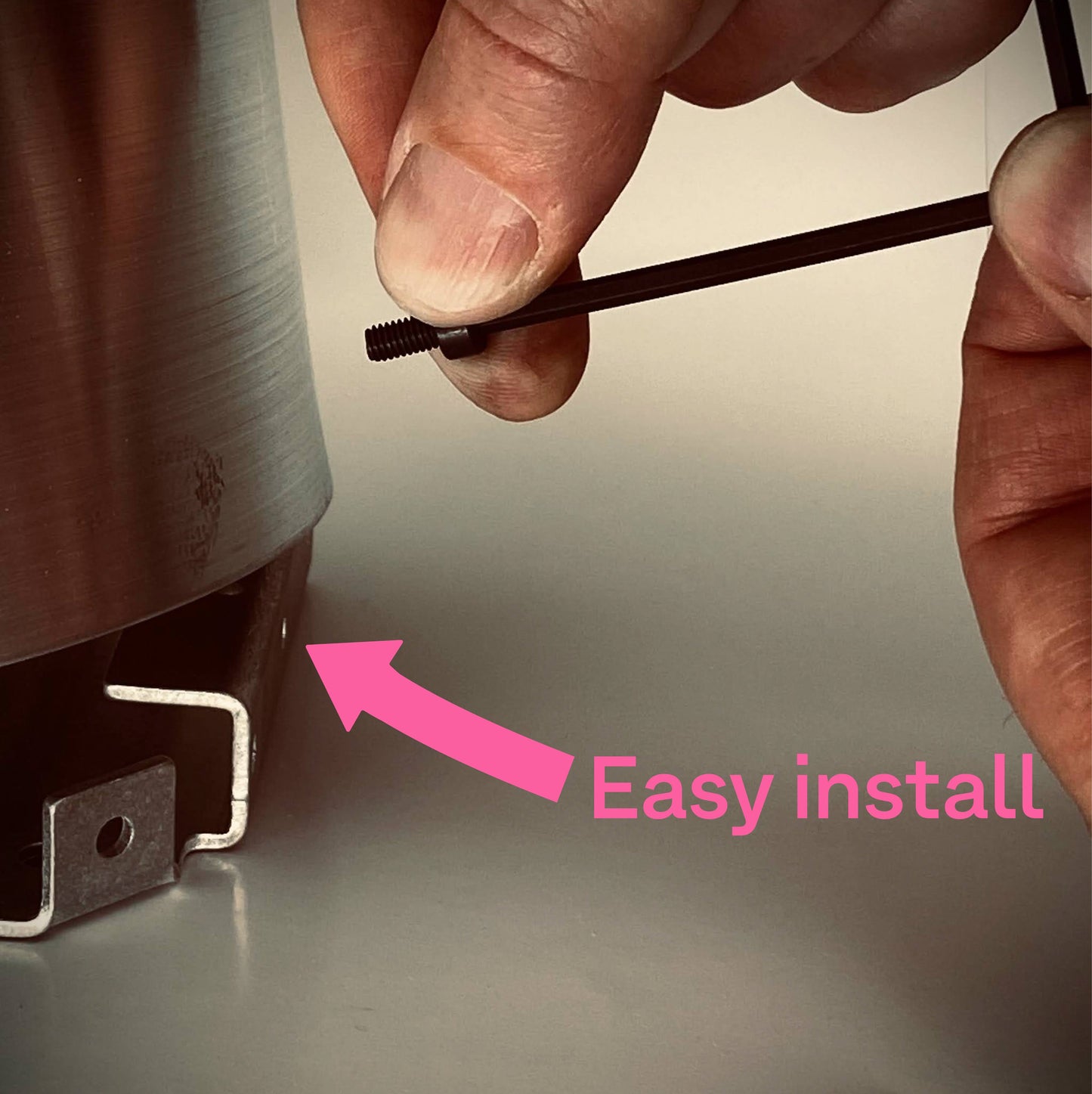

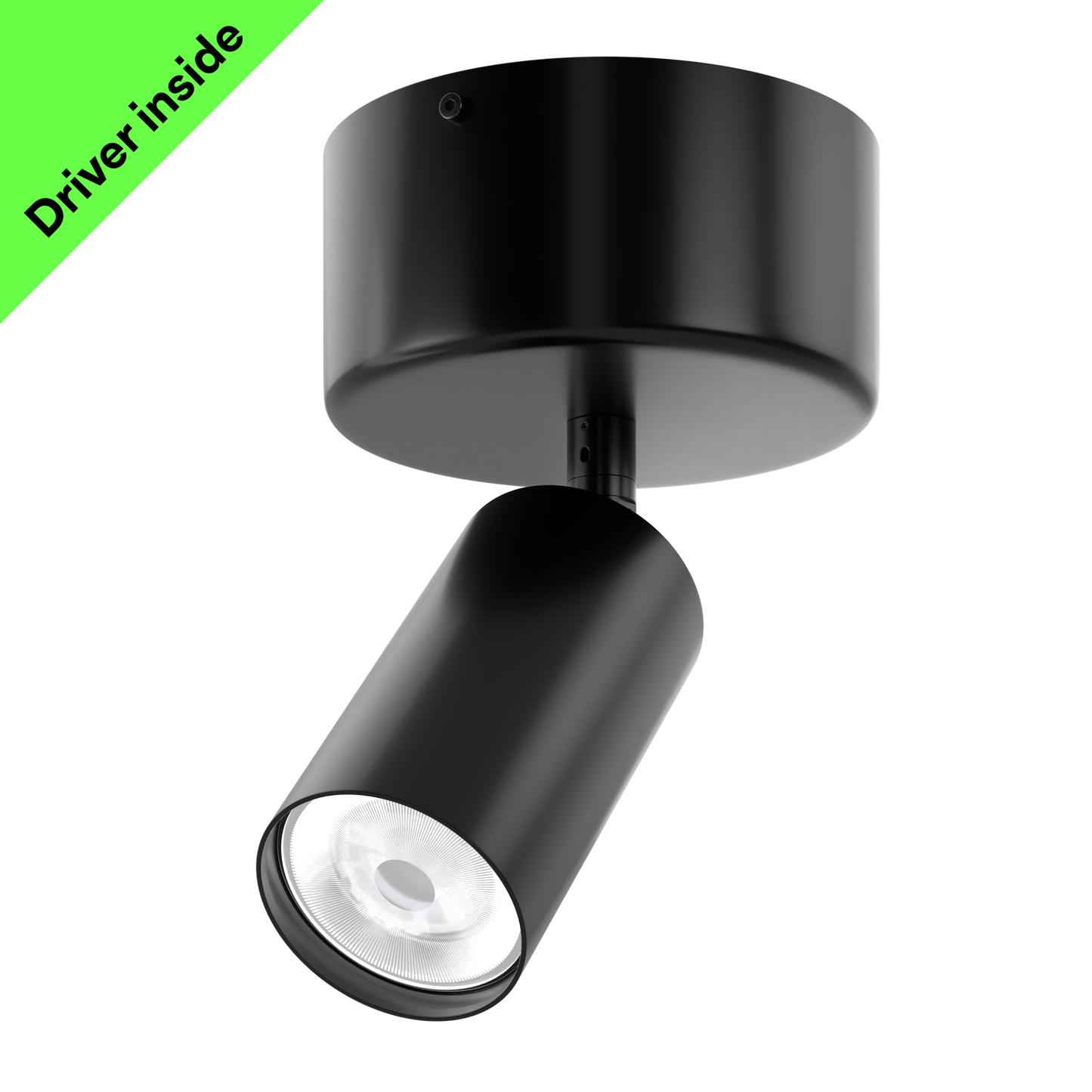

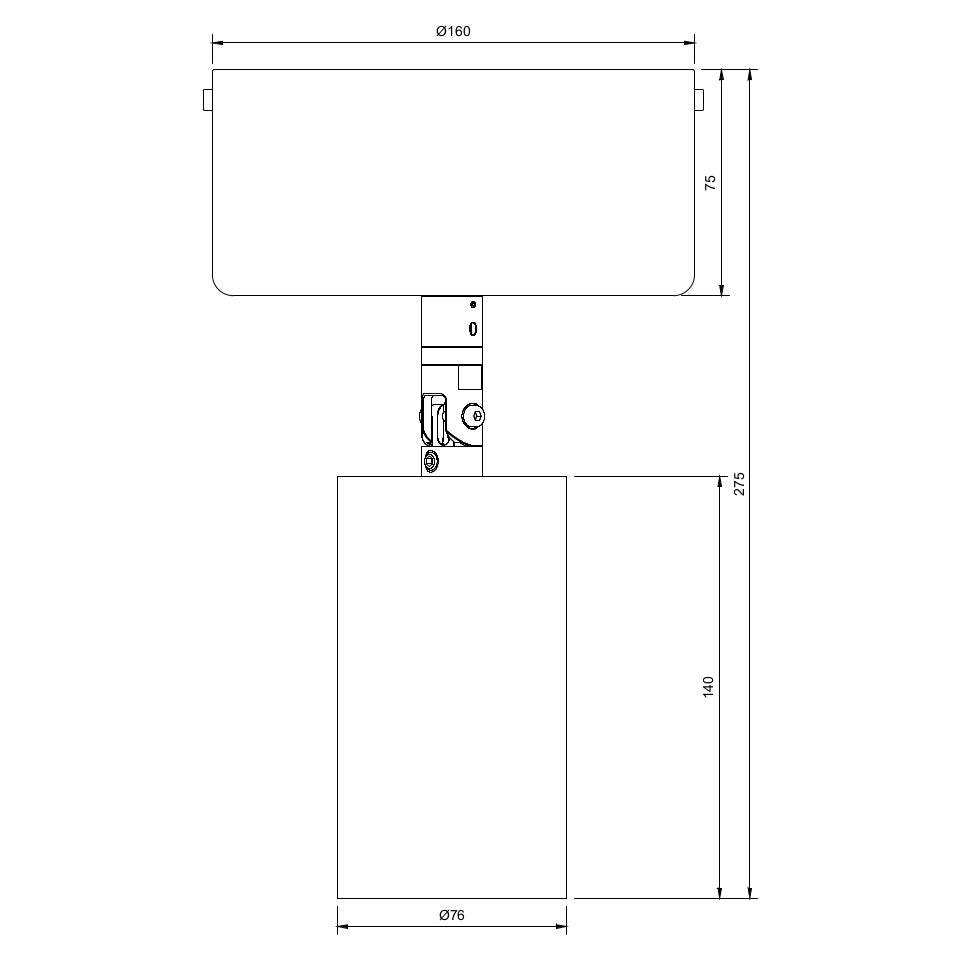

'Large Monopoint' is a 160mm diameter X 75mm deep circular spotlight mounting / enclosure that's big enough to house the driver and all electrical connections. The monopoint body attaches to a separate, surface mounted bracket via M4 bolts located on opposite sides. The bracket itself has standard BESA (50.8mm) hole spacings for fixing to walls, ceilings, cable tray or other suitable surfaces / materials.

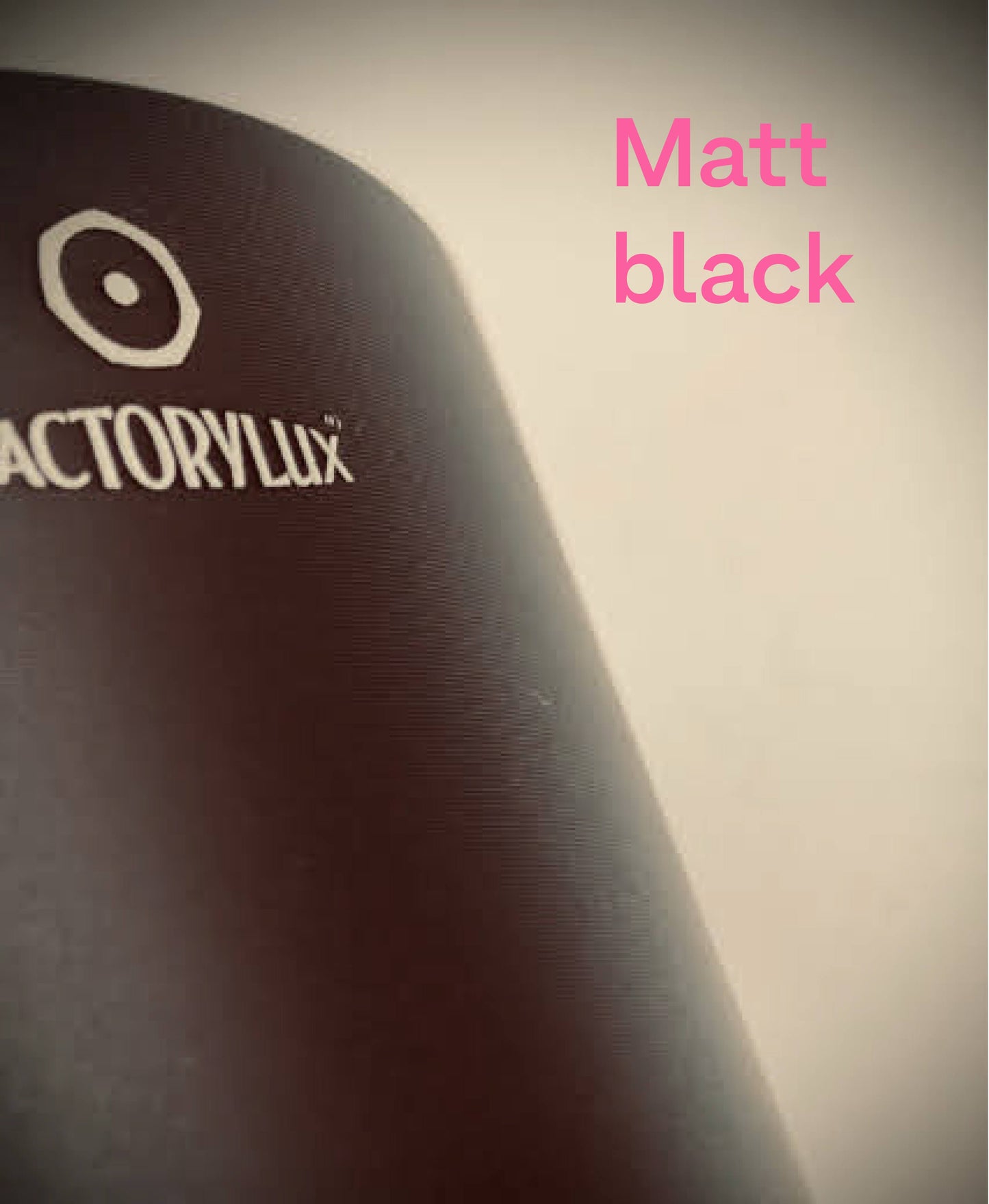

'Black' is our hard wearing anodised finish for smaller aluminium components, the colour is deep and flat. It's healthier than regular paint or powder coatings because anodising uses no VOCs or EPA-listed toxic organics and generates no hazardous waste. Material safety data is same as the metal itself and recyclability is unaffected.
Life Cycle Assessment: this luminaire is second in line to its Stone-Rumbled™ sister but if it's got to be black, this one outperforms the market average and can still help you realise your sustainable development goals or environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake ™: Our factory can disassemble 'used' Black luminaires & re-use body components within our 'worn' lighting
- Magic-Packaging ™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics.
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines
Every Ninety-Nine™ spotlight light is designed and assembled in Yorkshire.
Our team deliver sustainable lighting at prices your project can afford.
No sale reps. No agents. No hidden commission.
Our modern, digital-first workflow is simple not salesy. It can deliver big cost savings for your project.
