Ninety-Nine™ | Custom Finish | Disc Monopoint
Ninety-Nine™ | Custom Finish | Disc Monopoint
Couldn't load pickup availability
Downloads
Downloads
- Datasheet | .PDF
- User Instructions | .PDF
- 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
- BIM / Revit Families | .RVT
- Photometric 2700K | .PDF
- Photometric 3000K | .PDF
- Photometric 4000K | .PDF
- Photometric 2700K, 3000K, 4000K | .IES
- Photometric 2700K, 3000K, 4000K | .LDT
- Augmented Reality | .GLB
- View Lookbook 2024 | .JPG
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Custom Finish
- Weight: 0.7kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 2000lm 2700K | 2120lm 3000K | 2270lm 3500K | 2340lm 4000K
- Luminaire Efficacy: Up to 110 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 425mA
- Power Consumption (max. typ.): 16.0 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0

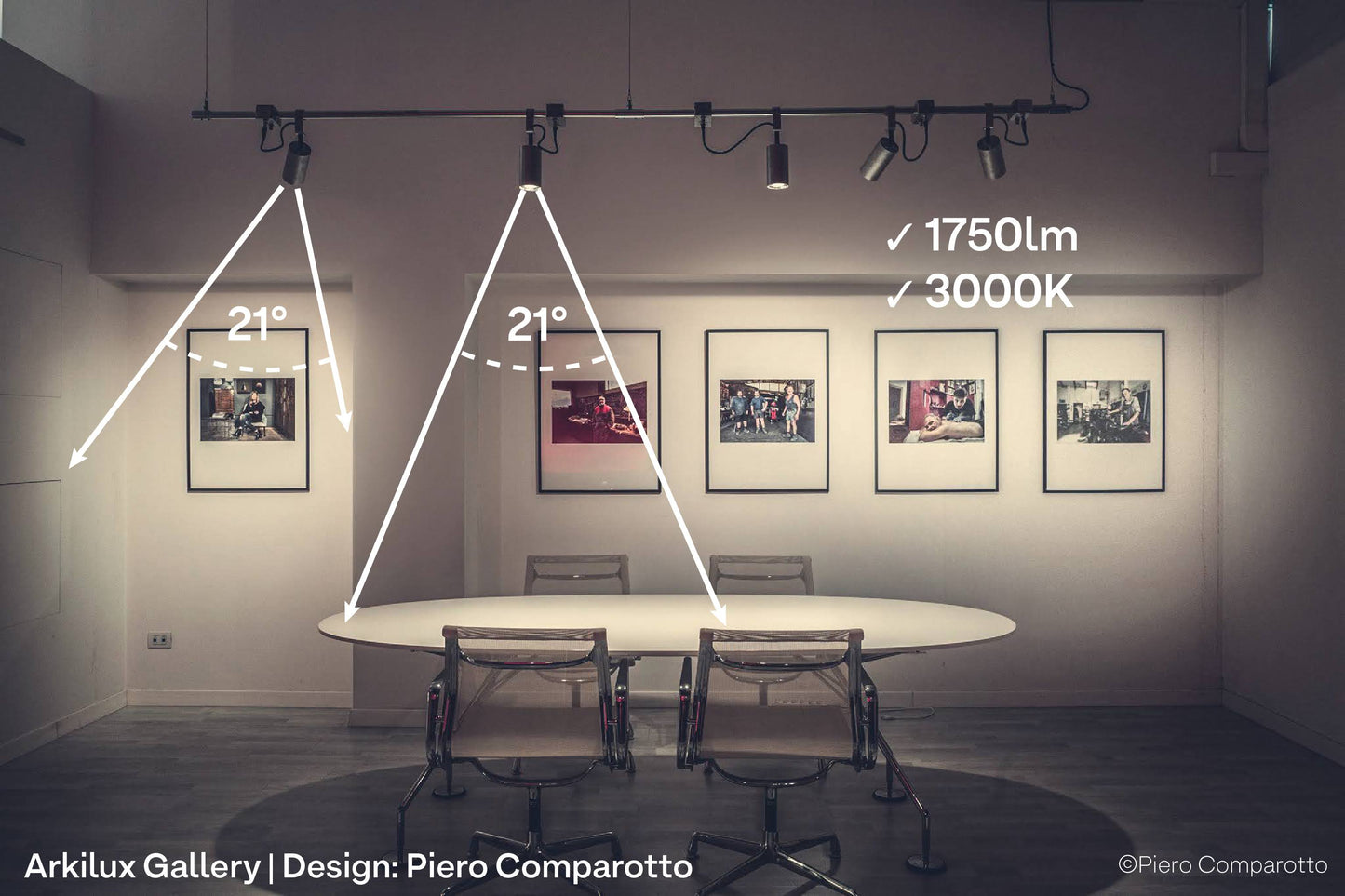

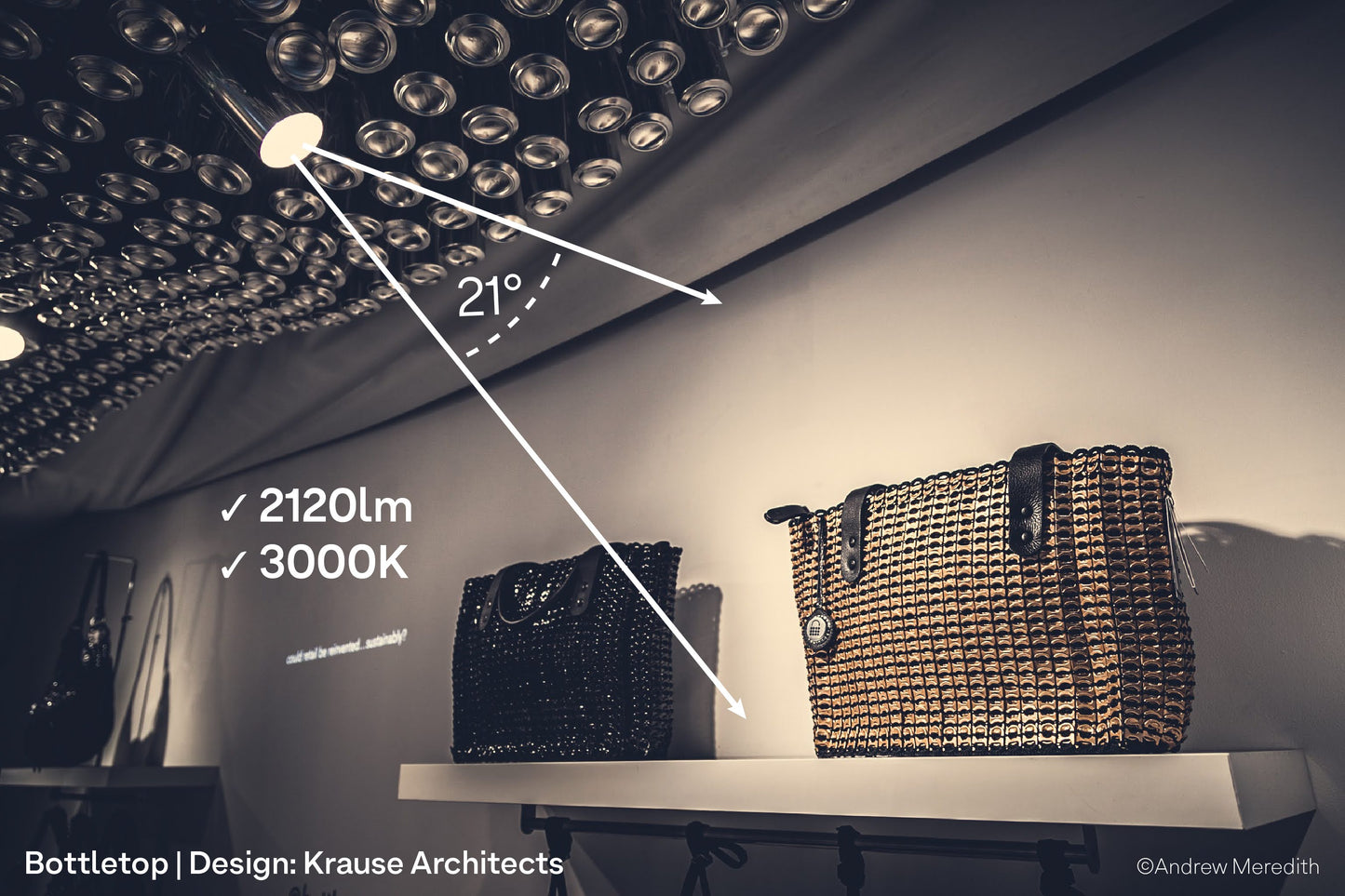

- Optics / Beam Angles: 21°, 38°, 59°, Spreader, Wall Wash

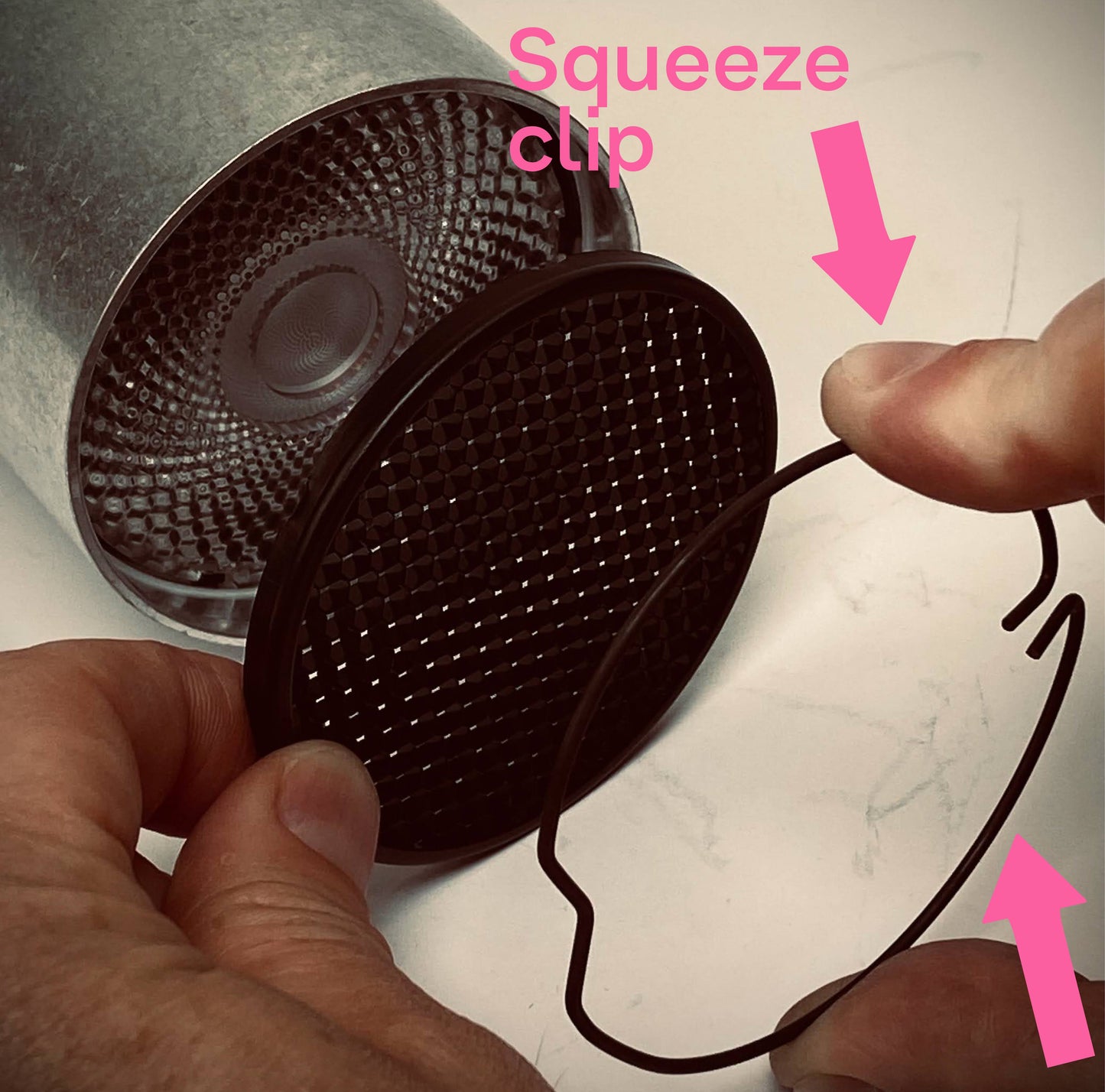

- Accessories: Honeycomb Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description

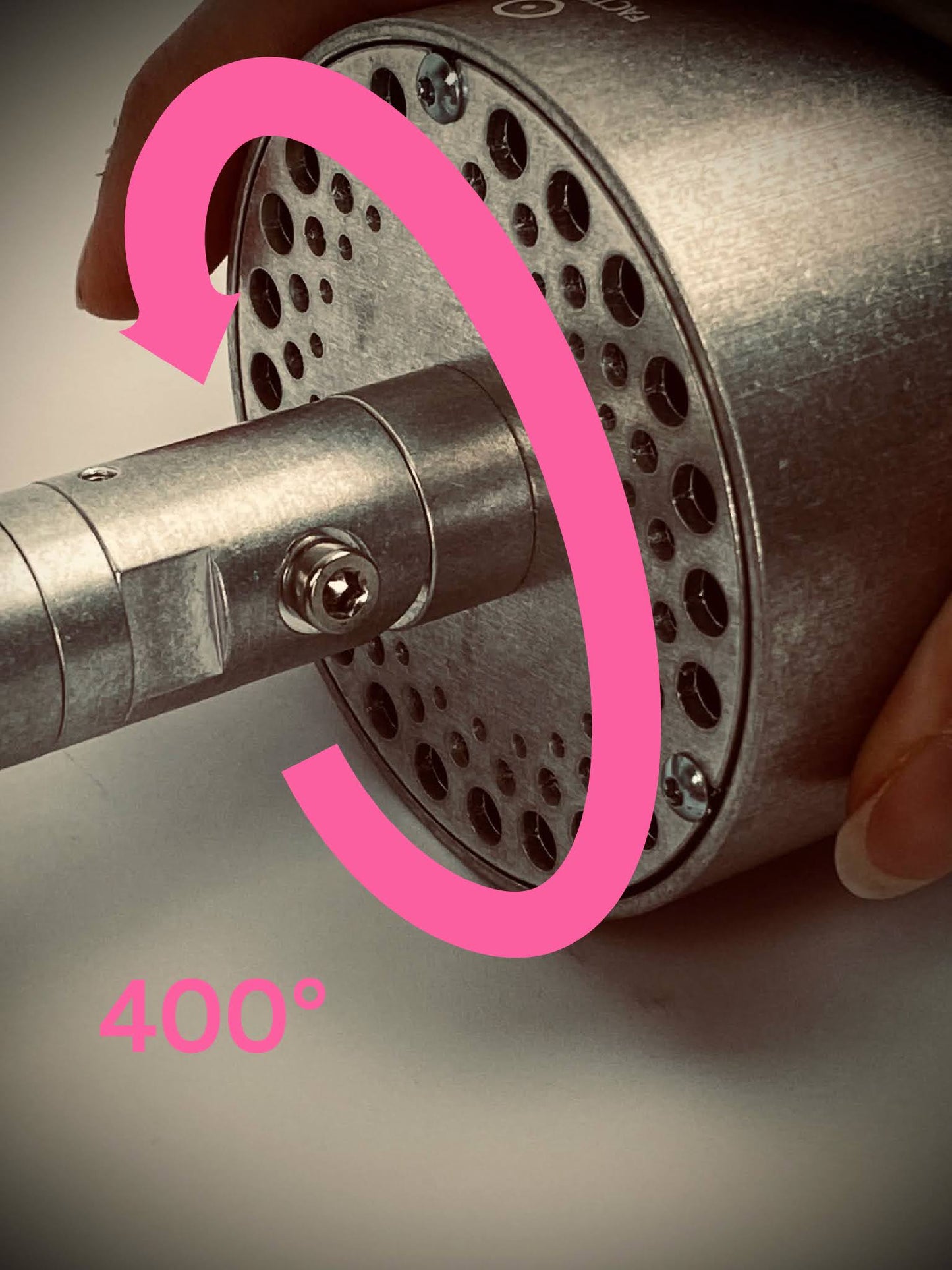

This professional architectural spotlight is designed for Circular Economy. Fully directional with rotation through 400° and lockable tilt, it can be specified with different luminaire optics and accessories.

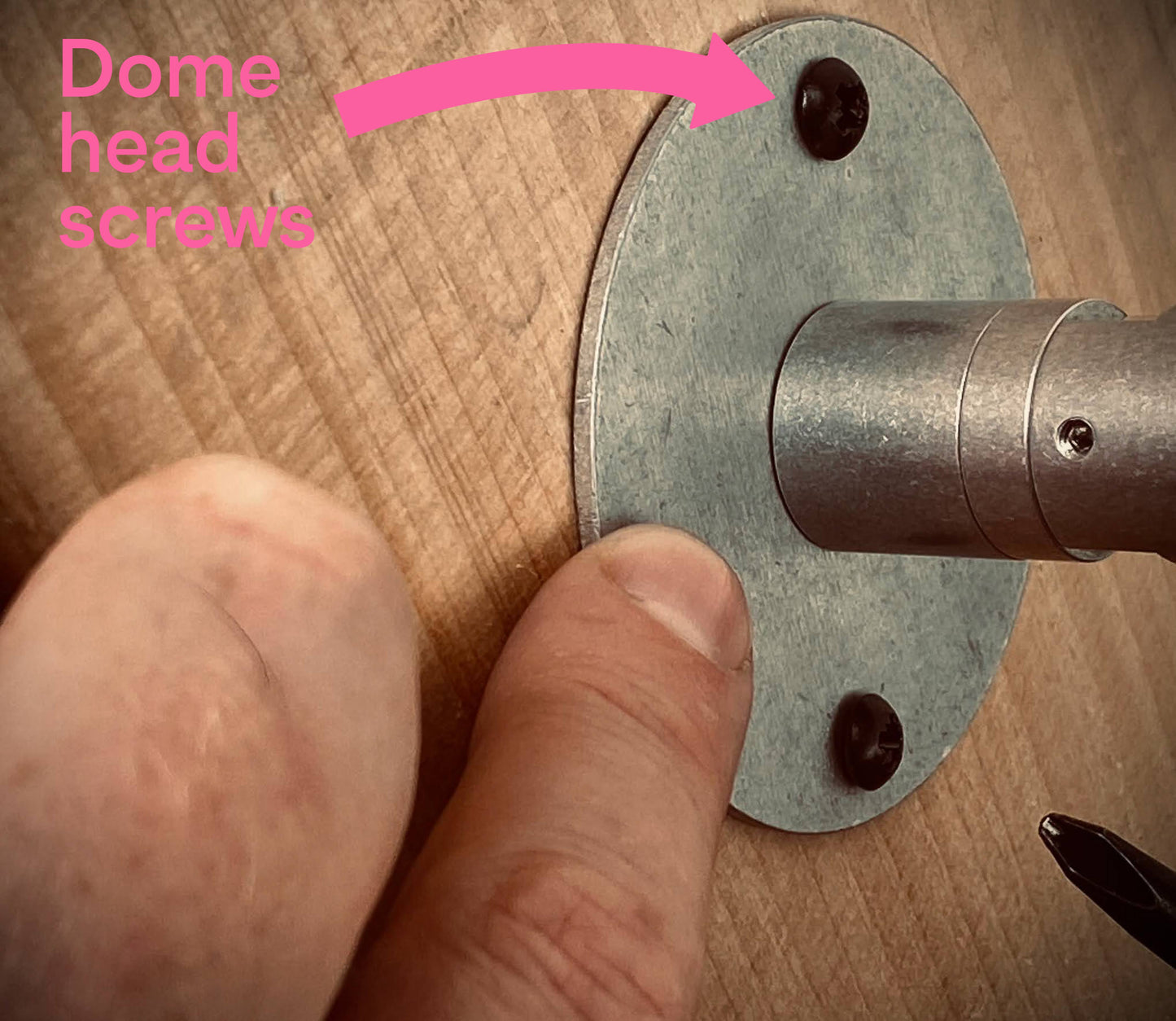

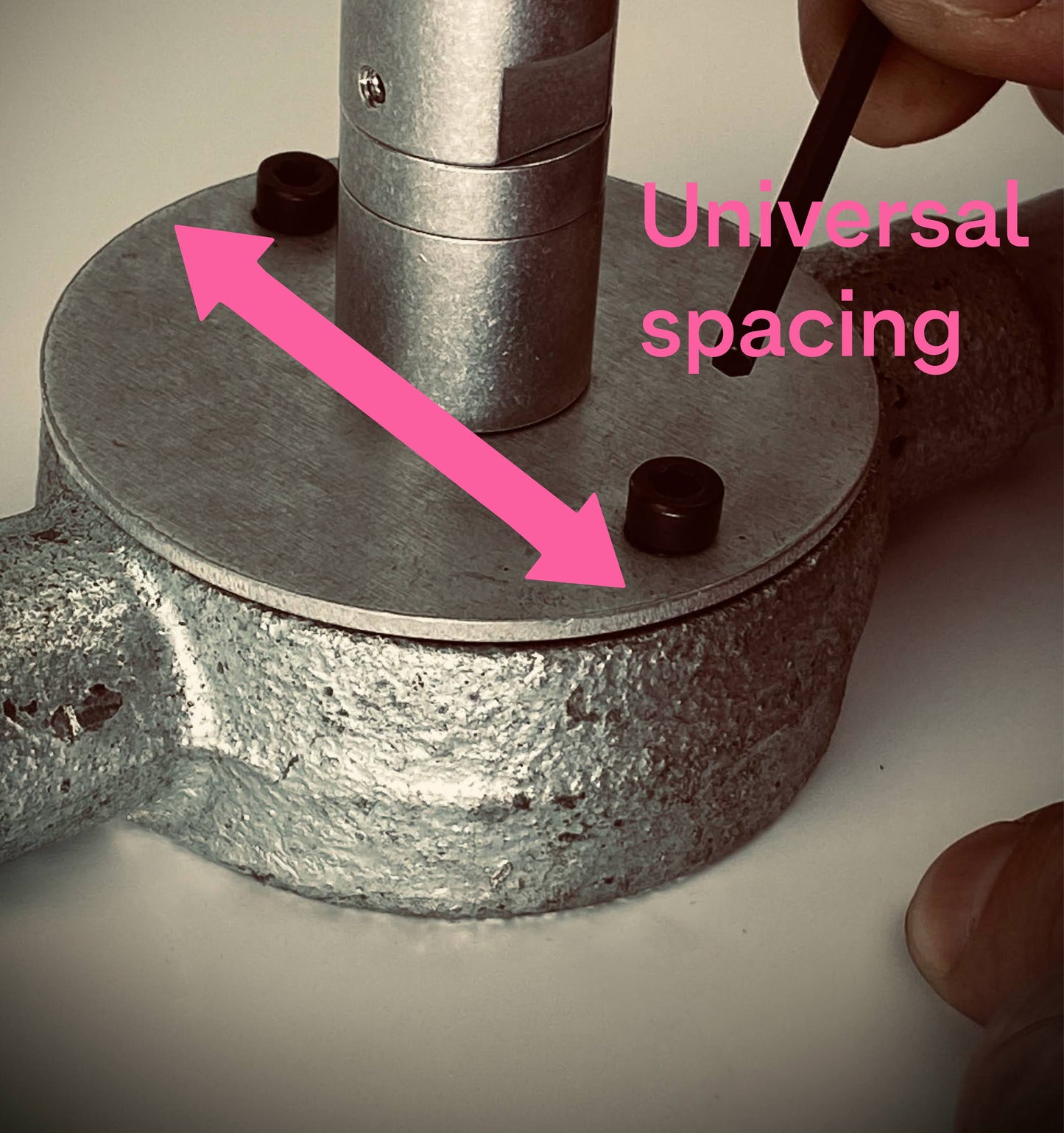

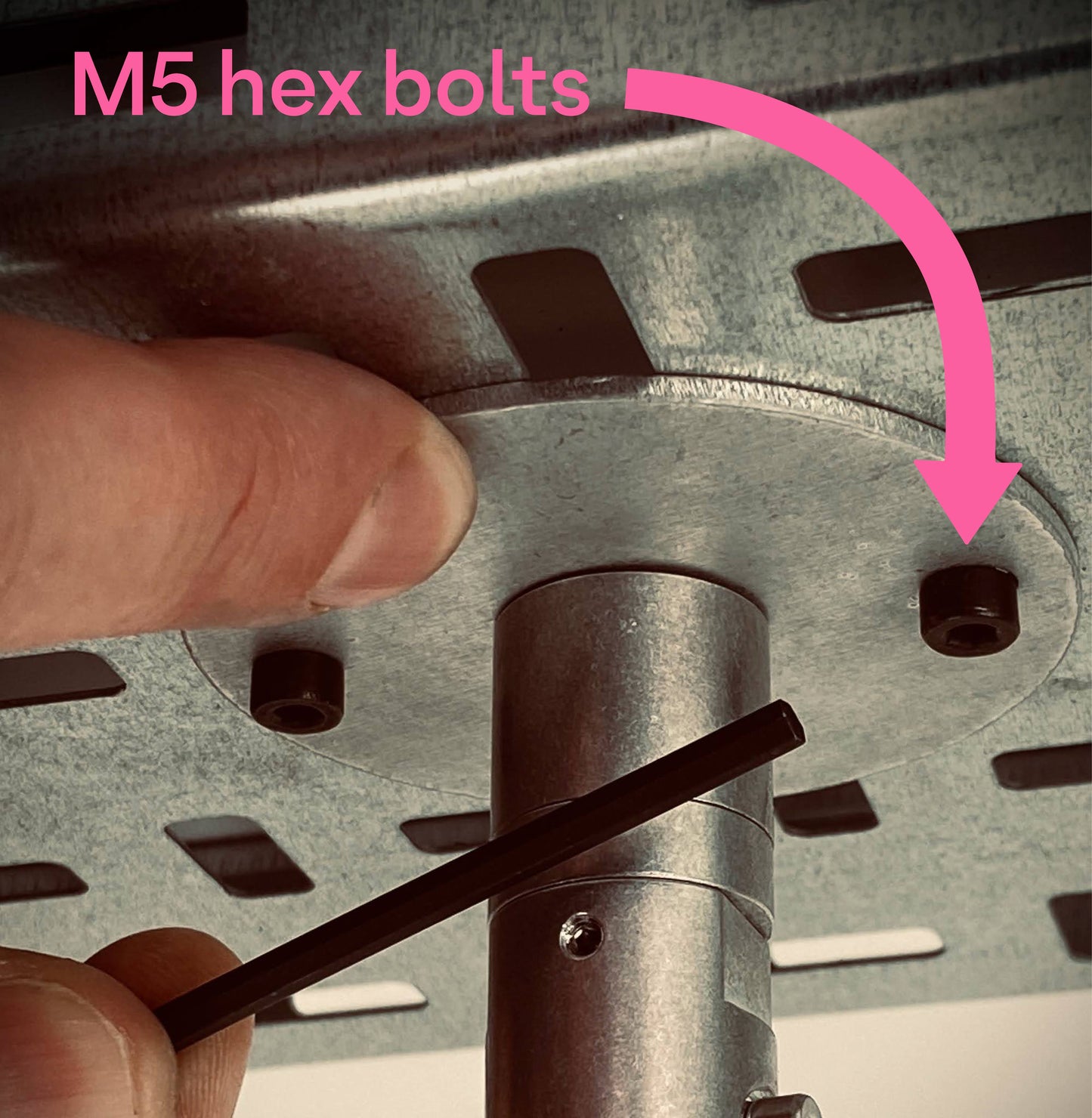

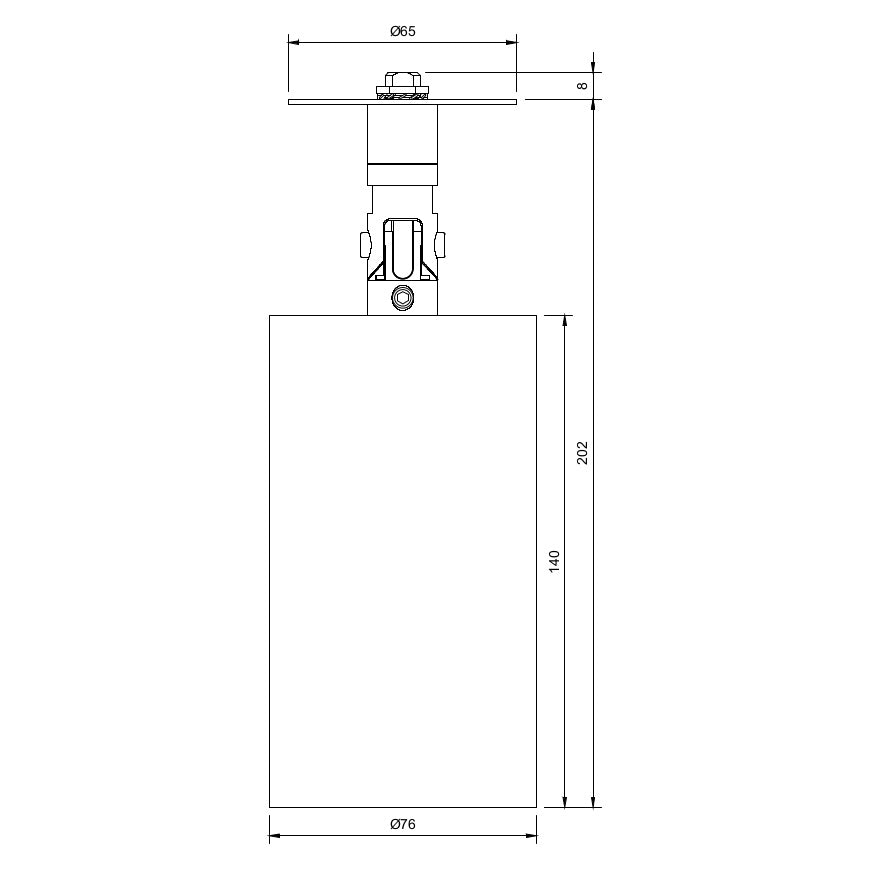

'Disc-Monopoint' is our smallest, most low-profile spotlight mounting. A completely flat, 65mm diameter x 2mm thick circular plate with standard BESA (50.8mm) hole spacings. Fix to conduit box, pattress or surface mount to cable tray, timber, cladding or other suitable material.
'Custom Finish' is our Magic-Paint™ solution for projects that require any finish other than black or Stone-Rumbled™, choose a colour match from 250+ RAL codes. Regular paint and powder coatings create seriously harmful pollution and are a major source (some studies say most) of microplastics in the environment. Magic-Paint™ is made from natural materials such as clay and does not contain any plastics, Isocyanates, VOCs or EPA-listed toxic organics.
Life Cycle Assessment: this luminaire is second in line to its Stone-Rumbled™ sister but if it's got to be black, this one outperforms the market average and can still help you realise your sustainable development goals or environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake ™: Our factory can disassemble 'used' Black luminaires & re-use body components within our 'worn' lighting
- Magic-Packaging ™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics.
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines














Every Ninety-Nine™ spotlight light is designed and assembled in Yorkshire.
Our team deliver science-based Circular Economy at sensible prices your project can afford.


No sale reps. No agents. No exclusive distributors. No golf trips.
Experience our modern digital-first workflow and big cost savings for your project.
