Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Custom Finish
- Weight: 0.7kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 2000lm 2700K | 2120lm 3000K | 2270lm 3500K | 2340lm 4000K
- Luminaire Efficacy: Up to 110 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 425mA
- Power Consumption (max. typ.): 16.0 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°, Spreader, Wall Wash
- Accessories: Honeycomb Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This professional architectural spotlight is designed for Circular Economy. Fully directional with rotation through 400° and lockable tilt, it can be specified with different luminaire optics and accessories.
'Large Monopoint' is a 160mm diameter X 75mm deep circular spotlight mounting / enclosure that's big enough to house the driver and all electrical connections. The monopoint body attaches to a separate, surface mounted bracket via M4 bolts located on opposite sides. The bracket itself has standard BESA (50.8mm) hole spacings for fixing to walls, ceilings, cable tray or other suitable surfaces / materials.
'Custom Finish' is our Magic-Paint™ solution for projects that require any finish other than black or Stone-Rumbled™, choose a colour match from 250+ RAL codes. Regular paint and powder coatings create seriously harmful pollution and are a major source (some studies say most) of microplastics in the environment. Magic-Paint™ is made from natural materials such as clay and does not contain any plastics, Isocyanates, VOCs or EPA-listed toxic organics.
Life Cycle Assessment: this luminaire is second in line to its Stone-Rumbled™ sister but if it's got to be black, this one outperforms the market average and can still help you realise your sustainable development goals or environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake ™: Our factory can disassemble 'used' Black luminaires & re-use body components within our 'worn' lighting
- Magic-Packaging ™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics.
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines

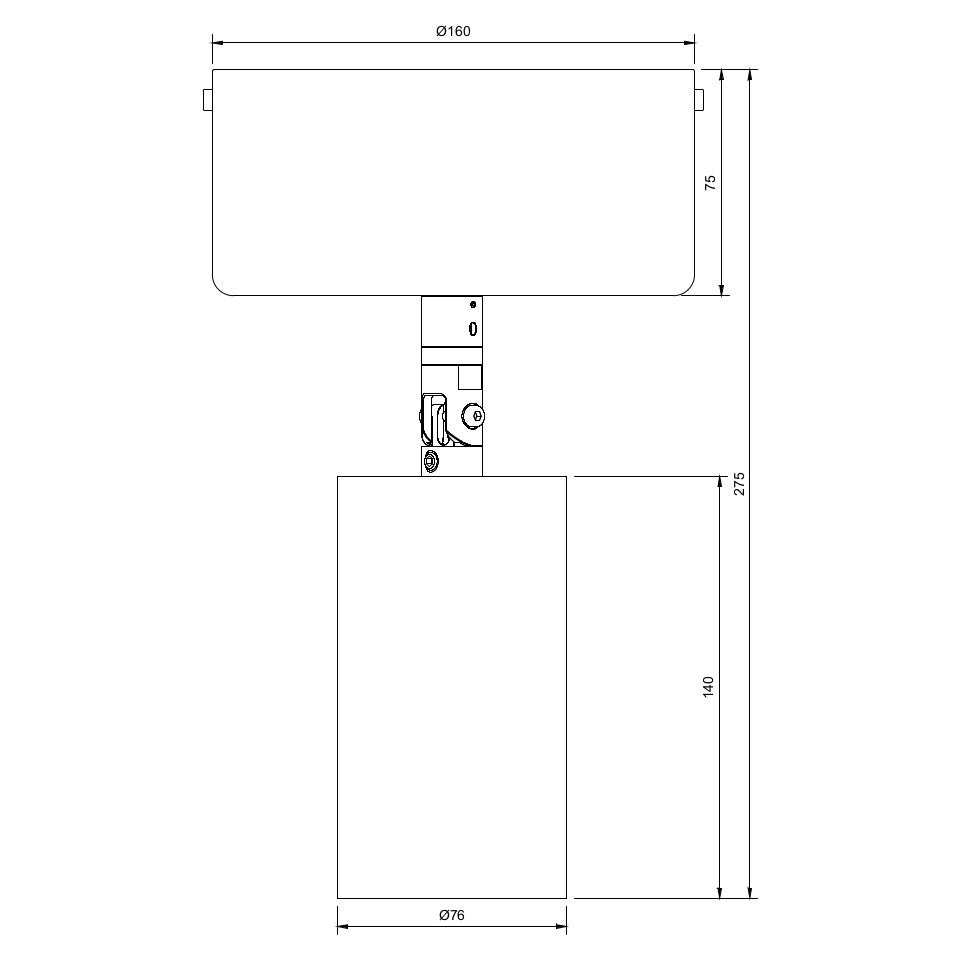

![Technical drawing of a circular economy architectural spotlight, with large monopoint mounting and BESA hole spacings](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Large-Monopoint-Line-Drawing_f0e82ca4-eda6-4a68-96be-18608b907875.jpg?v=1696350807&width=1445)

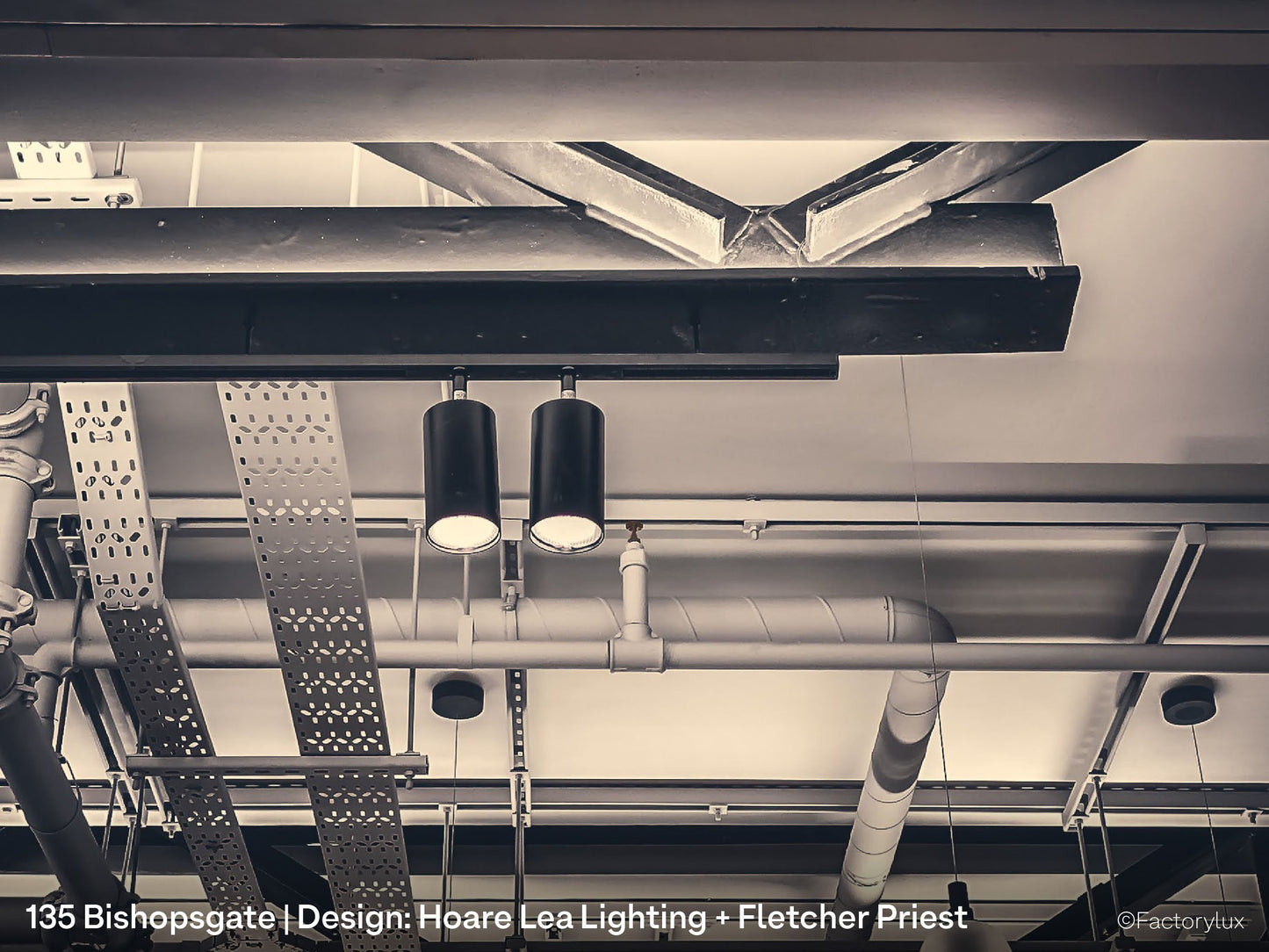

![Minimalist design fintech office fit-out with cable tray mounted black track and sustainable black spotlights](http://factorylux.com/cdn/shop/files/135-Bishopsgate-Hoare-Lighting-Fletcher-Priest-Ninety-Nine-1_8d3bfd0b-c6be-433c-99ce-21d23de62824.jpg?v=1697164751&width=1445)

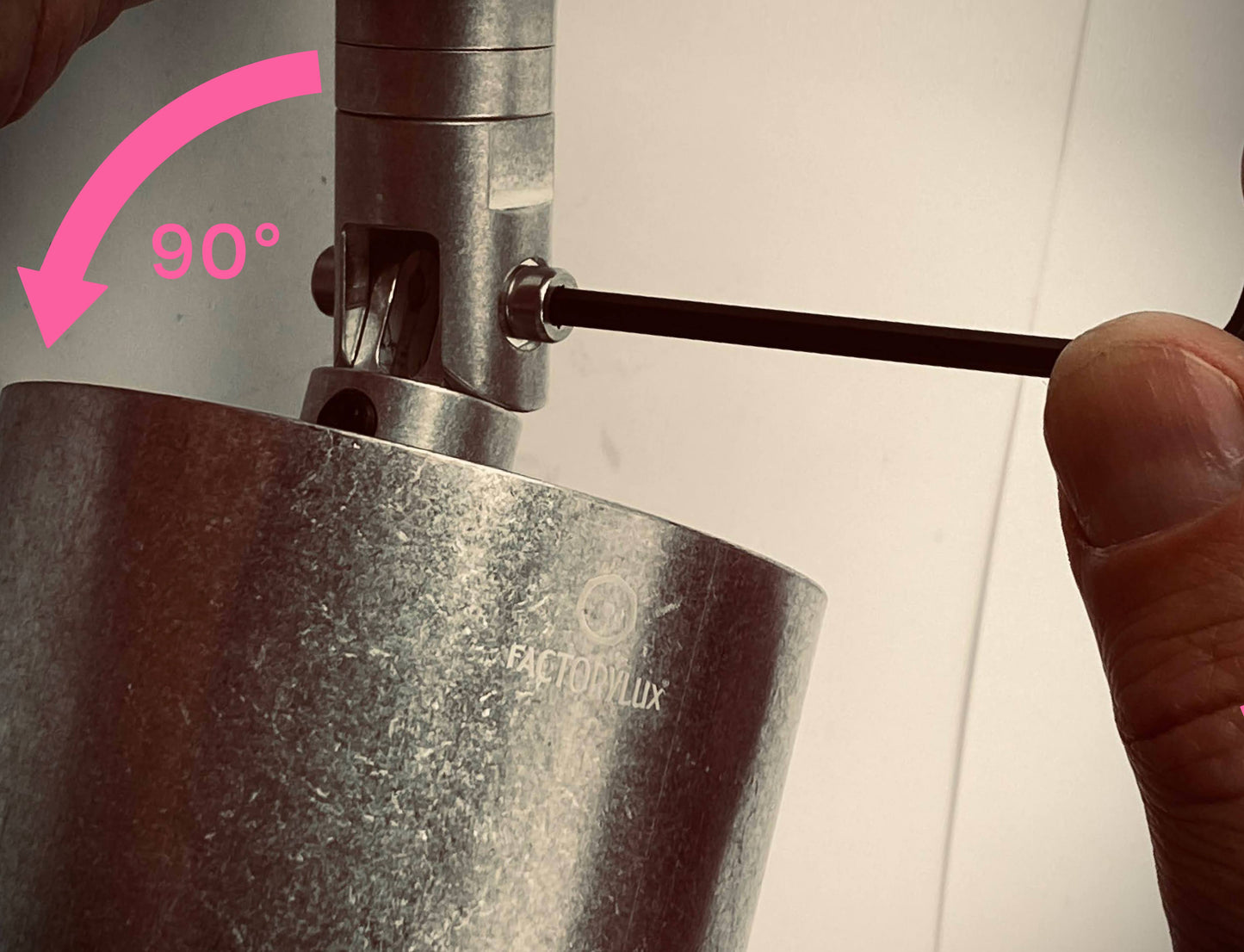

![How to adjust and lock-off the knuckle joint on a custom finish, circular economy architectural spotlight made by Factorylux, using a hex key](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Stone-Rumbled-Knuckle-Joint-Adjust_3bae2ecd-3fee-45c4-acf0-5848ab2d7412.jpg?v=1697164751&width=1445)

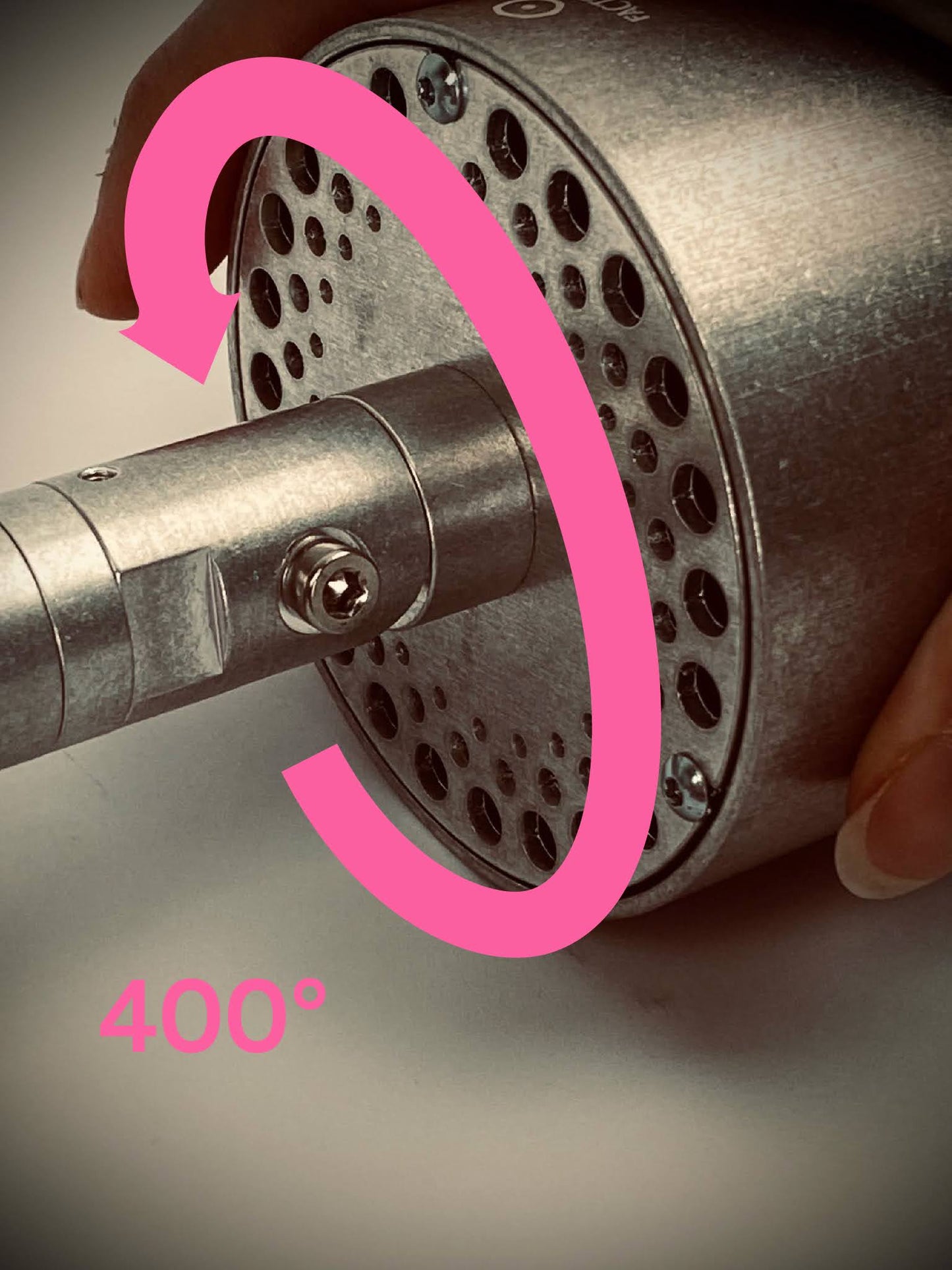

![How to rotate swivel joint on a on a custom finish, circular economy architectural spotlight made by Factorylux](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Stone-Rumbled-Swivel-Joint-Rotate_97439f71-9ce3-4a70-a8ac-e726b03032c7.jpg?v=1697164751&width=1445)

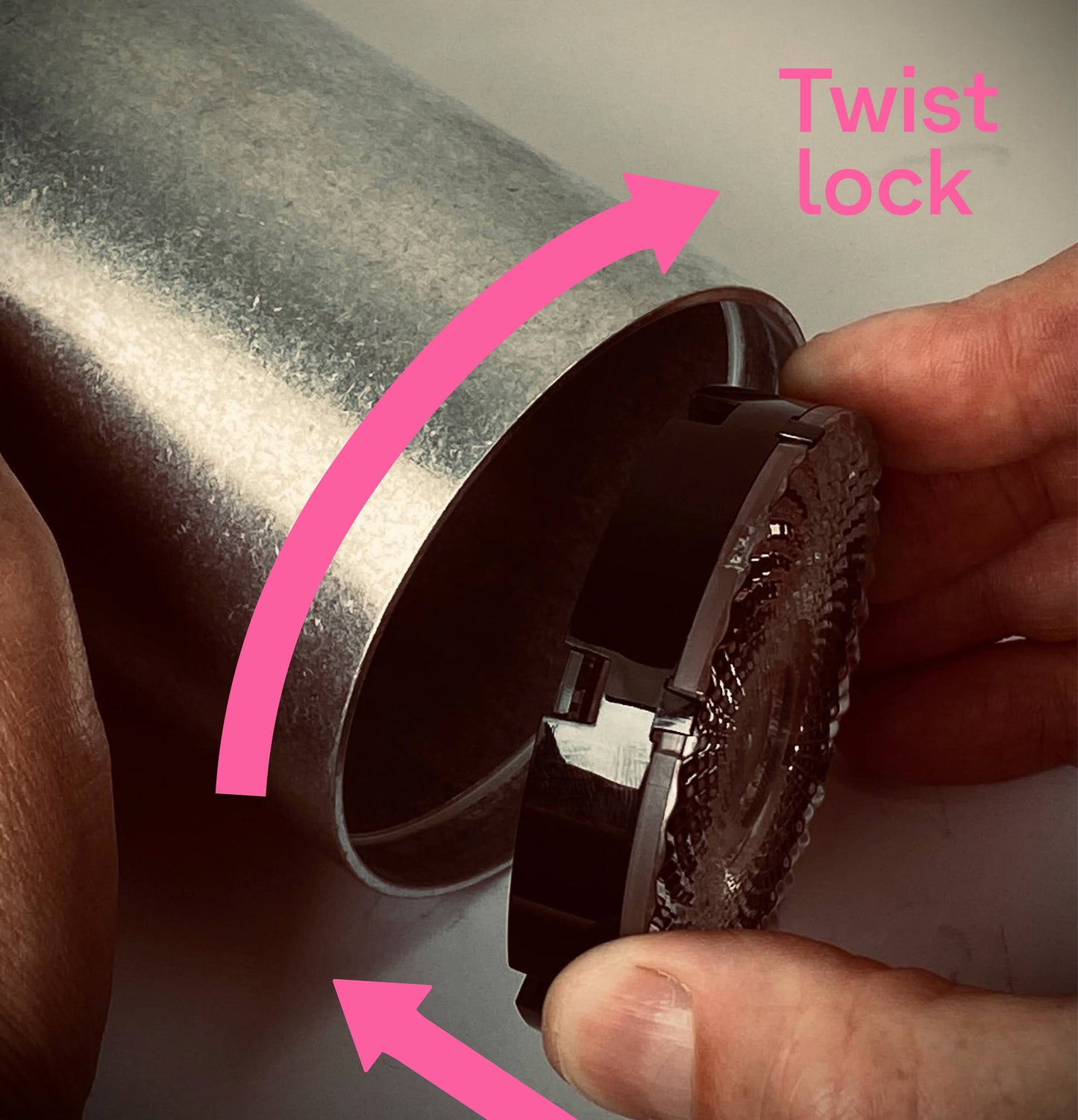

![How to insert the lens into a sustainable architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Stone-Rumbled-Removable-Lens_3fe89101-50c6-4dbb-ab13-978bbc957081.jpg?v=1697164751&width=1445)

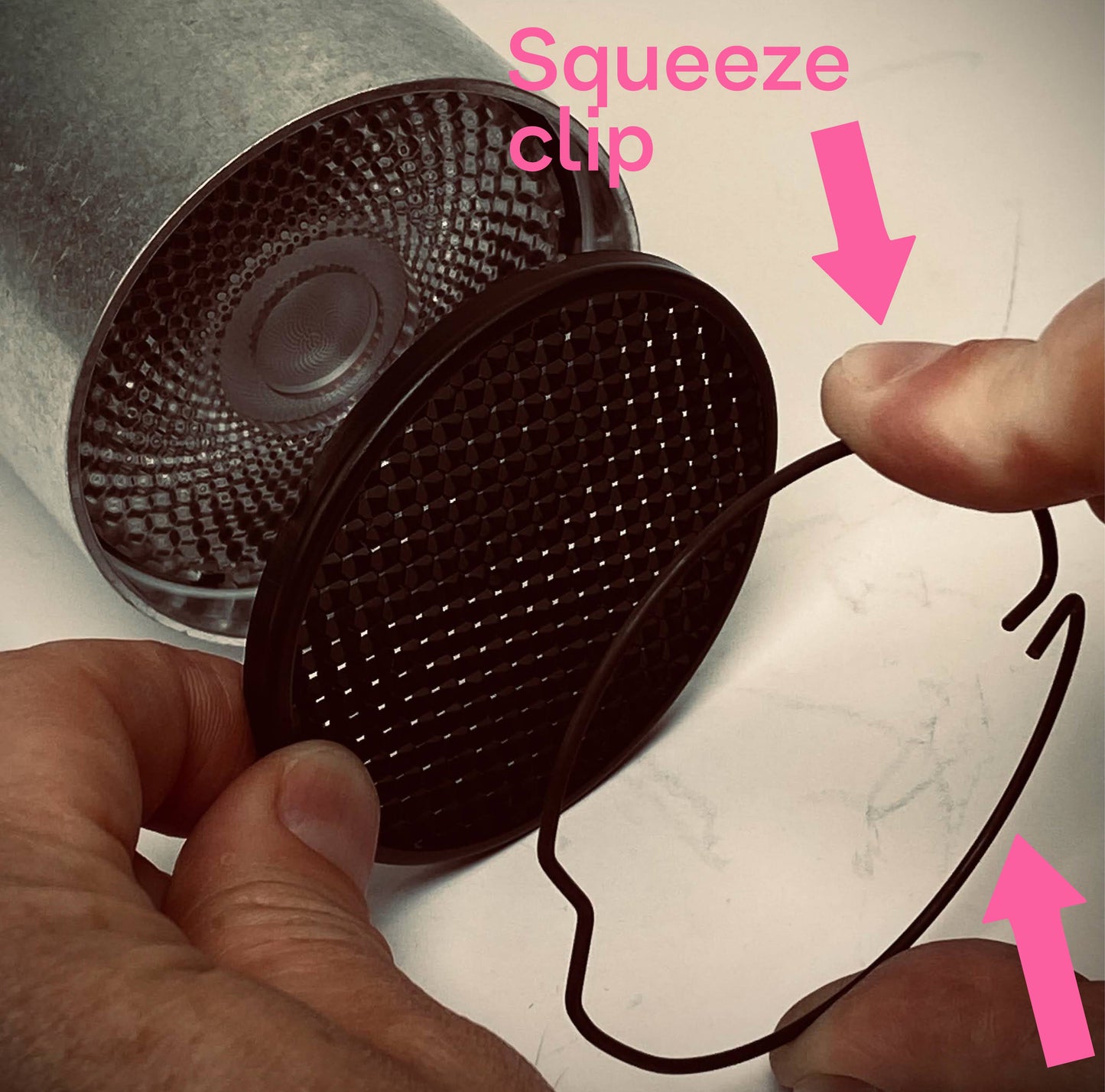

![How to attach honeycomb louvre onto a sustainable architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Stone-Rumbled-Honeycomb-Louvre_4117534e-99ba-4b46-965c-55545357bd7e.jpg?v=1697164751&width=1445)

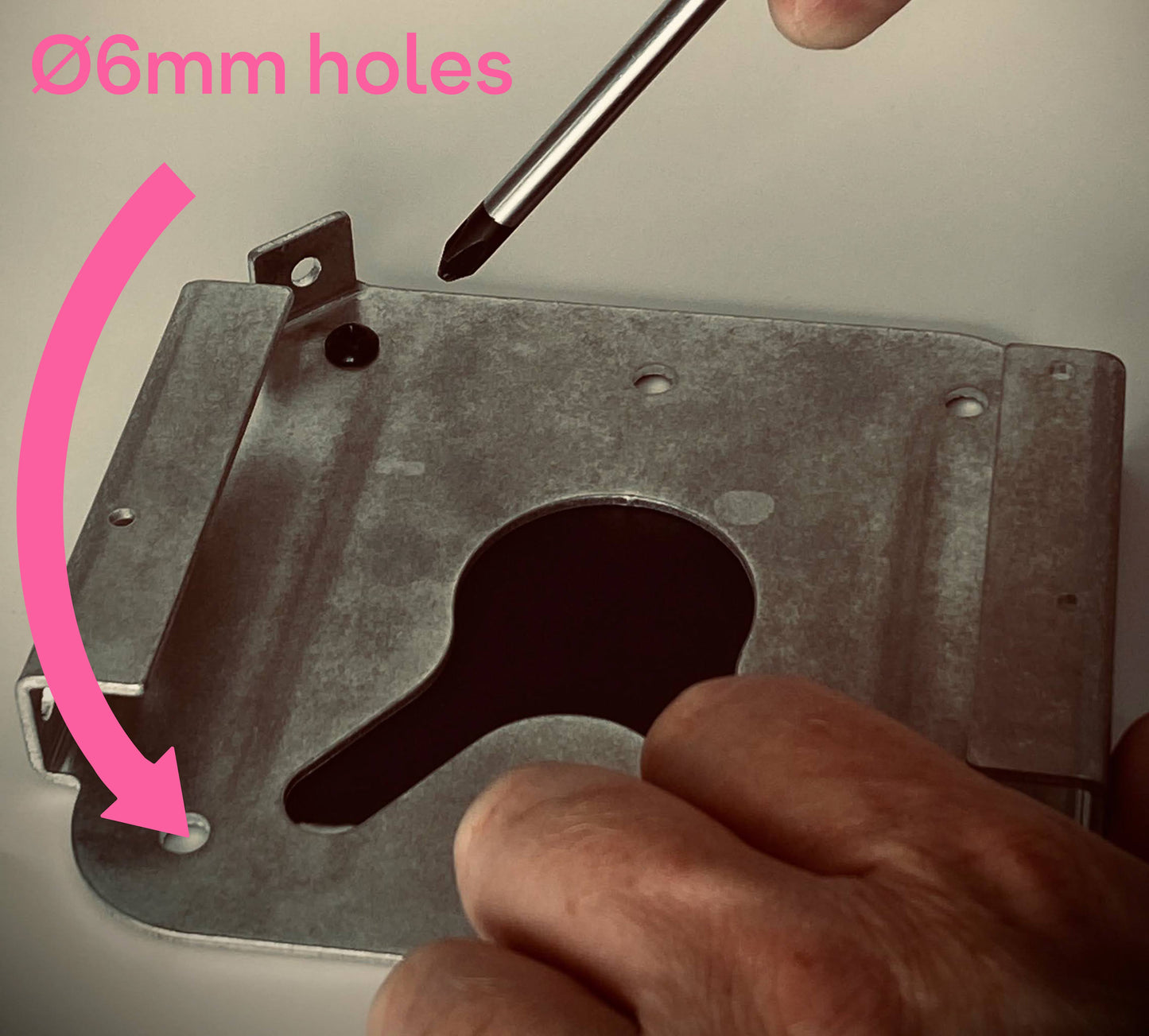

![How to install large monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Base-Install-Stone-Rumbled_270e4c62-4634-460b-a0b0-8df3ce468069.jpg?v=1697164751&width=1445)
![How to install large monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Top-Install-Stone-Rumbled_f3171920-833b-4668-a318-4f236573619d.jpg?v=1697164751&width=1445)

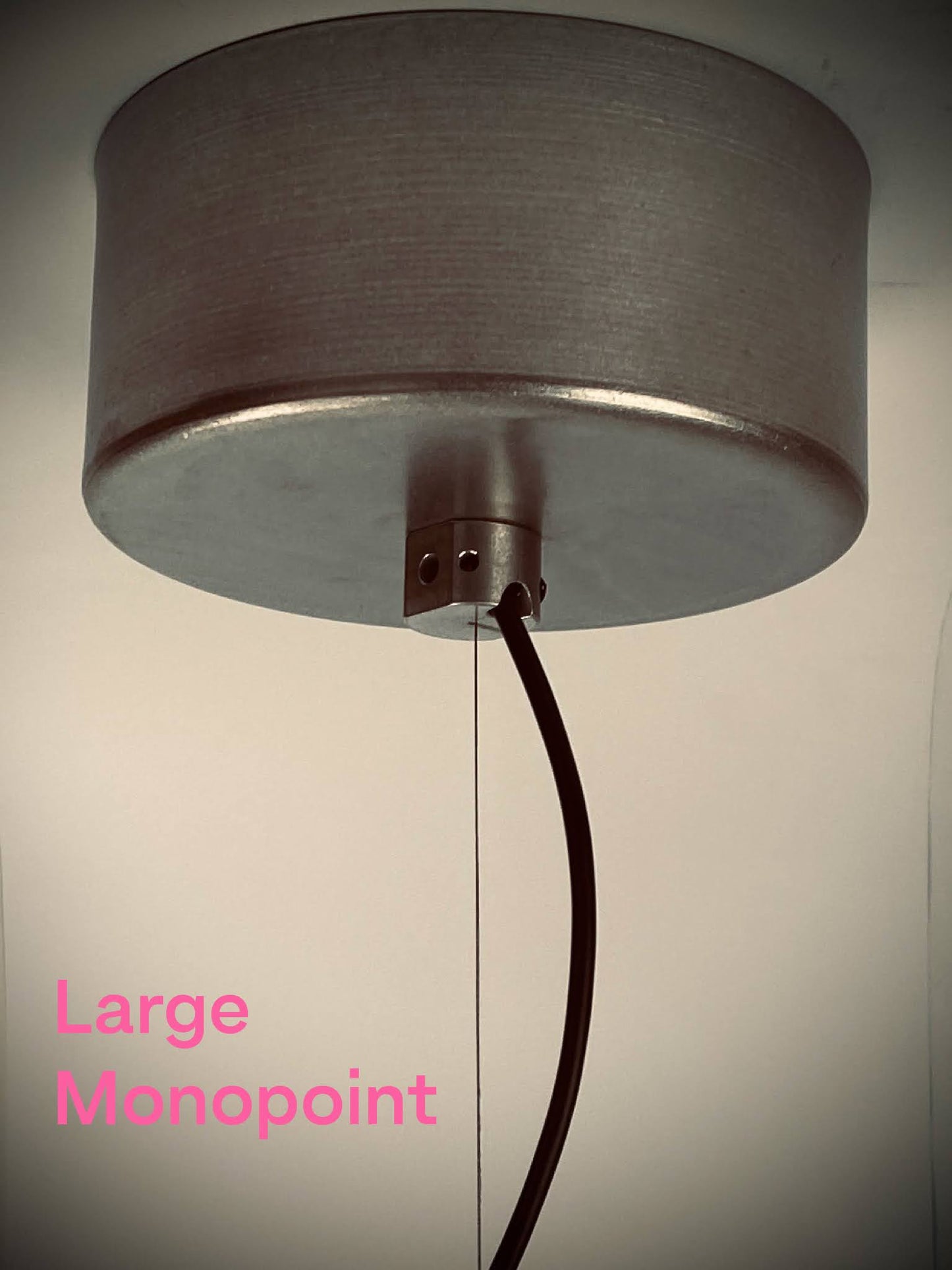

![Installed large monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Complete-Install-Stone-Rumbled_aefe007e-1e88-4d41-b9fe-614849247d4f.jpg?v=1697164751&width=1445)

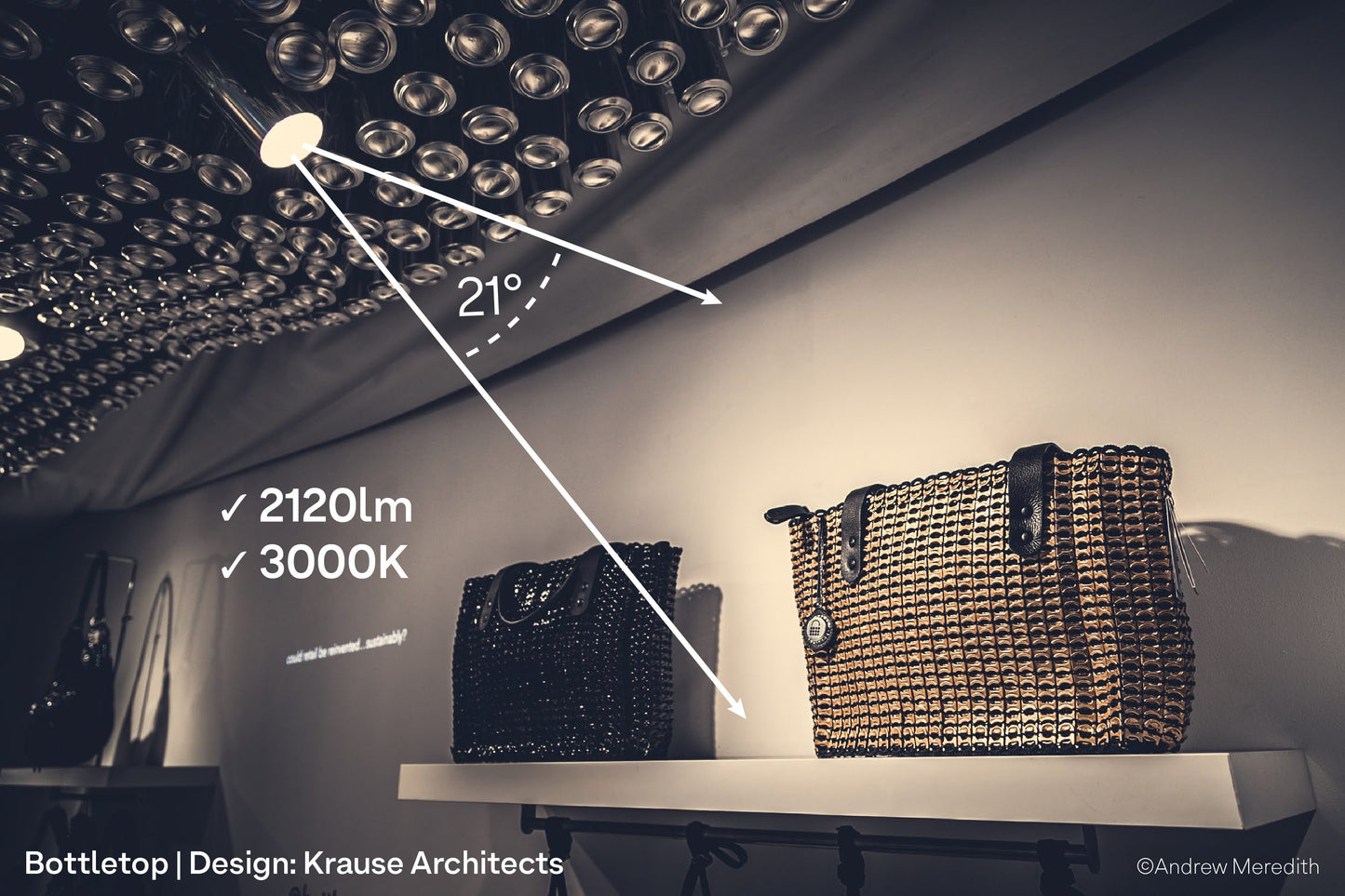

![Luxury handbag made of sustainable materials on display with spotlight at Bottletop's Haute Couture store](http://factorylux.com/cdn/shop/files/Bottletop-Krause-Architect-Ninety-Nine-Retail-Spotlight-2_21a0ca8a-8876-4217-ba64-917db331be37.jpg?v=1697164751&width=1445)

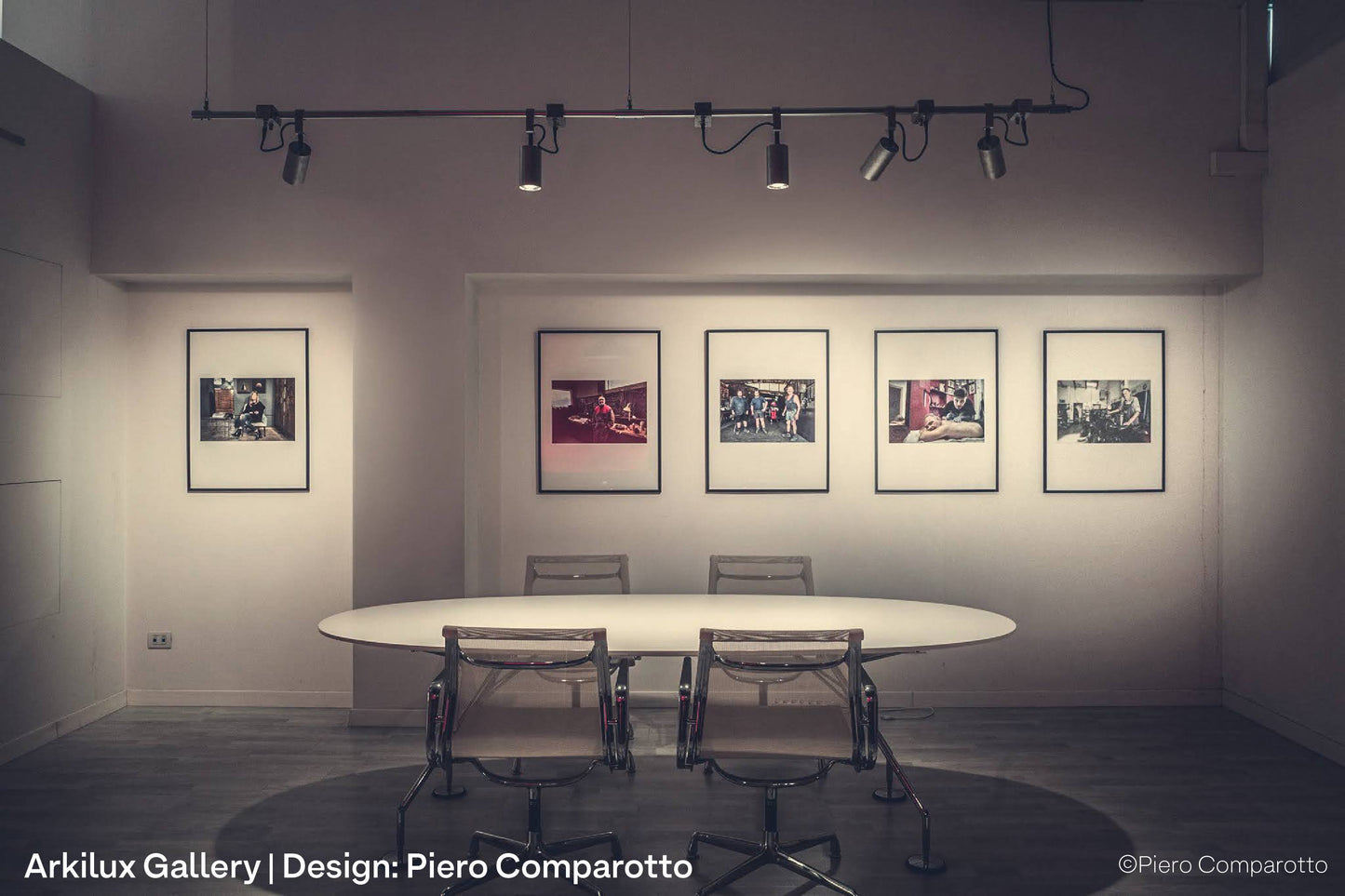

![Paintings and photography at a fine art gallery in Italy, illuminated by softbeam spotlights on lighting track](http://factorylux.com/cdn/shop/files/Arkilux-Art-Gallery-Lighting-Track-Pipe-Ninety-Nine-1_e1ad6381-bdb3-4754-b508-4bf0b5906ff2.jpg?v=1697164751&width=1445)

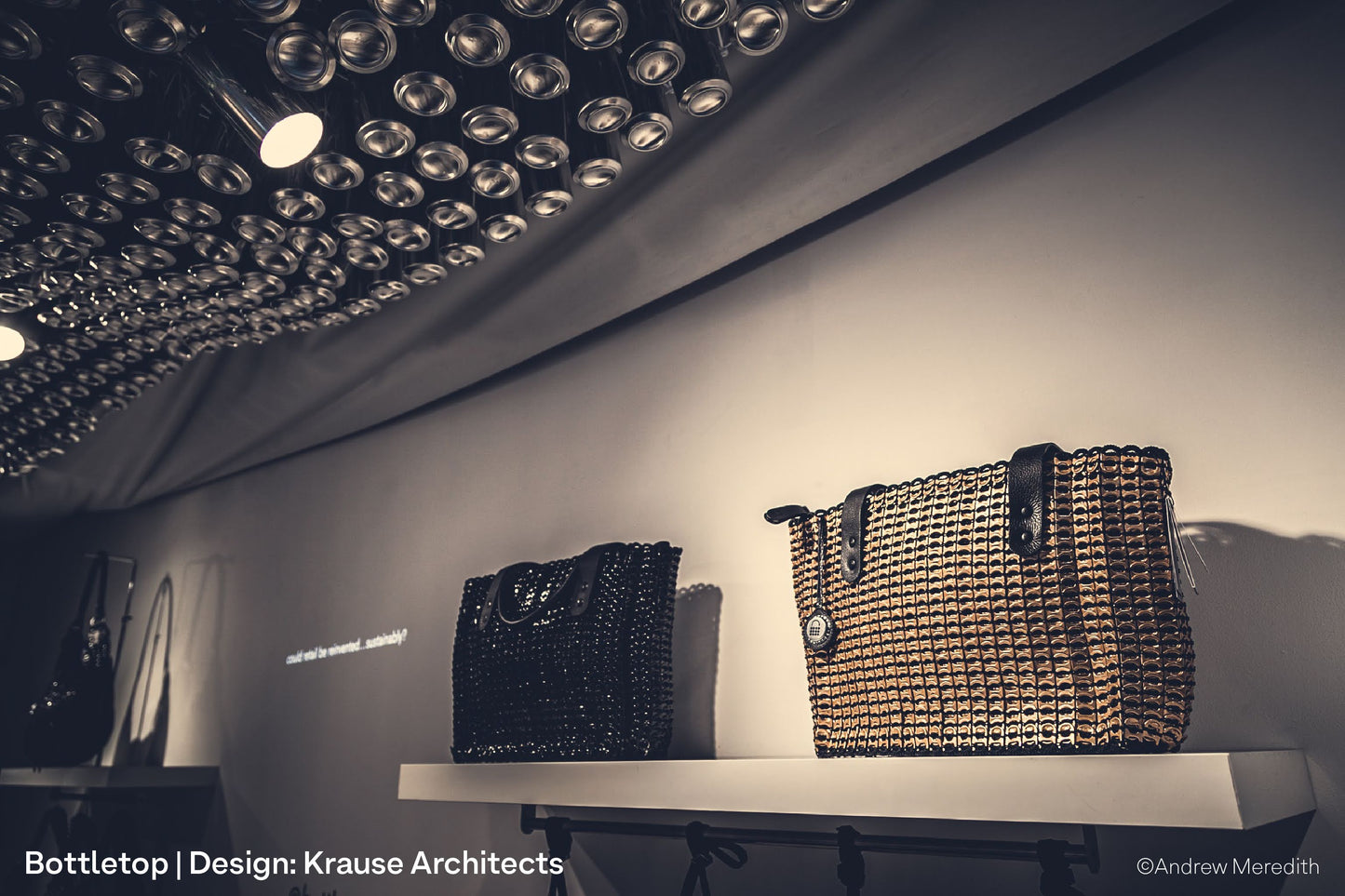

![Luxury handbag made of sustainable materials on display with spotlight at Bottletop's London retail store](http://factorylux.com/cdn/shop/files/Bottletop-Krause-Architect-Ninety-Nine-Retail-Spotlight-1_158edbe0-14fb-4fdb-ab67-a2948f8a4e45.jpg?v=1697164751&width=1445)

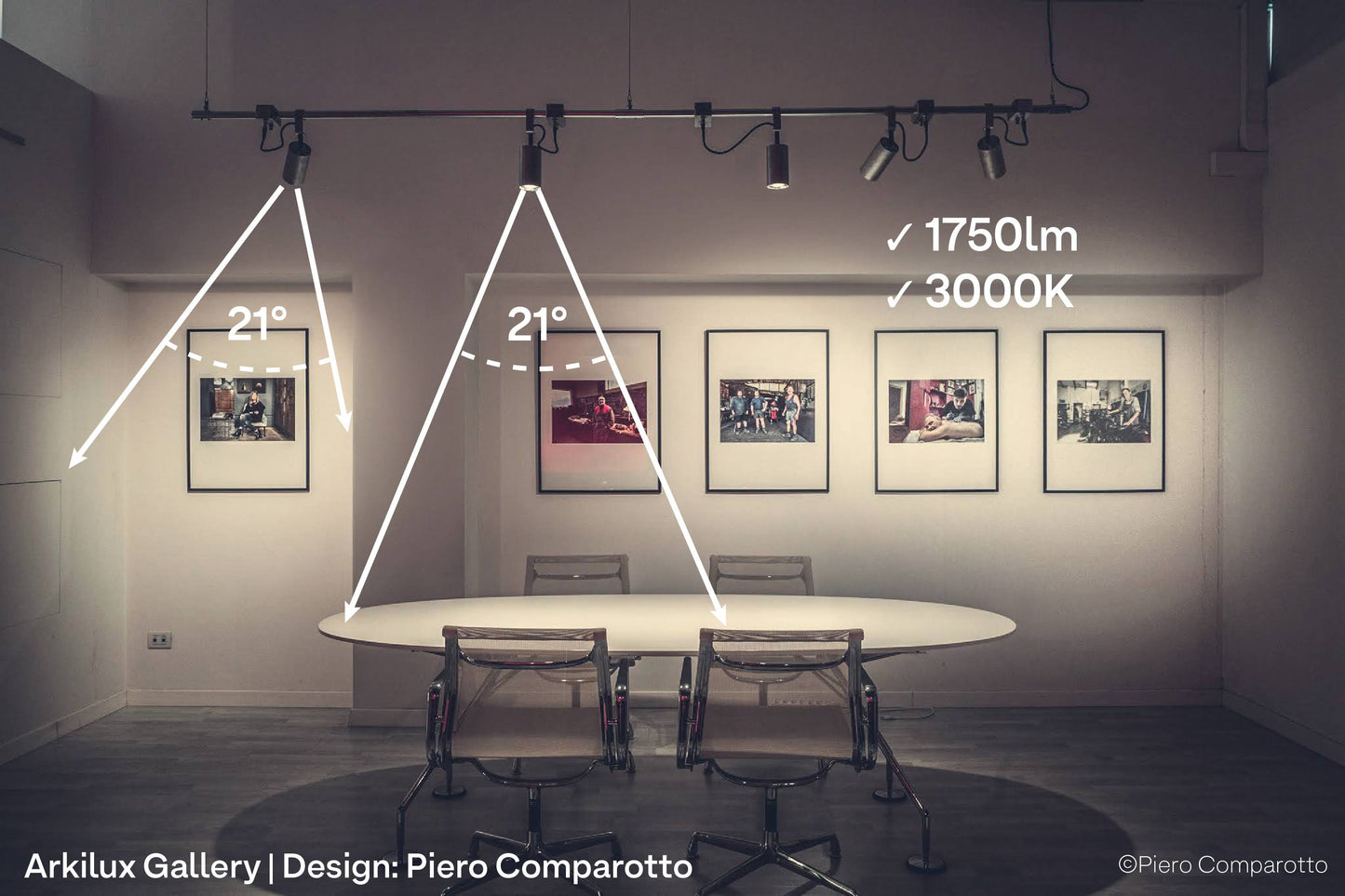

![Paintings and photography at a fine art gallery in Italy, illuminated by spotlights on lighting track](http://factorylux.com/cdn/shop/files/Arkilux-Art-Gallery-Lighting-Track-Pipe-Ninety-Nine-2_64561d33-58c9-4a37-b689-beedee7b1d8f.jpg?v=1697164751&width=1445)
