Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Custom Finish
- Weight: 0.7kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 2000lm 2700K | 2120lm 3000K | 2270lm 3500K | 2340lm 4000K
- Luminaire Efficacy: Up to 110 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 425mA
- Power Consumption (max. typ.): 16.0 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°, Spreader, Wall Wash
- Accessories: Honeycomb Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This professional architectural spotlight is designed for Circular Economy. Fully directional with rotation through 400° and lockable tilt, it can be specified with different luminaire optics and accessories.
'Small Monopoint' is a 65mm diameter X 30mm deep circular spotlight mounting / enclosure for housing electrical connections, with a sturdy flat lid. Standard BESA (50.8mm) rear hole spacings for surface mounting to walls, ceilings, cable tray or other suitable surfaces / materials.
'Custom Finish' is our Magic-Paint™ solution for projects that require any finish other than black or Stone-Rumbled™, choose a colour match from 250+ RAL codes. Regular paint and powder coatings create seriously harmful pollution and are a major source (some studies say most) of microplastics in the environment. Magic-Paint™ is made from natural materials such as clay and does not contain any plastics, Isocyanates, VOCs or EPA-listed toxic organics.
Life Cycle Assessment: this luminaire is second in line to its Stone-Rumbled™ sister but if it's got to be black, this one outperforms the market average and can still help you realise your sustainable development goals or environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake ™: Our factory can disassemble 'used' Black luminaires & re-use body components within our 'worn' lighting
- Magic-Packaging ™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics.
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines

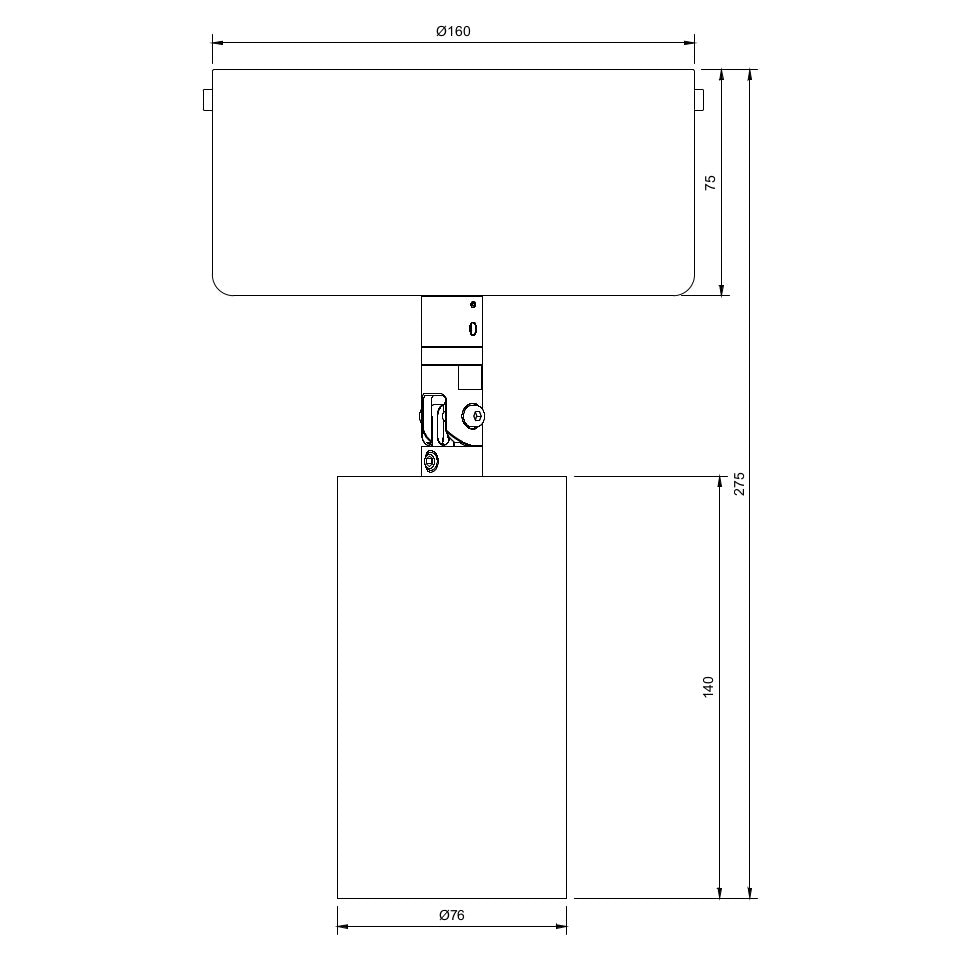

![Technical drawing of a circular economy architectural spotlight, with small monopoint mounting and BESA hole spacings](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Large-Monopoint-Line-Drawing_fae8a1d7-4879-4002-90ab-715c69552a0f.jpg?v=1696350827&width=1445)
![In-store display of sustainable handbags, at London's Bottletop fashion coutre shop, with VOC-free retail spotlights](http://factorylux.com/cdn/shop/files/Bottletop-Krause-Architect-Ninety-Nine-Retail-Spotlight-4.jpg?v=1697165004&width=1445)

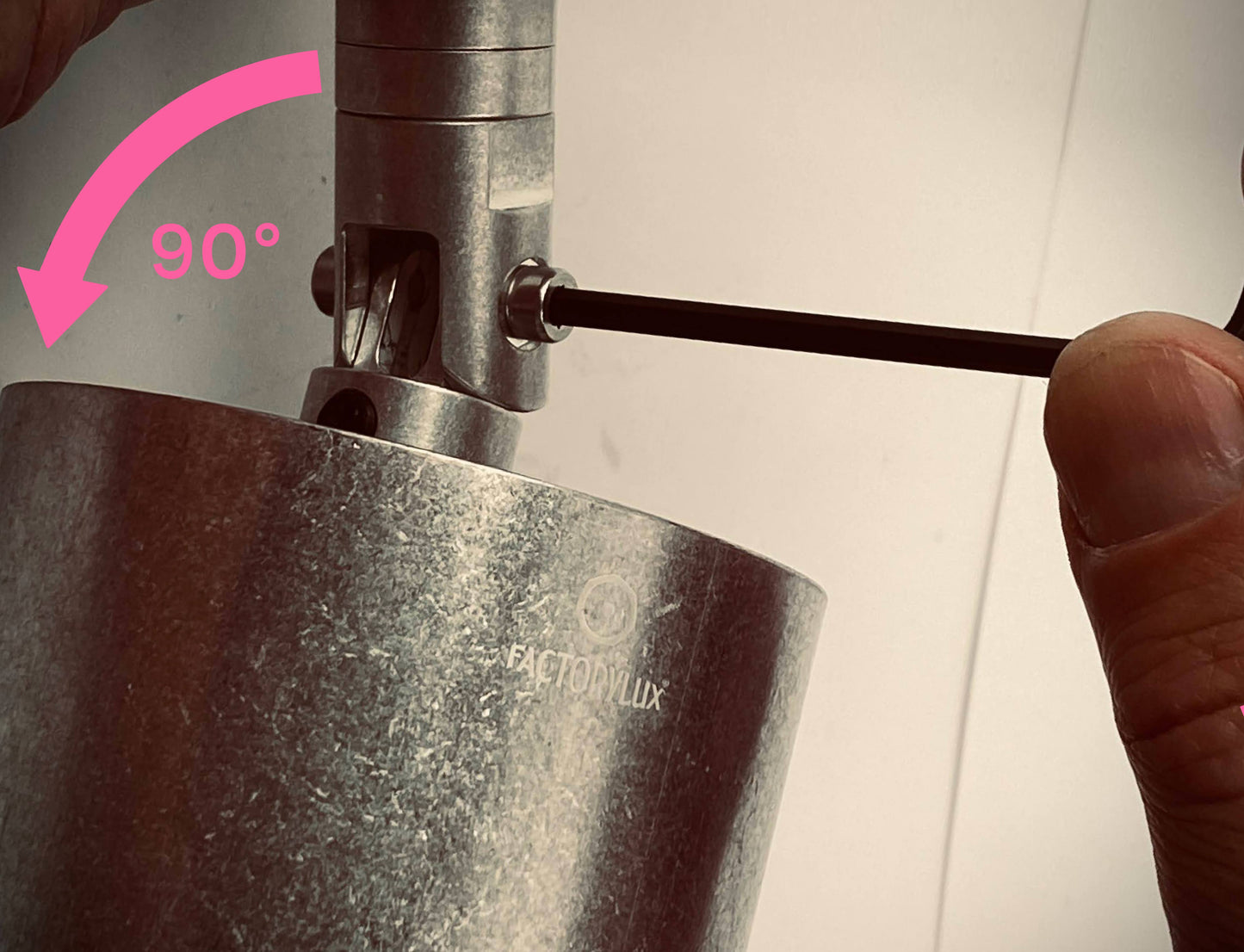

![How to rotate swivel joint on a on a custom finish, circular economy architectural spotlight made by Factorylux](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Stone-Rumbled-Knuckle-Joint-Adjust_7f51bf06-a9cc-4a0f-b7f2-ba85a0fba971.jpg?v=1697165004&width=1445)

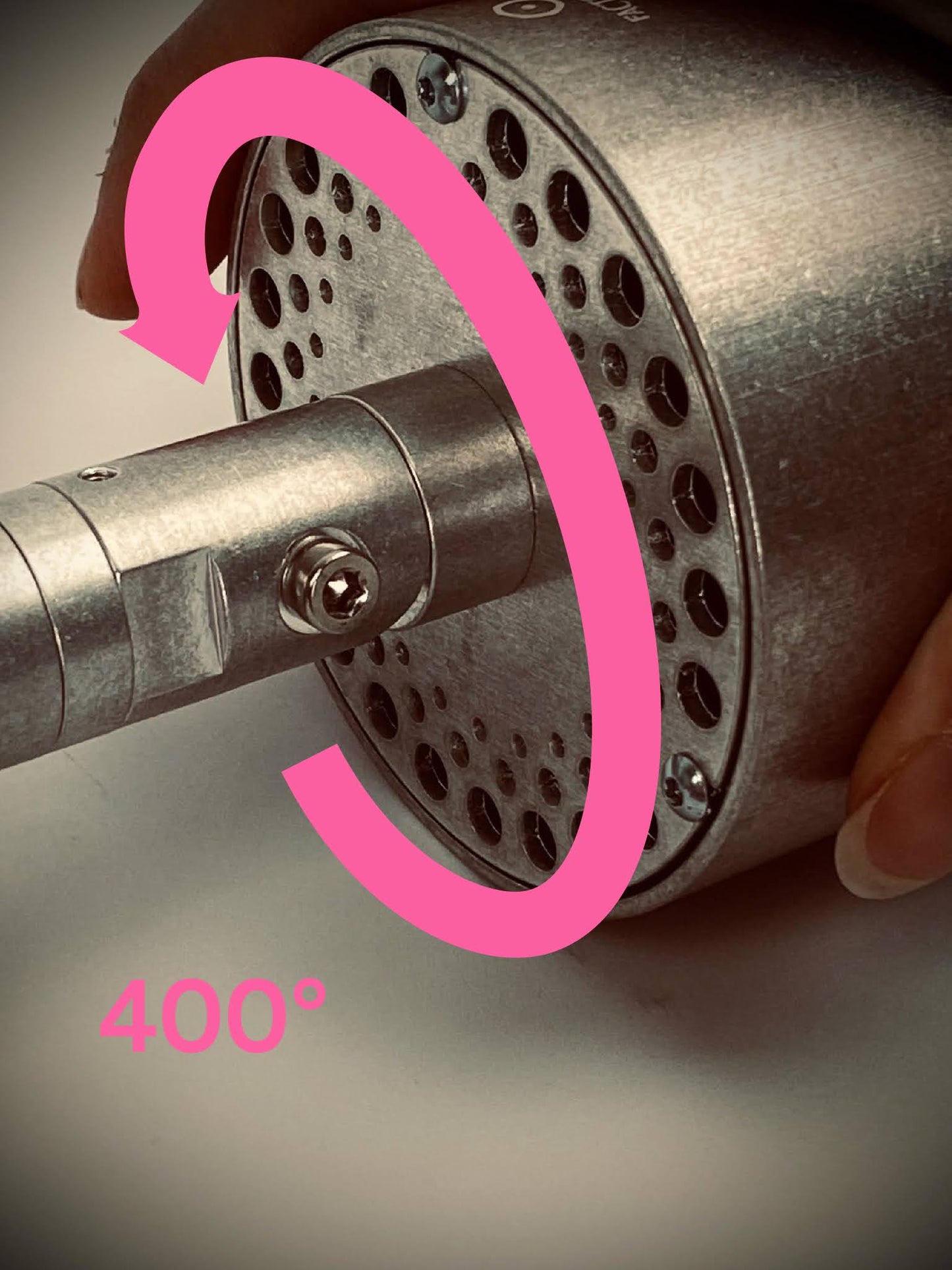

![How to rotate swivel joint on a on a custom finish, circular economy architectural spotlight made by Factorylux](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Stone-Rumbled-Swivel-Joint-Rotate_60d218ac-90af-4f2e-8136-34c76f258c56.jpg?v=1697165004&width=1445)

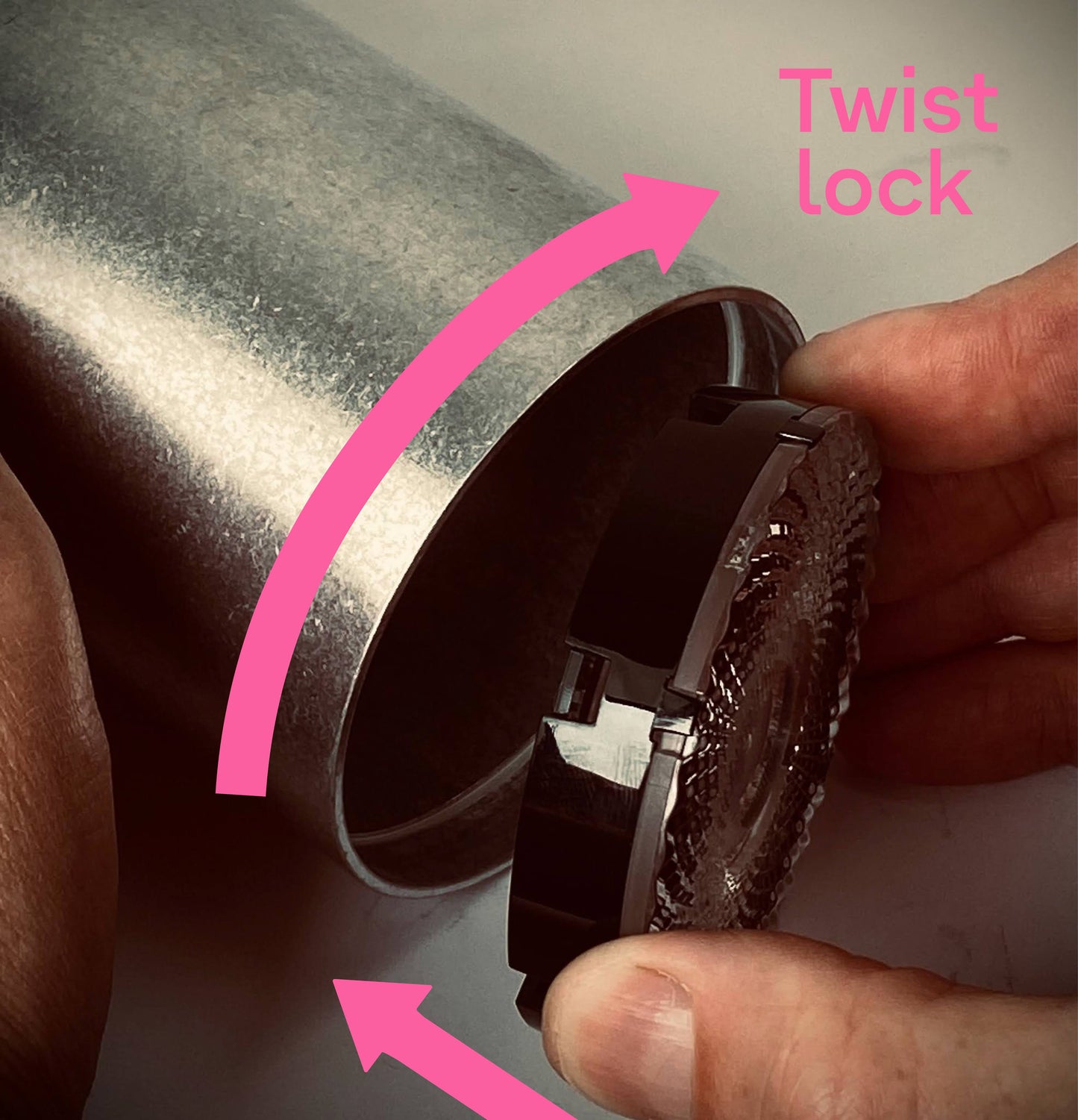

![How to insert the lens into a sustainable architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Stone-Rumbled-Removable-Lens_88226bfb-e99e-48d6-88e6-28c95af56f48.jpg?v=1697165004&width=1445)
![How to attach honeycomb louvre onto a sustainable architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Ninety-Nine-Stone-Rumbled-Honeycomb-Louvre_d786d5fb-1579-4174-9f52-4be8b0554c4c.jpg?v=1697165004&width=1445)

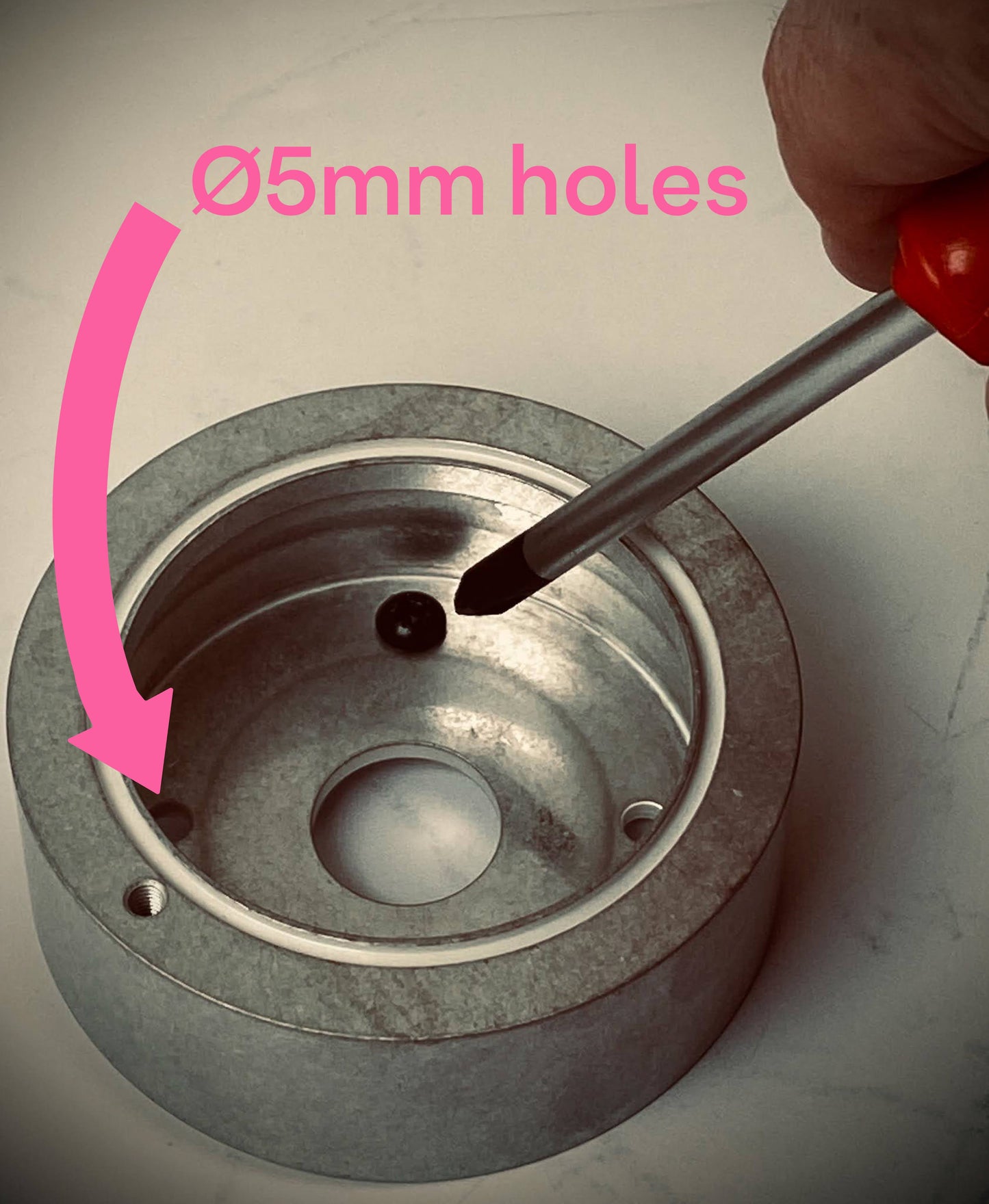

![How to install small monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Small-Monopoint-Base-Install-Stone-Rumbled_7bbf028d-f763-4a34-8322-55a92827da8f.jpg?v=1697165004&width=1445)

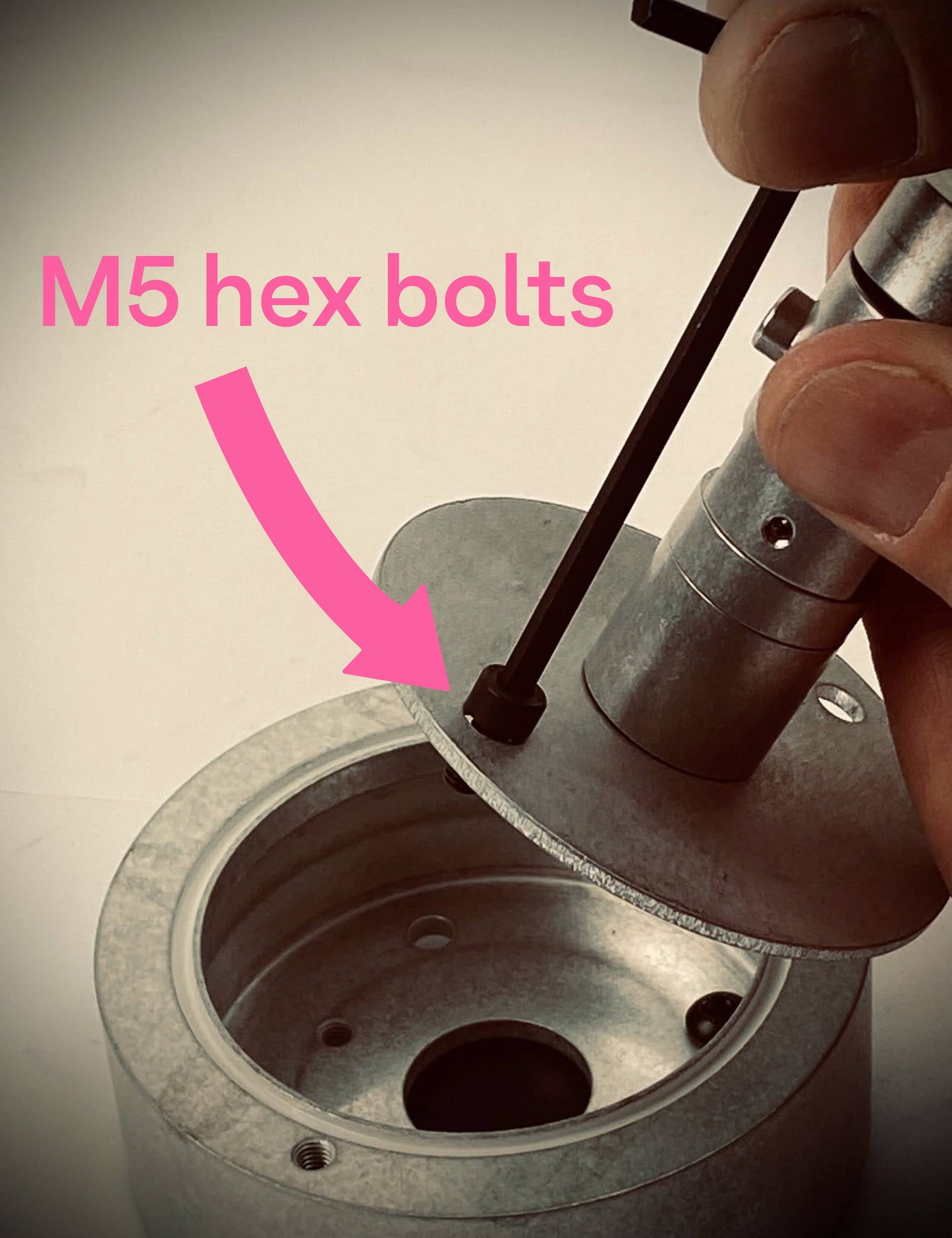

![How to install small monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Small-Monopoint-Top-Install-Stone-Rumbled_3489c156-2ccb-4f96-b87a-35505ce6506d.jpg?v=1697165004&width=1445)

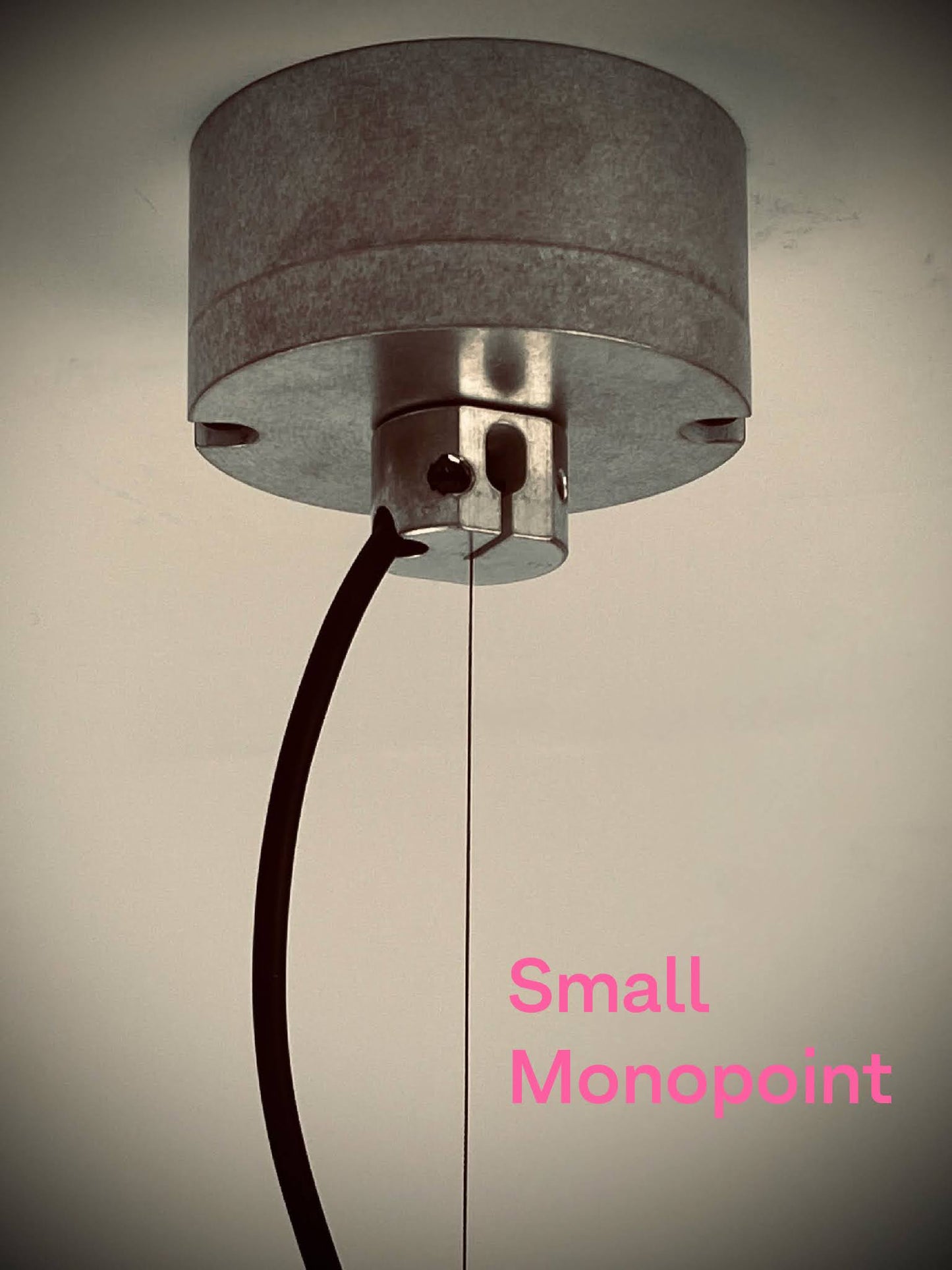

![Installed small monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Small-Monopoint-Complete-Install-Stone-Rumbled_8fc38307-f57a-4100-a292-c2e7ba5258c9.jpg?v=1697165004&width=1445)

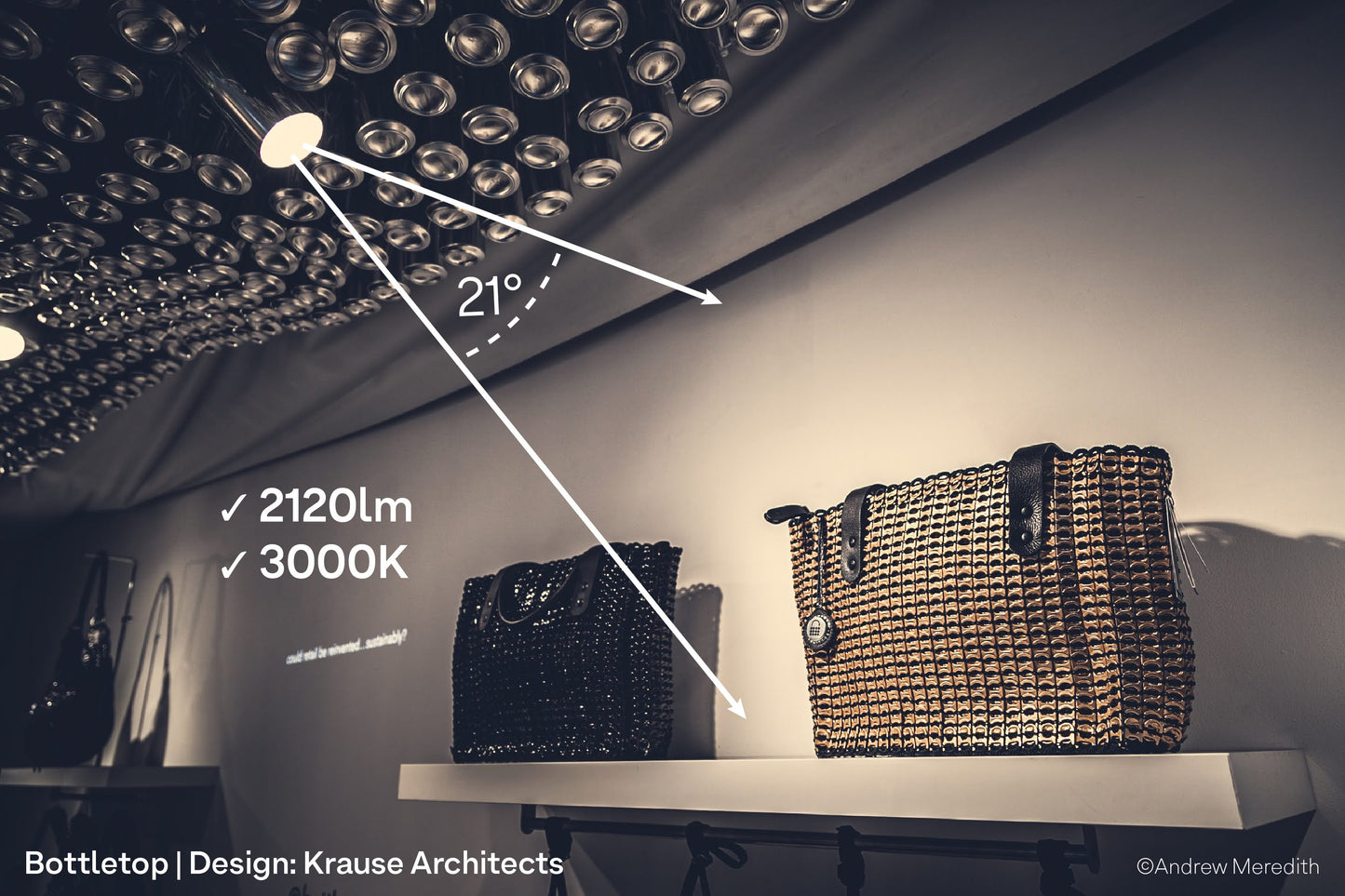

![Luxury handbag made of sustainable materials on display with spotlight at Bottletop's Haute Couture store](http://factorylux.com/cdn/shop/files/Bottletop-Krause-Architect-Ninety-Nine-Retail-Spotlight-2_588a90bd-8ac6-446e-94bf-2e4d2d1cd808.jpg?v=1697165004&width=1445)

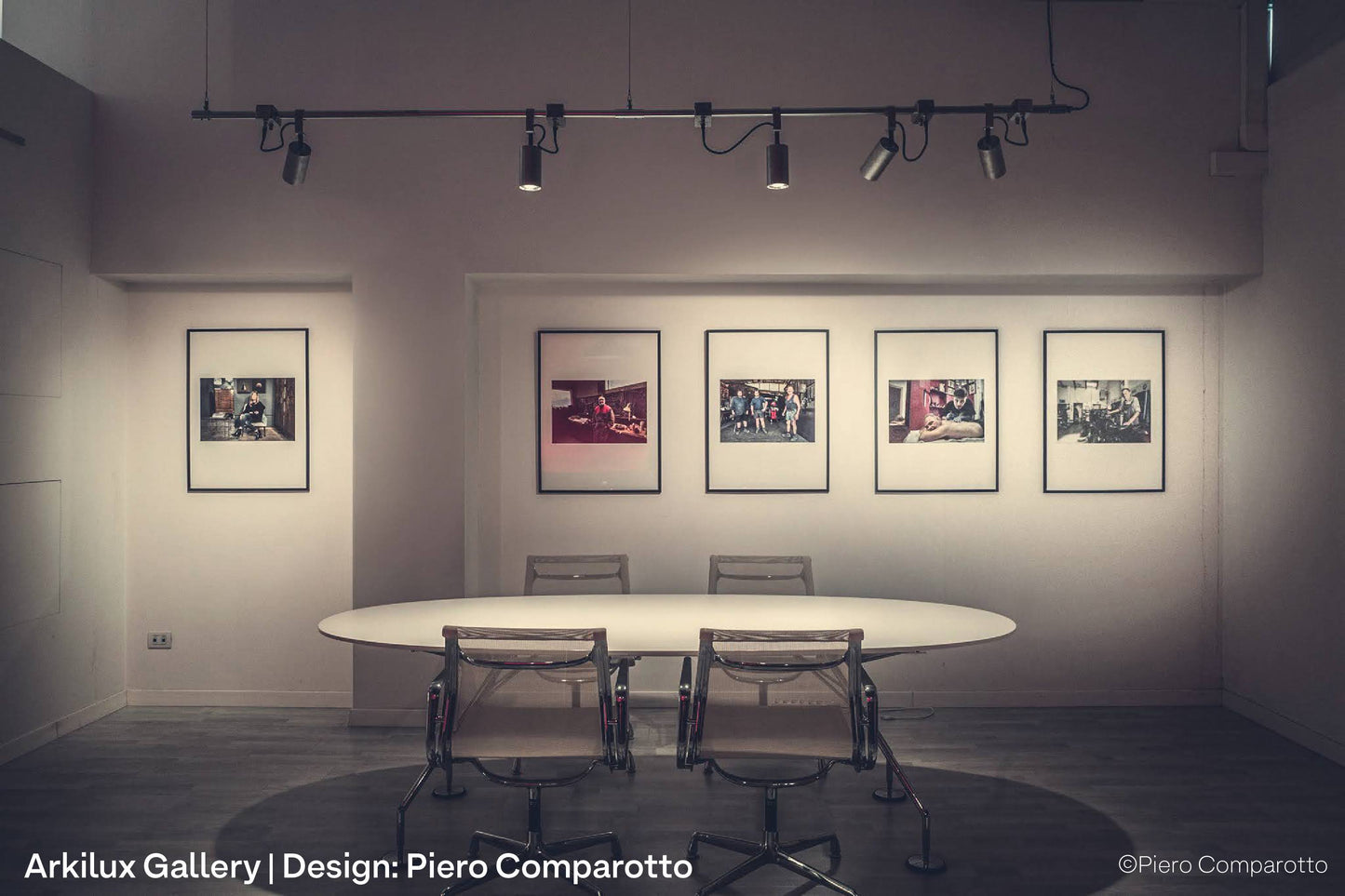

![Paintings and photography at a fine art gallery in Italy, illuminated by softbeam spotlights on lighting track](http://factorylux.com/cdn/shop/files/Arkilux-Art-Gallery-Lighting-Track-Pipe-Ninety-Nine-1_9c850d18-e736-49c0-920a-1f46d915f9ca.jpg?v=1697165004&width=1445)

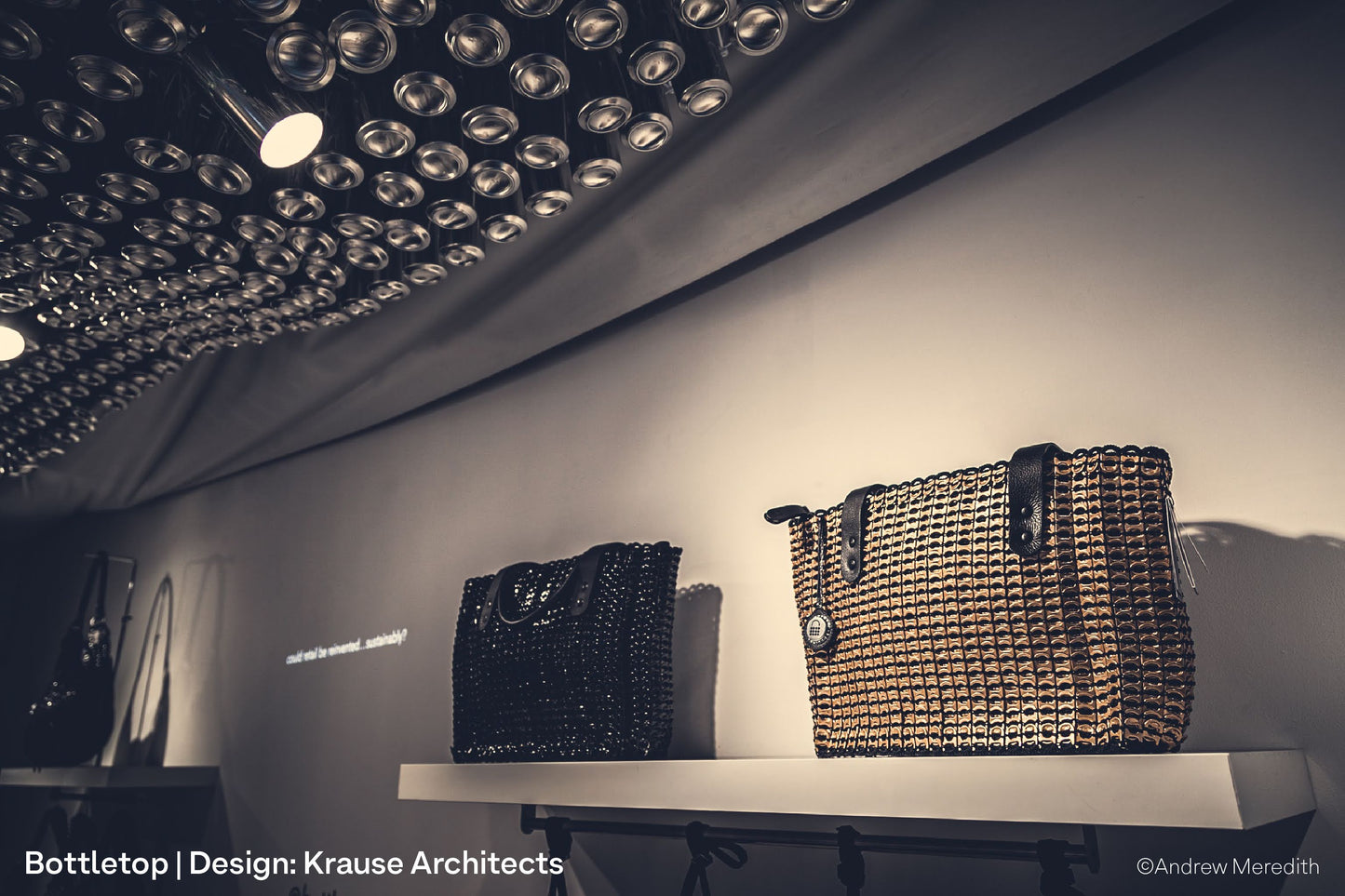

![Luxury handbag made of sustainable materials on display with spotlight at Bottletop's London retail store](http://factorylux.com/cdn/shop/files/Bottletop-Krause-Architect-Ninety-Nine-Retail-Spotlight-1_ff8ead73-3e4f-4ed4-bc9f-dc78d3c471bf.jpg?v=1697165004&width=1445)

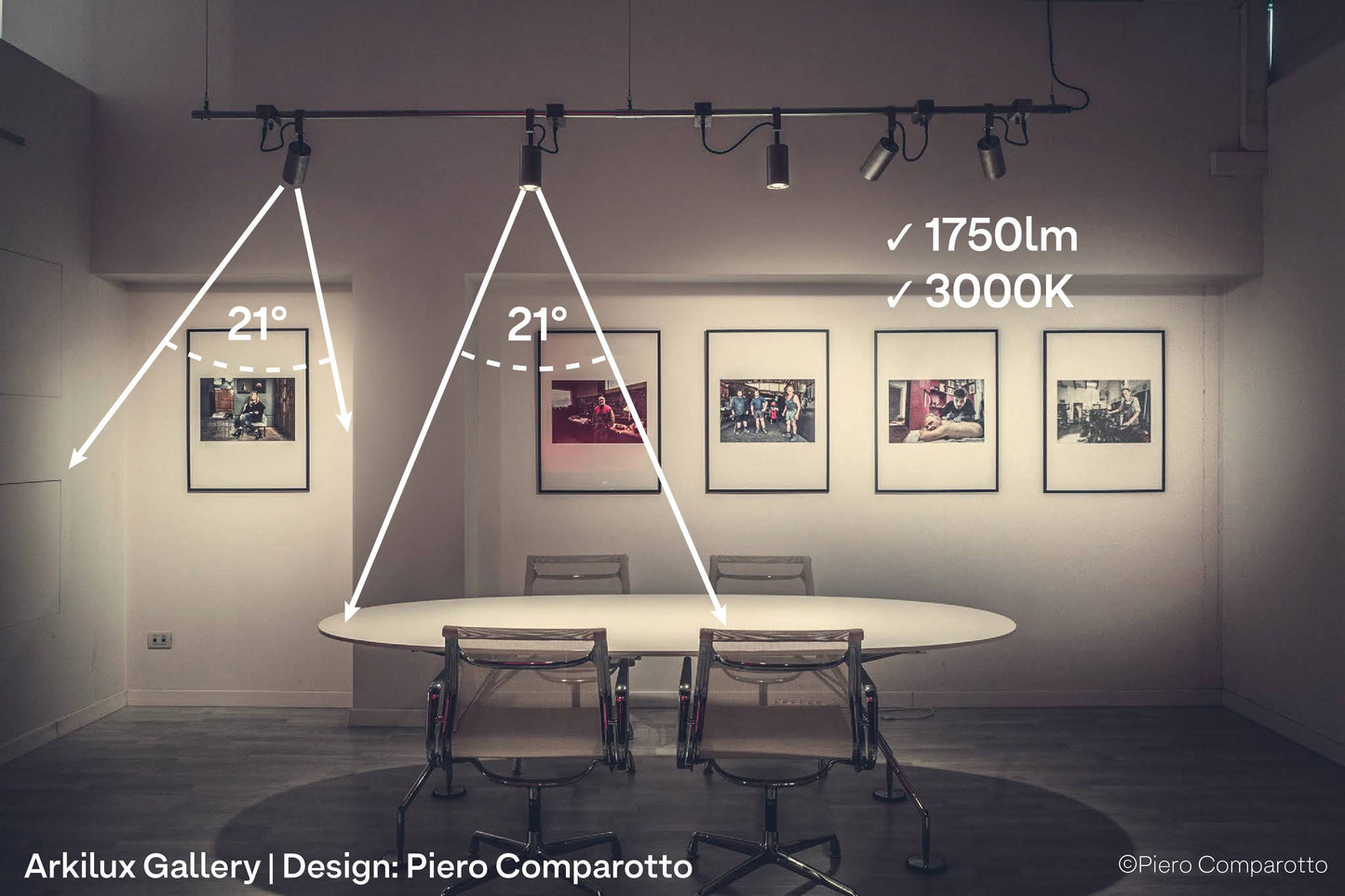

![Paintings and photography at a fine art gallery in Italy, illuminated by spotlights on lighting track](http://factorylux.com/cdn/shop/files/Arkilux-Art-Gallery-Lighting-Track-Pipe-Ninety-Nine-2_ed8f4d3b-67a5-4917-89df-718af9630559.jpg?v=1697165004&width=1445)
