Ninety-Nine™ | Stone-Rumbled™ | Track-Pipe®
Ninety-Nine™ | Stone-Rumbled™ | Track-Pipe®
Downloads
Downloads
- Datasheet | .PDF
- User Instructions | .PDF

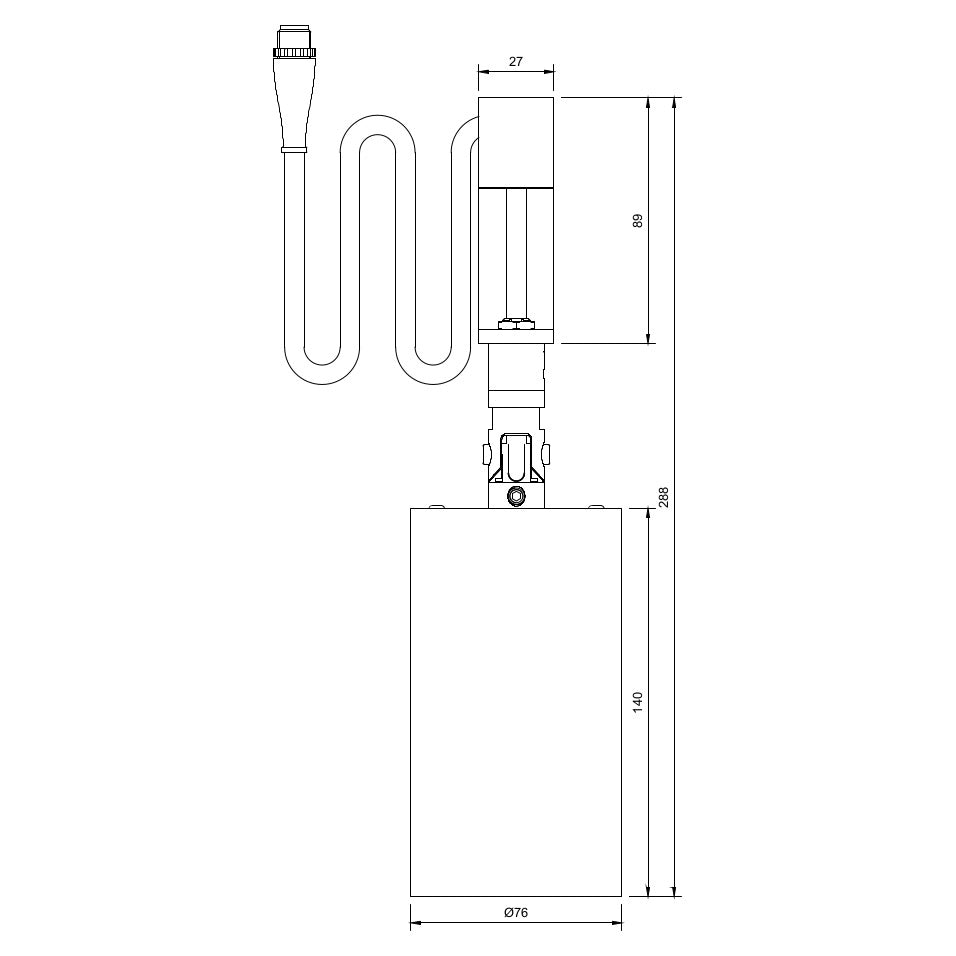

- 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
- BIM / Revit Families | .RVT
- Photometric 2700K | .PDF
- Photometric 3000K | .PDF
- Photometric 4000K | .PDF
- Photometric 2700K, 3000K, 4000K | .IES
- Photometric 2700K, 3000K, 4000K | .LDT
- Augmented Reality | .GLB
- View Lookbook 2024 | .JPG
Technical Specification
Technical Specification
- Supply Voltage: 48 V DC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 0.7kg
- Mounting: Track-Pipe® Hook
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 1650lm 2700K | 1750lm 3000K | 1875lm 3500K | 1935lm 4000K
- Luminaire Efficacy: Up to 110 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 350mA
- Power Consumption (max. typ.): 14.5 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0

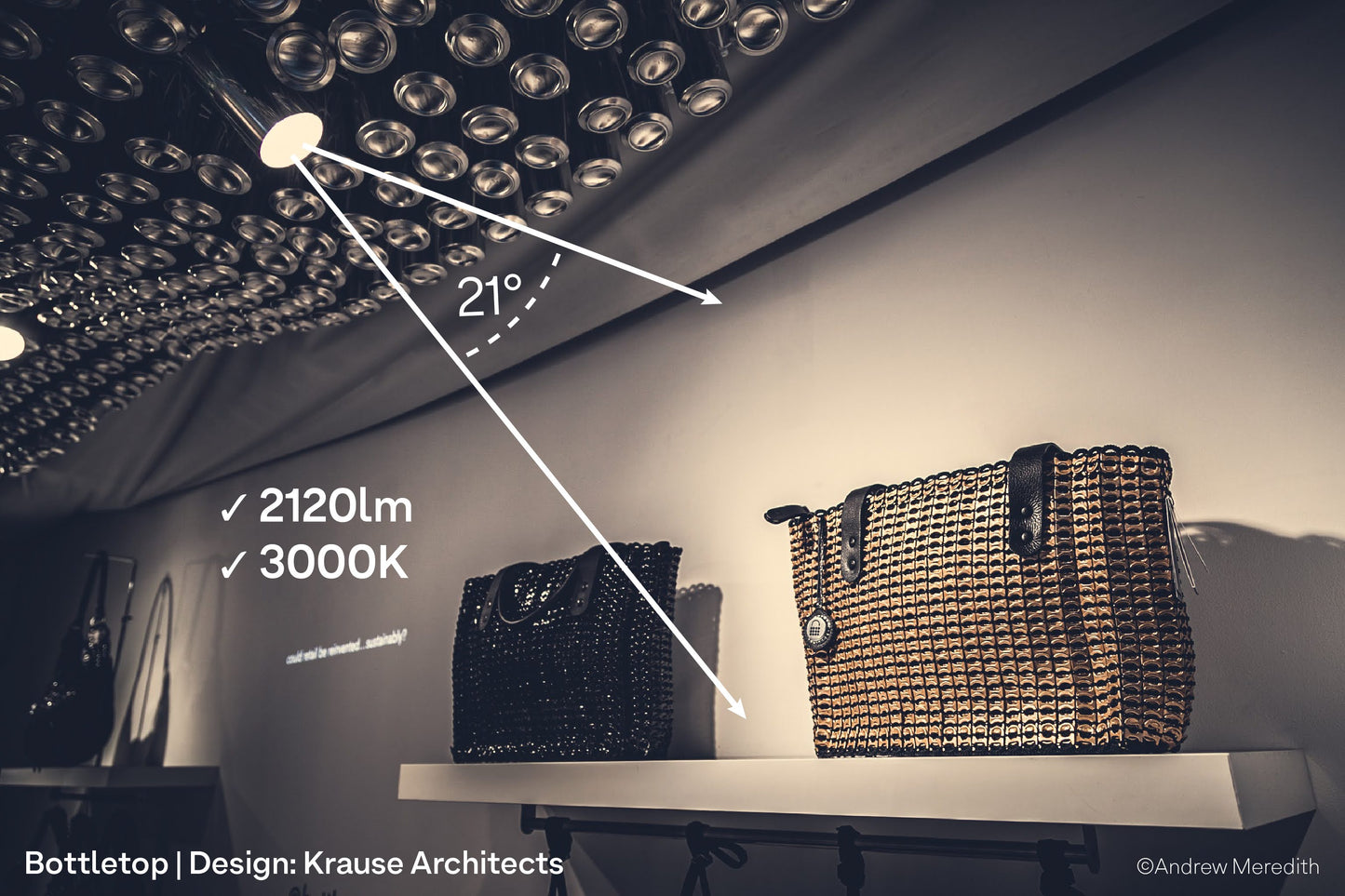

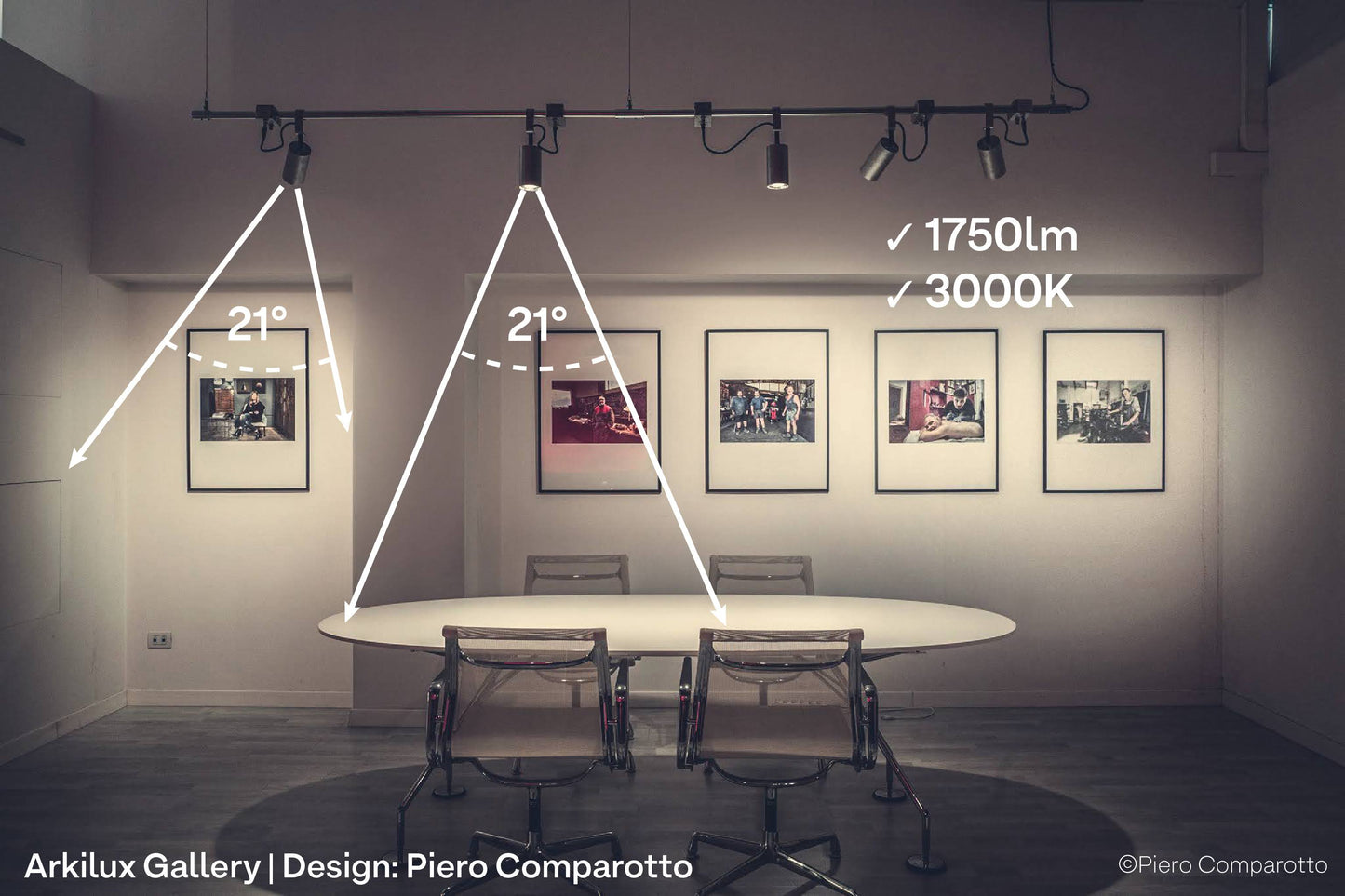

- Optics / Beam Angles: 21°, 38°, 59°, Spreader, Wall Wash

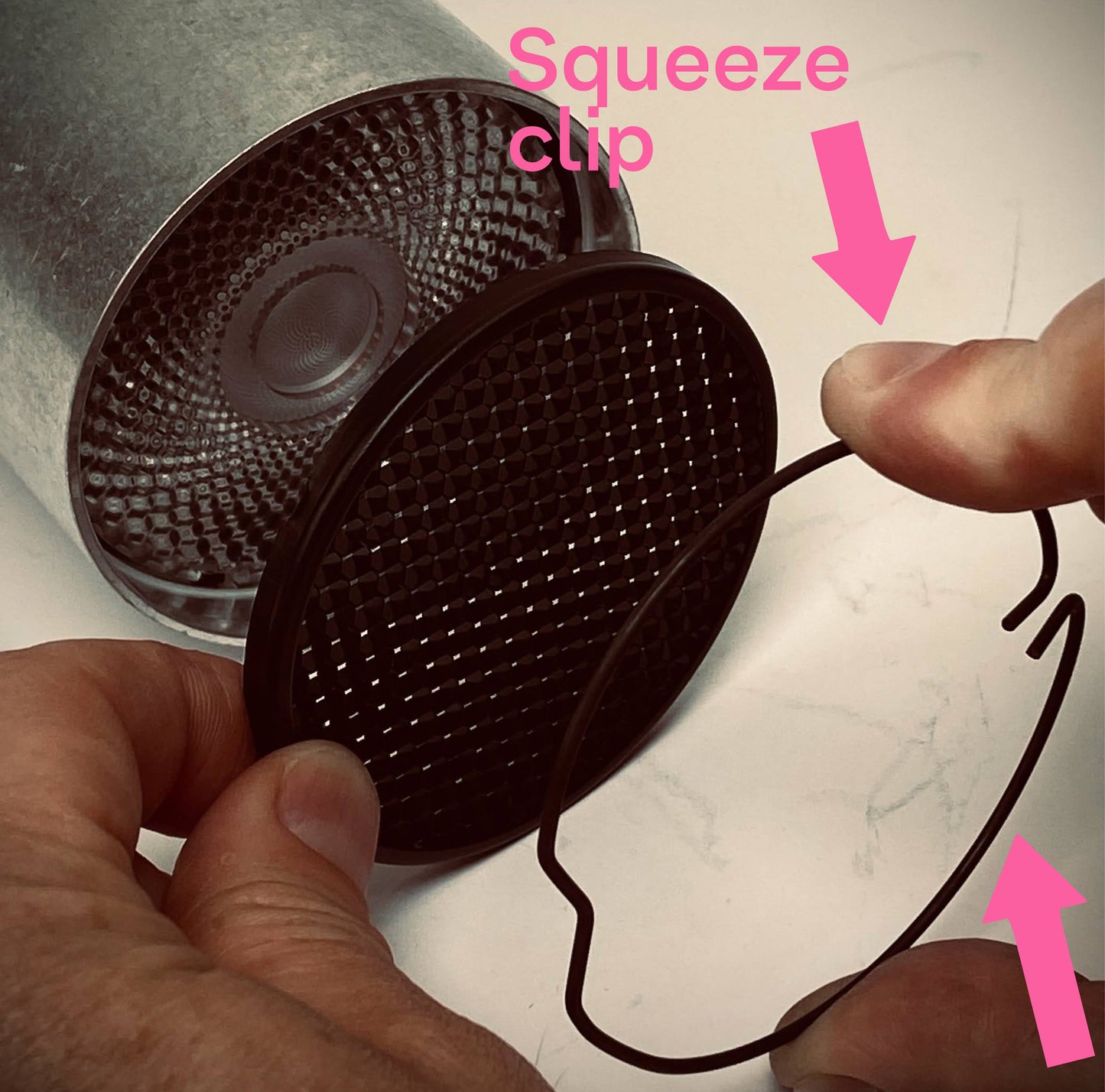

- Accessories: Honeycomb Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched, DALI
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL2108
- Manufacture: UK
Description
Description

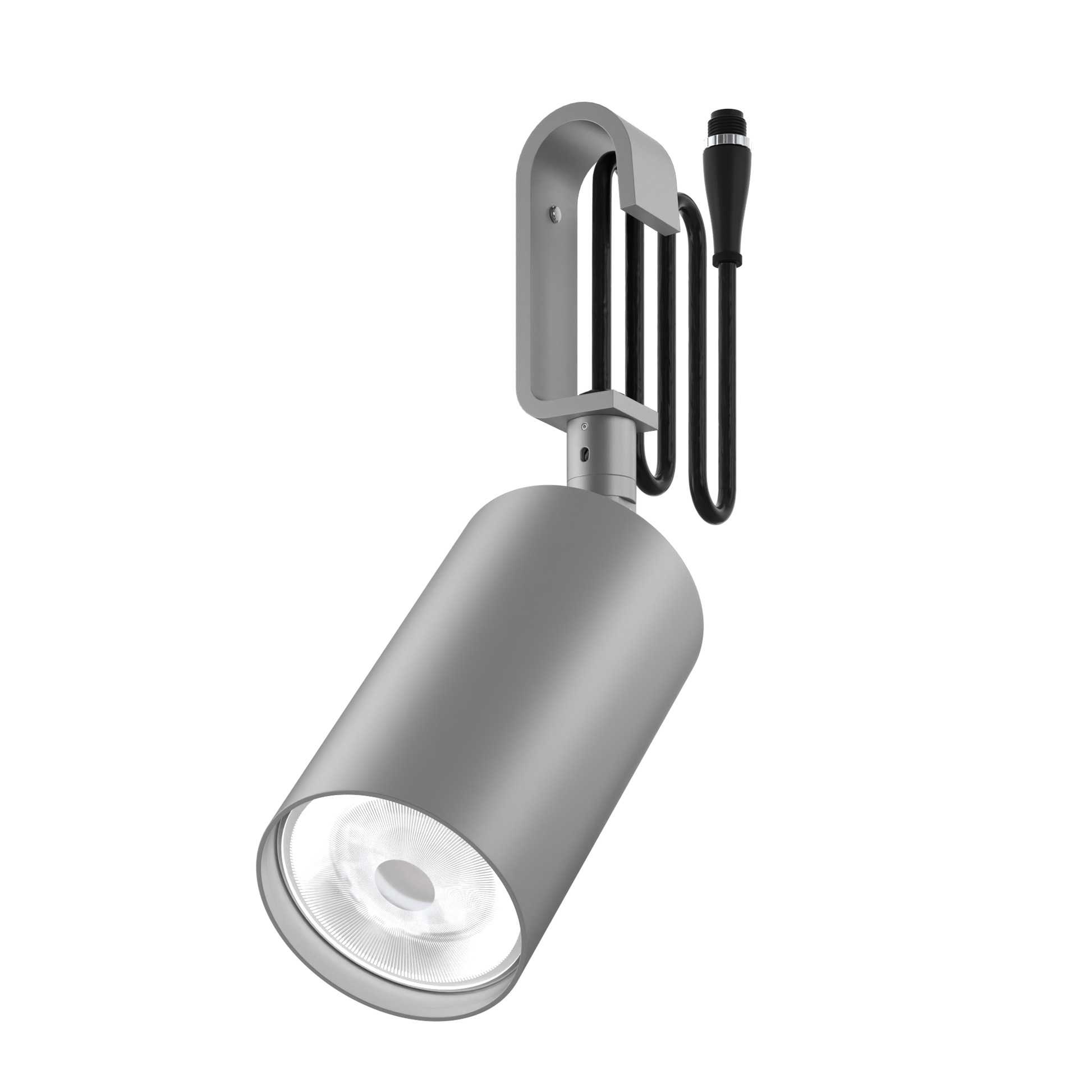

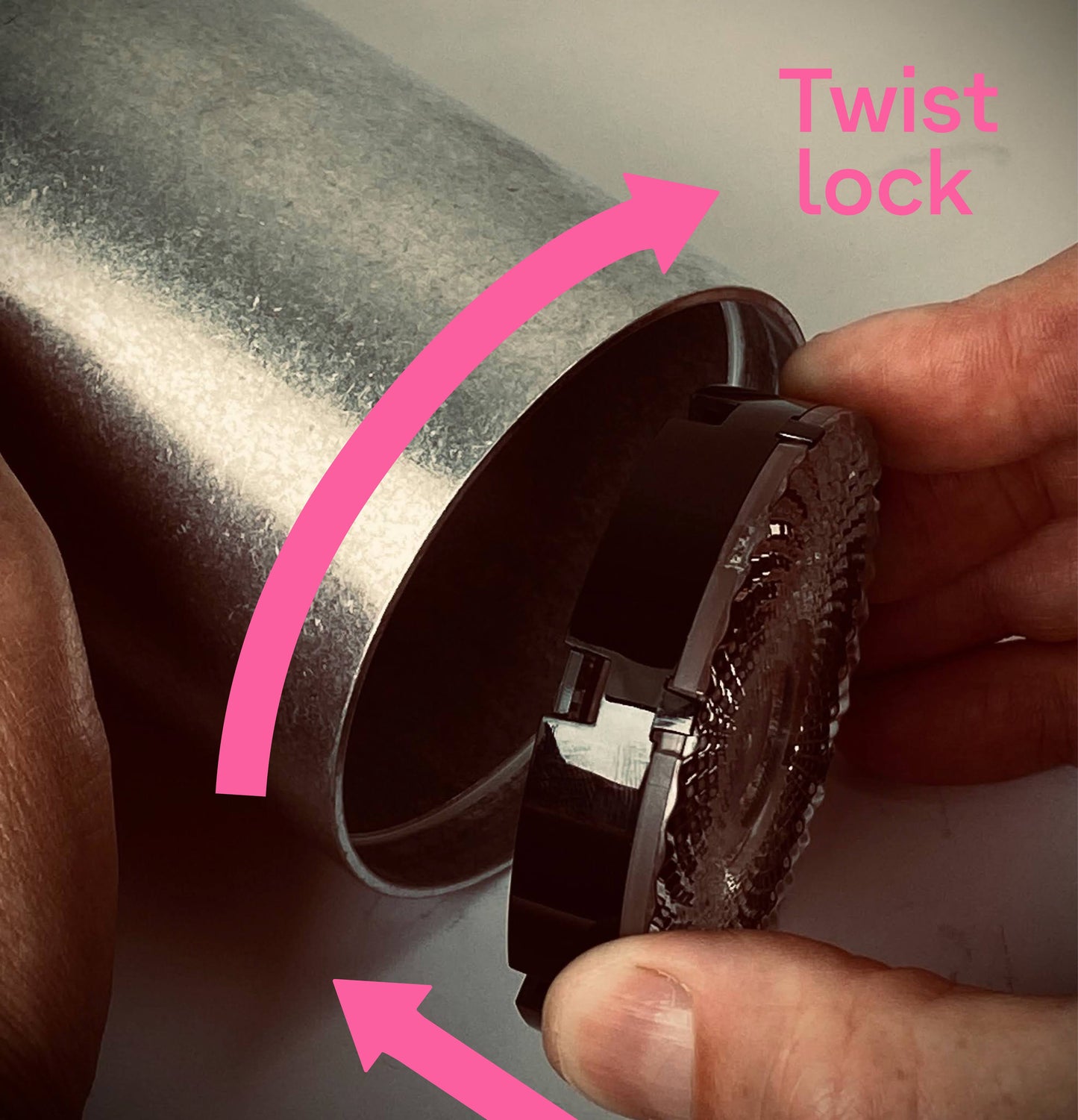

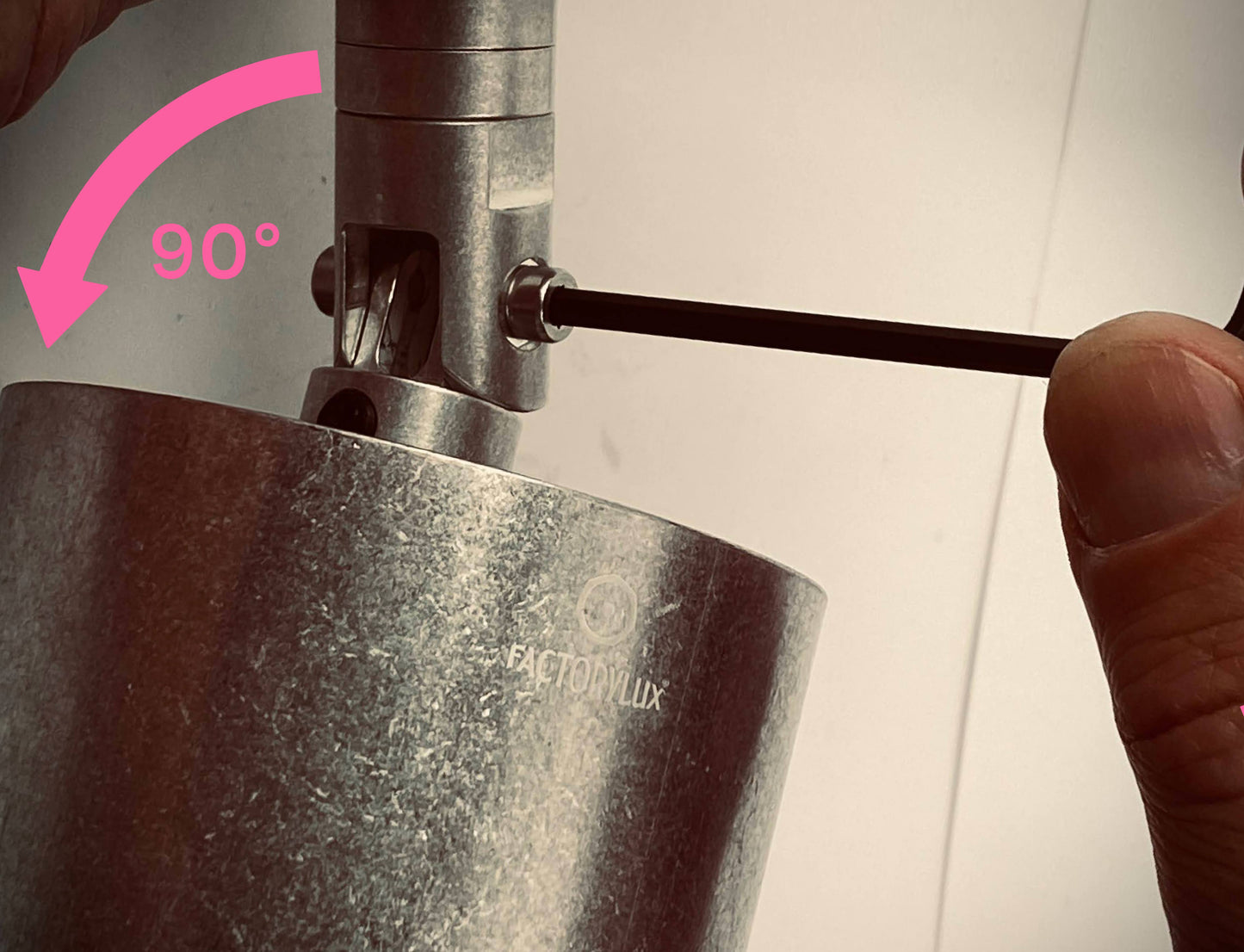

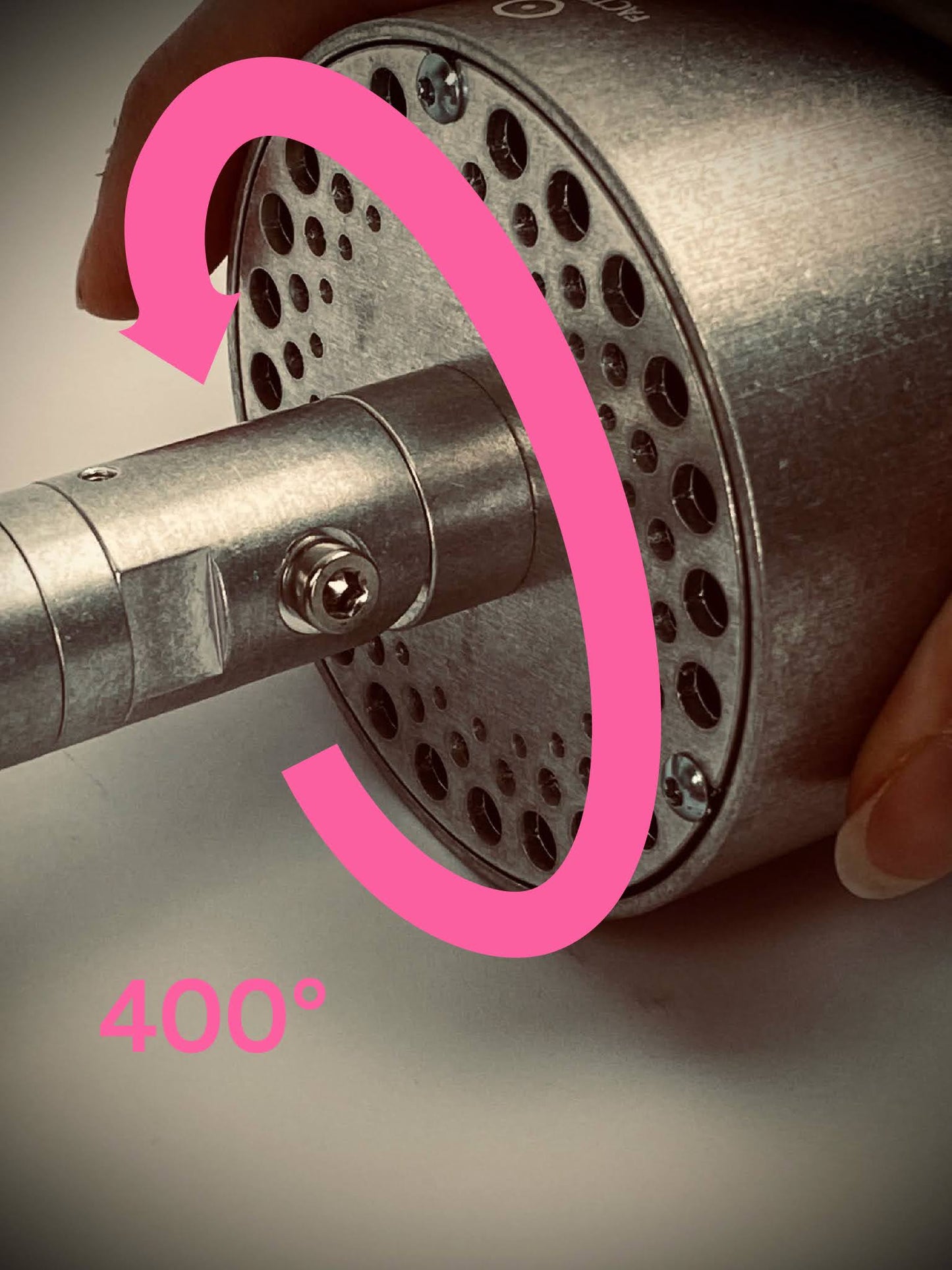

This professional architectural spotlight is designed for Circular Economy. Fully directional with rotation through 400° and lockable tilt, it can be specified with different luminaire optics and accessories.

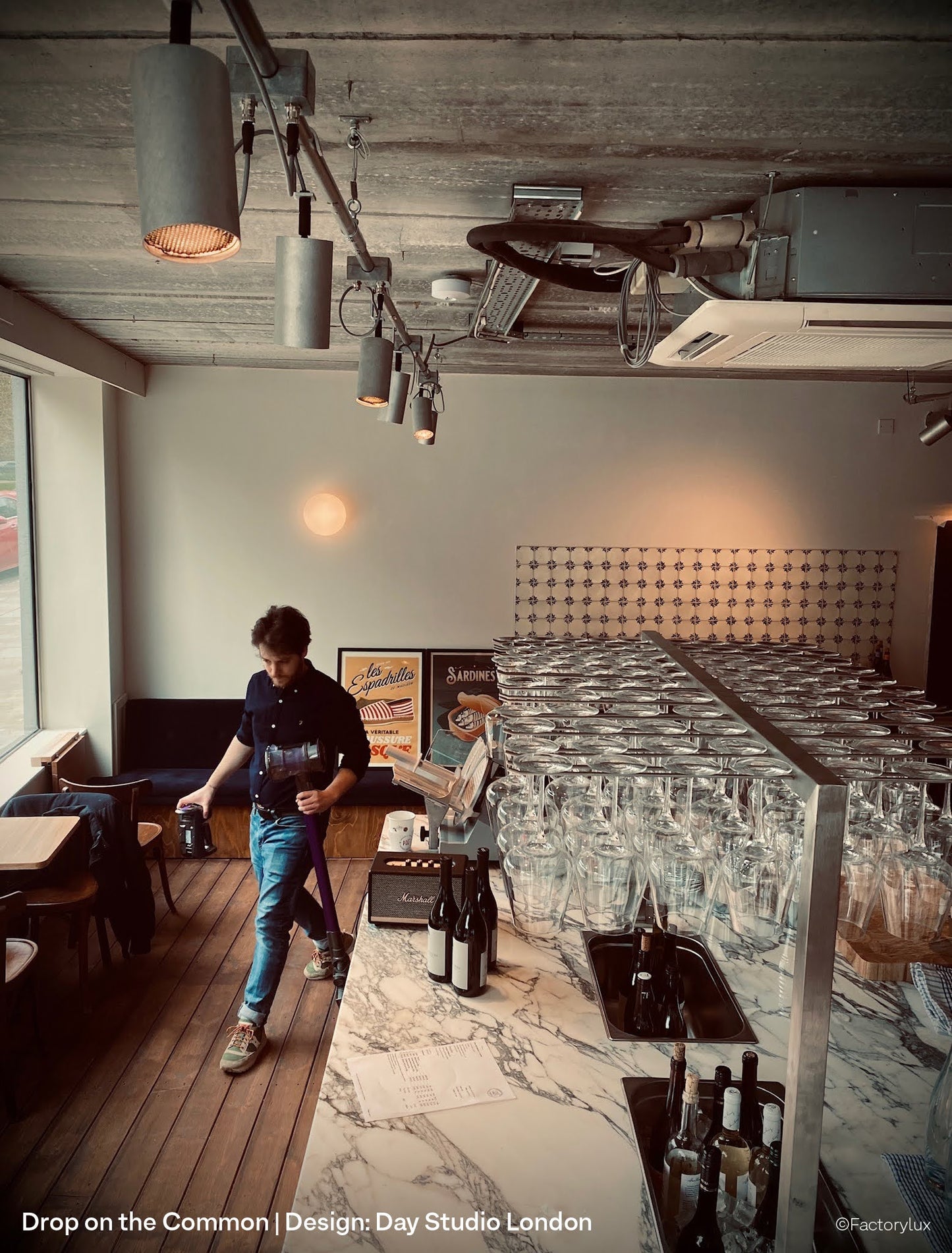

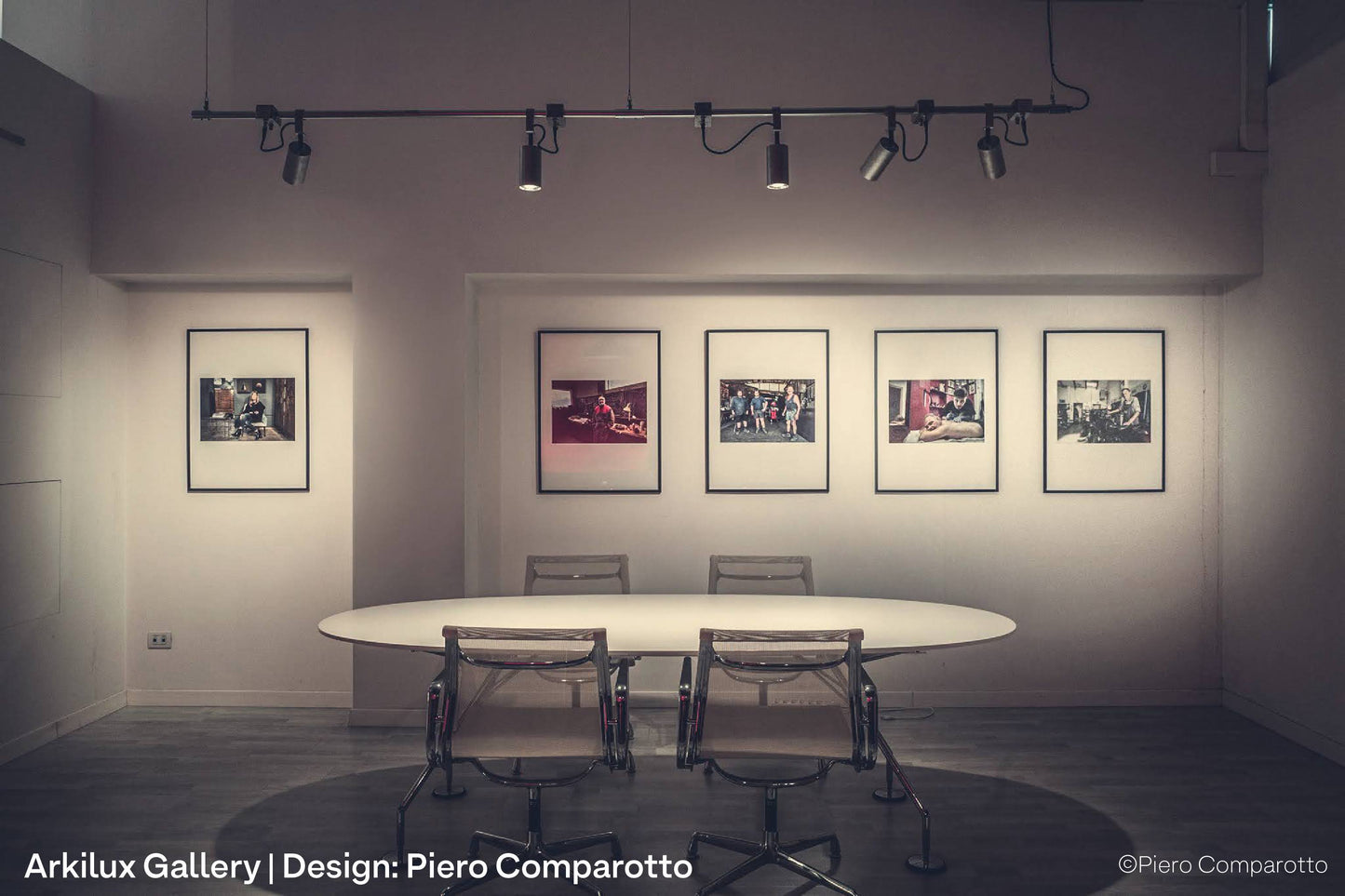

'Track-Pipe®' is hands down the best mounting we've ever made. It does the same job as regular lighting track, but without the plastics, paint and adhesives. It's also simpler to specify, faster to install, stronger, longer and the cables are PVC-FREE🤘. Best of all, we can remake it again & again.

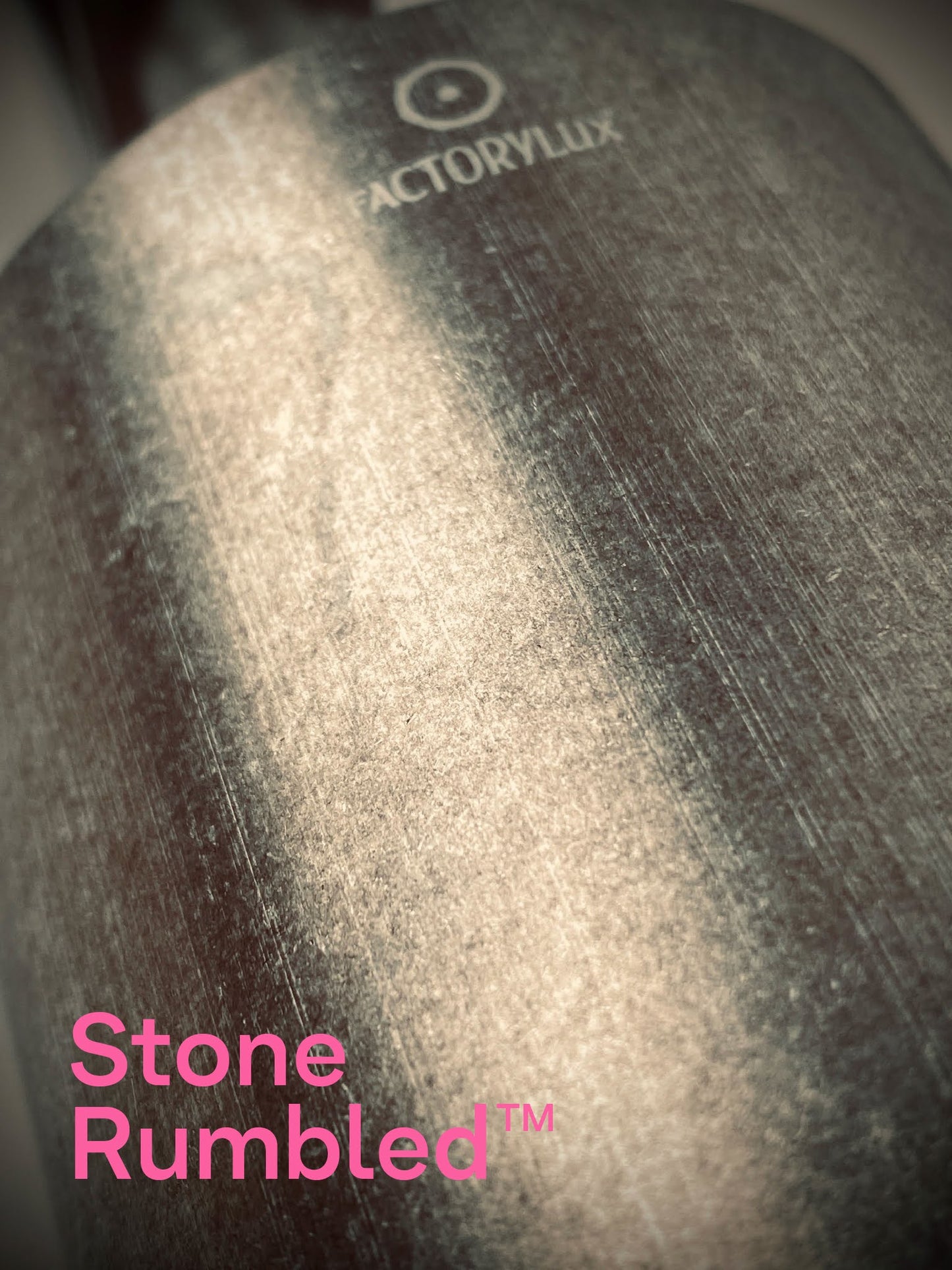

'Stone-Rumbled™' is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake ™: our factory can disassemble 'used' Stone-Rumbled body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging ™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines
Every Ninety-Nine™ spotlight light is designed and assembled in Yorkshire.
Our team deliver sustainable lighting at prices your project can afford.
No sale reps. No agents. No hidden commission.
Our modern, digital-first workflow is simple not salesy. It can deliver big cost savings for your project.
