Skin+Bones™ Spotlight | Stone-Rumbled™ | Disc Monopoint
Skin+Bones™ Spotlight | Stone-Rumbled™ | Disc Monopoint
Couldn't load pickup availability
Downloads
Downloads
- Datasheet | .PDF
- User Instructions | .PDF
- 2D / 3D Technical Drawings | .DWG, .3DS, .PDF, .PNG
- BIM / Revit Families | .RVT
- Photometric 2700K | .PDF
- Photometric 3000K | .PDF
- Photometric 4000K | .PDF
- Photometric 2700K, 3000K, 4000K | .IES
- Photometric 2700K, 3000K, 4000K | .LDT
- Augmented Reality | .GLB
- View Lookbook 2024 | .JPG
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 0.6kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 101 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°
- Accessories: Honeycomb Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural spotlight was the first product we ever DFMA'd (Design For Manufacturing Assembly) from inception. It's an engineering methodology that produced a high-tech product with very unorthodox looks and a low, low price point. Skin+Bones™ delivers so much bounce to the ounce, a 1000m² space can now be professionally lit for under £12k 😳
Disc-Monopoint is our smallest, most low-profile spotlight mounting. A completely flat, 65mm diameter x 2mm thick circular plate with standard BESA (50.8mm) hole spacings. Fix to conduit box, pattress or surface mount to cable tray, timber, cladding or other suitable material.
Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Stone-Rumbled body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines

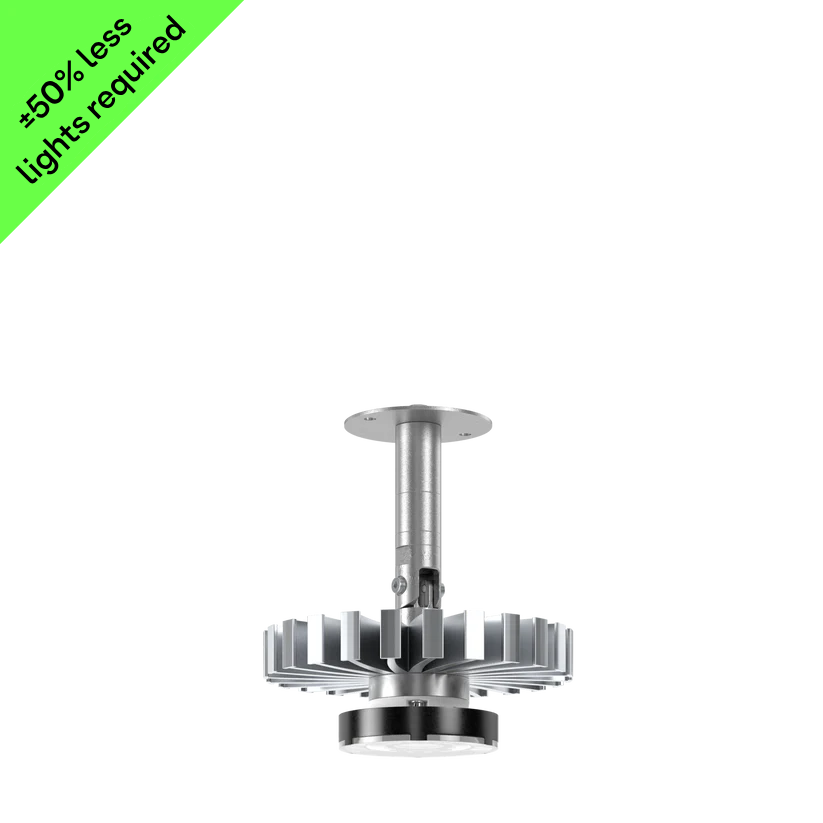

![A budget architectural spotlight that's designed for circular economy, on a low-profile, flat mounting disc](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Disc-Monopoint-Stone-Rumbled-Hero.png?v=1713337469&width=1445)

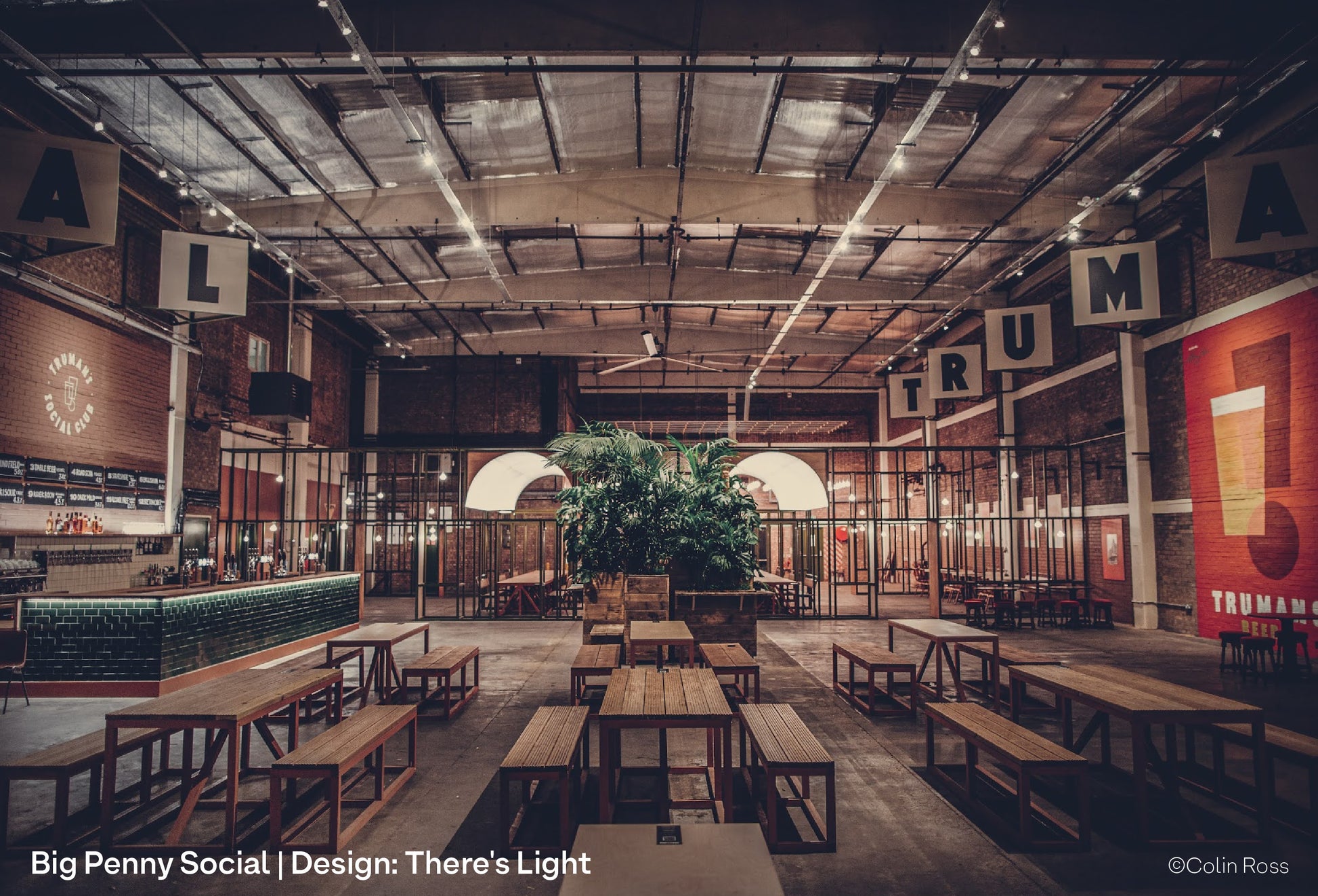

![A large bar and restaurant venue in London with high-power, low-budget spotlights and pendants](http://factorylux.com/cdn/shop/files/Big-Penny-Social-Theres-Light-Skin-Bones-Budget-Restaurant-1.jpg?v=1700834636&width=1445)

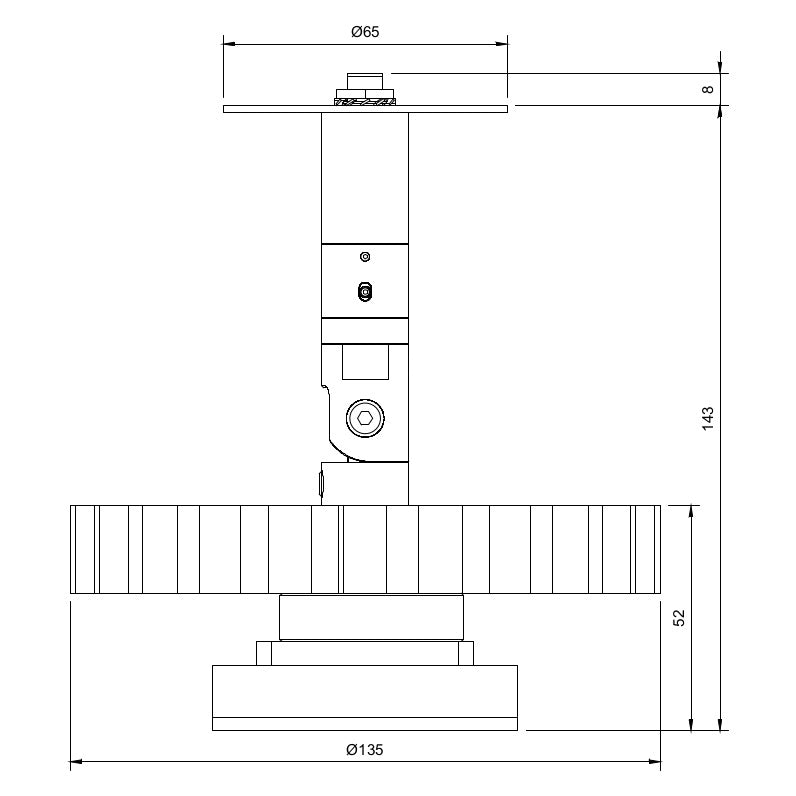

![Technical drawing of a budget circular economy spotlight on an architectural disc mounting](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Disc-Monopoint-Line-Drawing.jpg?v=1700834636&width=1445)

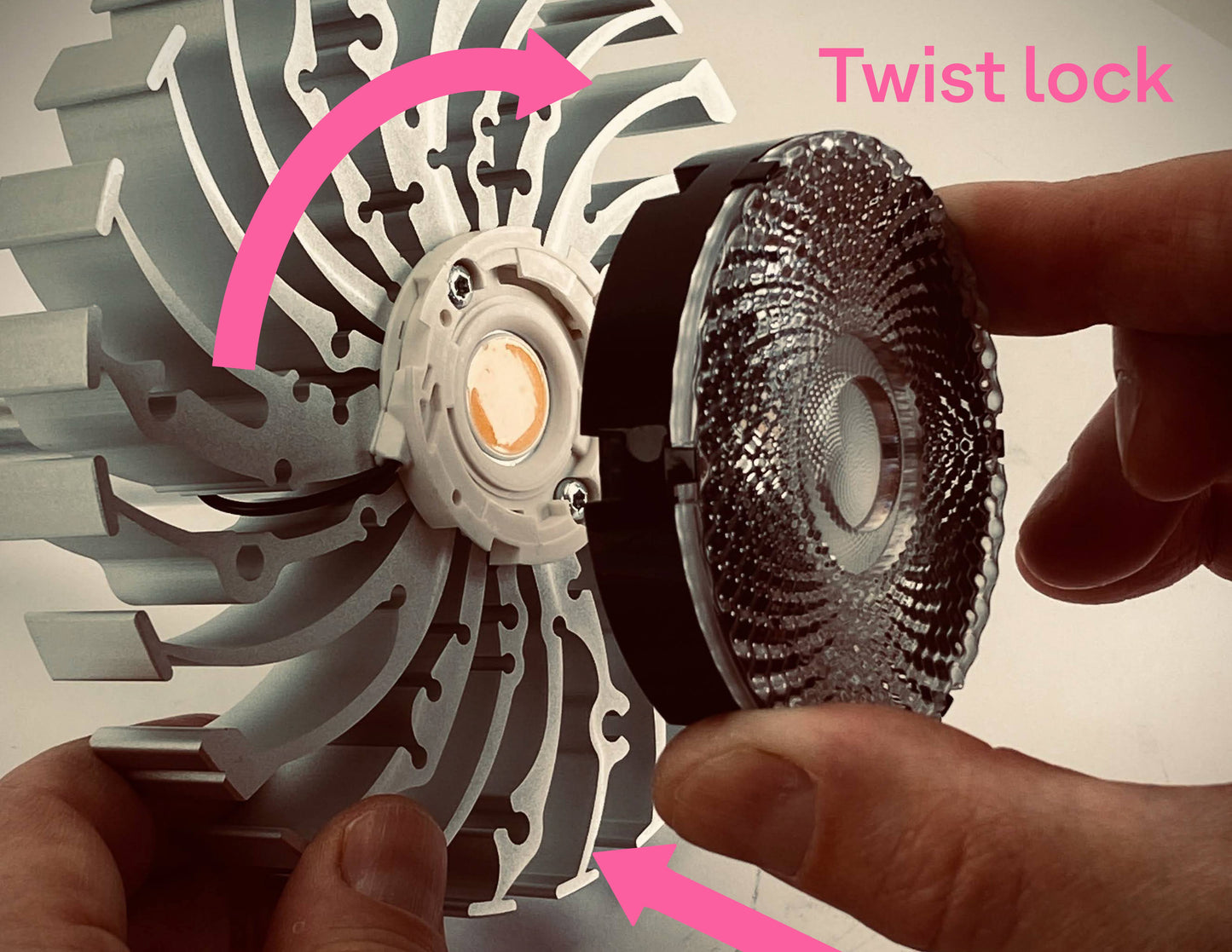

![How to insert the lens into a sustainable, paint-free, architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Budget-Pendant-Light-Skin-Bones-Stone-Rumbled-Removable-Lens_0fefad40-8f42-450b-ba20-c1a702e8842b.jpg?v=1700834636&width=1445)
![How to attach honeycomb louvre onto a sustainable, paint-free, architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Light-Skin-Bones-Stone-Rumbled-Honeycomb-Louvre_ead32120-254b-4f82-a14b-dbd51240fc9e.jpg?v=1700834636&width=1445)

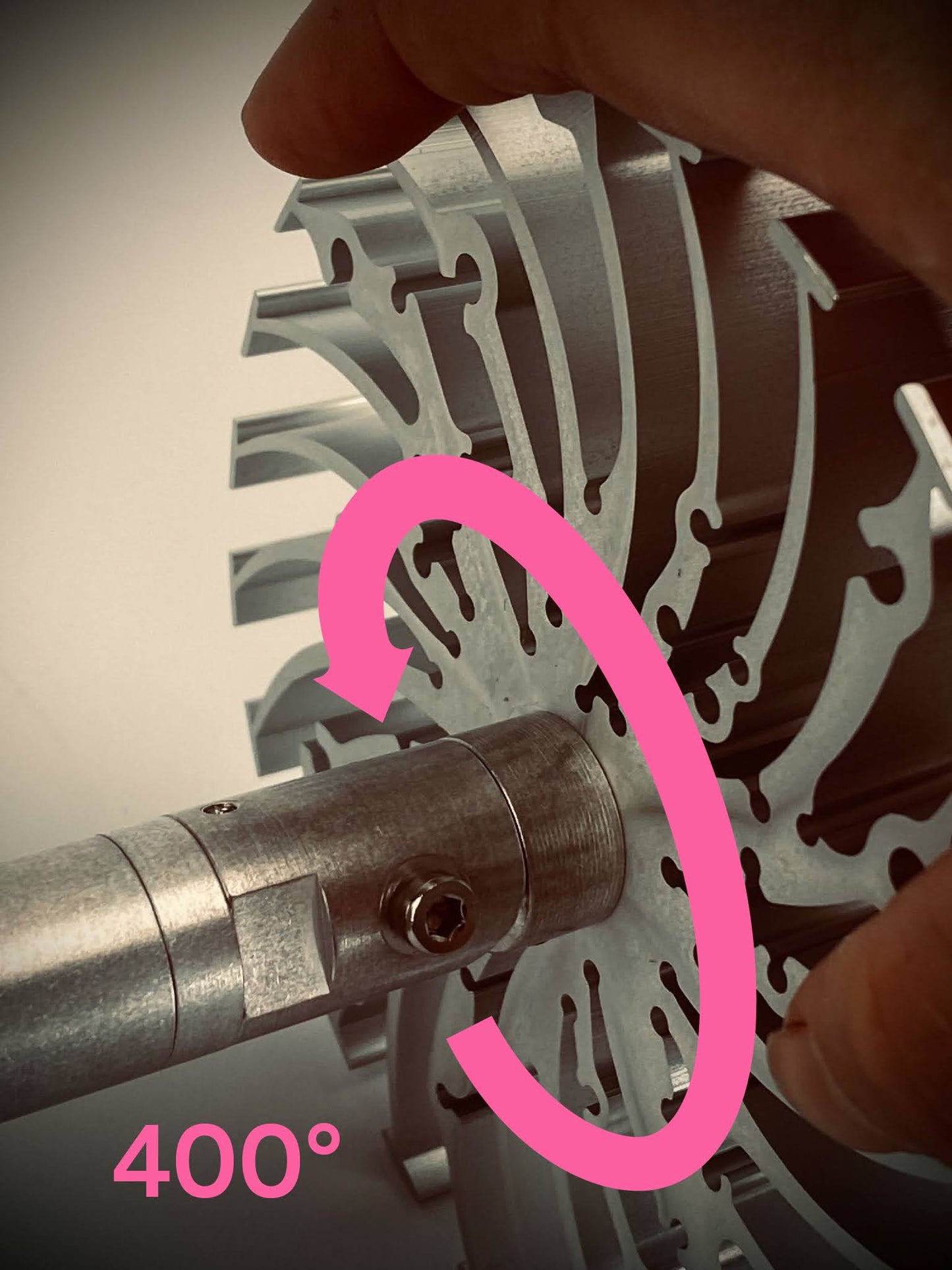

![How to rotate swivel joint on a sustainable, paint-free architectural spotlight made by Factorylux](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Stone-Rumbled-Swivel-Joint-Rotate.jpg?v=1700834636&width=1445)
![How to adjust and lock-off the knuckle joint using a hex key, on a sustainable, paint-free architectural spotlight made by Factorylux](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Stone-Rumbled-Knuckle-Joint-Adjust.jpg?v=1700834636&width=1445)

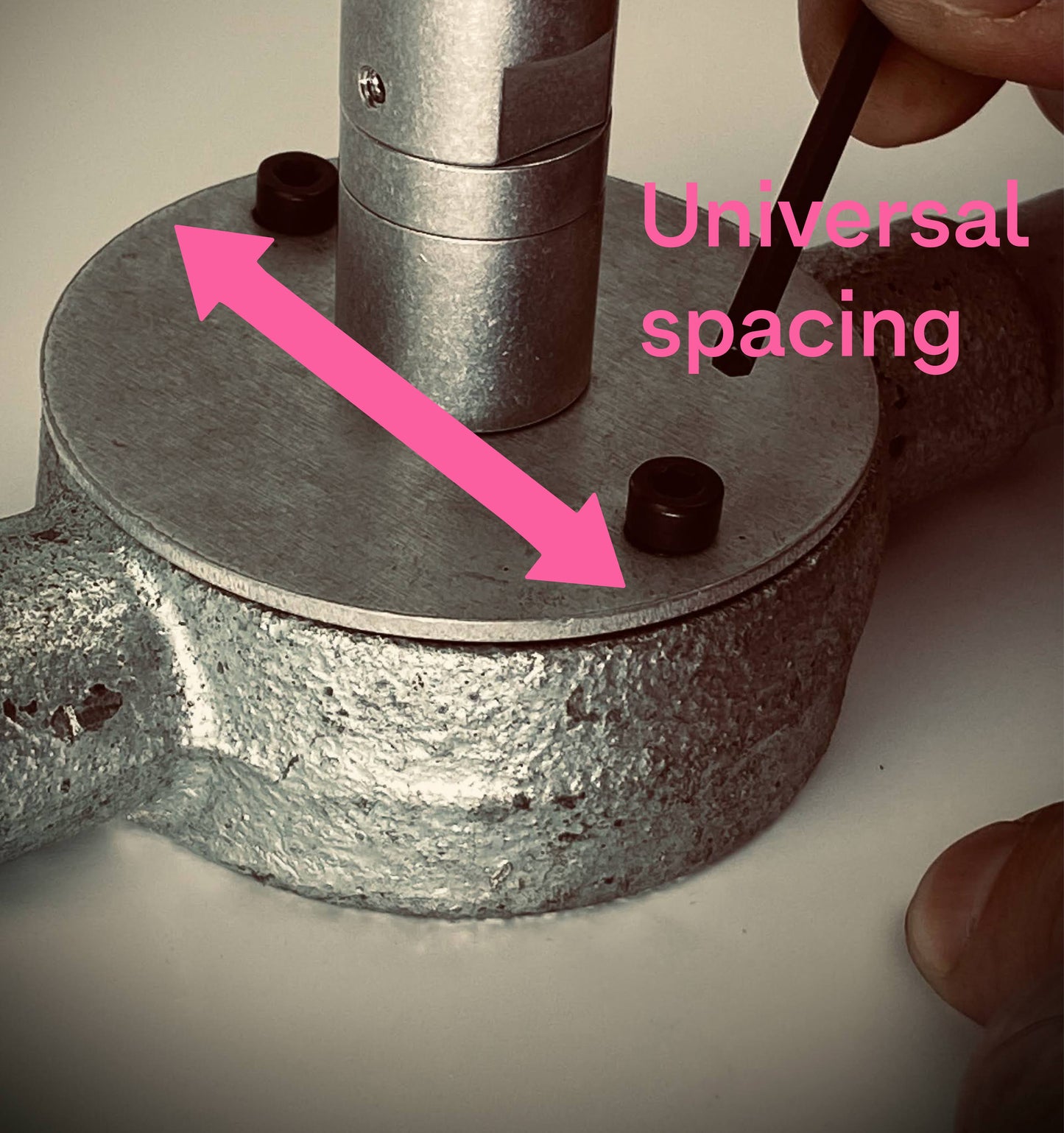

![How to install disc monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Base-Install-Stone-Rumbled_56270568-7b4e-4f17-920a-0925eb73258e.jpg?v=1700834636&width=1445)

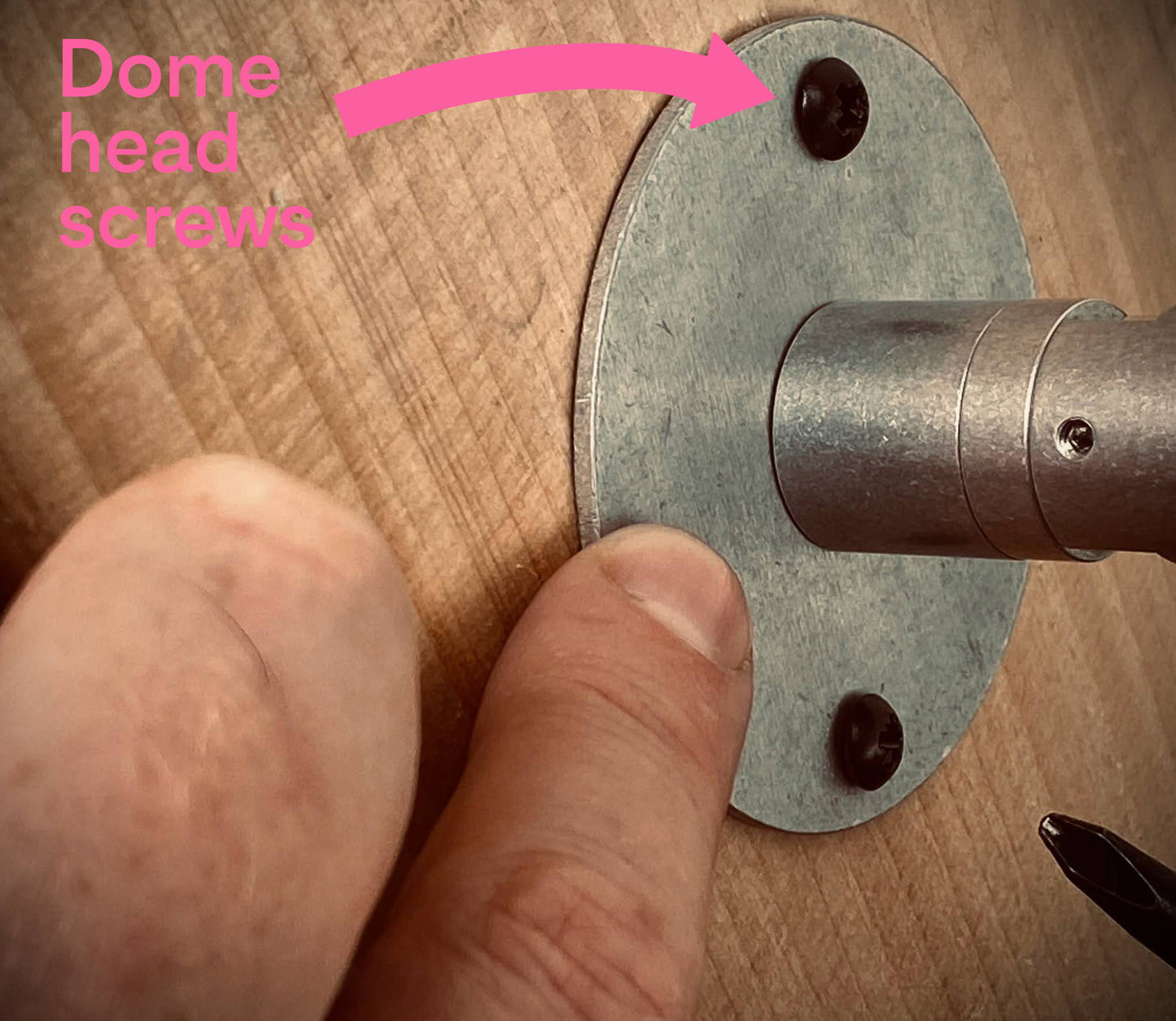

![How to install disc monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Top-Install-Stone-Rumbled_575a9d0b-f593-4c05-a1eb-780b89c4810a.jpg?v=1700834636&width=1445)

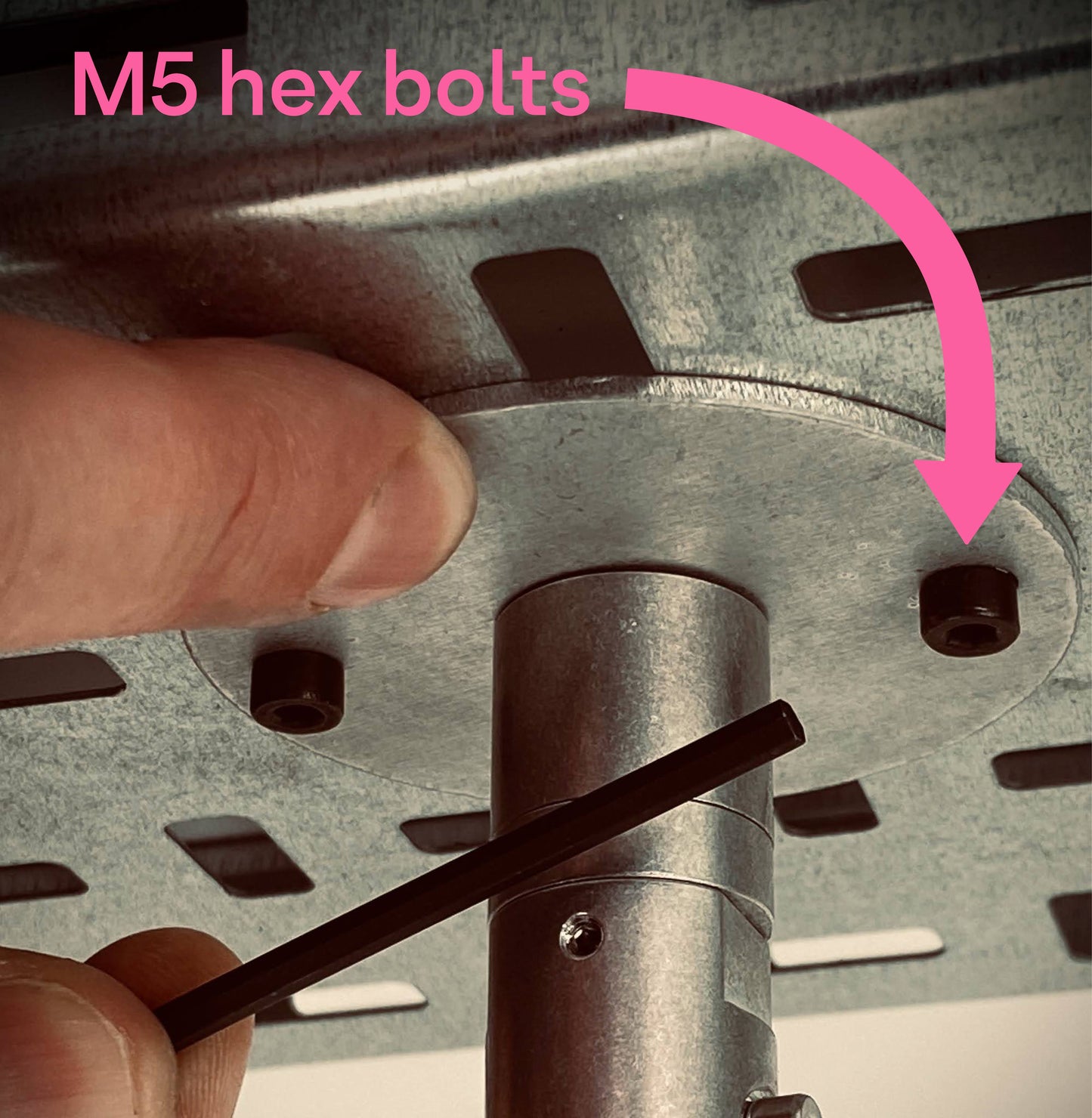

![Installed disc monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Disc-Monopoint-Complete-Install-Stone-Rumbled_1ad94880-0ccd-4df7-8631-db64b6315e56.jpg?v=1700834636&width=1445)

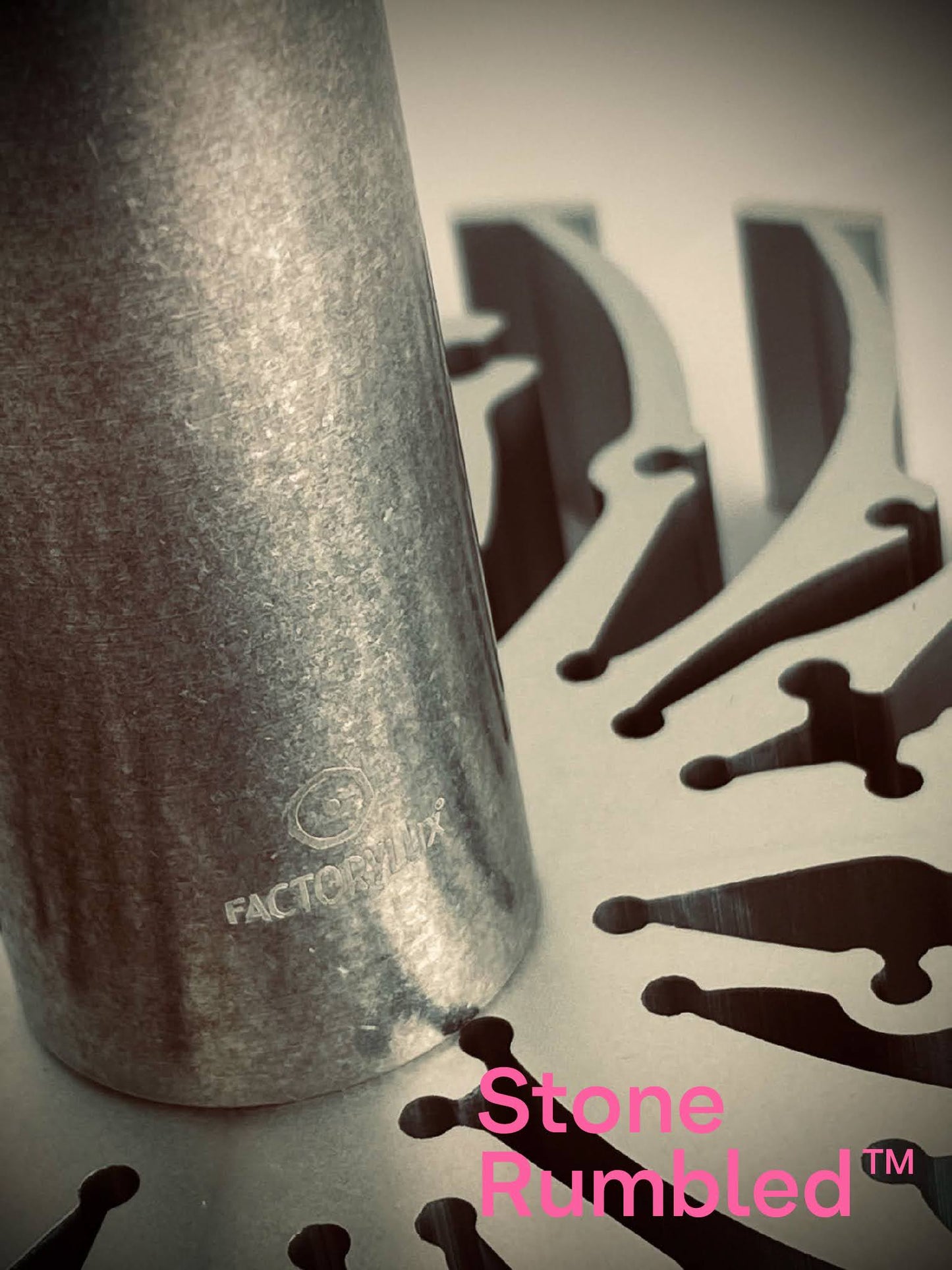

![Close up of a sustainable budget spotlight for architects, revealing a raw aluminium surface texture](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Skin-Bones-Stone-Rumbled-Colour-Texture-Close-Up_92b40233-d064-4a53-8cf4-b267239fd349.jpg?v=1700834636&width=1445)

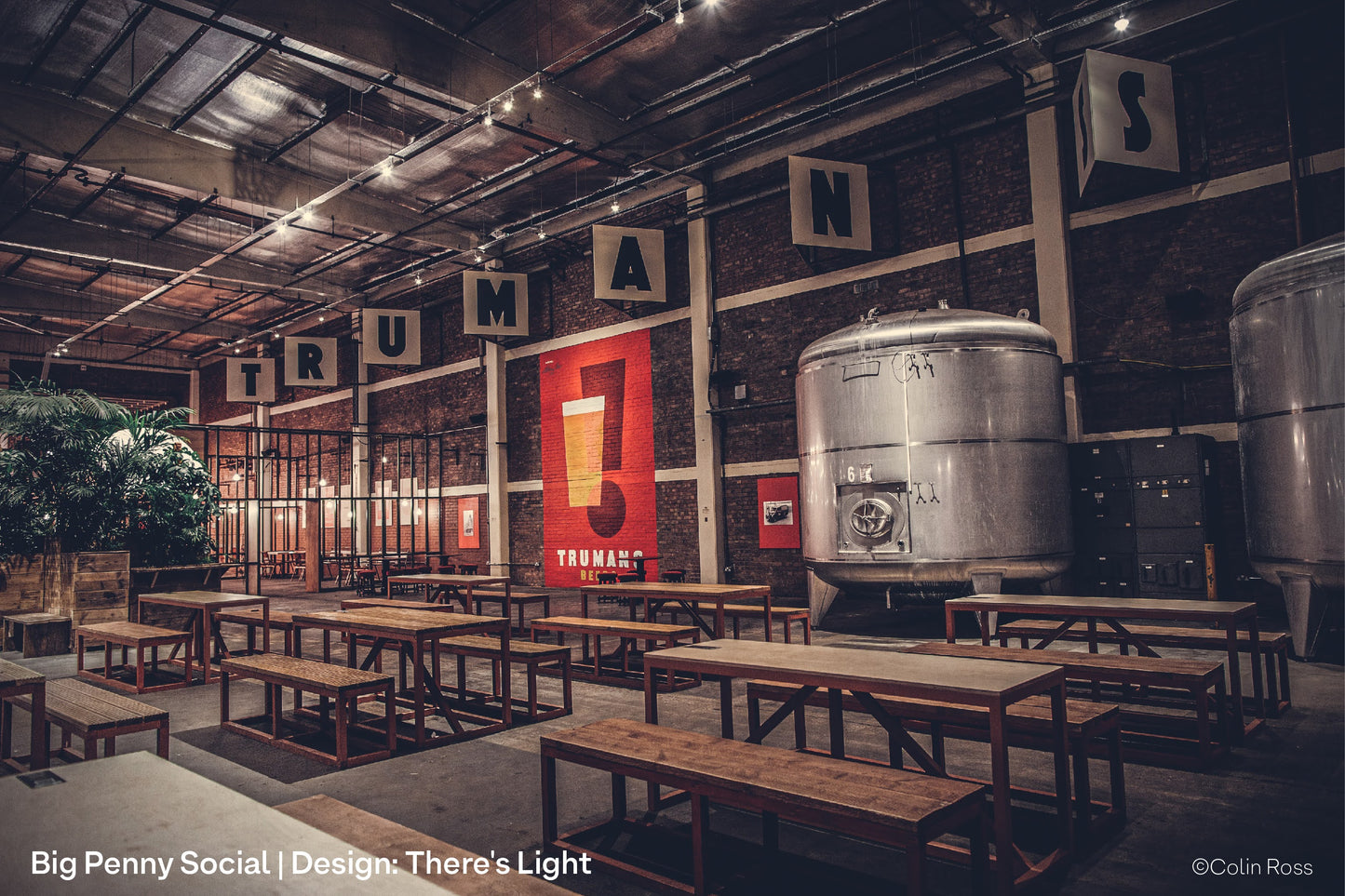

![A large bar and restaurant venue in London with high-power, low-budget spotlights and pendants](http://factorylux.com/cdn/shop/files/Big-Penny-Social-Theres-Light-Skin-Bones-Budget-Restaurant-6.jpg?v=1697133337&width=1445)
