Skin+Bones™ Spotlight | Stone-Rumbled™ | Large Monopoint | 3500K
Skin+Bones™ Spotlight | Stone-Rumbled™ | Large Monopoint | 3500K
Couldn't load pickup availability
Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 0.6kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 101 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°
- Accessories: Honeycomb Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural spotlight was the first product we ever DFMA'd (Design For Manufacturing Assembly) from inception. It's an engineering methodology that produced a high-tech product with very unorthodox looks and a low, low price point. Skin+Bones™ delivers so much bounce to the ounce, a 1000m² space can now be professionally lit for under £12k 😳

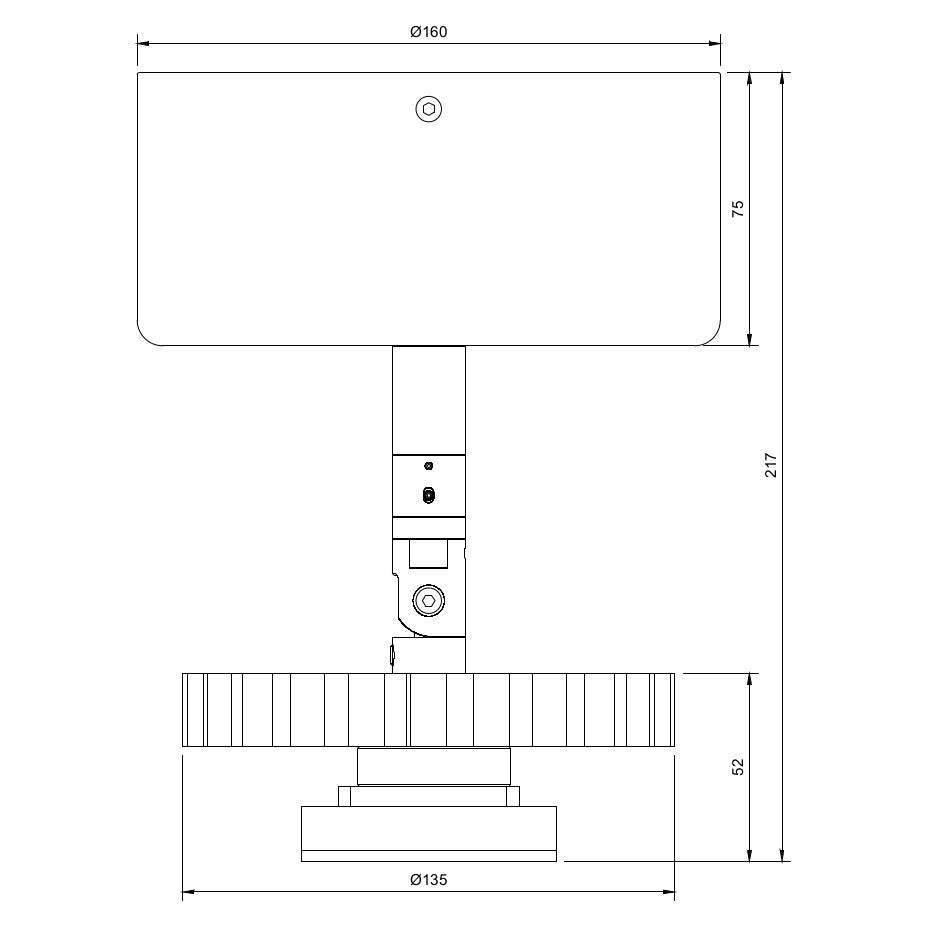

'Large Monopoint' is a 160mm diameter X 75mm deep circular spotlight mounting / enclosure that's big enough to house the driver and all electrical connections. The monopoint body attaches to a separate, surface mounted bracket via M4 bolts located on opposite sides. The bracket itself has standard BESA (50.8mm) hole spacings for fixing to walls, ceilings, cable tray or other suitable surfaces / materials.
Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Stone-Rumbled body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines

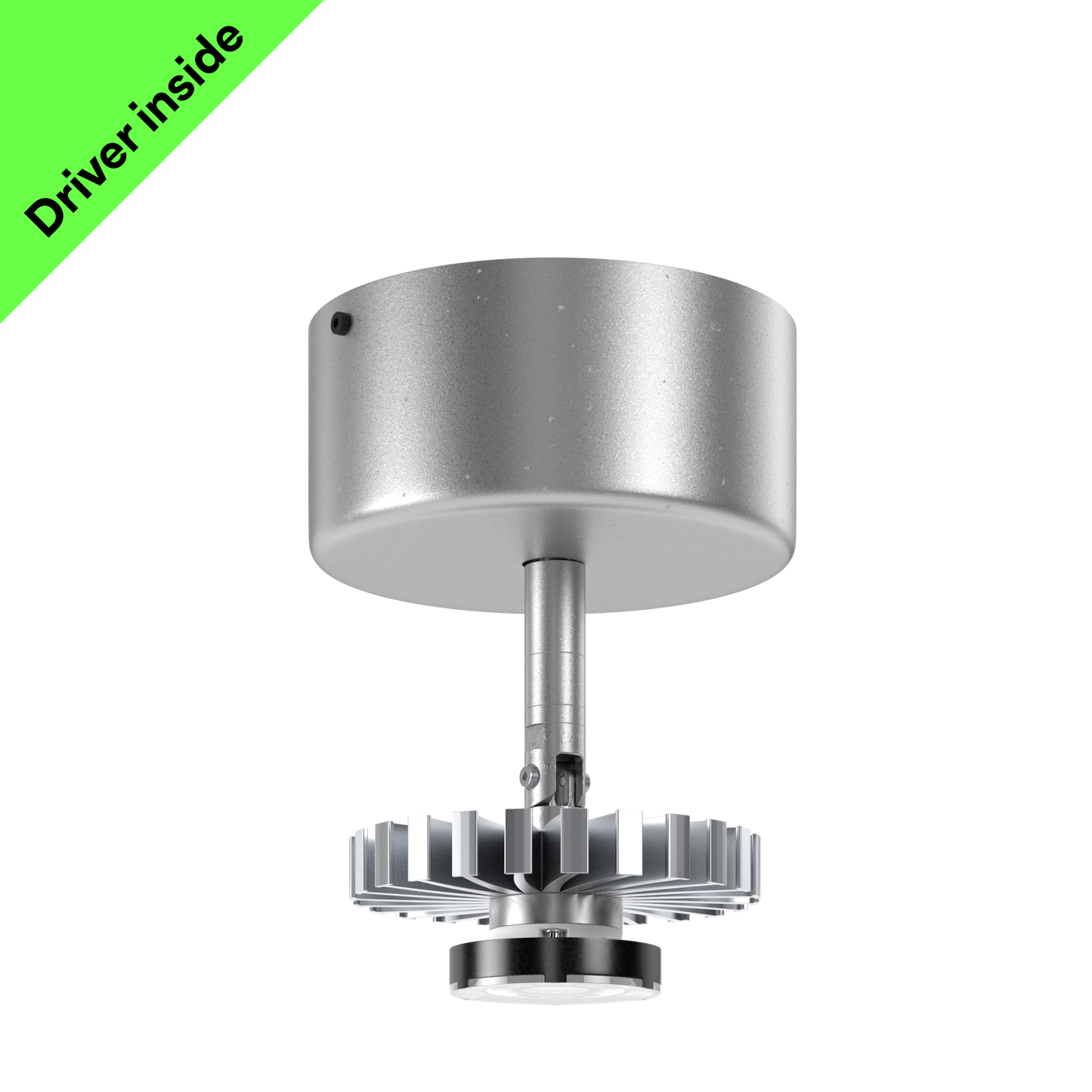

![A budget architectural spotlight that's designed for circular economy, on a large monopoint enclosure](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Large-Monopoint-Stone-Rumbled-Hero_a2b4bffc-2968-4bdc-be09-34dbf751d991.png?v=1695867638&width=1445)
![A large bar and restaurant venue in London with high-power, low-budget spotlights and pendants](http://factorylux.com/cdn/shop/files/Big-Penny-Social-Theres-Light-Skin-Bones-Budget-Restaurant-1_d78287b4-a8a6-4f43-8f6f-d60b0d05c087.jpg?v=1700834496&width=1445)
![Technical drawing of a budget circular economy spotlight on a large monopoint mounting for architects](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Large-Monopoint-Line-Drawing_44c9215d-ea57-47f7-9ff9-a12741a15a2b.jpg?v=1700834496&width=1445)

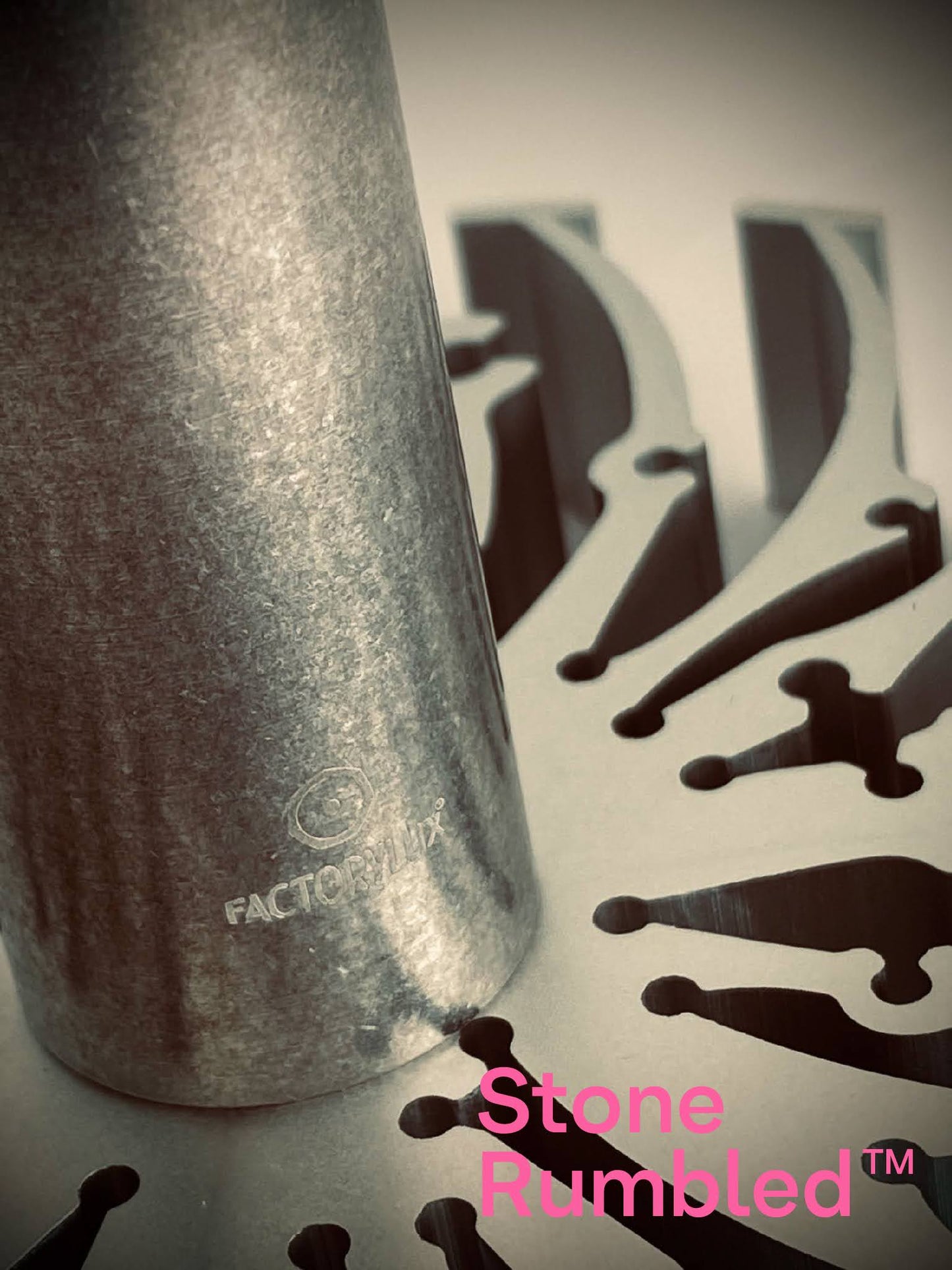

![Close up of a sustainable budget spotlight for architects, revealing a raw aluminium surface texture](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Skin-Bones-Stone-Rumbled-Colour-Texture-Close-Up_0c1a0641-a323-4138-89f4-d1bf10d8e9de.jpg?v=1700834496&width=1445)

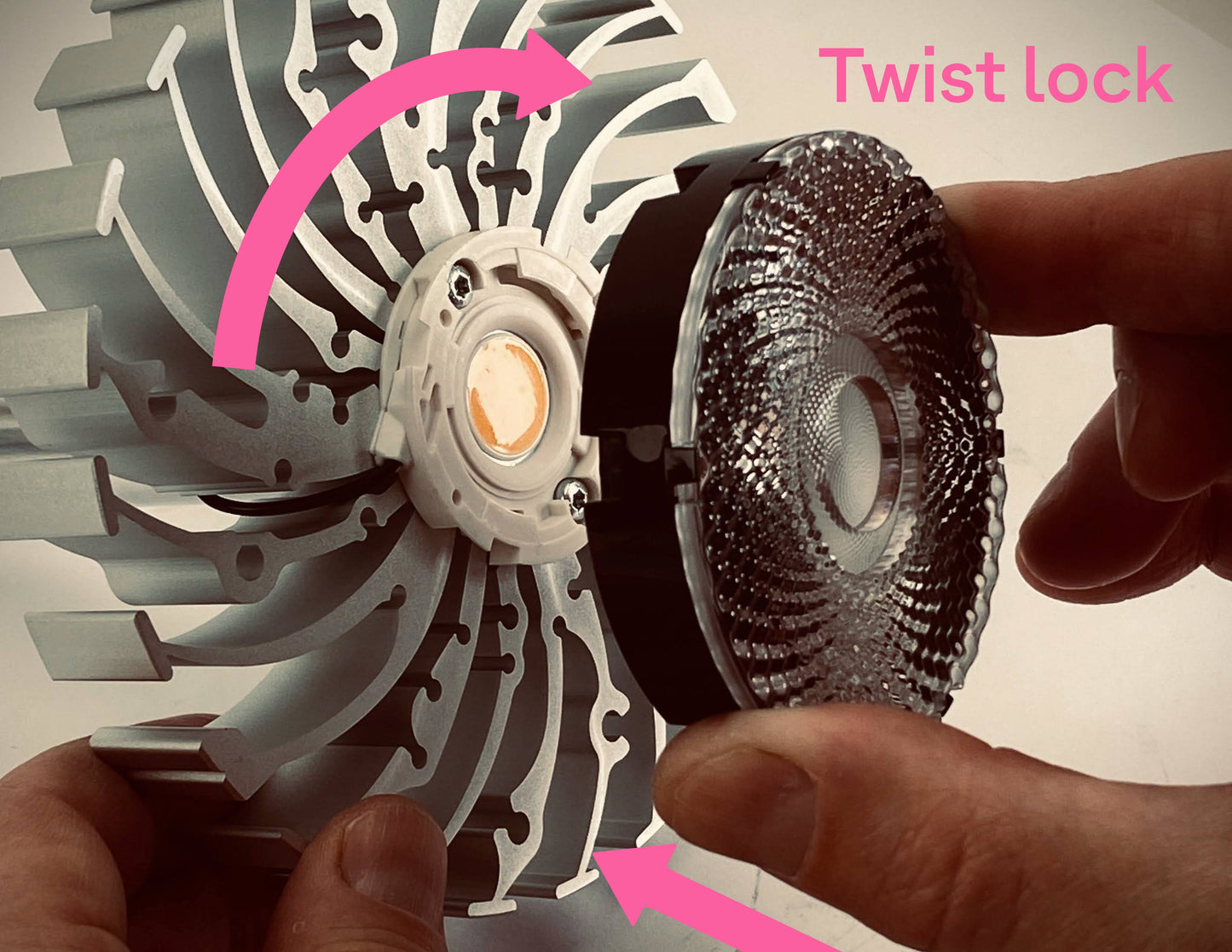

![How to insert the lens into a sustainable, paint-free, architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Budget-Pendant-Light-Skin-Bones-Stone-Rumbled-Removable-Lens_a40d0bef-00a3-47c8-b45c-ede45690e058.jpg?v=1700834496&width=1445)
![How to attach honeycomb louvre onto a sustainable, paint-free, architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Light-Skin-Bones-Stone-Rumbled-Honeycomb-Louvre_7d1b0923-ba1b-4a8f-b5d7-8bf453633764.jpg?v=1700834496&width=1445)
![How to adjust and lock-off the knuckle joint using a hex key, on a sustainable, paint-free architectural spotlight made by Factorylux](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Stone-Rumbled-Knuckle-Joint-Adjust_f2020c91-b6ac-47aa-952d-94a2622daae9.jpg?v=1700834496&width=1445)

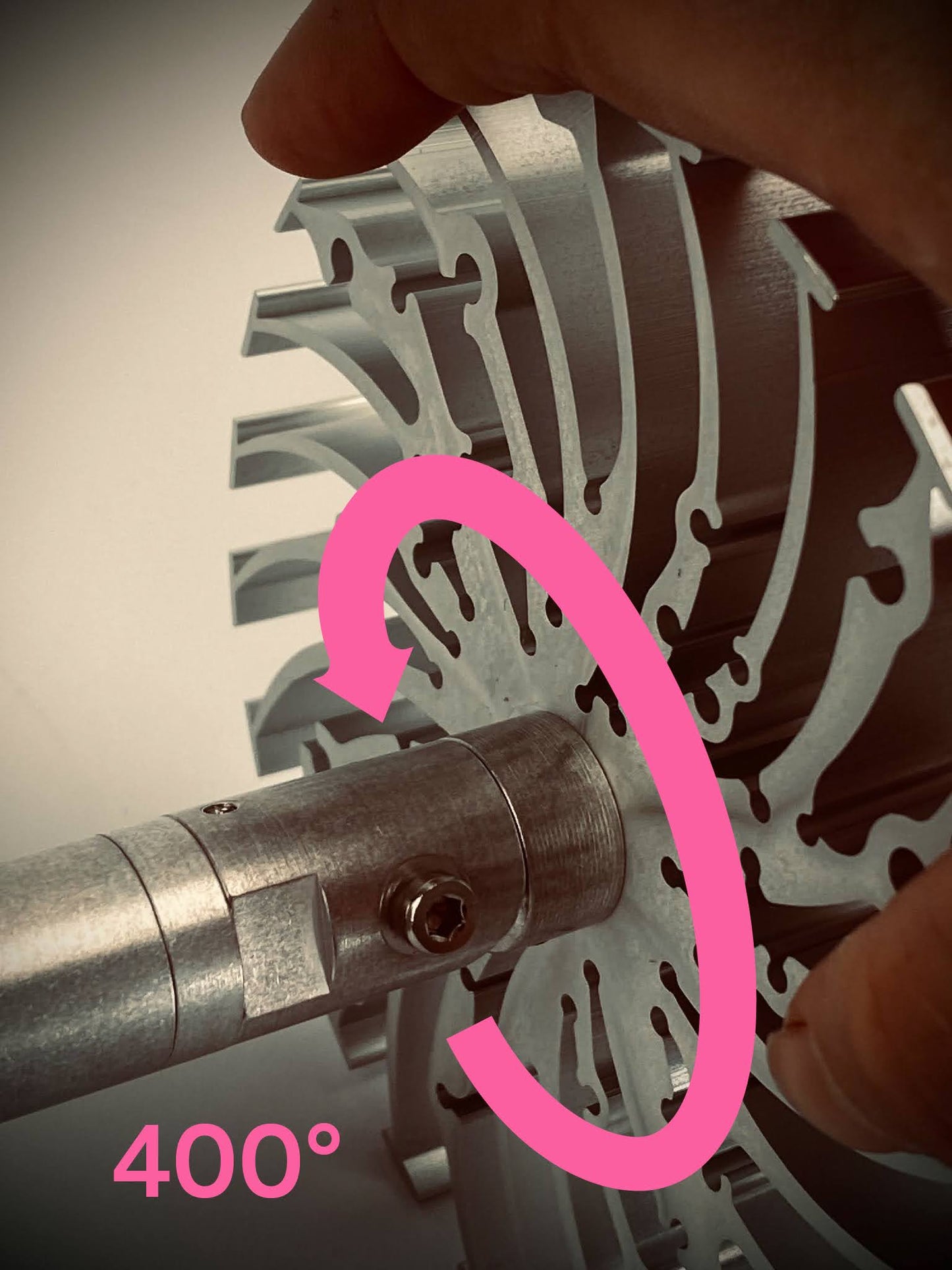

![How to rotate swivel joint on a sustainable, paint-free architectural spotlight made by Factorylux](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Stone-Rumbled-Swivel-Joint-Rotate_11d73746-f38c-4aa8-b3a0-b0c9047fa01c.jpg?v=1700834496&width=1445)

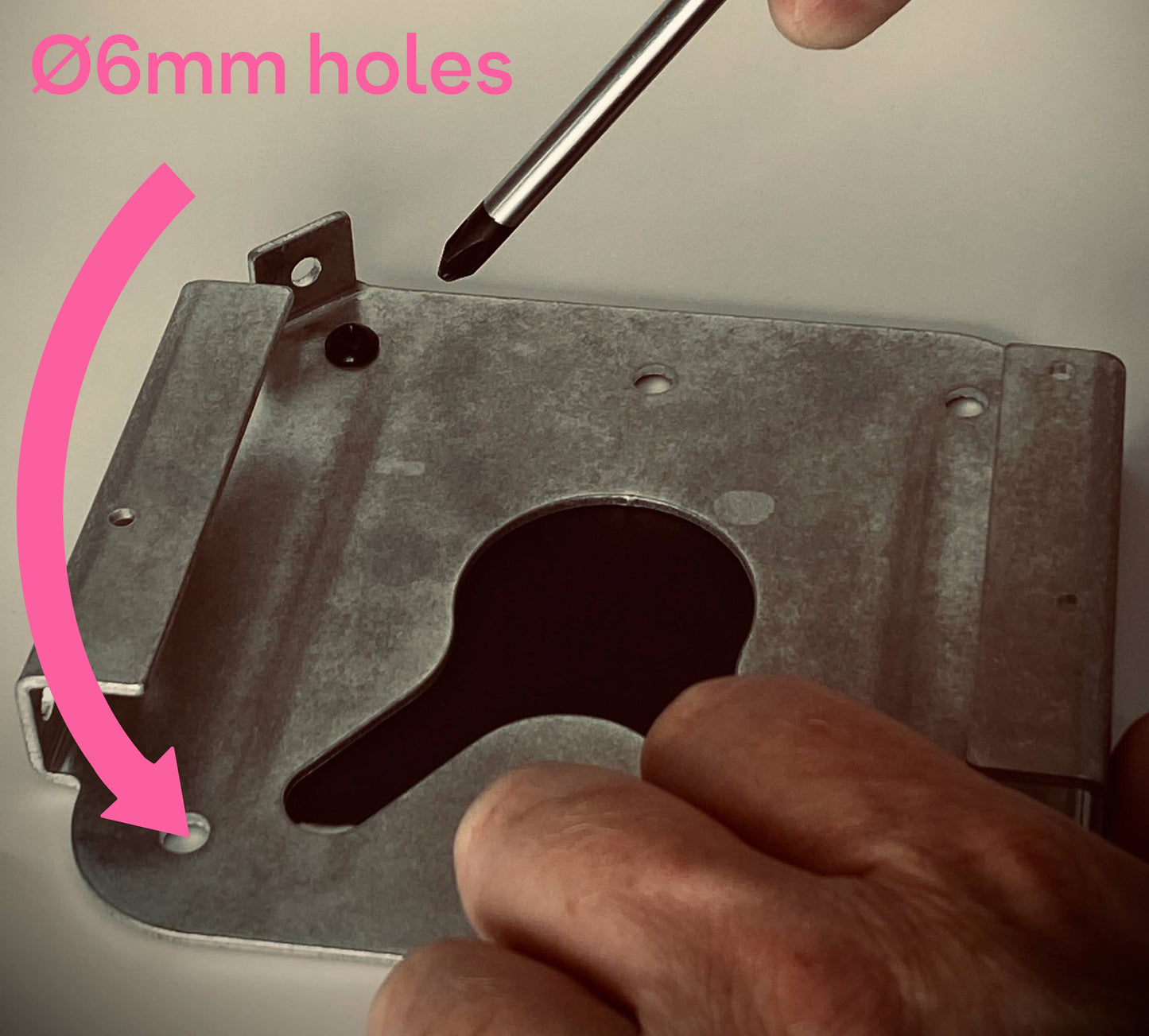

![How to install large monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Base-Install-Stone-Rumbled_778d96cf-53a5-4605-a939-55f78cee99f2.jpg?v=1700834496&width=1445)

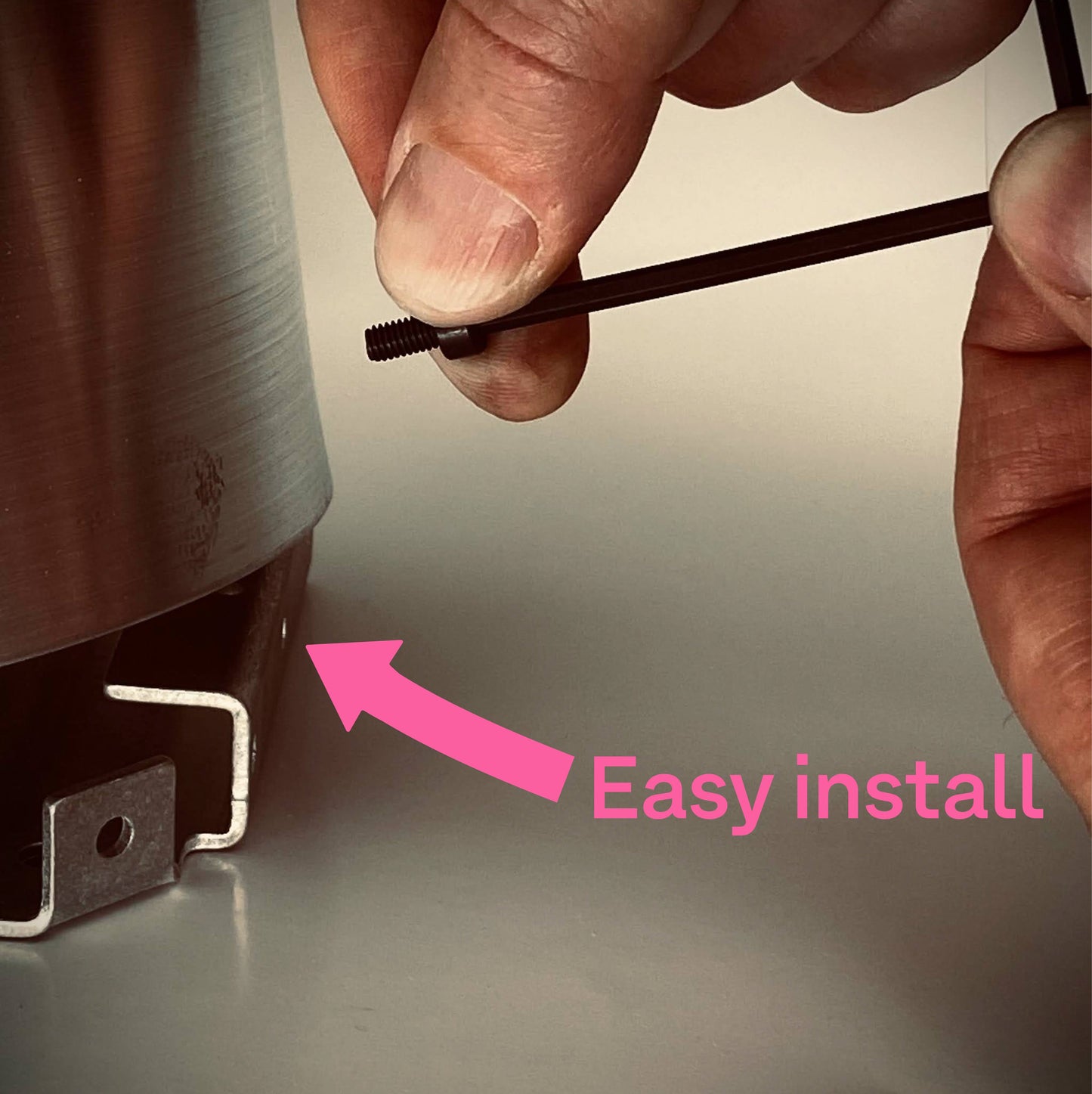

![How to install large monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Top-Install-Stone-Rumbled_00cef1c4-a736-4637-bf71-bc1198588cc0.jpg?v=1700834496&width=1445)

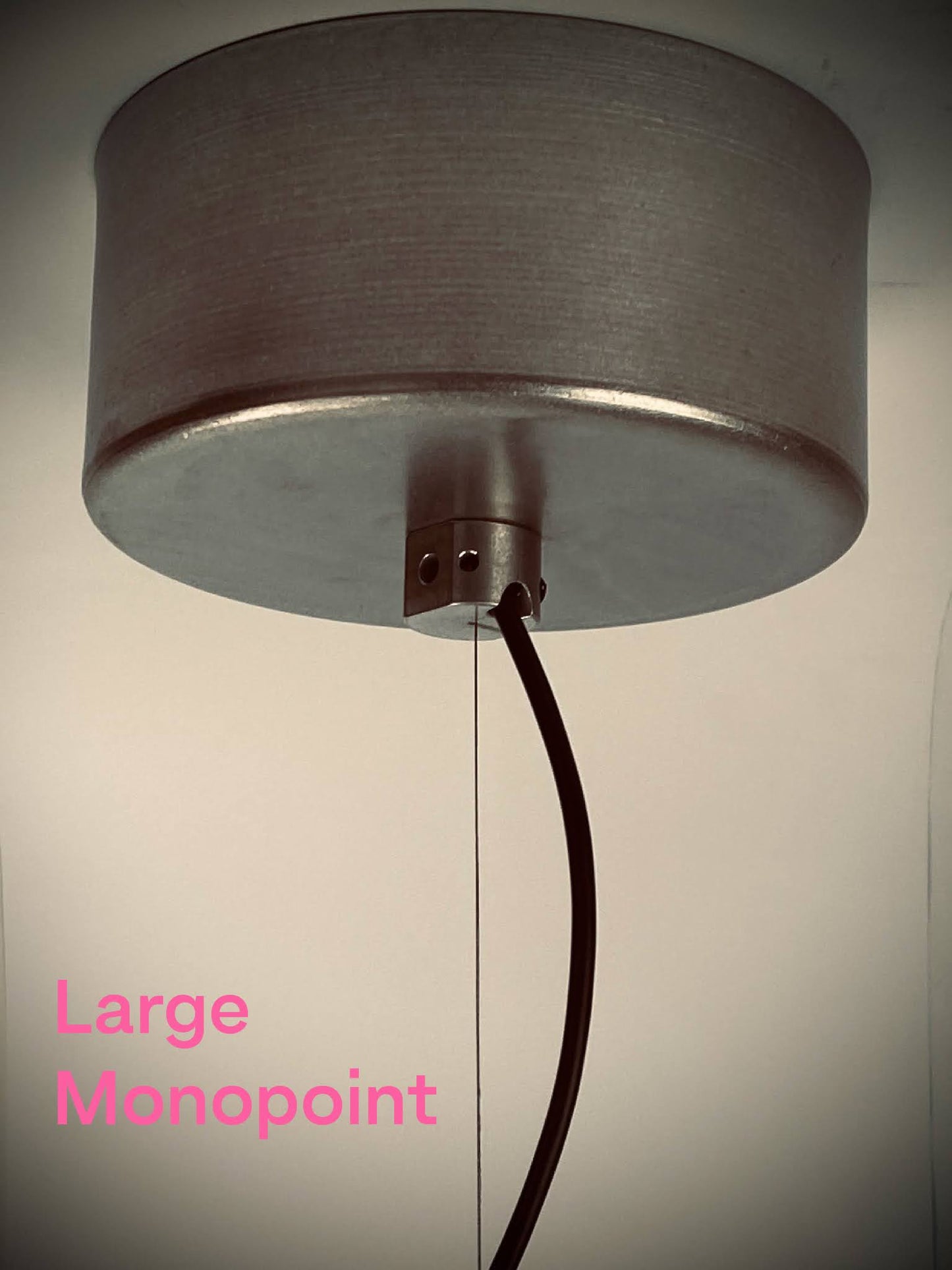

![Installed large monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Large-Monopoint-Complete-Install-Stone-Rumbled_dacd8dca-74c1-42da-8020-a3d25b29f868.jpg?v=1700834496&width=1445)

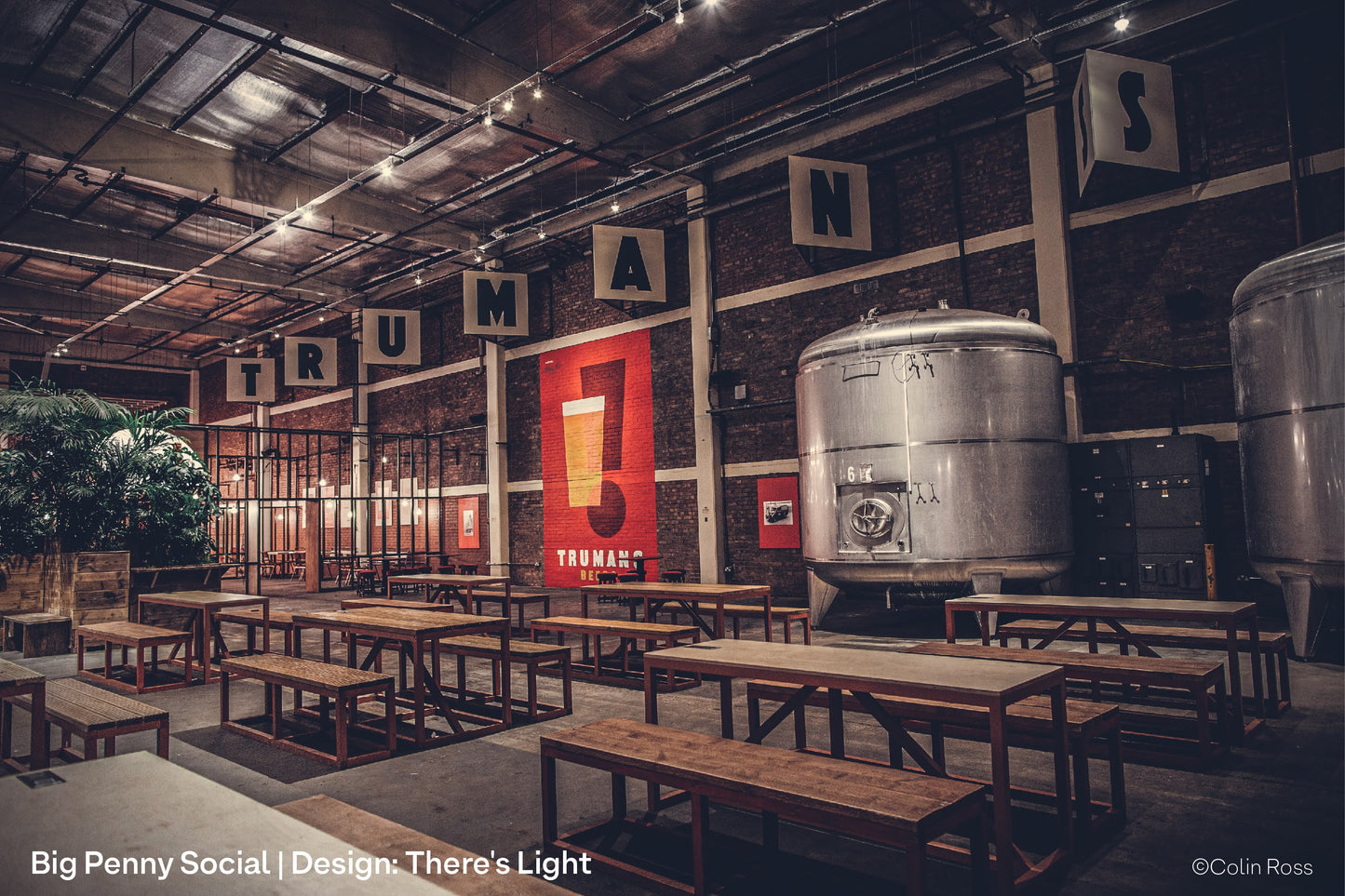

![A large bar and restaurant venue in London with high-power, low-budget spotlights and pendants](http://factorylux.com/cdn/shop/files/Big-Penny-Social-Theres-Light-Skin-Bones-Budget-Restaurant-6_38045b0e-8bc9-4bfb-8afa-3a5634ca7de1.jpg?v=1697133503&width=1445)
