Technical Specification
Technical Specification
- Supply Voltage: 100-250 V~AC
- Primary Material: Aluminium
- Finish: Stone-Rumbled™
- Weight: 0.6kg
- Mounting: Small Monopoint | Large Monopoint | Track Adapter | Disc Monopoint
- IP Rating: IP20
- CRI: >90
- Luminous Flux: 4050lm 2700K | 4300lm 3000K | 4600lm 3500K | 4750lm 4000K
- Luminaire Efficacy: Up to 101 lm/W at Max output (greater efficacy at lower outputs)
- Current (mA max.): 1050mA
- Power Consumption (max. typ.): 41.4 W
- Colour Temperature: 2700K | 3000K | 3500K | 4000K
- Colour Consistency: ≤ 1x2 MccAdams Ellipses
- Colour Stability: <0.003 ∆ u',v' 50,000 hrs
- Lumen Maintenance: 50,000 hrs L70/B0/F0
- Optics / Beam Angles: 21°, 38°, 59°
- Accessories: Honeycomb Louvre
- Operating Temp: Ambient -20°C/+25°C
- Control: Switched/1-10V, DALI, Casambi
- Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL1598
- Manufacture: UK
Description
Description
This architectural spotlight was the first product we ever DFMA'd (Design For Manufacturing Assembly) from inception. It's an engineering methodology that produced a high-tech product with very unorthodox looks and a low, low price point. Skin+Bones™ delivers so much bounce to the ounce, a 1000m² space can now be professionally lit for under £12k 😳
'Small Monopoint' is a 65mm diameter X 30mm deep circular spotlight mounting / enclosure for housing electrical connections, with a sturdy, flat lid. Standard BESA (50.8mm) rear hole spacings for surface mounting to walls, ceilings, cable tray or other suitable surfaces / materials.
Stone-Rumbled™ is our low-energy, no-pollution, endlessly repeatable surface finish for raw aluminium. It creates a natural, consistent texture and is your healthiest alternative to regular paint or powder coatings.
Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.
Body:
- 100% free-from paint, plastic & adhesives
- No microplastic pollution
- No Isocyanates or VOC (volatile organic compound) off-gassing
- Repair, upgrade or disassemble with standard tools
Electronics:
- High-efficacy, replaceable LED
- Long-life, replaceable driver
- PVC-free cables
Closed Loop Circular Economy:
- Make-Unmake™: our factory can disassemble 'used' Stone-Rumbled body components and 're-rumble' back to 'new' again (and again)
- Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
- 100% Designed & assembled in Yorkshire
- Component origins include UK, EU, Mexico, Taiwan, China & Phillipines

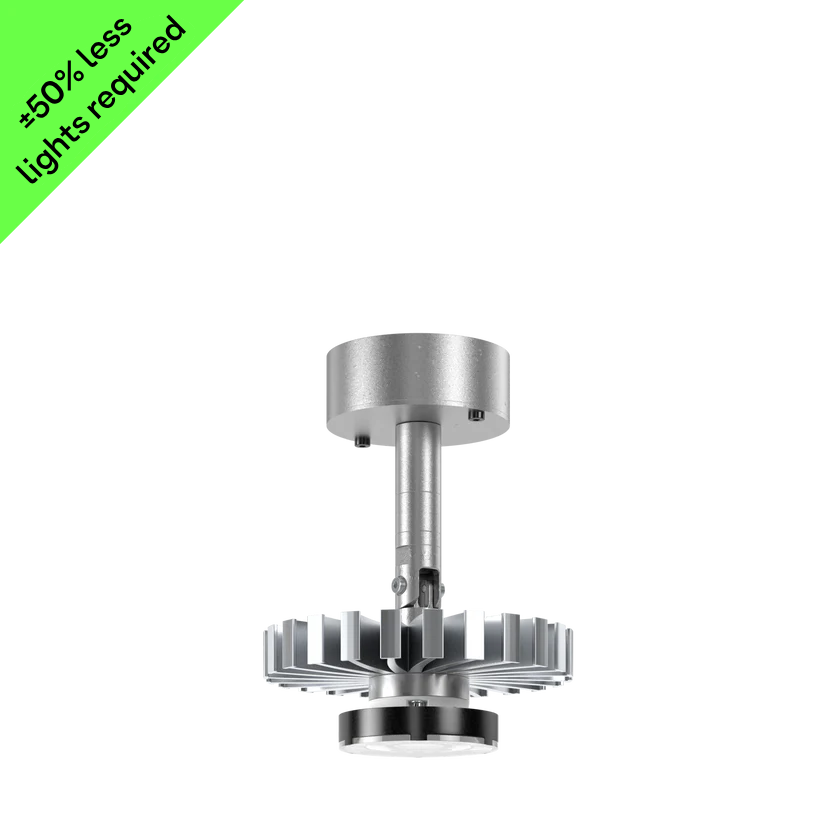

![A budget architectural spotlight that's designed for circular economy, on a small monopoint enclosure](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Small-Monopoint-Stone-Rumbled-Hero.png?v=1713337499&width=1445)

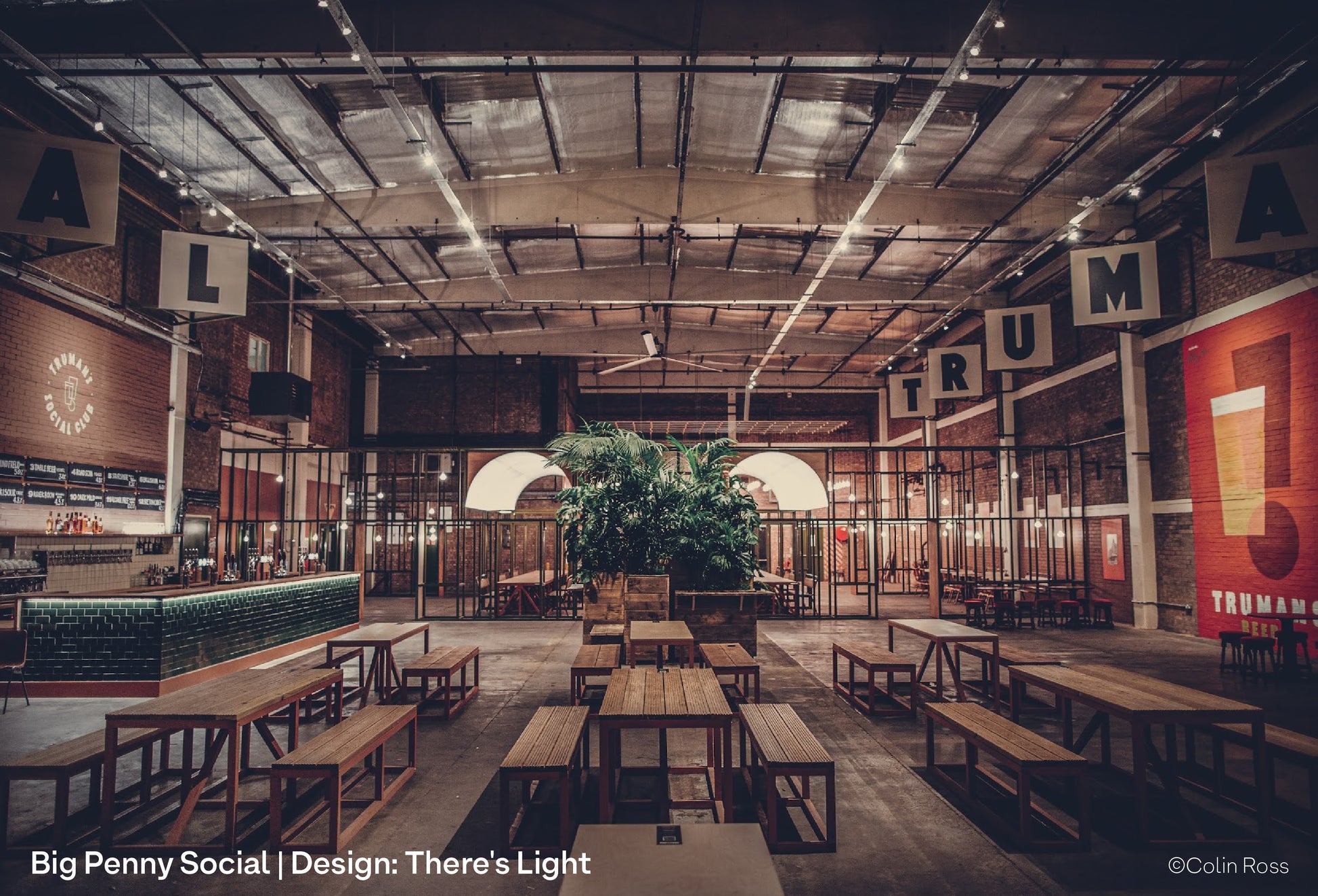

![A large bar and restaurant venue in London with high-power, low-budget spotlights and pendants](http://factorylux.com/cdn/shop/files/Big-Penny-Social-Theres-Light-Skin-Bones-Budget-Restaurant-1_159e9929-ada5-422c-9b62-2d88a9642734.jpg?v=1700834510&width=1445)

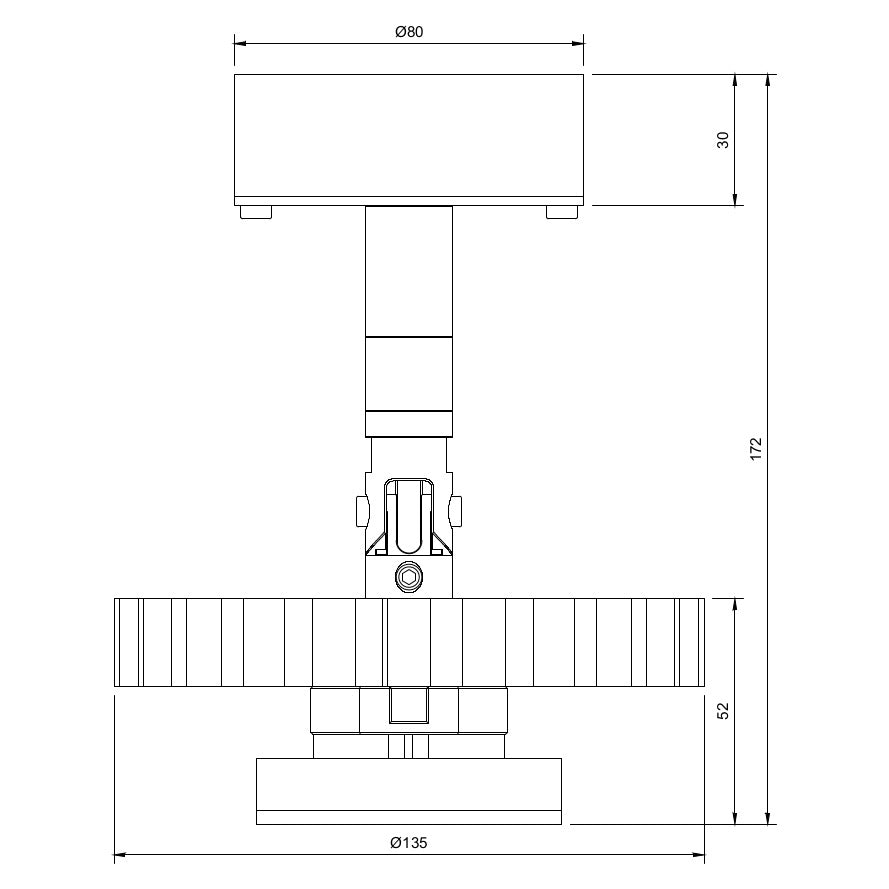

![Technical drawing of a budget circular economy spotlight on a small monopoint mounting for architects](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Small-Monopoint-Line-Drawing.jpg?v=1700834510&width=1445)

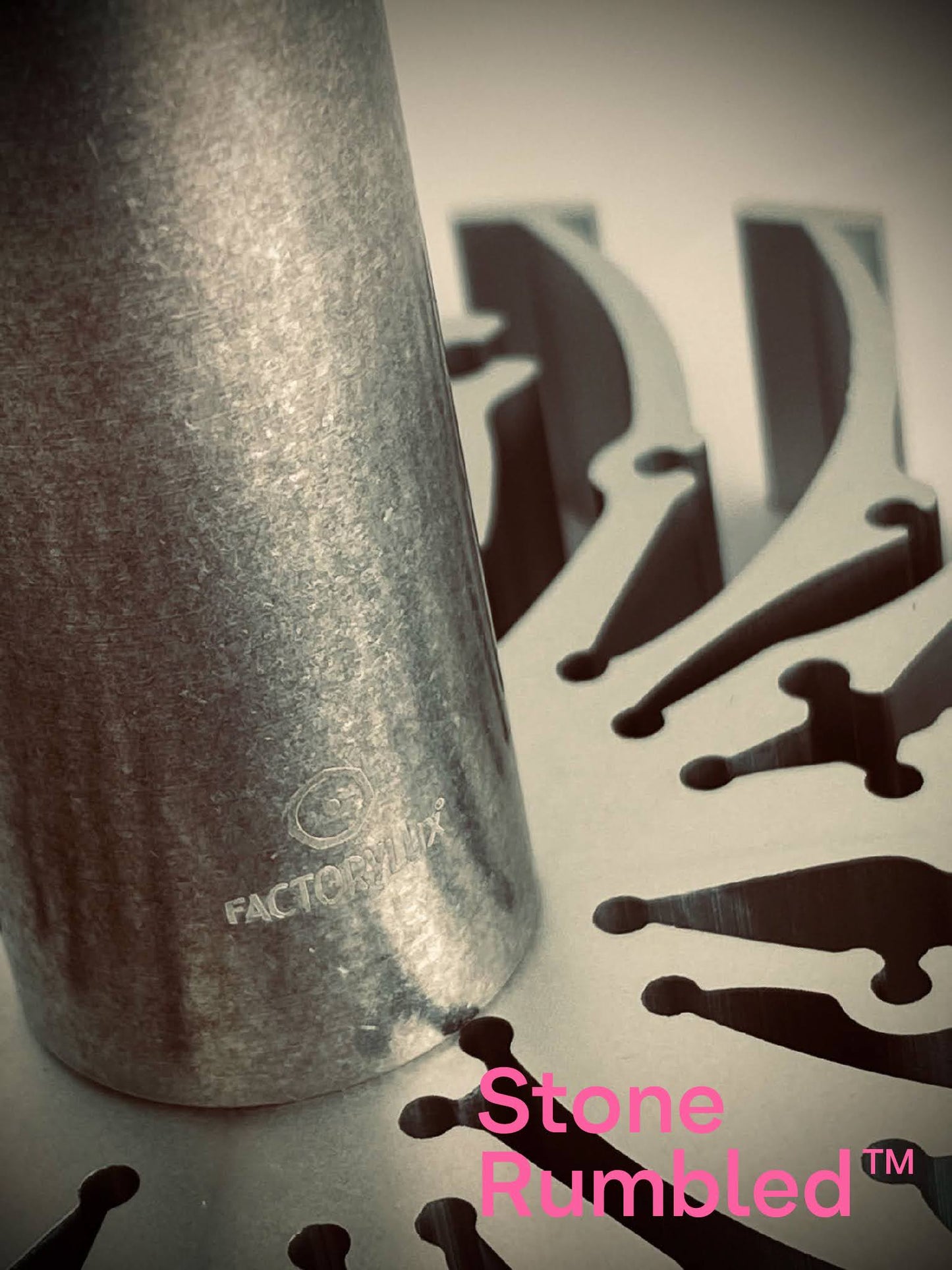

![Close up of a sustainable budget spotlight for architects, revealing a raw aluminium surface texture](http://factorylux.com/cdn/shop/files/Factorylux-Pendant-Skin-Bones-Stone-Rumbled-Colour-Texture-Close-Up_7240da06-b36e-461b-ab2e-5bd70a19a39e.jpg?v=1700834510&width=1445)

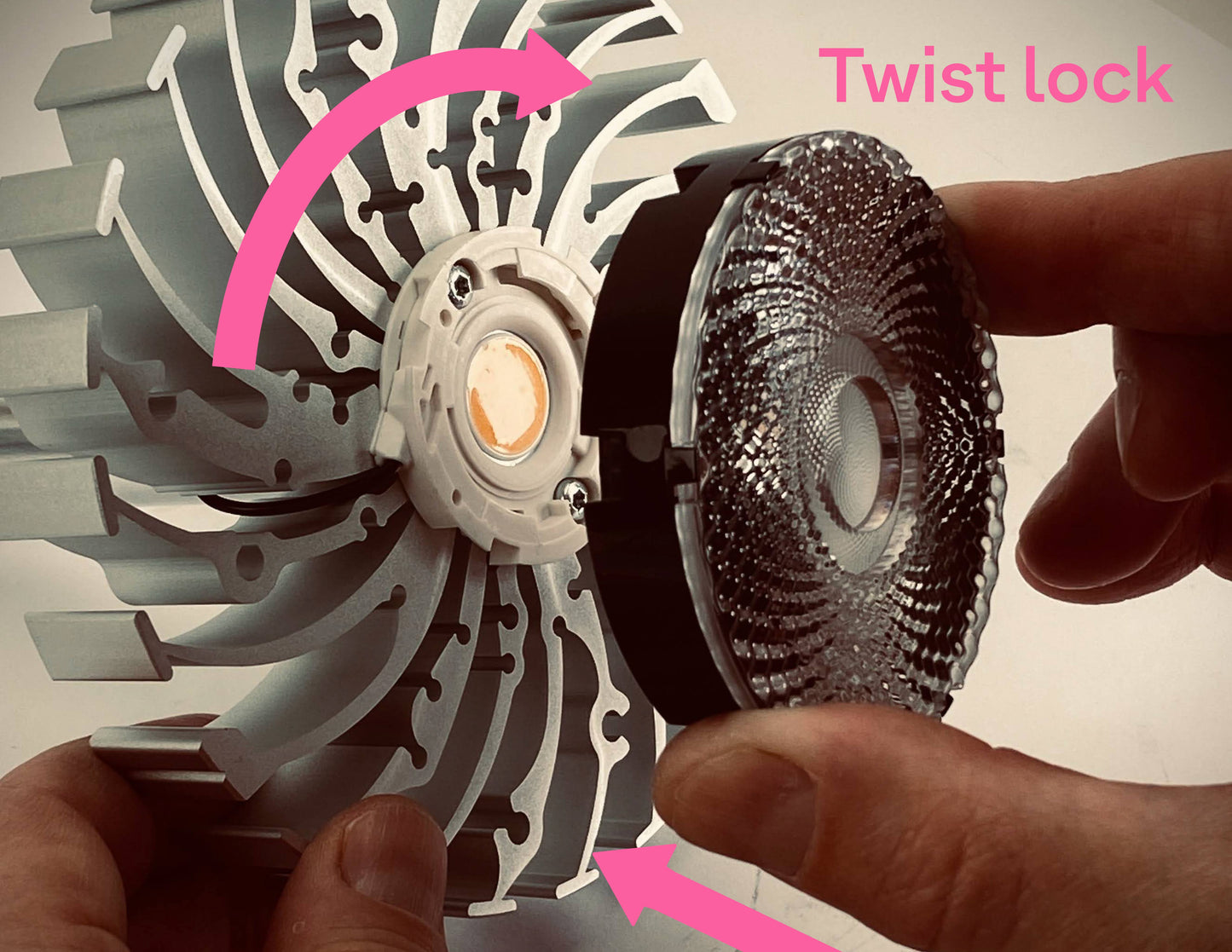

![How to insert the lens into a sustainable, paint-free, architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Budget-Pendant-Light-Skin-Bones-Stone-Rumbled-Removable-Lens_94d19152-2676-499b-97ab-bff403618403.jpg?v=1700834510&width=1445)

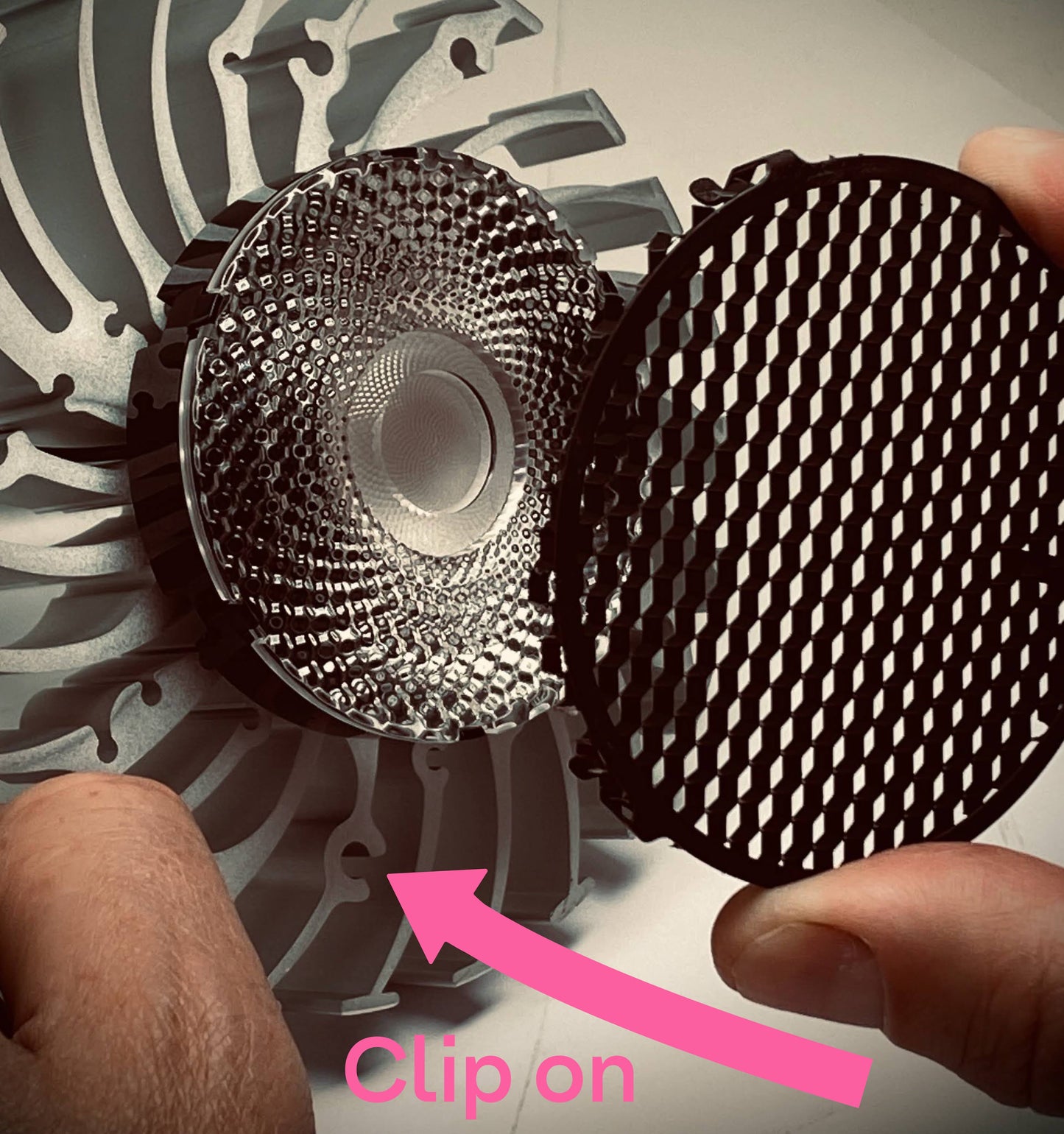

![How to attach honeycomb louvre onto a sustainable, paint-free, architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Light-Skin-Bones-Stone-Rumbled-Honeycomb-Louvre_db08c7a2-9534-4c72-b2be-4258d42eb0e3.jpg?v=1700834510&width=1445)

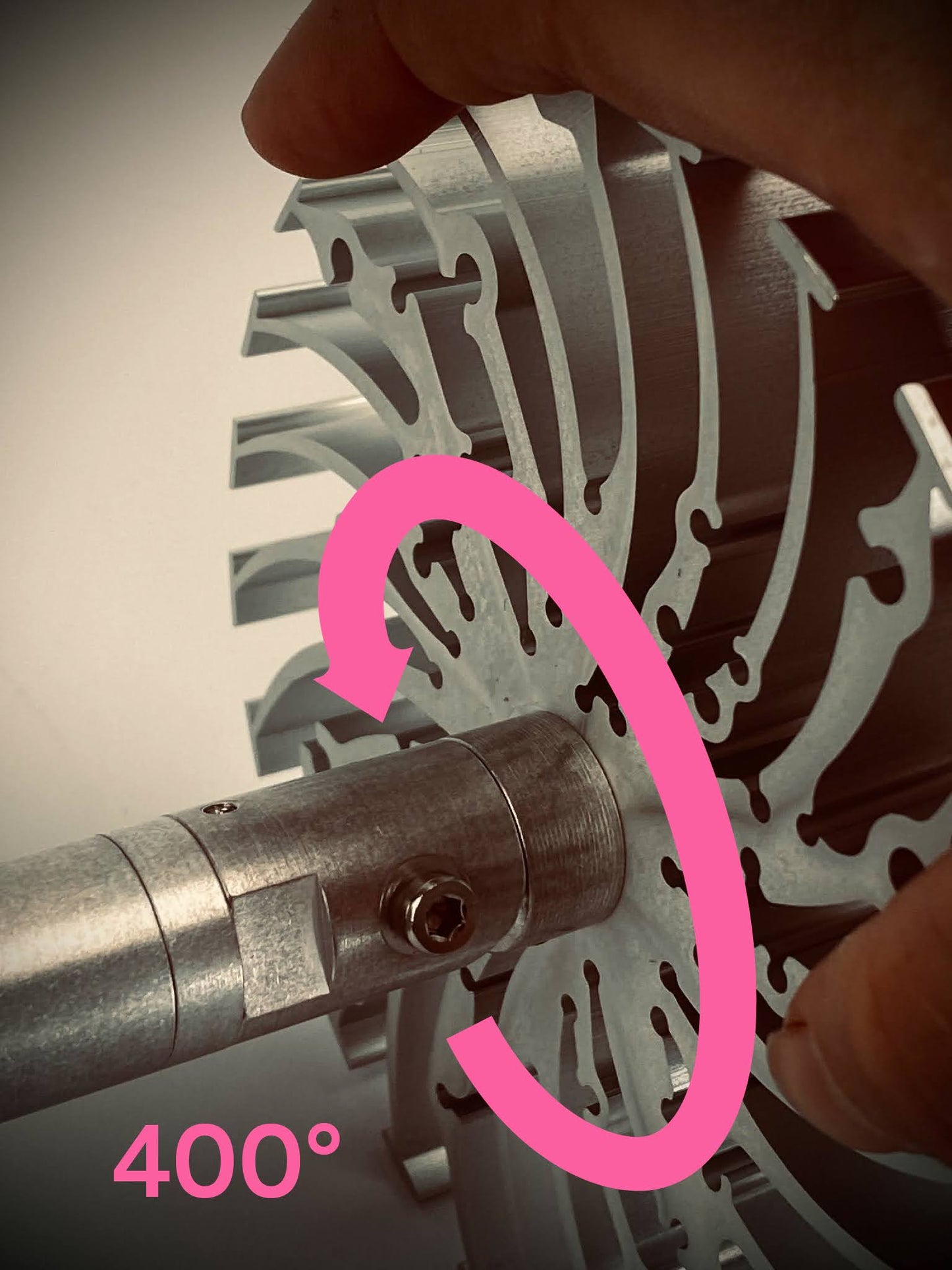

![How to rotate swivel joint on a sustainable, paint-free architectural spotlight made by Factorylux](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Stone-Rumbled-Swivel-Joint-Rotate_5eb2c84b-3cff-4aaa-985a-a7e30e8360c6.jpg?v=1700834510&width=1445)

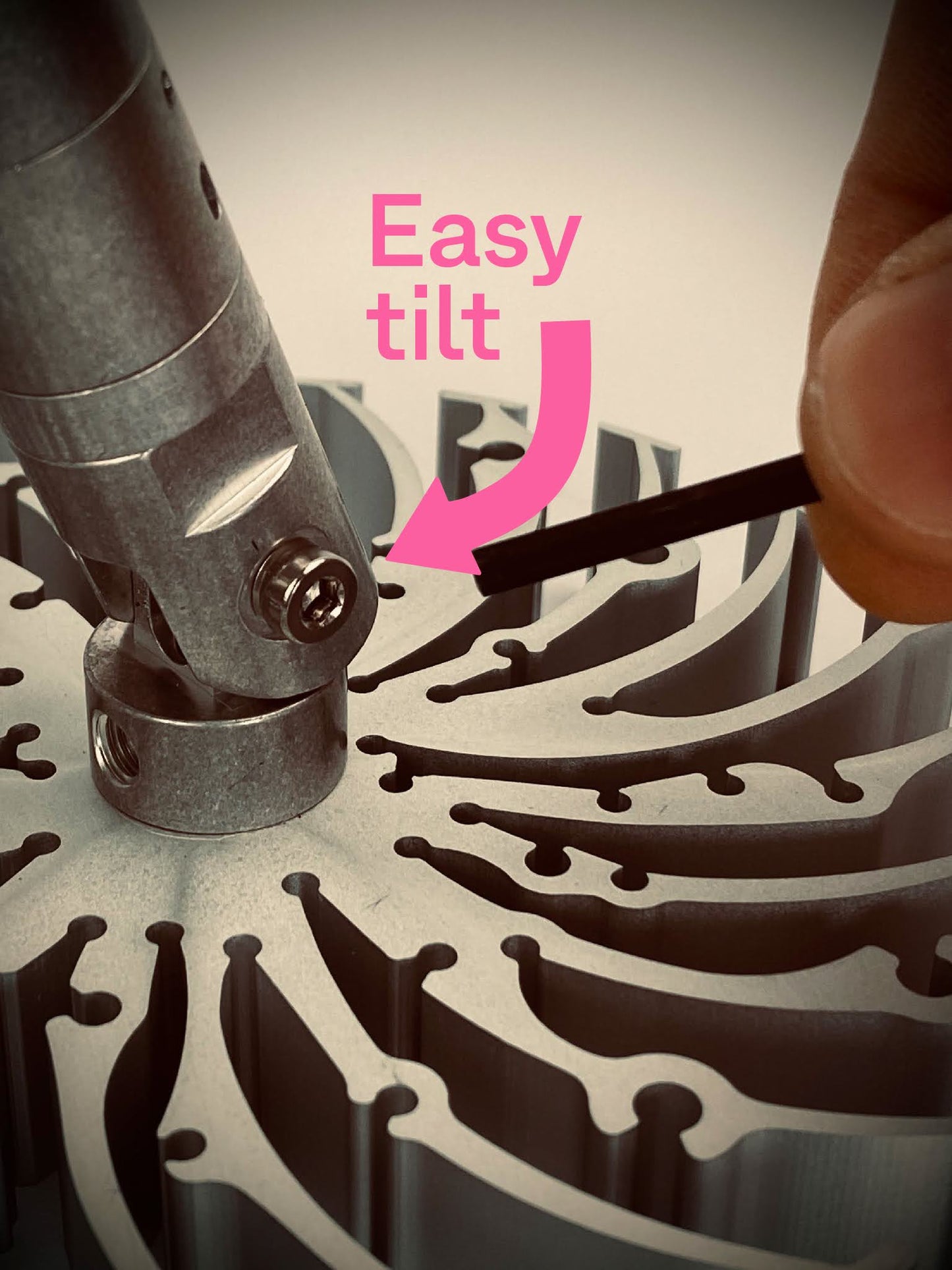

![How to adjust and lock-off the knuckle joint using a hex key, on a sustainable, paint-free architectural spotlight made by Factorylux](http://factorylux.com/cdn/shop/files/Factorylux-Spotlight-Skin-Bones-Stone-Rumbled-Knuckle-Joint-Adjust_4df50a6e-8242-4afc-b4b2-97238baac42e.jpg?v=1700834510&width=1445)

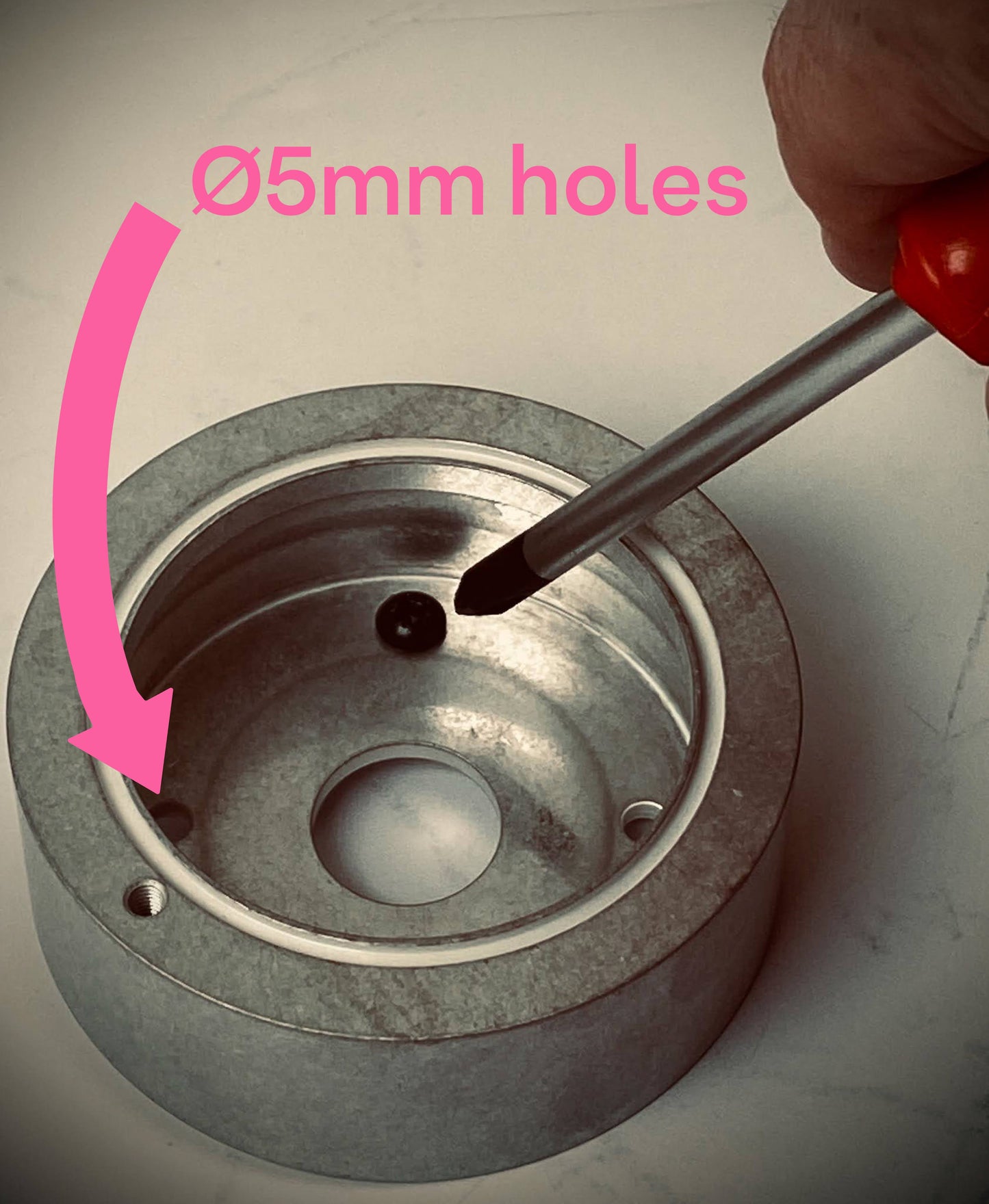

![How to install small monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Small-Monopoint-Base-Install-Stone-Rumbled_4d0c5499-df17-4053-aae2-9d18765aaa2c.jpg?v=1700834510&width=1445)

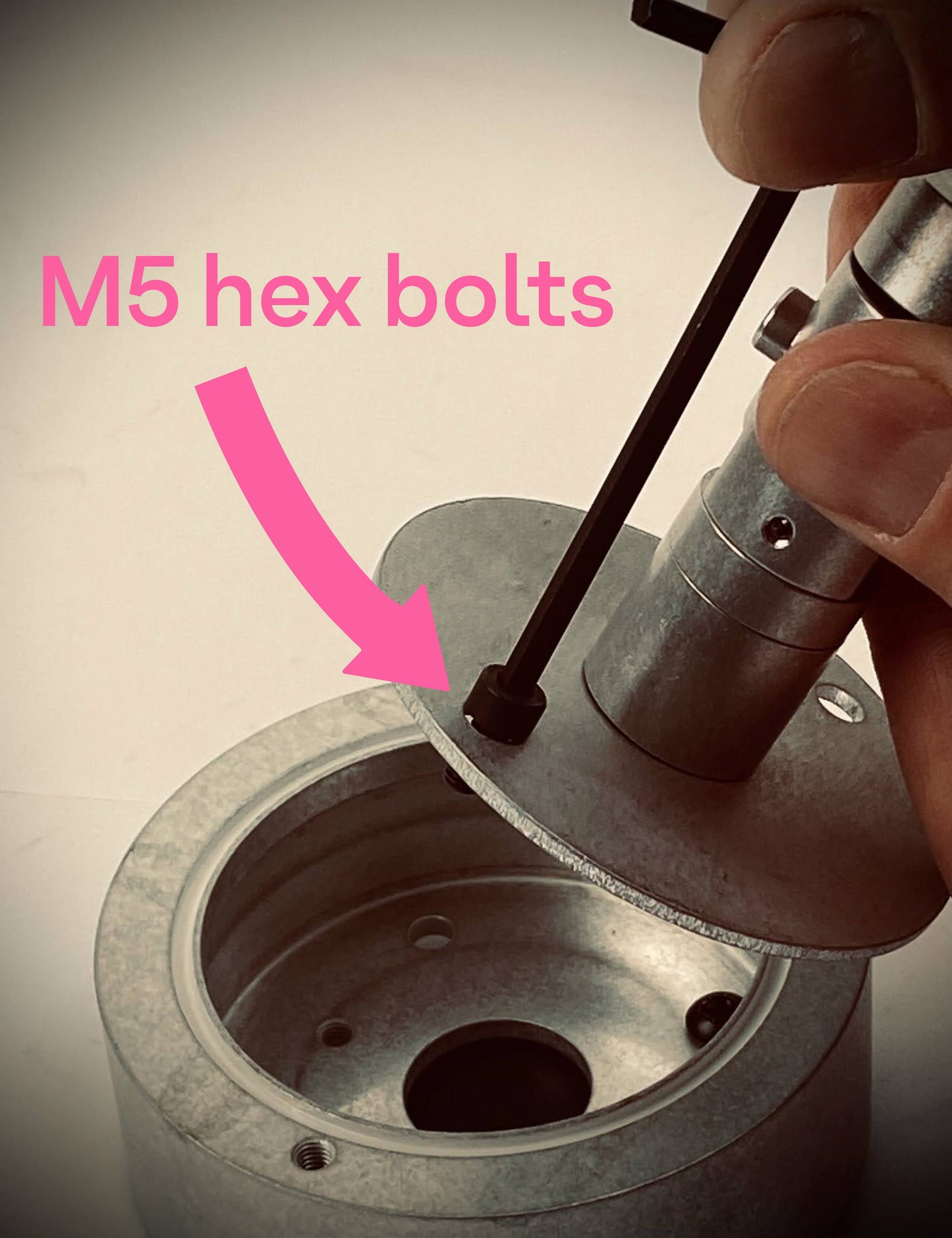

![How to install small monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Small-Monopoint-Top-Install-Stone-Rumbled_4cec529c-23ef-432c-9533-e07c9b5fb319.jpg?v=1700834510&width=1445)

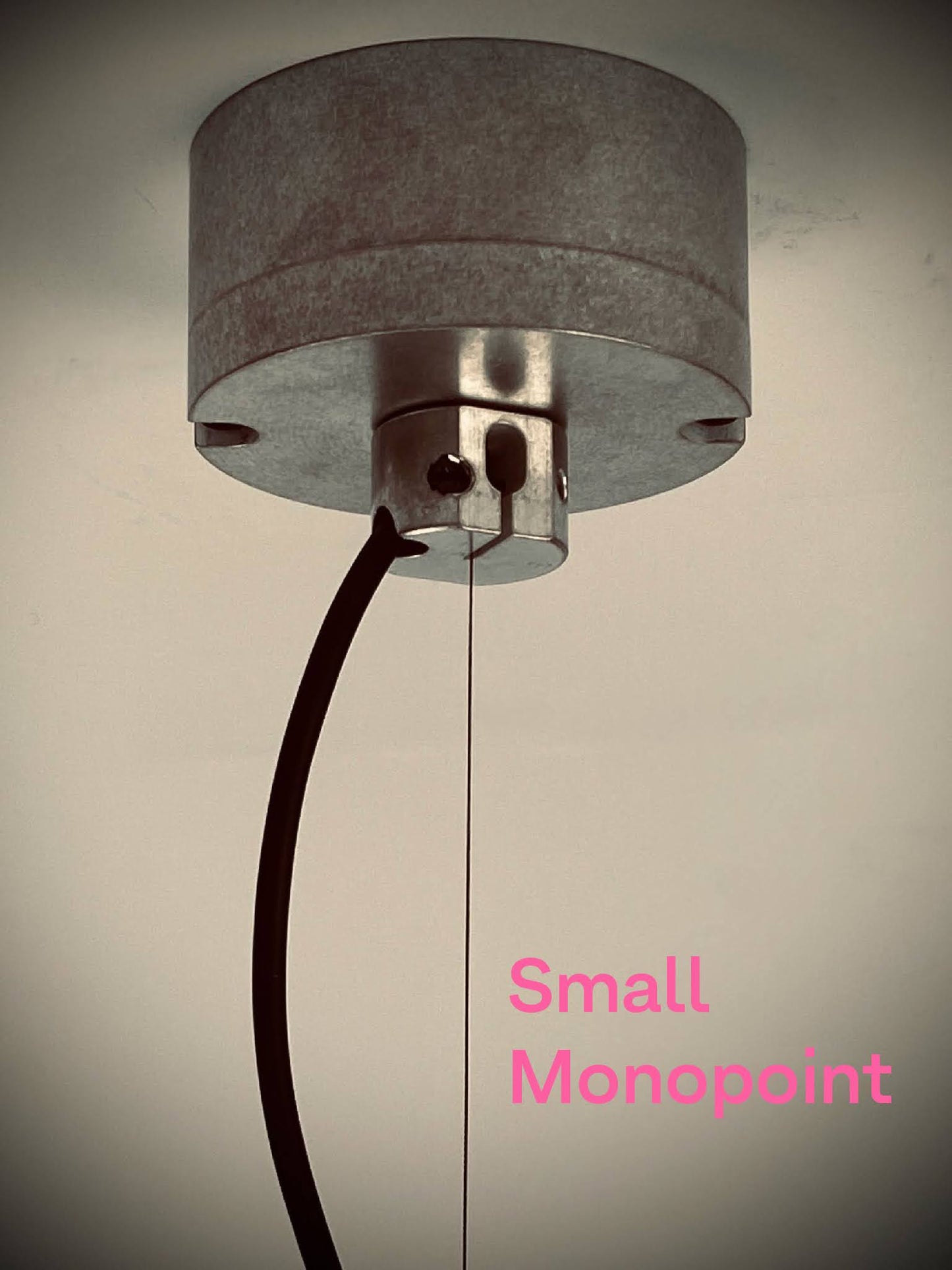

![Installed small monopoint for a budget architectural spotlight that was designed for circular economy](http://factorylux.com/cdn/shop/files/Factorylux-Circular-Economy-Small-Monopoint-Complete-Install-Stone-Rumbled_afa6d5a4-1f43-473b-a2df-d85bc9ac4b84.jpg?v=1700834510&width=1445)

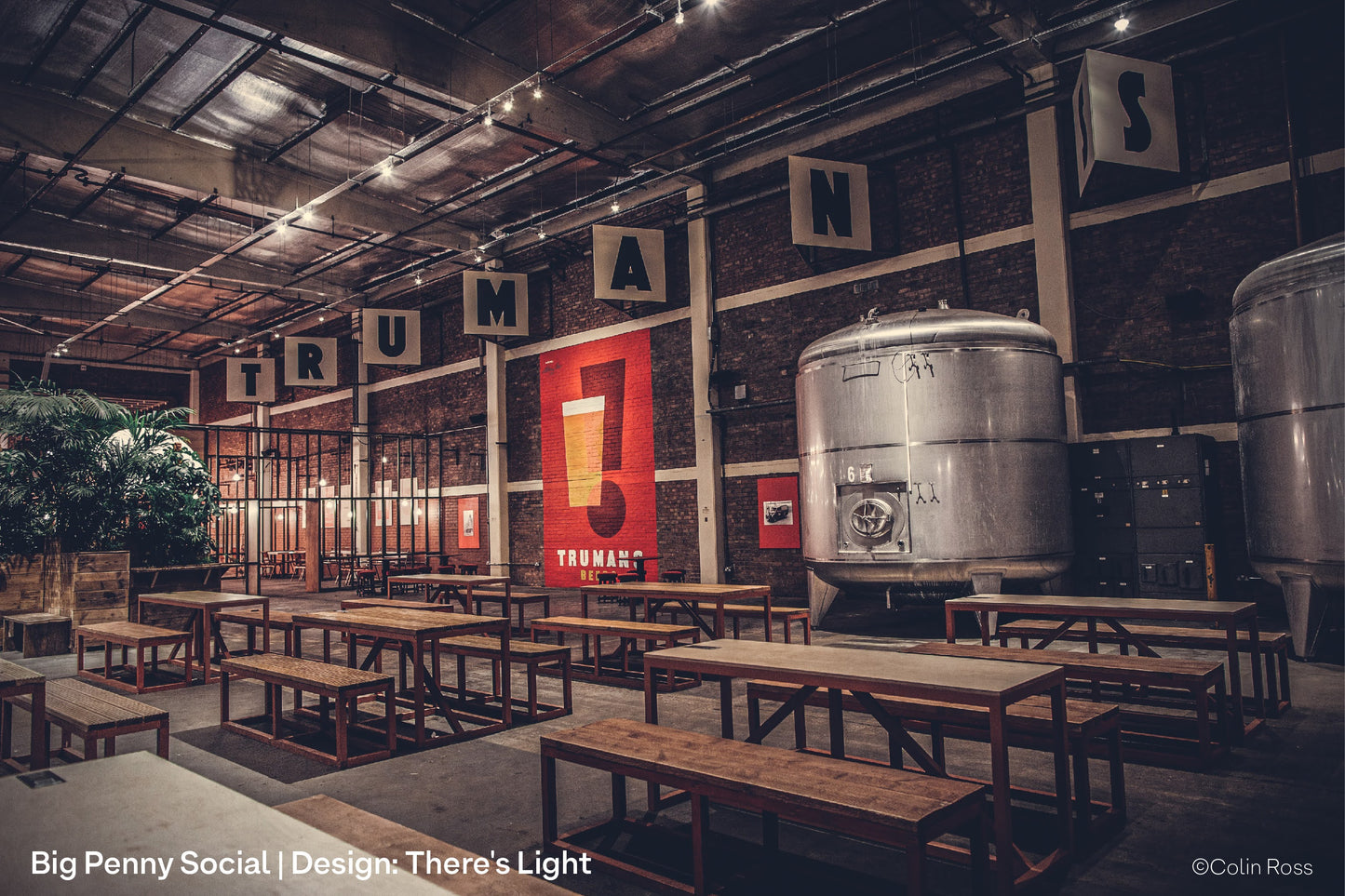

![A large bar and restaurant venue in London with high-power, low-budget spotlights and pendants](http://factorylux.com/cdn/shop/files/Big-Penny-Social-Theres-Light-Skin-Bones-Budget-Restaurant-6_d2054d5c-60ff-473a-bc59-897e0b5ec90a.jpg?v=1697133551&width=1445)
